1mvk

X-ray structure of the tetrameric mutant of the B1 domain of streptococcal protein G

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Immunoglobulin G binding protein G

;Streptococcus sp. 'group G' ;

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 1 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 1 water × 4	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPG1_STRSG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–56； UniProt 228–282 Author chain B； PDBConstruct 2–56； UniProt 228–282 Author chain C； PDBConstruct 2–56； UniProt 228–282 Author chain D； PDBConstruct 2–56； UniProt 228–282 Author chain E； PDBConstruct 2–56； UniProt 228–282 Author chain F； PDBConstruct 2–56； UniProt 228–282 Author chain G； PDBConstruct 2–56； UniProt 228–282 Author chain H； PDBConstruct 2–56； UniProt 228–282 Author chain I； PDBConstruct 2–56； UniProt 228–282 Author chain J； PDBConstruct 2–56； UniProt 228–282 Author chain K； PDBConstruct 2–56； UniProt 228–282 Author chain L； PDBConstruct 2–56； UniProt 228–282

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mvk
Deposition date deposition_date	2002-09-25
Structure title title	X-ray structure of the tetrameric mutant of the B1 domain of streptococcal protein G
Keywords keywords	strand-exchanged tetramer, channel, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1mvk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1mvk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

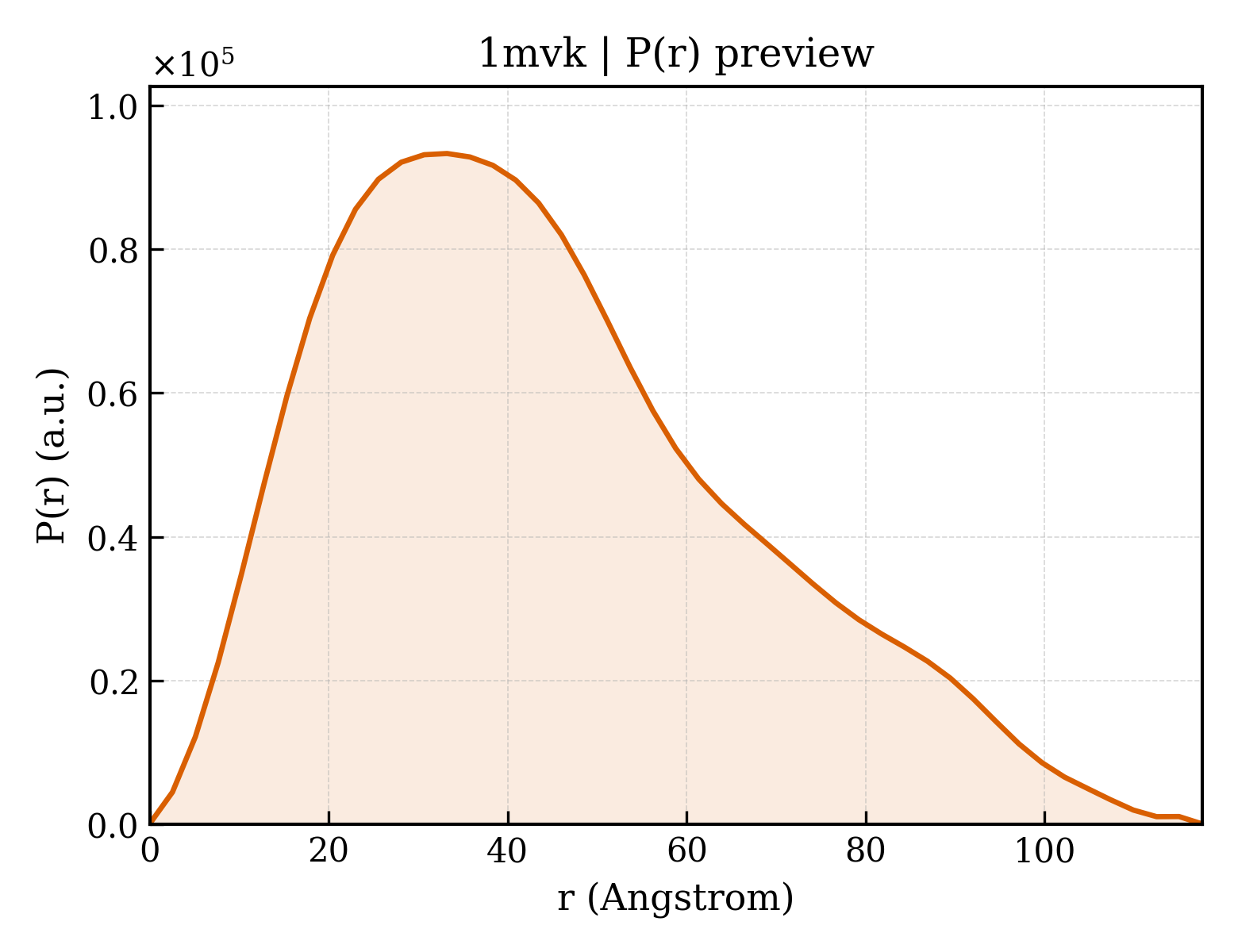

1mvk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.58 Å
Rg (electron density)	18.54 Å
Total Rg	19.32 Å
Atom count	1484
Residues	183
Excluded volume	26220 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1mvk__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1mvk__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1mvk__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Immunoglobulin G binding protein G
Molecular weight formula_weight	6302.9 kDa
Mutation mutation	T2Q, L5V, A26F, F30V, Y33F, A34F
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	4718

MQYKVILNGKTLKGETTTEAVDAATFEKVVKQFFNDNGVDGEWTYDDATKTFTVTE

Source Source

Source organism organism	;Streptococcus sp. 'group G' ;
NCBI taxonomy ID ncbi_taxonomy_id	1320
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	218

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1mvka_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1mvkb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1mvkc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1mvkd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1mvke_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1mvkf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1mvkg_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1mvkh_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1mvki_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1mvkj_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1mvkk_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1mvkl_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

CATH v4.4 (12 domains)

Domain ID domain_id	1mvkA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1mvkB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1mvkC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1mvkD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1mvkE00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1mvkF00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1mvkG00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1mvkH00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1mvkI00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1mvkJ00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1mvkK00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1mvkL00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	76.100 Å
Unit-cell length b length_b	210.400 Å
Unit-cell length c length_c	55.300 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2370
R_work r_work	0.2370
R_free r_free	0.2830
