1q10

Ensemble of 40 Structures of the Dimeric Mutant of the B1 Domain of Streptococcal Protein G

Method: SOLUTION NMR

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Immunoglobulin G binding protein G

;Streptococcus sp. 'group G' ;

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPG1_STRSG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–56； UniProt 228–282 Author chain B； PDBConstruct 2–56； UniProt 228–282

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1q10
Deposition date deposition_date	2003-07-18
Structure title title	Ensemble of 40 Structures of the Dimeric Mutant of the B1 Domain of Streptococcal Protein G
Keywords keywords	GB1, core mutants, domain-swapping, oligomerization, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	SOLUTION NMR

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1q10__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

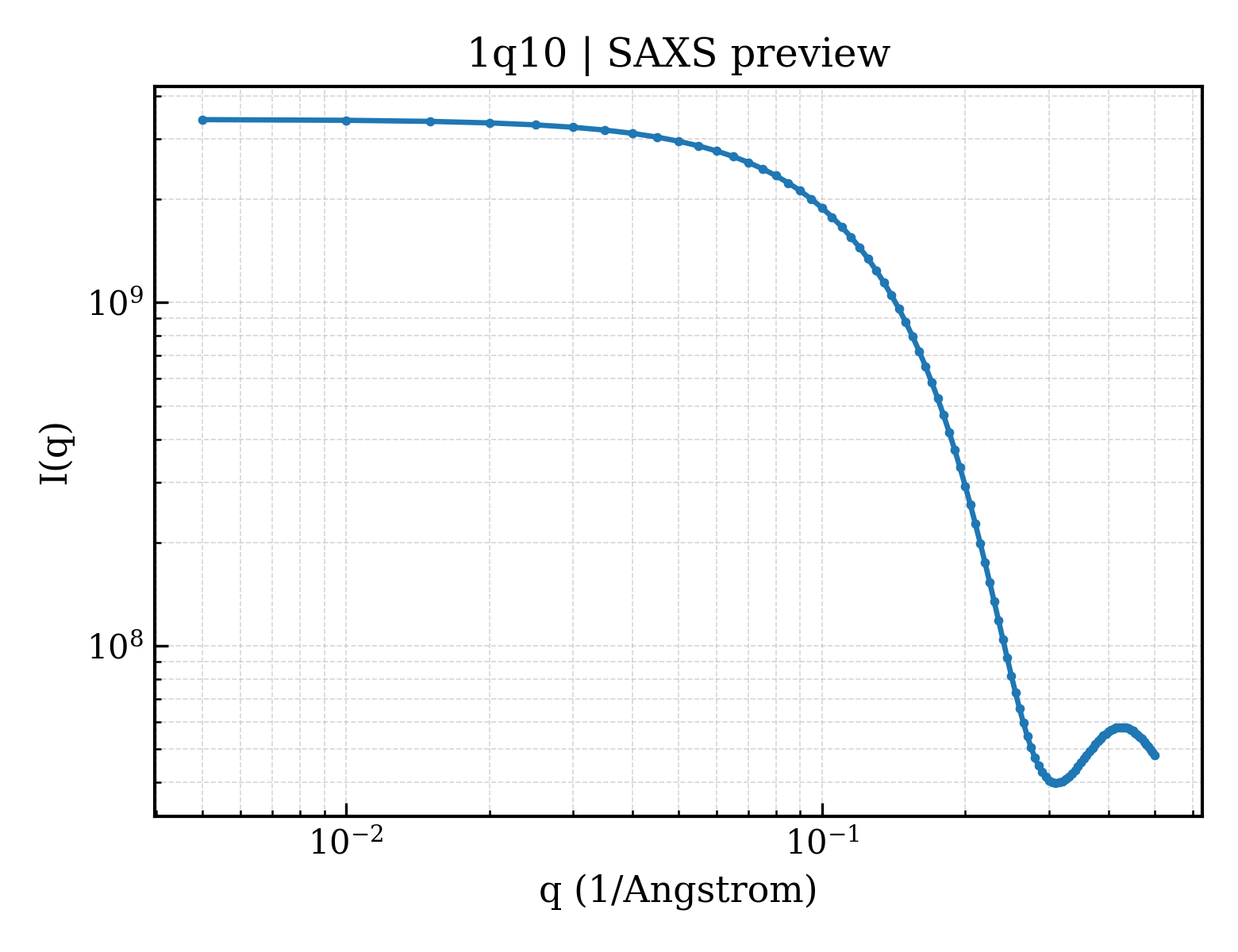

1q10__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

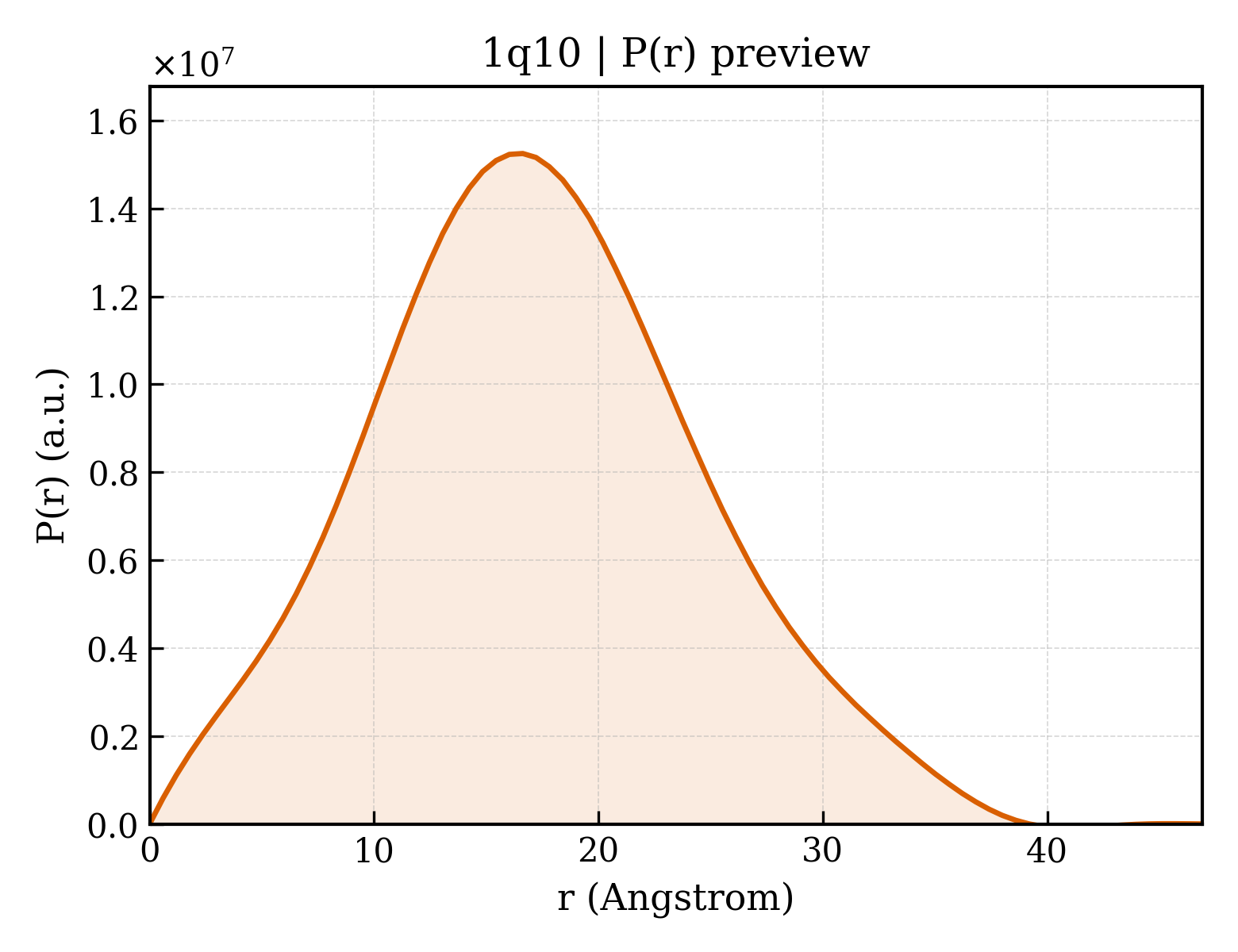

1q10__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.51 Å
Rg (electron density)	13.37 Å
Total Rg	14.71 Å
Atom count	1720
Residues	112
Excluded volume	15501 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1q10__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	2	`1q10__assembly_1__model_2`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	3	`1q10__assembly_1__model_3`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	4	`1q10__assembly_1__model_4`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	5	`1q10__assembly_1__model_5`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	6	`1q10__assembly_1__model_6`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	7	`1q10__assembly_1__model_7`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	8	`1q10__assembly_1__model_8`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	9	`1q10__assembly_1__model_9`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	10	`1q10__assembly_1__model_10`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	11	`1q10__assembly_1__model_11`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	12	`1q10__assembly_1__model_12`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	13	`1q10__assembly_1__model_13`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	14	`1q10__assembly_1__model_14`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	15	`1q10__assembly_1__model_15`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	16	`1q10__assembly_1__model_16`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	17	`1q10__assembly_1__model_17`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	18	`1q10__assembly_1__model_18`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	19	`1q10__assembly_1__model_19`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	20	`1q10__assembly_1__model_20`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	21	`1q10__assembly_1__model_21`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	22	`1q10__assembly_1__model_22`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	23	`1q10__assembly_1__model_23`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	24	`1q10__assembly_1__model_24`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	25	`1q10__assembly_1__model_25`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	26	`1q10__assembly_1__model_26`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	27	`1q10__assembly_1__model_27`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	28	`1q10__assembly_1__model_28`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	29	`1q10__assembly_1__model_29`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	30	`1q10__assembly_1__model_30`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	31	`1q10__assembly_1__model_31`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	32	`1q10__assembly_1__model_32`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	33	`1q10__assembly_1__model_33`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	34	`1q10__assembly_1__model_34`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	35	`1q10__assembly_1__model_35`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	36	`1q10__assembly_1__model_36`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	37	`1q10__assembly_1__model_37`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	38	`1q10__assembly_1__model_38`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	39	`1q10__assembly_1__model_39`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	40	`1q10__assembly_1__model_40`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1q10a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1q10b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

CATH v4.4 (2 domains)

Domain ID domain_id	1q10A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1q10B00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

▶

Description description	Immunoglobulin G binding protein G
Molecular weight formula_weight	6226.8 kDa
Mutation mutation	T228Q,L231V,F256V,Y259F,A260F
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	68800

Source organism organism	;Streptococcus sp. 'group G' ;
NCBI taxonomy ID ncbi_taxonomy_id	1320
Host organism host_organism	Escherichia coli
