1ep5

CRYSTAL STRUCTURE OF THE CONSERVED CORE DOMAIN OF VENEZUALAN EQUINE ENCEPHALITIS CAPSID PROTEIN

Method: X-RAY DIFFRACTION D_max: 100.3 Å Quality: GOOD

SAXS Profile

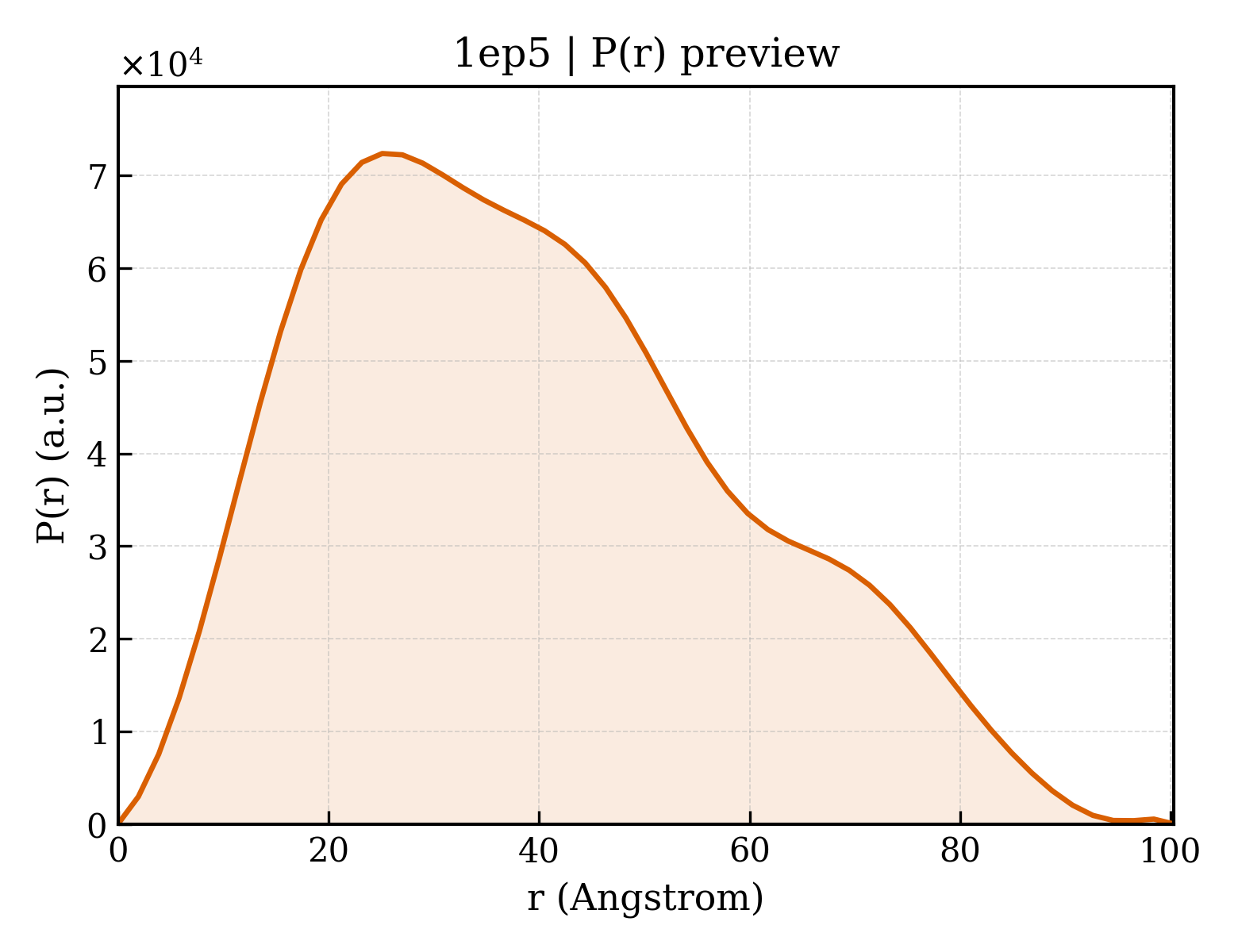

P(r) Distribution

▼

1. Structure Basics

entry_id	1ep5
deposition_date	2000-03-27
title	CRYSTAL STRUCTURE OF THE CONSERVED CORE DOMAIN OF VENEZUALAN EQUINE ENCEPHALITIS CAPSID PROTEIN
keywords	BETA BARREL, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.65 Å
rg_electron	30.29 Å
i0	45438800.00
molecular_weight	51003.0 kDa
excluded_volume	63148 Å³
envelope_volume	85322 Å³
shell_volume	25796 Å³
envelope_diameter	105.6 Å
shell_rg	34.35 Å
envelope_rg	29.79 Å
shape_rg	30.30 Å
total_rg	30.67 Å
total_atoms	3587
n_residues	465
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	100.3 Å
rg_real	30.89 Å
rg_real_error	0.78 Å
i0_real	4.5440e+07
i0_real_error	7.1870e+05
rg_reciprocal	30.79 Å
i0_reciprocal	45440000.0000
total_estimate	0.8550
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	25.1 Å
skewness	0.439
kurtosis	-0.546
angular_range	— – 0.2600 Å⁻¹
current_alpha	0.0000
highest_alpha	11660000.0000
n_real_points	53
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.847; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.736; Smooth: 0.833

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	CAPSID PROTEIN C
formula_weight	17492.9 kDa
ec_number	3.4.21.-
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	B,A,C
atom_count	3766

VMKLESDKTFPIMLEGKINGYACVVGGKLFRPMHVEGKIDNDVLAALKTKKASKYDLEYADVPQNMRADTFKYTHEKPQGYYSWHHGAVQYENGRFTVPKGVGAKGDSGRPILDNQGRVVAIVLGGVNEGSRTALSVVMWNEKGVTVKYTPENCEQW

Source

organism	Venezuelan equine encephalitis virus
ncbi_taxonomy_id	11036
host_organism	Escherichia coli

Entity 2 non-polymer

description	UREA
formula_weight	60.1 kDa
src_method	syn
entity_count	7

Entity 3 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	179

▶

6. Citations (1)

▶

length_a	69.330 Å
length_b	75.180 Å
length_c	94.660 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	12

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.300 Å
resolution_low	30.000 Å
r_factor	—
r_work	0.2280
r_free	0.2630

fit	/app/data/saxs_computation/ep/1ep5/1ep5.fit
pddf	/app/data/pr_computation/ep/1ep5/1ep5.pr.out
profile	/app/data/saxs_computation/ep/1ep5/1ep5.dat
