1ere
HUMAN ESTROGEN RECEPTOR LIGAND-BINDING DOMAIN IN COMPLEX WITH 17BETA-ESTRADIOL
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1ere |
| deposition_date | 1997-09-08 |
| title | HUMAN ESTROGEN RECEPTOR LIGAND-BINDING DOMAIN IN COMPLEX WITH 17BETA-ESTRADIOL |
| keywords | NUCLEAR RECEPTOR, TRANSCRIPTION FACTOR, STEROID, AGONIST; NUCLEAR RECEPTOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 44.10 Å |
| rg_electron | 44.38 Å |
| i0 | 362132000.00 |
| molecular_weight | 160980.0 kDa |
| excluded_volume | 203540 ų |
| envelope_volume | 264340 ų |
| shell_volume | 53252 ų |
| envelope_diameter | 152.1 Å |
| shell_rg | 45.21 Å |
| envelope_rg | 43.56 Å |
| shape_rg | 44.40 Å |
| total_rg | 44.37 Å |
| total_atoms | 11262 |
| n_residues | 1410 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

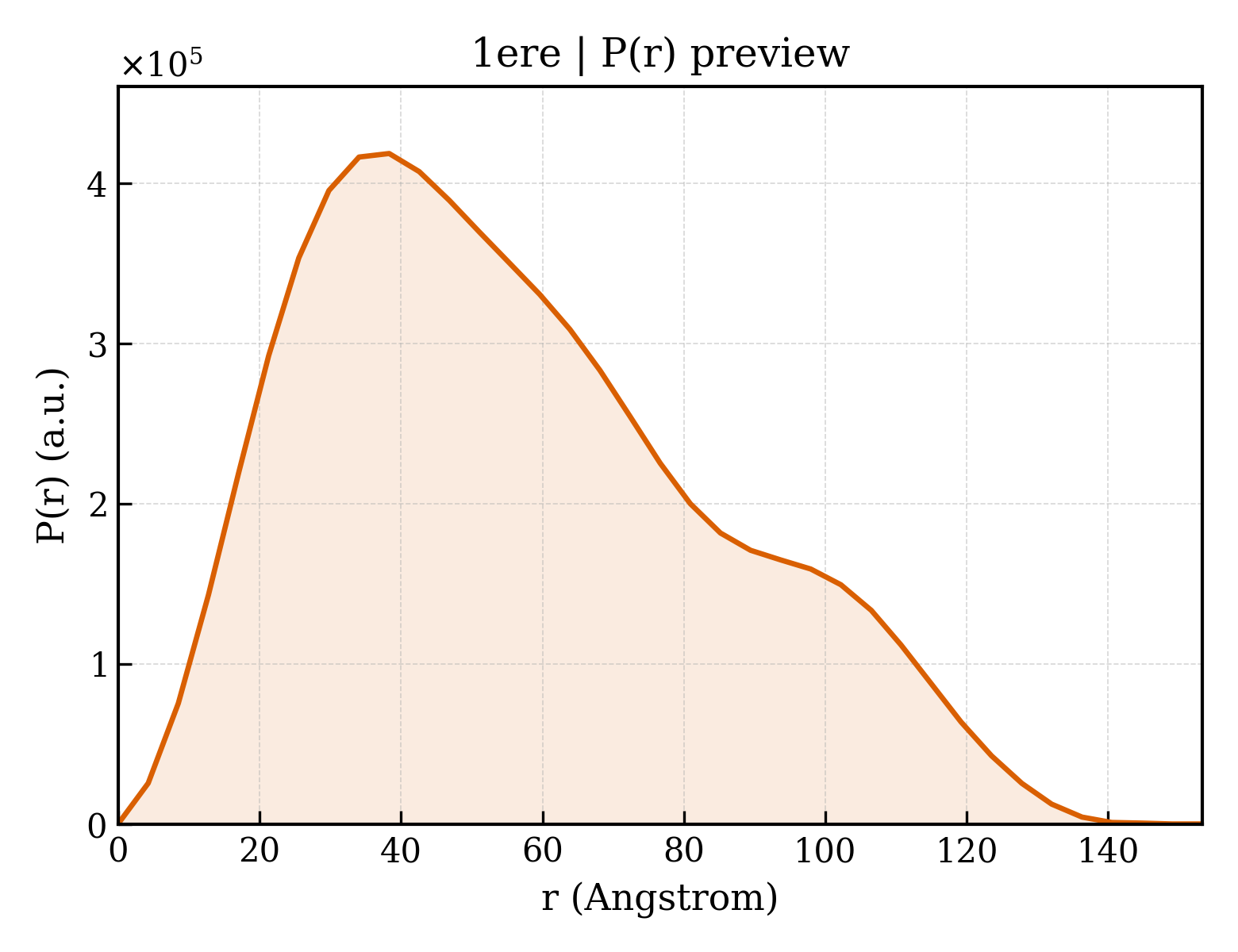

3. P(r) Analysis (GNOM)
| dmax | 153.3 Å |
| rg_real | 44.50 Å |
| rg_real_error | 1.63 Å |
| i0_real | 3.6210e+08 |
| i0_real_error | 7.2940e+06 |
| rg_reciprocal | 44.10 Å |
| i0_reciprocal | 362000000.0000 |
| total_estimate | 0.8108 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 38.3 Å |
| skewness | 0.500 |
| kurtosis | -0.539 |
| angular_range | — – 0.1800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 144500000.0000 |
| n_real_points | 37 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.664; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.697; Smooth: 0.846 |
