SAXSdb — 1l2i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ESTROGEN RECEPTOR

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	GLUCOCORTICOID RECEPTOR-INTERACTING PROTEIN 1 × 2 （Q61026） CHLORIDE ION × 1 (R,R)-5,11-CIS-DIETHYL-5,6,11,12-TETRAHYDROCHRYSENE-2,8-DIOL × 2 water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	GLUCOCORTICOID RECEPTOR-INTERACTING PROTEIN 1 × 2 （Q61026） CHLORIDE ION × 1 (R,R)-5,11-CIS-DIETHYL-5,6,11,12-TETRAHYDROCHRYSENE-2,8-DIOL × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ESR1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–261； UniProt 297–554 Author chain B； PDBConstruct 4–261； UniProt 297–554

GLUCOCORTICOID RECEPTOR-INTERACTING PROTEIN 1

OrganismNot specified

UniProt Q61026

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	ESTROGEN RECEPTOR × 2 （P03372） CHLORIDE ION × 1 (R,R)-5,11-CIS-DIETHYL-5,6,11,12-TETRAHYDROCHRYSENE-2,8-DIOL × 2 water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	ESTROGEN RECEPTOR × 2 （P03372） CHLORIDE ION × 1 (R,R)-5,11-CIS-DIETHYL-5,6,11,12-TETRAHYDROCHRYSENE-2,8-DIOL × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NCOA2_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–13； UniProt 686–698 Author chain D； PDBConstruct 1–13； UniProt 686–698

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1l2i
Deposition date deposition_date	2002-02-21
Structure title title	Human Estrogen Receptor alpha Ligand-binding Domain in Complex with (R,R)-5,11-cis-diethyl-5,6,11,12-tetrahydrochrysene-2,8-diol and a Glucocorticoid Receptor Interacting Protein 1 NR box II Peptide
Keywords keywords	nuclear receptor, transcription factor, estrogen, agonist, coactivator, TRANSCRIPTION RECEPTOR-COACTIVATOR COMPLEX; TRANSCRIPTION RECEPTOR/COACTIVATOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1l2i__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

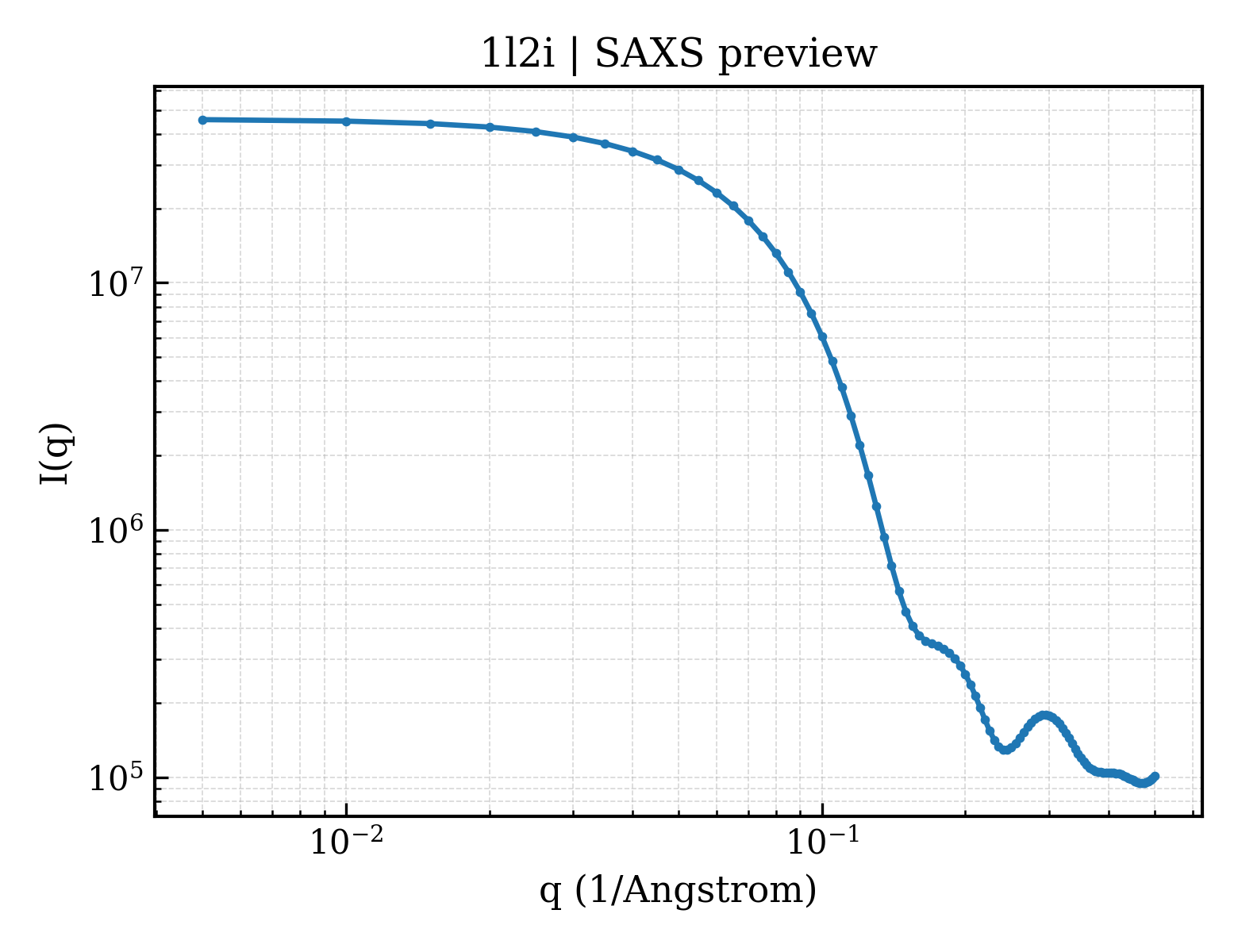

1l2i__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

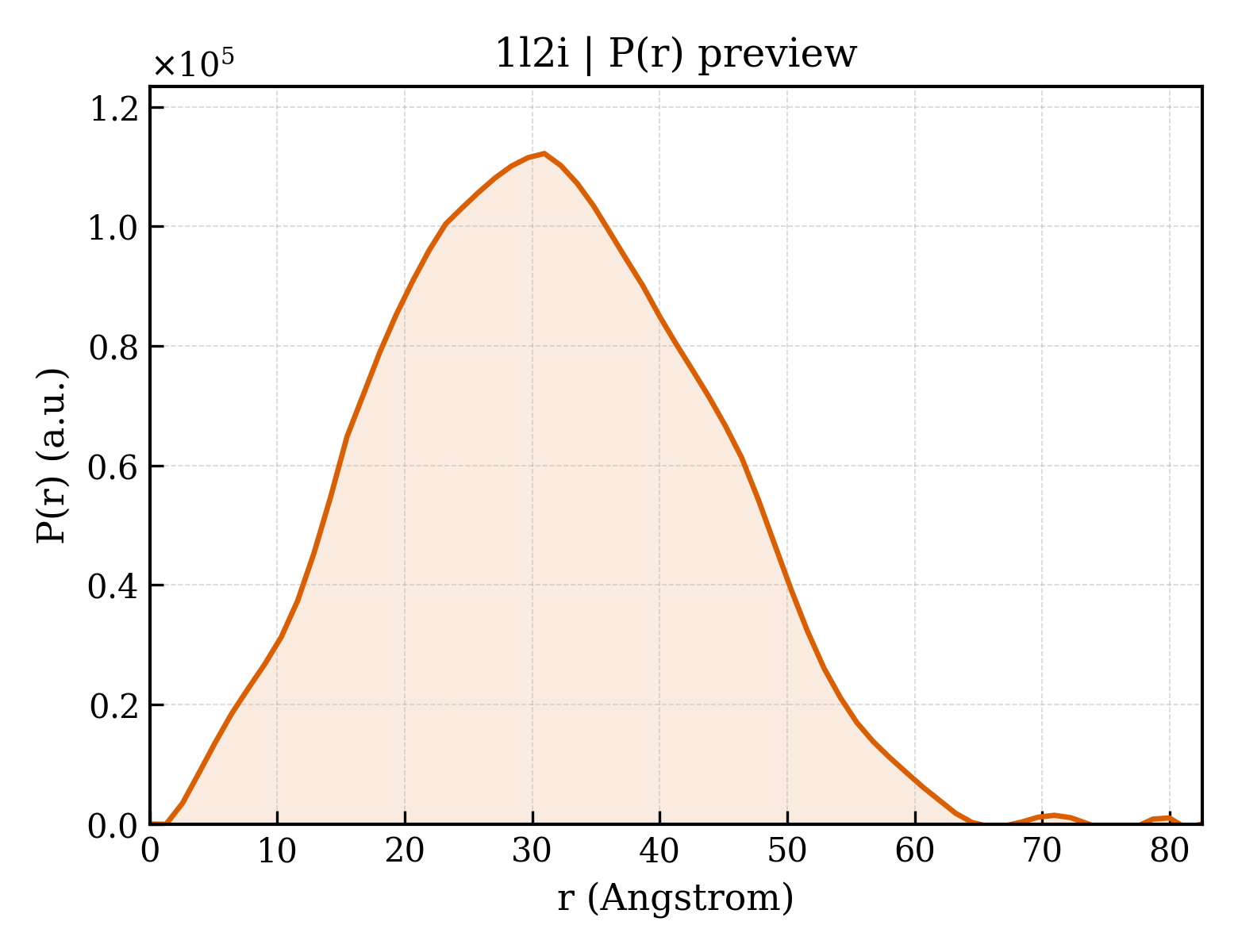

1l2i__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.64 Å
Rg (electron density)	22.49 Å
Total Rg	23.28 Å
Atom count	3831
Residues	484
Excluded volume	69406 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1l2i__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1l2i__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	ESTROGEN RECEPTOR
Molecular weight formula_weight	29908.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4043

MDPMIKRSKKNSLALSLTADQMVSALLDAEPPILYSEYDPTRPFSEASMMGLLTNLADRELVHMINWAKRVPGFVDLTLHDQVHLLECAWLEILMIGLVWRSMEHPGKLLFAPNLLLDRNQGKCVEGMVEIFDMLLATSSRFRMMNLQGEEFVCLKSIILLNSGVYTFLSSTLKSLEEKDHIHRVLDKITDTLIHLMAKAGLTLQQQHQRLAQLLLILSHIRHMSNKGMEHLYSMKCKNVVPLYDLLLEMLDAHRLHAPTS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	GLUCOCORTICOID RECEPTOR-INTERACTING PROTEIN 1
Molecular weight formula_weight	1579.9 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

KHKILHRLLQDSS

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	(R,R)-5,11-CIS-DIETHYL-5,6,11,12-TETRAHYDROCHRYSENE-2,8-DIOL
Molecular weight formula_weight	320.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	166

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1l2ia_
Class class	a — All alpha proteins
Fold Fold fold	a.123 — Nuclear receptor ligand-binding domain
Superfamily Superfamily superfamily	a.123.1 — Nuclear receptor ligand-binding domain
Family Family family	a.123.1.1 — Nuclear receptor ligand-binding domain

Domain ID domain_id	d1l2ib_
Class class	a — All alpha proteins
Fold Fold fold	a.123 — Nuclear receptor ligand-binding domain
Superfamily Superfamily superfamily	a.123.1 — Nuclear receptor ligand-binding domain
Family Family family	a.123.1.1 — Nuclear receptor ligand-binding domain

CATH v4.4 (2 domains)

Domain ID domain_id	1l2iA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	565 — Retinoid X Receptor
Homologous superfamily homologous superfamily	10 — Retinoid X Receptor

Domain ID domain_id	1l2iB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	565 — Retinoid X Receptor
Homologous superfamily homologous superfamily	10 — Retinoid X Receptor

▶

Unit-cell length a length_a	54.545 Å
Unit-cell length b length_b	82.600 Å
Unit-cell length c length_c	59.040 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	111.53 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	46.800 Å
R factor r_factor	—
R_work r_work	0.2030
R_free r_free	0.2430
