1ern
NATIVE STRUCTURE OF THE EXTRACELLULAR DOMAIN OF ERYTHROPOIETIN (EPO) RECEPTOR [EBP]
SAXS Profile

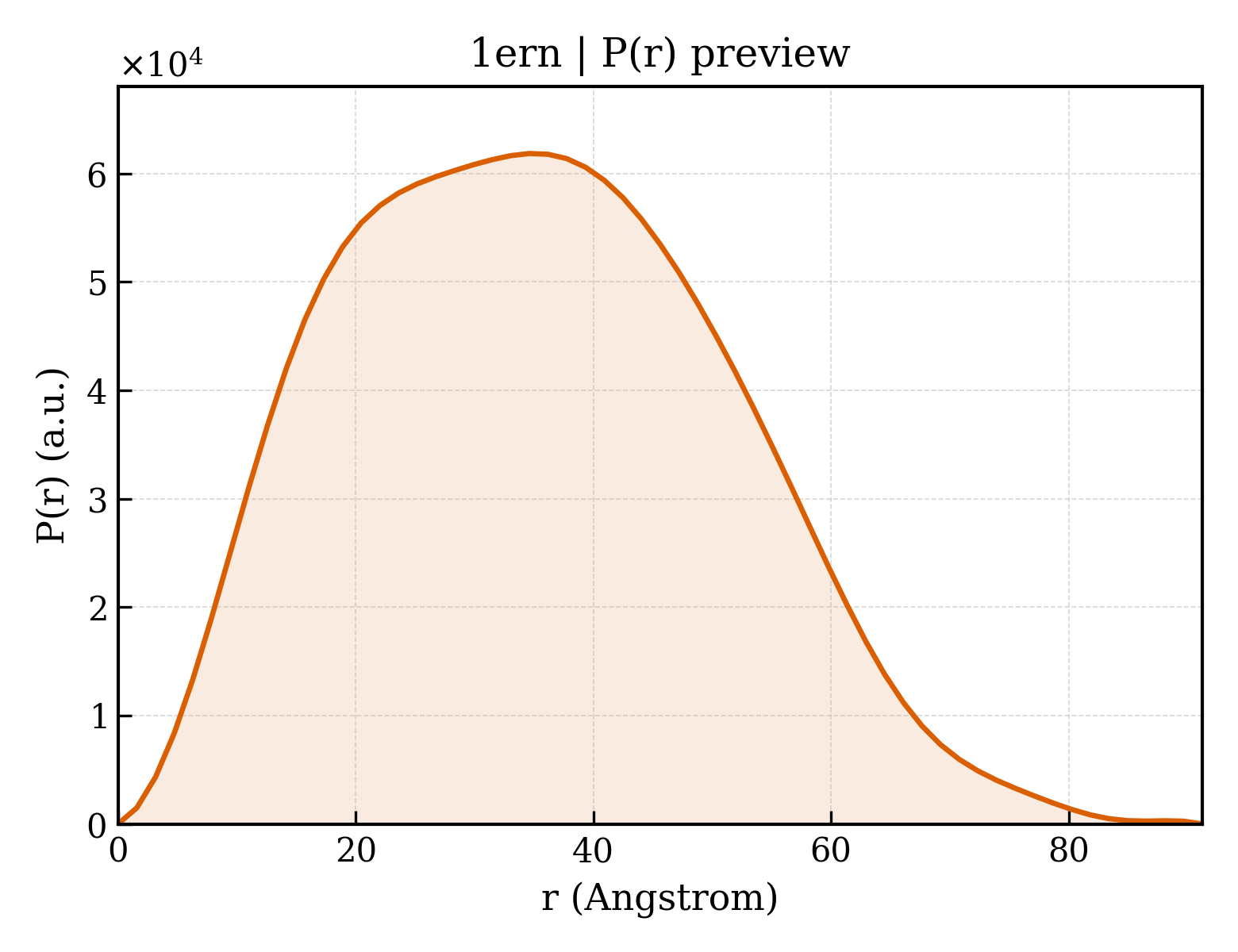

P(r) Distribution
1. Structure Basics
| entry_id | 1ern |
| deposition_date | 1999-01-11 |
| title | NATIVE STRUCTURE OF THE EXTRACELLULAR DOMAIN OF ERYTHROPOIETIN (EPO) RECEPTOR [EBP] |
| keywords | ERYTHROPOIETIN RECEPTOR, SIGNAL TRANSDUCTION, CYTOKINE RECEPTOR CLASS 1, CYTOKINE; CYTOKINE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.23 Å |
| rg_electron | 26.23 Å |
| i0 | 35255100.00 |
| molecular_weight | 45904.0 kDa |
| excluded_volume | 57479 ų |
| envelope_volume | 71870 ų |
| shell_volume | 24017 ų |
| envelope_diameter | 95.8 Å |
| shell_rg | 31.93 Å |
| envelope_rg | 26.73 Å |
| shape_rg | 26.23 Å |
| total_rg | 26.87 Å |
| total_atoms | 3240 |
| n_residues | 416 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 91.2 Å |
| rg_real | 27.23 Å |
| rg_real_error | 0.64 Å |
| i0_real | 3.5260e+07 |
| i0_real_error | 5.2470e+05 |
| rg_reciprocal | 27.23 Å |
| i0_reciprocal | 35260000.0000 |
| total_estimate | 0.8928 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 34.6 Å |
| skewness | 0.256 |
| kurtosis | -0.516 |
| angular_range | — – 0.2900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8991000.0000 |
| n_real_points | 59 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.888; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.944; Smooth: 0.995 |
