1et1
CRYSTAL STRUCTURE OF HUMAN PARATHYROID HORMONE 1-34 AT 0.9 A RESOLUTION

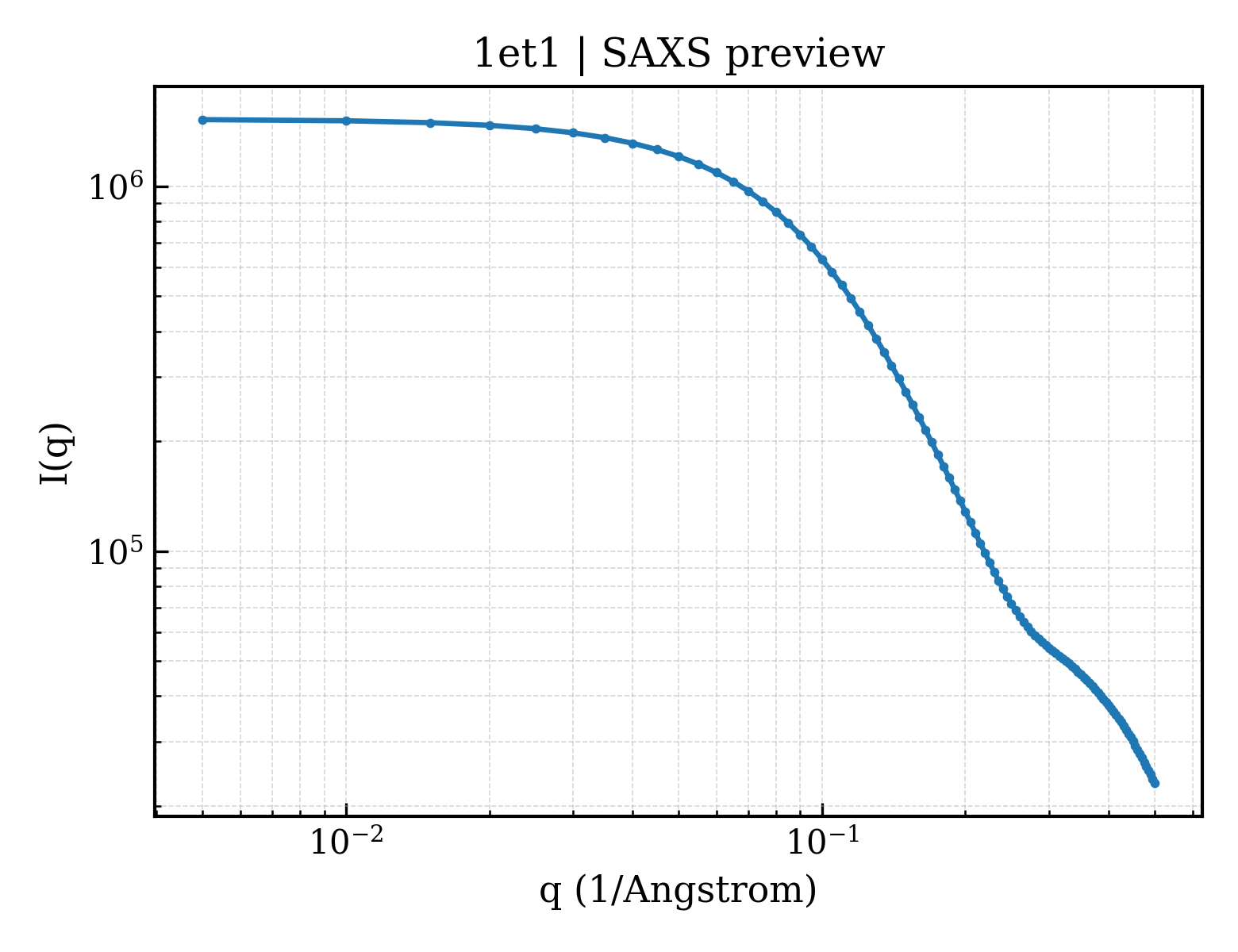

SAXS Profile

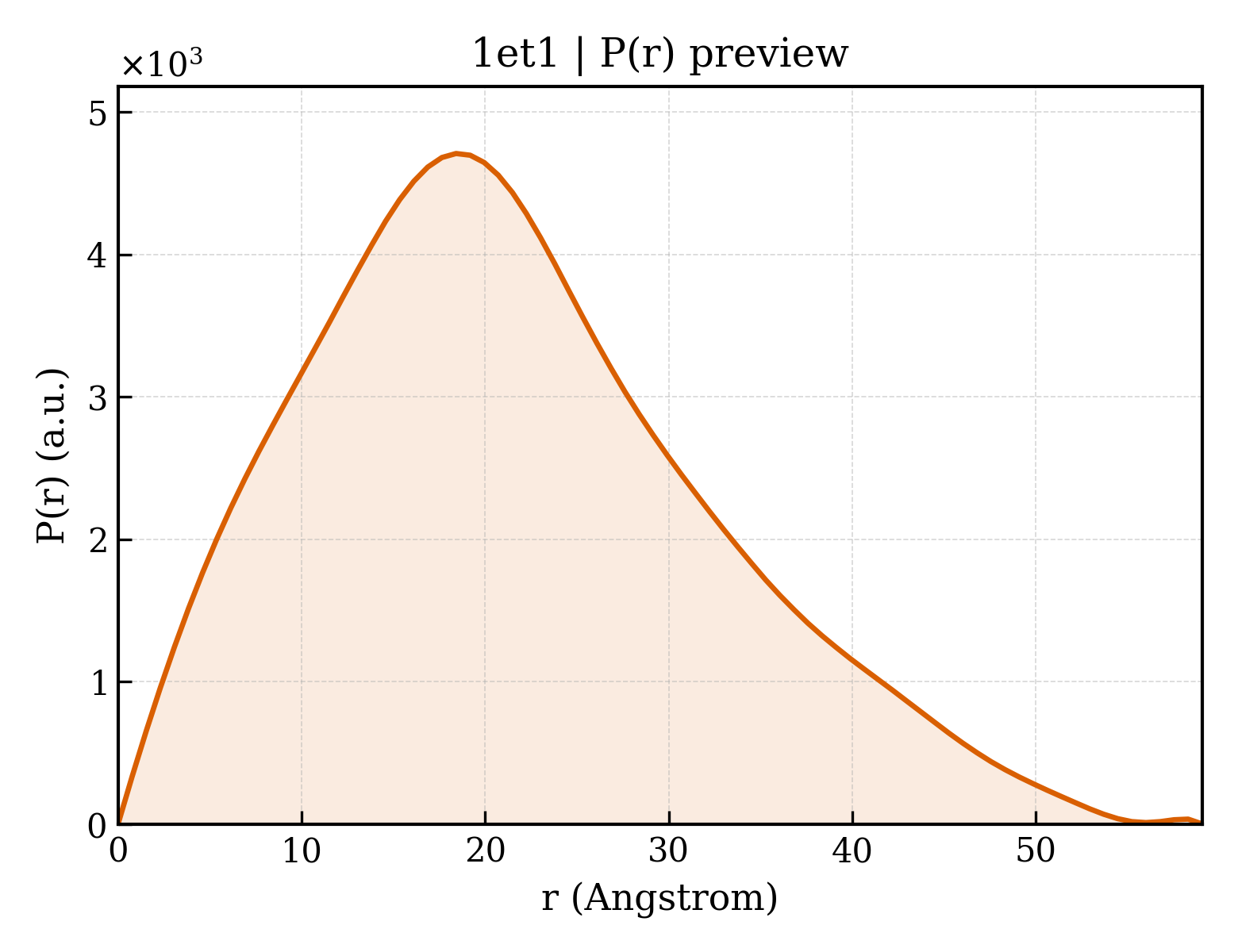

P(r) Distribution
1. Structure Basics
| entry_id | 1et1 |
| deposition_date | 2000-04-12 |
| title | CRYSTAL STRUCTURE OF HUMAN PARATHYROID HORMONE 1-34 AT 0.9 A RESOLUTION |
| keywords | HELICAL DIMER, HORMONE-GROWTH FACTOR COMPLEX; HORMONE/GROWTH FACTOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.76 Å |
| rg_electron | 16.45 Å |
| i0 | 1526540.00 |
| molecular_weight | 8284.0 kDa |
| excluded_volume | 10346 ų |
| envelope_volume | 13476 ų |
| shell_volume | 8089 ų |
| envelope_diameter | 59.5 Å |
| shell_rg | 19.62 Å |
| envelope_rg | 16.82 Å |
| shape_rg | 16.51 Å |
| total_rg | 17.02 Å |
| total_atoms | 580 |
| n_residues | 68 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 59.1 Å |
| rg_real | 16.93 Å |
| rg_real_error | 0.46 Å |
| i0_real | 1.5270e+06 |
| i0_real_error | 1.7190e+04 |
| rg_reciprocal | 16.91 Å |
| i0_reciprocal | 1527000.0000 |
| total_estimate | 0.8539 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.4 Å |
| skewness | 0.481 |
| kurtosis | -0.220 |
| angular_range | — – 0.4750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 77990.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.804; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.739; Smooth: 0.944 |
