9jr2

Cryo-EM structure of PTH-PTH1R-Gq (upright state)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Rattus rattus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(q) subunit alpha-1 (miniGq) × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P63212） scFv16 × 1 Parathyroid hormone × 1 （P01270） Parathyroid hormone/parathyroid hormone-related peptide receptor × 1 （Q03431） water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 6–344； UniProt 2–340

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

Bos taurus

UniProt P63212

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(q) subunit alpha-1 (miniGq) × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P54311） scFv16 × 1 Parathyroid hormone × 1 （P01270） Parathyroid hormone/parathyroid hormone-related peptide receptor × 1 （Q03431） water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBG2_BOVIN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–66； UniProt 2–67

Parathyroid hormone

OrganismNot specified

UniProt P01270

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(q) subunit alpha-1 (miniGq) × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P54311） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P63212） scFv16 × 1 Parathyroid hormone/parathyroid hormone-related peptide receptor × 1 （Q03431） water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PTHY_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain P； PDBConstruct 1–34； UniProt 32–65

Parathyroid hormone/parathyroid hormone-related peptide receptor

Homo sapiens

UniProt Q03431

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(q) subunit alpha-1 (miniGq) × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P54311） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P63212） scFv16 × 1 Parathyroid hormone × 1 （P01270） water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PTH1R_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain R； PDBConstruct 1–567； UniProt 27–593

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9jr2
Deposition date deposition_date	2024-09-29
Structure title title	Cryo-EM structure of PTH-PTH1R-Gq (upright state)
Keywords keywords	Class B GPCRs, Gq, PTH, SIGNALING PROTEIN, SIGNALING PROTEIN-IMMUNE SYSTEM complex; SIGNALING PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9jr2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9jr2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

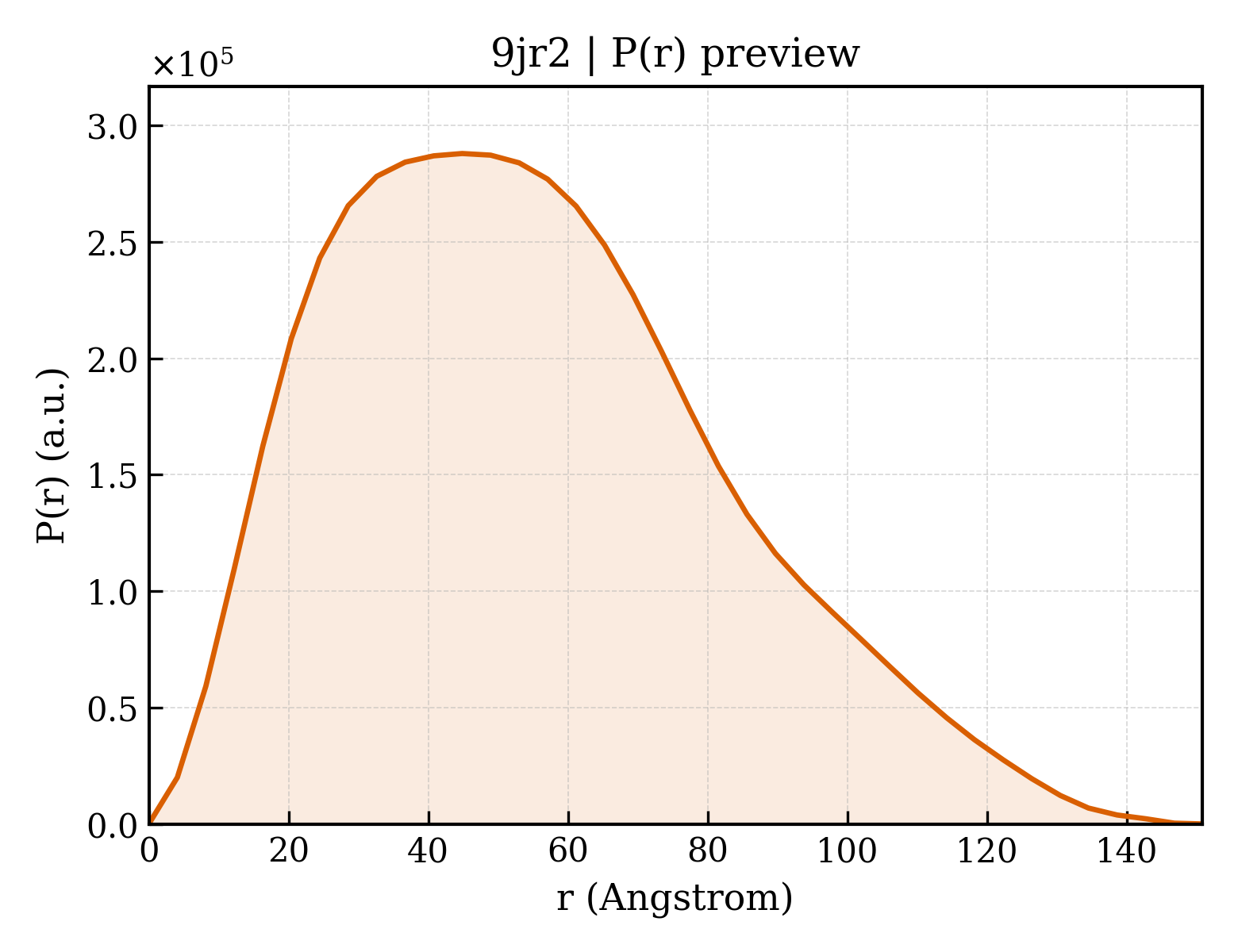

9jr2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.92 Å
Rg (electron density)	42.87 Å
Total Rg	42.88 Å
Atom count	9417
Residues	1225
Excluded volume	167540 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9jr2__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Guanine nucleotide-binding protein G(q) subunit alpha-1 (miniGq)
Molecular weight formula_weight	27953.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	9418

GSTVSAEDKAAAERSKMIDKNLREDGEKARRTLRLLLLGADNSGKSTIVKQMRILHGGSGGSGGTSGIFETKFQVDKVNFHMFDVGGQRDERRKWIQCFNDVTAIIFVVDSSDYNRLQEALNDFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRKEFVDISTASGDGRHICYPHFTCAVDTENARRIFNDCKDIILQMNLREYNLV

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	37799.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GSQLQSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Rattus rattus
Common name common_name	black rat
NCBI taxonomy ID ncbi_taxonomy_id	10117
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Molecular weight formula_weight	7416.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

ASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFS

Source Source

Source organism organism	Bos taurus
Common name common_name	domestic cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	scFv16
Molecular weight formula_weight	27720.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

DVQLVESGGGLVQPGGSRKLSCSASGFAFSSFGMHWVRQAPEKGLEWVAYISSGSGTIYYADTVKGRFTISRDDPKNTLFLQMTSLRSEDTAMYYCVRSIYYYGSSPFDFWGQGTTLTVSSGGGGSGGGGSGGGGSDIVMTQATSSVPVTPGESVSISCRSSKSLLHSNGNTYLYWFLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTAFTLTISRLEAEDVGVYYCMQHLEYPLTFGAGTKLELKAAAASSEDLYFQ

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	Parathyroid hormone
Molecular weight formula_weight	4123.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

SVSEIQLMHNLGKHLNSMERVEWLRKKLQDVHNFX

Entity 6 Entity 6 polymer

Description description	Parathyroid hormone/parathyroid hormone-related peptide receptor
Molecular weight formula_weight	63846.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

DADDVMTKEEQIFLLHRAQAQCEKRLKEVLQRPASIMESDKGWTSASTSGKPRKDKASGKLYPESEEDKEAPTGSRYRGRPCLPEWDHILCWPLGAPGEVVAVPCPDYIYDFNHKGHAYRRCDRNGSWELVPGHNRTWANYSECVKFLTNETREREVFDRLGMIYTVGYSVSLASLTVAVLILAYFRRLHCTRNYIHMHLFLSFMLRAVSIFVKDAVLYSGATLDEAERLTEEELRAIAQAPPPPATAAAGYAGCRVAVTFFLYFLATNYYWILVEGLYLHSLIFMAFFSEKKYLWGFTVFGWGLPAVFVAVWVSVRATLANTGCWDLSSGNKKWIIQVPILASIVLNFILFINIVRVLATKLRETNAGRCDTRQQYRKLLKSTLVLMPLFGVHYIVFMATPYTEVSGTLWQVQMHYEMLFNSFQGFFVAIIYCFCNGEVQAEIKKSWSRWTLALDFKRKARSGSSSYSYGPMVSHTSVTNVGPRVGLGLPLSPRLLPTATTNGHPQLPGHAKPGTPALETLETTPPAMAAPKDDGFLNGSCSGLDEEASGPERPPALLQEEWETVM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	265775

Cryo-EM structure of PTH-PTH1R-Gq (upright state)
