9lxr

A Cryo-EM structure of LA-PTH-PTH1R-Beta-arrestin1 complex (state 1 conformation)

Method: ELECTRON MICROSCOPY D_max: 164.8 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-arrestin-1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain B； UniProt 4–376	Not recorded	Fab30H × 1 Fab30L × 1 LA-PTH × 1 Parathyroid hormone/parathyroid hormone-related peptide receptor × 1 （Q03431）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.04 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.07 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9LXR	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2IV8 beta appendage in complex with b-arrestin peptide Deposited 2006-06-08	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 383–402（20 aa） Fragment：RESIDUES 383-402 Chain Q 383–402（20 aa） Fragment：RESIDUES 383-402	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；0.2M MG FORMATE 30% PEG 3350 OTHER REMARKS: THIS WAS THE ONLY CRYSTAL OBTAINED DESPITE HEROIC ATTEMPTS. THE CRYSTAL WAS HIGHLY MOSAIC, AND EPITAXIALLY SPLIT, LIMITING THE AMOUNT OF DATA WHICH COULD BE COLLECTED., pH 7.40	Resolution 2.80 Å R-free 0.369
6PWC A complex structure of arrestin-2 bound to neurotensin receptor 1 Deposited 2019-07-22	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–393（393 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å
6TKO Phosphorylated turkey beta1 adrenoceptor with bound agonist formoterol coupled to arrestin-2 in lipid nanodisc. Deposited 2019-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–418（418 aa）	Mutation：M1G L68C R169E	H98 ~{N}-[5-[(1~{R})-2-[[(2~{R})-1-(4-methoxyphenyl)propan-2-yl]amino]-1-oxidanyl-ethyl]-2-oxidanyl-phenyl]methanamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 2-3 seconds before plunging. Liquid ethane maintained at 92.15 K.	Resolution 3.30 Å
6UP7 neurotensin receptor and arrestin2 complex Deposited 2019-10-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 8–355（348 aa）	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
7R0C Structure of the AVP-V2R-arrestin2-ScFv30 complex Deposited 2022-02-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–382（381 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.73 Å
7R0J Structure of the V2 receptor Cter-arrestin2-ScFv30 complex Deposited 2022-02-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–382（381 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.23 Å
7SRS 5-HT2B receptor bound to LSD in complex with beta-arrestin1 obtained by cryo-electron microscopy (cryoEM) Deposited 2021-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 2–368（367 aa）	Mutation：R169E	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 7LD (8alpha)-N,N-diethyl-6-methyl-9,10-didehydroergoline-8-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8AS2 Structure of arrestin2 in complex with 4P CCR5 phosphopeptide and Fab30 Deposited 2022-08-18	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–359（359 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1% tryptone (w/v), 0.05M HEPES, 12 % PEG3,350	Resolution 3.20 Å R-free 0.316
8AS3 Structure of arrestin2 in complex with 6P CCR5 phosphopeptide and Fab30 Deposited 2022-08-18	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–359（359 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1% tryptone (w/v), 0.05M HEPES, 12 % PEG3,350	Resolution 3.50 Å R-free 0.333
8AS4 Crystal structure of human beta-arrestin-1 Deposited 2022-08-18	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–418（418 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.02 M Calcium chloride 0.02 M Cadmium chloride hydrate, 0.02 M Cobalt(II) chloride hexahydrate, 20%PEG3350	Resolution 2.30 Å R-free 0.232
8AS4 Crystal structure of human beta-arrestin-1 Deposited 2022-08-18	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–418（418 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.02 M Calcium chloride 0.02 M Cadmium chloride hydrate, 0.02 M Cobalt(II) chloride hexahydrate, 20%PEG3350	Resolution 2.30 Å R-free 0.232
8WRZ Cry-EM structure of cannabinoid receptor-beta-arrestin-1 complex Deposited 2023-10-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–393（393 aa）	Not recorded	8D0 (6~{a}~{R},9~{R},10~{a}~{R})-9-(hydroxymethyl)-3-(8-isothiocyanato-2-methyl-octan-2-yl)-6,6-dimethyl-6~{a},7,8,9,10,10~{a}-hexahydrobenzo[c]chromen-1-ol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8ZYT Cryo-EM structure of neurotensin receptor 1 in complex with beta-arrestin1 and SBI-553 (complex 3) Deposited 2024-06-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 2–382（381 aa）	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1 SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.65 Å
8ZYU Cryo-EM structure of neurotensin receptor 1 in complex with beta-arrestin1 and SBI-553 (complex 1) Deposited 2024-06-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 2–382（381 aa）	Not recorded	SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.65 Å
8ZYY Cryo-EM structure of neurotensin receptor 1 in complex with beta-arrestin1 and SBI-553 (complex 2) Deposited 2024-06-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 2–382（381 aa）	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1 SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.83 Å
9II2 Cryo-EM Structure of the 2:2 Complex of mGlu3 and beta-arrestin1 Deposited 2024-06-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–418（418 aa） Chain C 1–418（418 aa）	Not recorded	GLU GLUTAMIC ACID × 2 CLR CHOLESTEROL × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
9II3 Cryo-EM Structure of the 2:1 Complex of mGlu3 and beta-arrestin1 Deposited 2024-06-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–418（418 aa）	Not recorded	GLU GLUTAMIC ACID × 2 CLR CHOLESTEROL × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
9IJR Cryo-EM structure of the orphan GPR52 beta-arrestin 1 complex bound to ligand c17 Deposited 2024-06-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: tetrameric	Chain C 2–356（355 aa）	Not recorded	EN6 N-(2-hydroxyethyl)-5-(hydroxymethyl)-3-methyl-1-[2-[[3-(trifluoromethyl)phenyl]methyl]-1-benzothiophen-7-yl]pyrazole-4-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.86 Å
9IJS Cryo-EM structure of the orphan GPR52 bound to beta-arrestin 1 in ligand-free state Deposited 2024-06-25	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: tetrameric	Chain C 2–393（392 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.64 Å
9L8L Structure of GPCR megacomplex bound to agonists Deposited 2024-12-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 2–393（392 aa）	Not recorded	DR7 (3S,8S,9S,12S)-3,12-BIS(1,1-DIMETHYLETHYL)-8-HYDROXY-4,11-DIOXO-9-(PHENYLMETHYL)-6-[[4-(2-PYRIDINYL)PHENYL]METHYL]-2,5, 6,10,13-PENTAAZATETRADECANEDIOIC ACID DIMETHYL ESTER × 1 P0G 8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxyethyl]-5-hydroxy-2H-1,4-benzoxazin-3(4H)-one × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.22 Å
9LXP A Cryo-EM structure of LA-PTH-PTH1R-Beta-arrestin1 complex (state 2 conformation) Deposited 2025-02-19	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 4–376（373 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9LY2 A Cryo-EM structure of LA-PTH-PTH1R-V2RT-Beta-arrestin1 complex (state 1 conformation) Deposited 2025-02-19	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 4–393（390 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9LY3 A Cryo-EM structure of LA-PTH-PTH1R-V2RT-Beta-arrestin1 complex (state 2 conformation) Deposited 2025-02-19	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 4–393（390 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9M0D Cryo-EM structure of neurotensin receptor 1 in complex with beta-arrestin 1 Deposited 2025-02-24	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 2–382（381 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.41 Å
9MBA Cryo-EM structure of complex of transducer-bound GPCR Deposited 2025-03-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–376（376 aa） Chain C 1–376（376 aa）	Not recorded	GLU GLUTAMIC ACID × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.14 Å
9UYH Cryo-EM structure of the G protein-coupled receptor 1 (GPR1) bound to chemerin and beta-arrestin 1 (Conformation 1) Deposited 2025-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–376（376 aa）	Mutation：C59A, C125S, C140I, C150V, R169E, C242V, C251V and C269S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9UYI Cryo-EM structure of the G protein-coupled receptor 1 (GPR1) bound to chemerin and beta-arrestin 1 (Conformation 2) Deposited 2025-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–376（376 aa）	Mutation：C59A, C125S, C140I, C150V, R169E, C242V, C251V and C269S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9UYJ Cryo-EM structure of the G protein-coupled receptor 1 (GPR1) bound to chemerin and beta-arrestin 1 (Conformation 3) Deposited 2025-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–376（376 aa）	Mutation：C59A, C125S, C140I, C150V, R169E, C242V, C251V and C269S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9UYL Cryo-EM structure of the G protein-coupled receptor 1 (GPR1) bound to chemerin and beta-arrestin 1 (Conformation 4) Deposited 2025-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–376（376 aa）	Mutation：C59A, C125S, C140I, C150V, R169E, C242V, C251V and C269S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9UYM Composite map of the G protein-coupled receptor 1 (GPR1) bound to chemerin and beta-arrestin 2 Deposited 2025-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 357–376（20 aa）	Mutation：C17G,C60V,C126S,C141L,C151V,C243V,C252V and C270S	Y01 CHOLESTEROL HEMISUCCINATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9UYN Cryo-EM structure of the G protein-coupled receptor 1 (GPR1) bound to beta-arrestin 1 in ligand-free state Deposited 2025-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–376（376 aa）	Mutation：C59A/C125S/C140I/C150V/R169E/C242V/Y249C/C251V/C269S	PAM PALMITOLEIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

30 other PDB entries and 31 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARRB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 2–374； UniProt 4–376

Parathyroid hormone/parathyroid hormone-related peptide receptor

Homo sapiens

UniProt Q03431

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain R； UniProt 27–507	Non-standard monomer：Yes (specific site not provided by mmCIF)	Beta-arrestin-1 × 1 （P49407） Fab30H × 1 Fab30L × 1 LA-PTH × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.04 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.07 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9LXR	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BL1 PTH RECEPTOR N-TERMINUS FRAGMENT, NMR, 1 STRUCTURE Deposited 1998-07-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 164–193（30 aa） Fragment：BINDING DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；298 K；Ionic strength (raw mmCIF value) 150 mM DPC NMR sample composition 90% H2O/10% D2O	Resolution not provided
25NV A complex of PTH1R/Gs bound to a PTHrP analogue with five beta-amino acids Deposited 2026-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.21 Å
25NX A complex of PTH1R/Gs bound to a PTHrP analogue with three beta-amino acids Deposited 2026-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.86 Å
3C4M Structure of human parathyroid hormone in complex with the extracellular domain of its G-protein-coupled receptor (PTH1R) Deposited 2008-01-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 29–187（159 aa） Fragment：extracellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；30% PPG P400, 0.1 M NaCacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.227
3C4M Structure of human parathyroid hormone in complex with the extracellular domain of its G-protein-coupled receptor (PTH1R) Deposited 2008-01-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 29–187（159 aa） Fragment：extracellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；30% PPG P400, 0.1 M NaCacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.227
3H3G Crystal structure of the extracellular domain of the human parathyroid hormone receptor (PTH1R) in complex with parathyroid hormone-related protein (PTHrP) Deposited 2009-04-16	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 29–187（159 aa） Fragment：extracellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；7.5% PEG 2000, 13% PEG 400, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.94 Å R-free 0.233
3L2J Dimeric structure of the ligand-free extracellular domain of the human parathyroid hormone receptor (PTH1R) Deposited 2009-12-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–187（159 aa） Chain B 29–187（159 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；ammonium sulfate, HEPES, sodium acetate, PEG400, cadaverine dihydrochloride, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.24 Å R-free 0.258
6FJ3 High resolution crystal structure of parathyroid hormone 1 receptor in complex with a peptide agonist. Deposited 2018-01-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–60（37 aa） Chain A 105–388（284 aa） Chain A 398–480（83 aa）	Mutation：;Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A ; Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：;Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A ; Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：;Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A ; Non-standard monomer：Yes (specific site not provided by mmCIF)	MAN alpha-D-mannopyranose × 3 OLA OLEIC ACID × 9 ACY ACETIC ACID × 1 PG4 TETRAETHYLENE GLYCOL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 6；293 K；0.1 M sodium citrate pH 6.0, 0.3 M sodium acetate, 31% PEG400, 20 uM E-PTH(1-34)	Resolution 2.50 Å R-free 0.248
6NBF Cryo-EM structure of parathyroid hormone receptor type 1 in complex with a long-acting parathyroid hormone analog and G protein Deposited 2018-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Mutation：G188A	CLR CHOLESTEROL × 6 PLM PALMITIC ACID × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å R-free 0.400
6NBH Cryo-EM structure of parathyroid hormone receptor type 1 in complex with a long-acting parathyroid hormone analog and G protein Deposited 2018-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Mutation：G188A	CLR CHOLESTEROL × 7 PLM PALMITIC ACID × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å R-free 0.420
6NBI Cryo-EM structure of parathyroid hormone receptor type 1 in complex with a long-acting parathyroid hormone analog and G protein Deposited 2018-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Mutation：G188A	CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å R-free 0.440
7UZP parathyroid hormone 1 receptor extracellular domain complexed with a peptide ligand containing three beta-amino acids Deposited 2022-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 29–174（146 aa） Chain C 29–174（146 aa） Chain E 29–174（146 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；28 % v/v PEG Smear Low, 0.1 M tris-HCl pH 8, 0.15 M Sodium citrate, 1% ethylene glycol, 0.4 mM ZnSO4	Resolution 2.29 Å R-free 0.243
7VVJ PTHrP-bound human PTH1R in complex with Gs Deposited 2021-11-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–501（475 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7VVK PTH-bound human PTH1R in complex with Gs (class1) Deposited 2021-11-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–491（465 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7VVL PTH-bound human PTH1R in complex with Gs (class2) Deposited 2021-11-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–491（465 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7VVM PTH-bound human PTH1R in complex with Gs (class3) Deposited 2021-11-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–491（465 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7VVN PTH-bound human PTH1R in complex with Gs (class4) Deposited 2021-11-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–491（465 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7VVO PTH-bound human PTH1R in complex with Gs (class5) Deposited 2021-11-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–491（465 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7Y35 Cryo-EM structure of the Abaloparatide-bound human PTH1R-Gs complex Deposited 2022-06-09	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–593（567 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7Y36 Cryo-EM structure of the Teriparatide-bound human PTH1R-Gs complex Deposited 2022-06-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–593（567 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8BIA Crystal structure of Scribble PDZ1 with PTHR Deposited 2022-11-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 586–593（8 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.1 M phosphate/citrate pH 5.2, 43% PEG 300	Resolution 2.40 Å R-free 0.271
8BJ0 Crystal structure of Scribble PDZ1 with PTHR Deposited 2022-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 586–593（8 aa）	Not recorded	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.1 M sodium cacodylate pH 5.8, 53% MPD	Resolution 2.60 Å R-free 0.285
8D51 Parathyroid hormone 1 receptor extracellular domain complexed with a peptide ligand containing beta-3-homotryptophan Deposited 2022-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 29–174（146 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；28 % v/v PEG Smear Low, 0.1 M tris-HCl pH 8, 0.15 M Sodium citrate, 1% ethylene glycol, 1 mM ZnSO4	Resolution 2.00 Å R-free 0.246
8D52 Parathyroid hormone 1 receptor extracellular domain complexed with a peptide ligand containing (2-naphthyl)-beta-3-homoalanine Deposited 2022-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 29–174（146 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；28 % v/v PEG Smear Low, 0.1 M tris-HCl pH 8, 0.15 M Sodium citrate, 1% ethylene glycol, 1 mM ZnSO4	Resolution 2.02 Å R-free 0.244
8FLQ Human PTH1R in complex with PTH(1-34) and Gs Deposited 2022-12-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Buffer also contained 2 micromolar PTH peptide. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.55 Å
8FLR Human PTH1R in complex with PTHrP and Gs Deposited 2022-12-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Buffer also contained 2 micromolar PTHrP peptide. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.94 Å
8FLS Human PTH1R in complex with Abaloparatide and Gs Deposited 2022-12-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Buffer also contained 2 micromolar abaloparatide peptide. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
8FLT Human PTH1R in complex with M-PTH(1-14) and Gs Deposited 2022-12-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Buffer also contained 25 micromolar M-PTH peptide. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
8FLU Human PTH1R in complex with LA-PTH and Gs Deposited 2022-12-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Buffer also contained 2 micromolar LA-PTH peptide. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.76 Å
8GW8 the human PTH1 receptor bound to an intracellular biased agonist Deposited 2022-09-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–491（465 aa）	Not recorded	KHF PCO-371 × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8HA0 Molecular recognition of two endogenous hormones by the human parathyroid hormone receptor-1 Deposited 2022-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Not recorded	CLR CHOLESTEROL × 4 PLM PALMITIC ACID × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.62 Å
8HAF PTHrP-PTH1R-Gs complex Deposited 2022-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Not recorded	PLM PALMITIC ACID × 11 CLR CHOLESTEROL × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.25 Å
8HAO Human parathyroid hormone receptor-1 dimer Deposited 2022-10-26	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain I 27–502（476 aa） Chain R 27–502（476 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.76 Å
8JR9 Small molecule agonist (PCO371) bound to human parathyroid hormone receptor type 1 (PTH1R) Deposited 2023-06-16	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–502（476 aa）	Not recorded	KHF PCO-371 × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.57 Å
8YFO A cryo-EM structure of Ac-LA-PTH-PTH1R-Gs complex Deposited 2024-02-25	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.71 Å
8YG4 A cryo-EM structure of LA-PTH-R1-PTH1R-Gs complex structure Deposited 2024-02-26	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.59 Å
9JR2 Cryo-EM structure of PTH-PTH1R-Gq (upright state) Deposited 2024-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–593（567 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9JR3 Cryo-EM structure of PTH-PTH1R-Gq (tilted state) Deposited 2024-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–593（567 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9LXP A Cryo-EM structure of LA-PTH-PTH1R-Beta-arrestin1 complex (state 2 conformation) Deposited 2025-02-19	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–507（481 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9LY2 A Cryo-EM structure of LA-PTH-PTH1R-V2RT-Beta-arrestin1 complex (state 1 conformation) Deposited 2025-02-19	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–502（476 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9LY3 A Cryo-EM structure of LA-PTH-PTH1R-V2RT-Beta-arrestin1 complex (state 2 conformation) Deposited 2025-02-19	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–502（476 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9LZ0 Cryo-EM structure of PTH1R-beta-arrestin1 complex in state 1 Deposited 2025-02-21	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–509（483 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
9LZ1 Cryo-EM structure of PTH1R-beta-arrestin1 complex in state 2 Deposited 2025-02-21	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–509（483 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9LZ2 Cryo-EM structure of PTH1R(V2RC)-beta-arrestin1 complex Deposited 2025-02-21	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–490（464 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å

43 other PDB entries and 44 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PTH1R_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain R； PDBConstruct 1–481； UniProt 27–507

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9lxr
Deposition date deposition_date	2025-02-19
Structure title title	A Cryo-EM structure of LA-PTH-PTH1R-Beta-arrestin1 complex (state 1 conformation)
Keywords keywords	PTH1R, arrestin, GPCR, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	43.79 Å
Radius of gyration Rg (electron density) rg_electron	44.36 Å
Forward intensity I(0) i0	211160000.00
Molecular weight molecular_weight	121650.0 kDa
Excluded volume excluded_volume	153590 Å³
Envelope volume envelope_volume	211010 Å³
Hydration-shell volume shell_volume	43592 Å³
Envelope diameter envelope_diameter	172.0 Å
Shell Rg shell_rg	43.24 Å
Envelope Rg envelope_rg	44.96 Å
Shape Rg shape_rg	44.36 Å
Total Rg total_rg	44.27 Å
Total atoms total_atoms	8572
Residues n_residues	1088
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

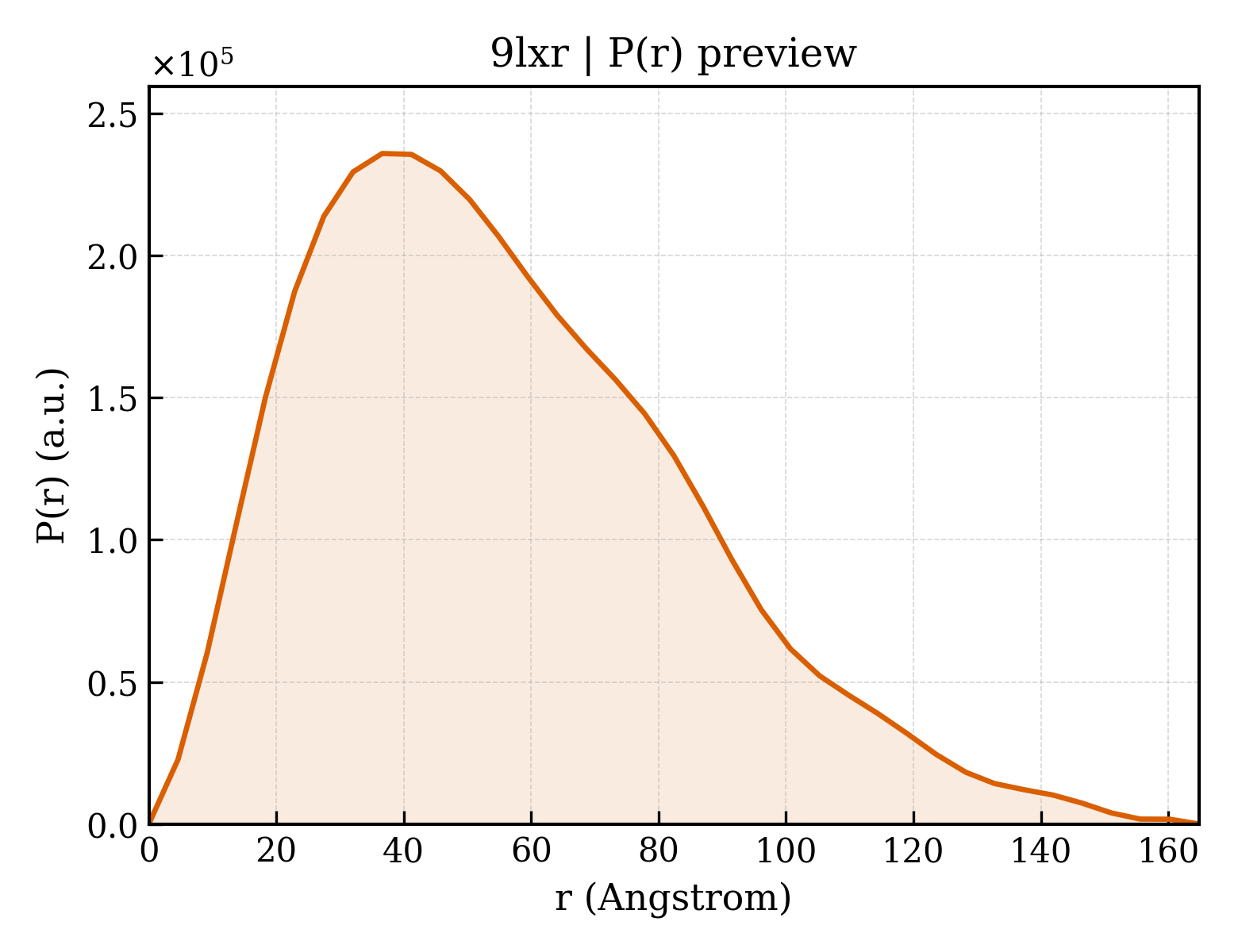

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	164.8 Å
Rg (real space) rg_real	44.39 Å
Rg uncertainty (real space) rg_real_error	2.15 Å
I(0) (real space) i0_real	2.1120e+08
I(0) uncertainty (real space) i0_real_error	4.4060e+06
Rg (reciprocal space) rg_reciprocal	43.80 Å
I(0) (reciprocal space) i0_reciprocal	211000000.0000
Solution quality estimate total_estimate	0.5463
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	36.6 Å
Skewness Skewness skewness	0.649
Kurtosis Kurtosis kurtosis	0.029
Angular range angular_range	— – 0.1800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15660000.0000
Real-space data points n_real_points	37
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.593; Stabil: 1.000; Sysdev: 0.032; Positv: 1.000; Valcen: 0.503; Smooth: 0.718

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Beta-arrestin-1
Molecular weight formula_weight	42131.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	8572

MKGTRVFKKASCNGKLTVYLGKRDFVDHIDLVDPVDGVVLVDPEYLKERRVYVTLTCAFRYGREDLDVLGLTFRKDLFCANVQSFPPAPEDKKPLTRLQERLIKKLGEHAYPFTFEIPPNLPCSVTLQPGPEDTGKACGVDYEVKAFCAENLEEKIHKRNSVRLVIRKVQYAPERPGPQPTAETTRQFLMSDKPLHLEASLDKEIYYHGEPISVNVHVTNNTNKTVKKIKISVRQYADICLFNTAQYKCPVAMEEADDTVAPSSTFCKVYTLTPFLCNNREKRGLALDGKLKHEDTNLASSTLLREGANREILGIIVSYKVKVKLVVSRGGLLGDLASSDVAVELPFTLMHPKPKEEPPHREVPENETPVDTNL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Fab30H
Molecular weight formula_weight	24584.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MEISEVQLVESGGGLVQPGGSLRLSCAASGFNVYSSSIHWVRQAPGKGLEWVASISSYYCYTYYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARSRQFWYSGLDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKT

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Fab30L
Molecular weight formula_weight	23435.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYKYVPVTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	LA-PTH
Molecular weight formula_weight	4274.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

AVAEIQLMHQRAKWIQDARRRAFLHKLIAEIHTAEI

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	Parathyroid hormone/parathyroid hormone-related peptide receptor
Molecular weight formula_weight	55344.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

DADDVMTKEEQIFLLHRAQAQCEKRLKEVLQRPASIMESDKGWTSASTSGKPRKDKASGKLYPESEEDKEAPTGSRYRGRPCLPEWDHILCWPLGAPGEVVAVPCPDYIYDFNHKGHAYRRCDRNGSWELVPGHNRTWANYSECVKFLTNETREREVFDRLGMIYTVGYSVSLASLTVAVLILAYFRRLHCTRNYIHMHLFLSFMLRAVSIFVKDAVLYSGATLDEAERLTEEELRAIAQAPPPPATAAAGYAGCRVAVTFFLYFLATNYYWILVEGLYLHSLIFMAFFSEKKYLWGFTVFGWGLPAVFVAVWVSVRATLANTGCWDLSSGNKKWIIQVPILASIVLNFILFINIVRVLATKLRETNAGRCDTRQQYRKLLKSTLVLMPLFGVHYIVFMATPYTEVSGTLWQVQMHYEMLFNSFQGFFVAIIYCFCNGEVQAEIKKSWSRWTLALDFKRKARSGSSSYSYGPMVSHTSVTNG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.07 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	107599

fit	/app/data/saxs_computation/lx/9lxr/9lxr.fit
pddf	/app/data/pr_computation/lx/9lxr/9lxr.pr.out
profile	/app/data/saxs_computation/lx/9lxr/9lxr.dat

A Cryo-EM structure of LA-PTH-PTH1R-Beta-arrestin1 complex (state 1 conformation)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-arrestin-1

State in the Current Structure

Other States of the Same Protein in the Database

Parathyroid hormone/parathyroid hormone-related peptide receptor

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
