9lz0

Cryo-EM structure of PTH1R-beta-arrestin1 complex in state 1

Method: ELECTRON MICROSCOPY D_max: 144.7 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-arrestin-1

Bos taurus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 1–393	Not recorded	Fab30 heavy chain × 1 Fab30 light chain × 1 Long-acting PTH × 1 Parathyroid hormone/parathyroid hormone-related peptide receptor × 1 （Q03431）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9LZ0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1G4M CRYSTAL STRUCTURE OF BOVINE BETA-ARRESTIN 1 Deposited 2000-10-27	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–393（393 aa） Fragment：TRUNCATION MUTANT: 1-393	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.269
1G4M CRYSTAL STRUCTURE OF BOVINE BETA-ARRESTIN 1 Deposited 2000-10-27	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–393（393 aa） Fragment：TRUNCATION MUTANT: 1-393	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.269
1G4R CRYSTAL STRUCTURE OF BOVINE BETA-ARRESTIN 1 Deposited 2000-10-27	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–393（393 aa） Fragment：TRUNCATION MUTANT: 1-393	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å R-free 0.274
1JSY Crystal structure of bovine arrestin-2 Deposited 2001-08-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–418（418 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；magnesium formate, polypropylene glycol 400, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å R-free 0.238
1ZSH Crystal structure of bovine arrestin-2 in complex with inositol hexakisphosphate (IP6) Deposited 2005-05-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–418（418 aa）	Not recorded	MG MAGNESIUM ION × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；Magnesium Formate, HEPES, Polypropylene glycol 400, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å R-free 0.260
2WTR Full length Arrestin2 Deposited 2009-09-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–418（418 aa）	Not recorded	BA BARIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；CRYSTALS WERE GROWN USING THE HANGING-DROP METHOD IN A NEXTAL TRAY (QIAGEN) AT 277 K AGAINST A 1 ML RESERVOIR SOLUTION CONSISTING OF 12% (W/V) PEG 2000, 0.1M BACL2, 0.1 M TRIS-HCL PH7.5. THE HANGING DROP CONTAINED 2 MICROLITRES OF CONCENTRATED ARRESTIN2 PROTEIN (BETWEEN 9-11 MG/ML IN 0.1M TRIS-HCL PH 8.5) AND 2 MICROLITRES OF RESERVOIR SOLUTION.	Resolution 2.90 Å R-free 0.295
2WTR Full length Arrestin2 Deposited 2009-09-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–418（418 aa）	Not recorded	BA BARIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；CRYSTALS WERE GROWN USING THE HANGING-DROP METHOD IN A NEXTAL TRAY (QIAGEN) AT 277 K AGAINST A 1 ML RESERVOIR SOLUTION CONSISTING OF 12% (W/V) PEG 2000, 0.1M BACL2, 0.1 M TRIS-HCL PH7.5. THE HANGING DROP CONTAINED 2 MICROLITRES OF CONCENTRATED ARRESTIN2 PROTEIN (BETWEEN 9-11 MG/ML IN 0.1M TRIS-HCL PH 8.5) AND 2 MICROLITRES OF RESERVOIR SOLUTION.	Resolution 2.90 Å R-free 0.295
3GC3 Crystal Structure of Arrestin2S and Clathrin Deposited 2009-02-21	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–385（385 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；100 mM bis_tris propane 4 -4.5 M ammonium acetate 4.5% ethylene glycol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.251
3GD1 Structure of an Arrestin/Clathrin complex reveals a novel clathrin binding domain that modulates receptor trafficking Deposited 2009-02-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–393（393 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；293 K；100mM Bicine, 7% O-(2-aminopropyl)-O'-(2-methoxyethyl)polypropylene glycol 500, 6% polyethylene glycol 8000, 4% acetone, 1% ethylene glycol and 10 mM strontium chloride, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.254
3GD1 Structure of an Arrestin/Clathrin complex reveals a novel clathrin binding domain that modulates receptor trafficking Deposited 2009-02-23	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 1–393（393 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；293 K；100mM Bicine, 7% O-(2-aminopropyl)-O'-(2-methoxyethyl)polypropylene glycol 500, 6% polyethylene glycol 8000, 4% acetone, 1% ethylene glycol and 10 mM strontium chloride, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.254
6NI2 Stabilized beta-arrestin 1-V2T subcomplex of a GPCR-G protein-beta-arrestin mega-complex Deposited 2018-12-26	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–393（393 aa） Fragment：UNP residues 6-361	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7DF9 Crystal of Arrestin2-V2Rpp-1-Fab30 complex Deposited 2020-11-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–418（418 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；289 K；10% PEG 3350, 0.1M Succinic acid, pH 6.5-7.5, 0.2mM DMSO	Resolution 3.17 Å R-free 0.281
7DFA Crystal of Arrestin2-V2Rpp-4-Fab30 complex Deposited 2020-11-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–418（418 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；289 K；10% PEG 3350, 0.1M Succinic acid, pH 6.5-7.5, 0.2mM DMSO	Resolution 2.54 Å R-free 0.280
7DFB Crystal of Arrestin2-V2Rpp-6-7-Fab30 complex Deposited 2020-11-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–418（418 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；289 K；0% PEG 3350, 0.1M Succinic acid, pH 6.5-7.5, 0.2mM DMSO	Resolution 3.28 Å R-free 0.290
7DFC Crystal of Arrestin2-V2Rpp-3-Fab30 complex Deposited 2020-11-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–418（418 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 7.5；289 K；15% PEG 3350, 0.1M HEPES, 0.2mM DMSO	Resolution 2.49 Å R-free 0.284
8J97 Structure of Muscarinic receptor (M2R) in complex with beta-arrestin1 (Local refine, cross-linked) Deposited 2023-05-02	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 5–357（353 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8JAF Structure of Muscarinic receptor (M2R) in complex with beta-arrestin1 (Local Refine, non-cross linked) Deposited 2023-05-05	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 5–362（358 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8TII Human ACKR3 phosphorylated by GRK2 in complex with Arrestin2 in nanodisc Deposited 2023-07-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–418（418 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8TIO Human ACKR3 with C tail extended by 12 glycines phosphorylated by GRK5 in complex with Arrestin2 reconstructed without receptor/micelle Deposited 2023-07-19	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–418（418 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8WU1 Cryo-EM structure of CB1-beta-arrestin1 complex Deposited 2023-10-19	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–393（393 aa）	Mutation：R169E, I386A, V387A, F388A	KCA methyl N-{1-[(4-fluorophenyl)methyl]-1H-indazole-3-carbonyl}-3-methyl-L-valinate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9E82 ACKR3 phosphorylated by GRK5 in complex with arrestin2 and Fab7 Deposited 2024-11-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–418（418 aa）	Not recorded	CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9LZ1 Cryo-EM structure of PTH1R-beta-arrestin1 complex in state 2 Deposited 2025-02-21	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–393（393 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9LZ2 Cryo-EM structure of PTH1R(V2RC)-beta-arrestin1 complex Deposited 2025-02-21	Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–393（393 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9UCO Cryo-EM structure of ADGRE1-beta arrestin1-scFv30 complex Deposited 2025-04-04	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–376（376 aa） Chain C 1–376（376 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.58 Å
9WSV Cryo-EM structure of DAMGO-muOR-arrestin-1-Fab30 complex Deposited 2025-09-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–393（393 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9WSX Cryo-EM structure of endomorphin-1-muOR-arrestin2-Fab30 complex Deposited 2025-09-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–393（393 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å

23 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARRB1_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–393； UniProt 1–393

Parathyroid hormone/parathyroid hormone-related peptide receptor

Homo sapiens

UniProt Q03431

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain R； UniProt 27–509	Non-standard monomer：Yes (specific site not provided by mmCIF)	Beta-arrestin-1 × 1 （P17870） Fab30 heavy chain × 1 Fab30 light chain × 1 Long-acting PTH × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.80 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9LZ0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BL1 PTH RECEPTOR N-TERMINUS FRAGMENT, NMR, 1 STRUCTURE Deposited 1998-07-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 164–193（30 aa） Fragment：BINDING DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；298 K；Ionic strength (raw mmCIF value) 150 mM DPC NMR sample composition 90% H2O/10% D2O	Resolution not provided
25NV A complex of PTH1R/Gs bound to a PTHrP analogue with five beta-amino acids Deposited 2026-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.21 Å
25NX A complex of PTH1R/Gs bound to a PTHrP analogue with three beta-amino acids Deposited 2026-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.86 Å
3C4M Structure of human parathyroid hormone in complex with the extracellular domain of its G-protein-coupled receptor (PTH1R) Deposited 2008-01-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 29–187（159 aa） Fragment：extracellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；30% PPG P400, 0.1 M NaCacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.227
3C4M Structure of human parathyroid hormone in complex with the extracellular domain of its G-protein-coupled receptor (PTH1R) Deposited 2008-01-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 29–187（159 aa） Fragment：extracellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；30% PPG P400, 0.1 M NaCacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.227
3H3G Crystal structure of the extracellular domain of the human parathyroid hormone receptor (PTH1R) in complex with parathyroid hormone-related protein (PTHrP) Deposited 2009-04-16	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 29–187（159 aa） Fragment：extracellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；7.5% PEG 2000, 13% PEG 400, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.94 Å R-free 0.233
3L2J Dimeric structure of the ligand-free extracellular domain of the human parathyroid hormone receptor (PTH1R) Deposited 2009-12-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–187（159 aa） Chain B 29–187（159 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；ammonium sulfate, HEPES, sodium acetate, PEG400, cadaverine dihydrochloride, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.24 Å R-free 0.258
6FJ3 High resolution crystal structure of parathyroid hormone 1 receptor in complex with a peptide agonist. Deposited 2018-01-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–60（37 aa） Chain A 105–388（284 aa） Chain A 398–480（83 aa）	Mutation：;Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A ; Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：;Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A ; Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：;Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A,Y191C, K240M, L300A, M312K, V334I, K359N, L407A, A426L, Q440R, I458A ; Non-standard monomer：Yes (specific site not provided by mmCIF)	MAN alpha-D-mannopyranose × 3 OLA OLEIC ACID × 9 ACY ACETIC ACID × 1 PG4 TETRAETHYLENE GLYCOL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 6；293 K；0.1 M sodium citrate pH 6.0, 0.3 M sodium acetate, 31% PEG400, 20 uM E-PTH(1-34)	Resolution 2.50 Å R-free 0.248
6NBF Cryo-EM structure of parathyroid hormone receptor type 1 in complex with a long-acting parathyroid hormone analog and G protein Deposited 2018-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Mutation：G188A	CLR CHOLESTEROL × 6 PLM PALMITIC ACID × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å R-free 0.400
6NBH Cryo-EM structure of parathyroid hormone receptor type 1 in complex with a long-acting parathyroid hormone analog and G protein Deposited 2018-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Mutation：G188A	CLR CHOLESTEROL × 7 PLM PALMITIC ACID × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å R-free 0.420
6NBI Cryo-EM structure of parathyroid hormone receptor type 1 in complex with a long-acting parathyroid hormone analog and G protein Deposited 2018-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Mutation：G188A	CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å R-free 0.440
7UZP parathyroid hormone 1 receptor extracellular domain complexed with a peptide ligand containing three beta-amino acids Deposited 2022-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 29–174（146 aa） Chain C 29–174（146 aa） Chain E 29–174（146 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；28 % v/v PEG Smear Low, 0.1 M tris-HCl pH 8, 0.15 M Sodium citrate, 1% ethylene glycol, 0.4 mM ZnSO4	Resolution 2.29 Å R-free 0.243
7VVJ PTHrP-bound human PTH1R in complex with Gs Deposited 2021-11-06	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–501（475 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7VVK PTH-bound human PTH1R in complex with Gs (class1) Deposited 2021-11-06	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–491（465 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7VVL PTH-bound human PTH1R in complex with Gs (class2) Deposited 2021-11-06	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–491（465 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7VVM PTH-bound human PTH1R in complex with Gs (class3) Deposited 2021-11-06	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–491（465 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7VVN PTH-bound human PTH1R in complex with Gs (class4) Deposited 2021-11-06	Different construct Different mutation/modification Different oligomeric state	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–491（465 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7VVO PTH-bound human PTH1R in complex with Gs (class5) Deposited 2021-11-06	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–491（465 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7Y35 Cryo-EM structure of the Abaloparatide-bound human PTH1R-Gs complex Deposited 2022-06-09	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–593（567 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7Y36 Cryo-EM structure of the Teriparatide-bound human PTH1R-Gs complex Deposited 2022-06-10	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–593（567 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8BIA Crystal structure of Scribble PDZ1 with PTHR Deposited 2022-11-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 586–593（8 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.1 M phosphate/citrate pH 5.2, 43% PEG 300	Resolution 2.40 Å R-free 0.271
8BJ0 Crystal structure of Scribble PDZ1 with PTHR Deposited 2022-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 586–593（8 aa）	Not recorded	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.1 M sodium cacodylate pH 5.8, 53% MPD	Resolution 2.60 Å R-free 0.285
8D51 Parathyroid hormone 1 receptor extracellular domain complexed with a peptide ligand containing beta-3-homotryptophan Deposited 2022-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 29–174（146 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；28 % v/v PEG Smear Low, 0.1 M tris-HCl pH 8, 0.15 M Sodium citrate, 1% ethylene glycol, 1 mM ZnSO4	Resolution 2.00 Å R-free 0.246
8D52 Parathyroid hormone 1 receptor extracellular domain complexed with a peptide ligand containing (2-naphthyl)-beta-3-homoalanine Deposited 2022-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 29–174（146 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；28 % v/v PEG Smear Low, 0.1 M tris-HCl pH 8, 0.15 M Sodium citrate, 1% ethylene glycol, 1 mM ZnSO4	Resolution 2.02 Å R-free 0.244
8FLQ Human PTH1R in complex with PTH(1-34) and Gs Deposited 2022-12-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Buffer also contained 2 micromolar PTH peptide. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.55 Å
8FLR Human PTH1R in complex with PTHrP and Gs Deposited 2022-12-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Buffer also contained 2 micromolar PTHrP peptide. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.94 Å
8FLS Human PTH1R in complex with Abaloparatide and Gs Deposited 2022-12-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Buffer also contained 2 micromolar abaloparatide peptide. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
8FLT Human PTH1R in complex with M-PTH(1-14) and Gs Deposited 2022-12-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Buffer also contained 25 micromolar M-PTH peptide. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
8FLU Human PTH1R in complex with LA-PTH and Gs Deposited 2022-12-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 28–593（566 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；Buffer also contained 2 micromolar LA-PTH peptide. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.76 Å
8GW8 the human PTH1 receptor bound to an intracellular biased agonist Deposited 2022-09-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–491（465 aa）	Not recorded	KHF PCO-371 × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8HA0 Molecular recognition of two endogenous hormones by the human parathyroid hormone receptor-1 Deposited 2022-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Not recorded	CLR CHOLESTEROL × 4 PLM PALMITIC ACID × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.62 Å
8HAF PTHrP-PTH1R-Gs complex Deposited 2022-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Not recorded	PLM PALMITIC ACID × 11 CLR CHOLESTEROL × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.25 Å
8HAO Human parathyroid hormone receptor-1 dimer Deposited 2022-10-26	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain I 27–502（476 aa） Chain R 27–502（476 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.76 Å
8JR9 Small molecule agonist (PCO371) bound to human parathyroid hormone receptor type 1 (PTH1R) Deposited 2023-06-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–502（476 aa）	Not recorded	KHF PCO-371 × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.57 Å
8YFO A cryo-EM structure of Ac-LA-PTH-PTH1R-Gs complex Deposited 2024-02-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.71 Å
8YG4 A cryo-EM structure of LA-PTH-R1-PTH1R-Gs complex structure Deposited 2024-02-26	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–502（476 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.59 Å
9JR2 Cryo-EM structure of PTH-PTH1R-Gq (upright state) Deposited 2024-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–593（567 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9JR3 Cryo-EM structure of PTH-PTH1R-Gq (tilted state) Deposited 2024-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 27–593（567 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9LXP A Cryo-EM structure of LA-PTH-PTH1R-Beta-arrestin1 complex (state 2 conformation) Deposited 2025-02-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–507（481 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9LXR A Cryo-EM structure of LA-PTH-PTH1R-Beta-arrestin1 complex (state 1 conformation) Deposited 2025-02-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–507（481 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.07 Å
9LY2 A Cryo-EM structure of LA-PTH-PTH1R-V2RT-Beta-arrestin1 complex (state 1 conformation) Deposited 2025-02-19	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–502（476 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9LY3 A Cryo-EM structure of LA-PTH-PTH1R-V2RT-Beta-arrestin1 complex (state 2 conformation) Deposited 2025-02-19	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–502（476 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.04 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9LZ1 Cryo-EM structure of PTH1R-beta-arrestin1 complex in state 2 Deposited 2025-02-21	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–509（483 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9LZ2 Cryo-EM structure of PTH1R(V2RC)-beta-arrestin1 complex Deposited 2025-02-21	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 27–490（464 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å

43 other PDB entries and 44 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PTH1R_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain R； PDBConstruct 1–483； UniProt 27–509

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

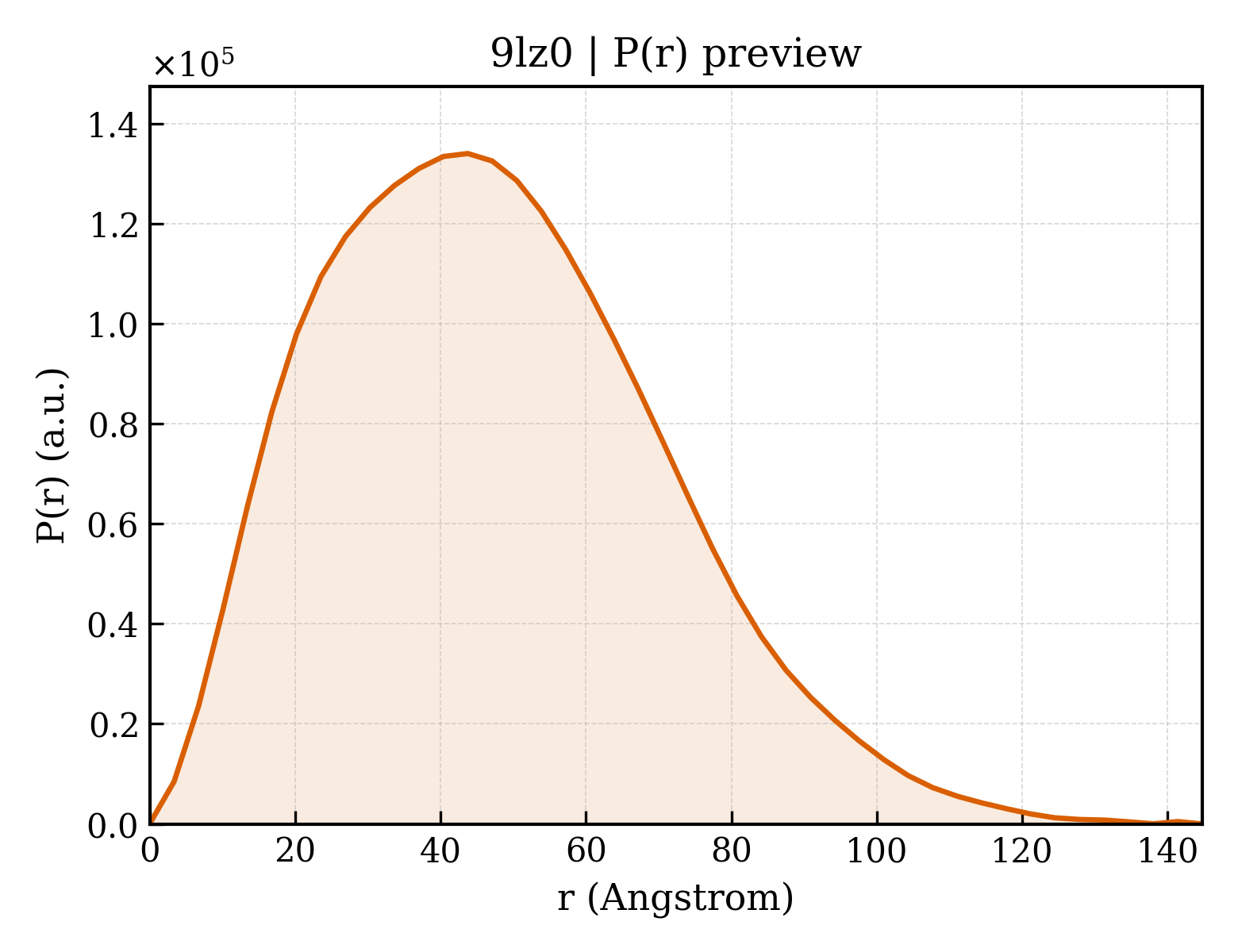

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9lz0
Deposition date deposition_date	2025-02-21
Structure title title	Cryo-EM structure of PTH1R-beta-arrestin1 complex in state 1
Keywords keywords	Cryo-EM structure, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.98 Å
Radius of gyration Rg (electron density) rg_electron	37.23 Å
Forward intensity I(0) i0	101670000.00
Molecular weight molecular_weight	49586.0 kDa
Excluded volume excluded_volume	48754 Å³
Envelope volume envelope_volume	122850 Å³
Hydration-shell volume shell_volume	31190 Å³
Envelope diameter envelope_diameter	151.9 Å
Shell Rg shell_rg	38.05 Å
Envelope Rg envelope_rg	35.49 Å
Shape Rg shape_rg	37.23 Å
Total Rg total_rg	37.30 Å
Total atoms total_atoms	3538
Residues n_residues	882
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	144.7 Å
Rg (real space) rg_real	37.23 Å
Rg uncertainty (real space) rg_real_error	2.26 Å
I(0) (real space) i0_real	1.0170e+08
I(0) uncertainty (real space) i0_real_error	1.9770e+06
Rg (reciprocal space) rg_reciprocal	37.07 Å
I(0) (reciprocal space) i0_reciprocal	101700000.0000
Solution quality estimate total_estimate	0.5768
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	43.8 Å
Skewness Skewness skewness	0.489
Kurtosis Kurtosis kurtosis	-0.062
Angular range angular_range	— – 0.2150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11290000.0000
Real-space data points n_real_points	44
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.616; Stabil: 1.000; Sysdev: 0.048; Positv: 1.000; Valcen: 0.558; Smooth: 0.944

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Beta-arrestin-1
Molecular weight formula_weight	44281.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3538

MGDKGTRVFKKASPNGKLTVYLGKRDFVDHIDLVEPVDGVVLVDPEYLKERRVYVTLTCAFRYGREDLDVLGLTFRKDLFVANVQSFPPAPEDKKPLTRLQERLIKKLGEHAYPFTFEIPPNLPCSVTLQPGPEDTGKACGVDYEVKAFCAENLEEKIHKRNSVRLVIEKVQYAPERPGPQPTAETTRQFLMSDKPLHLEASLDKEIYYHGEPISVNVHVTNNTNKTVKKIKISVRQYADICLFNTAQYKCPVAMEEADDTVAPSSTFCKVYTLTPFLANNREKRGLALDGKLKHEDTNLASSTLLREGANREILGIIVSYKVKVKLVVSRGGLLGDLASSDVAVELPFTLMHPKPKEEPPHREVPEHETPVDTNLIELDTNDDDIVFEDFAR

来源 Source

来源生物 organism	Bos taurus
通用名 common_name	domestic cattle
NCBI Class编号 ncbi_taxonomy_id	9913
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Fab30 heavy chain
Molecular weight formula_weight	24407.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EISEVQLVESGGGLVQPGGSLRLSCAASGFNVYSSSIHWVRQAPGKGLEWVASISSYYGYTYYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARSRQFWYSGLDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKT

来源 Source

来源生物 organism	Mus musculus
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Fab30 light chain
Molecular weight formula_weight	23435.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYKYVPVTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Mus musculus
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Long-acting PTH
Molecular weight formula_weight	4274.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

AVAEIQLMHQRAKWIQDARRRAFLHKLIAEIHTAEI

Entity 5 Entity 5 polymer

Description description	Parathyroid hormone/parathyroid hormone-related peptide receptor
Molecular weight formula_weight	55297.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

DADDVMTKEEQIFLLHRAQAQCEKRLKEVLQRPASIMESDKGWTSASTSGKPRKDKASGKLYPESEEDKEAPTGSRYRGRPCLPEWDHILCWPLGAPGEVVAVPCPDYIYDFNHKGHAYRRCDRNGSWELVPGHNRTWANYSECVKFLTNETREREVFDRLAMIYTVGYSVSLASLTVAVLILAYFRRLHCTRNYIHMHLFLSFMLRAVSIFVKDAVLYSGATLDEAERLTEEELRAIAQAPPPPATAAAGYAGCRVAVTFFLYFLATNYYWILVEGLYLHSLIFMAFFSEKKYLWGFTVFGWGLPAVFVAVWVSVRATLANTGCWDLSSGNKKWIIQVPILASIVLNFILFINIVRVLATKLRETNAGRCDTRQQYRKLLKSTLVLMPLFGVHYIVFMATPYTEVSGTLWQVQMHYEMLFNSFQGFFVAIIYCFCNGEVQAEIKKSWSRWTLALDFKRKARSGSSSYSYGPMVSHTSVTNVG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.800 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.80 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	84357

fit	/app/data/saxs_computation/lz/9lz0/9lz0.fit
pddf	/app/data/pr_computation/lz/9lz0/9lz0.pr.out
profile	/app/data/saxs_computation/lz/9lz0/9lz0.dat

Cryo-EM structure of PTH1R-beta-arrestin1 complex in state 1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-arrestin-1

State in the Current Structure

Other States of the Same Protein in the Database

Parathyroid hormone/parathyroid hormone-related peptide receptor

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
