7ljc

Allosteric modulator LY3154207 binding to SKF-81297-bound dopamine receptor 1 in complex with miniGs protein

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

D(1A) dopamine receptor

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Engineered human Gs alpha subunit × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P54311） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P63212） Nanoboy 35 × 1 (1R)-6-chloro-1-phenyl-2,3,4,5-tetrahydro-1H-3-benzazepine-7,8-diol × 1 ;2-[2,6-bis(chloranyl)phenyl]-1-[(1S,3R)-3-(hydroxymethyl)-1-methyl-5-(3-methyl-3-oxidanyl-butyl)-3,4-dihydro-1H-isoquinolin-2-yl]ethanone ; × 1 CHOLESTEROL × 6 PALMITIC ACID × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DRD1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain R； PDBConstruct 49–494； UniProt 1–446

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Rattus norvegicus

UniProt P54311

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	D(1A) dopamine receptor × 1 （P21728） Engineered human Gs alpha subunit × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P63212） Nanoboy 35 × 1 (1R)-6-chloro-1-phenyl-2,3,4,5-tetrahydro-1H-3-benzazepine-7,8-diol × 1 ;2-[2,6-bis(chloranyl)phenyl]-1-[(1S,3R)-3-(hydroxymethyl)-1-methyl-5-(3-methyl-3-oxidanyl-butyl)-3,4-dihydro-1H-isoquinolin-2-yl]ethanone ; × 1 CHOLESTEROL × 6 PALMITIC ACID × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_RAT
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 15–353； UniProt 2–340

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

Bos taurus

UniProt P63212

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	D(1A) dopamine receptor × 1 （P21728） Engineered human Gs alpha subunit × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P54311） Nanoboy 35 × 1 (1R)-6-chloro-1-phenyl-2,3,4,5-tetrahydro-1H-3-benzazepine-7,8-diol × 1 ;2-[2,6-bis(chloranyl)phenyl]-1-[(1S,3R)-3-(hydroxymethyl)-1-methyl-5-(3-methyl-3-oxidanyl-butyl)-3,4-dihydro-1H-isoquinolin-2-yl]ethanone ; × 1 CHOLESTEROL × 6 PALMITIC ACID × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBG2_BOVIN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–67； UniProt 2–68

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7ljc
Deposition date deposition_date	2021-01-28
Structure title title	Allosteric modulator LY3154207 binding to SKF-81297-bound dopamine receptor 1 in complex with miniGs protein
Keywords keywords	Dopamine receptor 2, Gs protein, SKF-81297, PAM, LY3154207, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7ljc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7ljc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

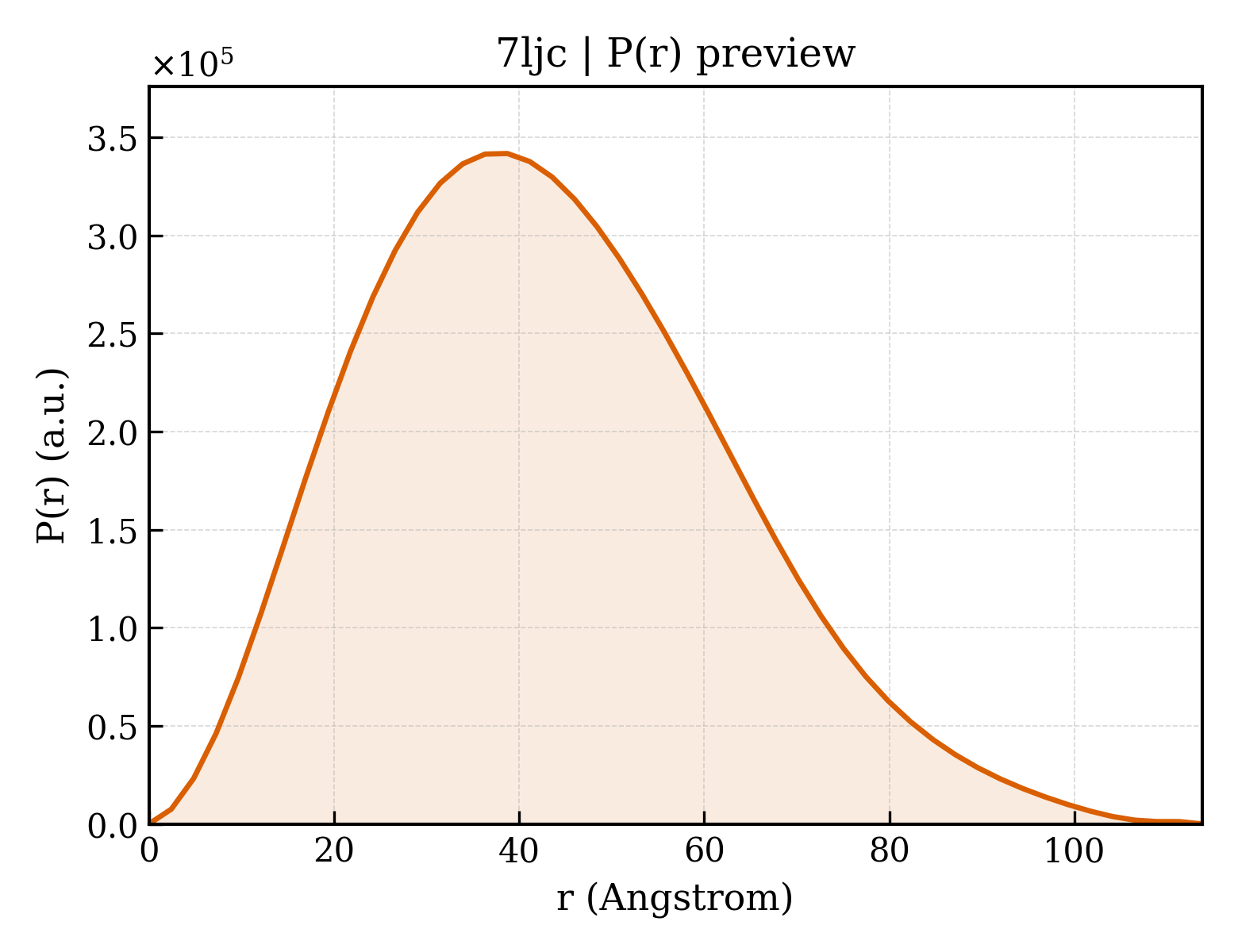

7ljc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.35 Å
Rg (electron density)	33.93 Å
Total Rg	34.54 Å
Atom count	8544
Residues	1040
Excluded volume	154070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7ljc__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	D(1A) dopamine receptor
Molecular weight formula_weight	55668.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R
Atom count atom_count	8544

DYKDDDDVDMGQPGNGSAFLLAPNGSHAPDHDVTQQRDEENLYFQGASMRTLNTSAMDGTGLVVERDFSVRILTACFLSLLILSTLLGNTLVCAAVIRFRHLRSKVTNFFVISLAVSDLLVAVLVMPWKAVAEIAGFWPFGSFCNIWVAFDIMCSTASILNLCVISVDRYWAISSPFRYERKMTPKAAFILISVAWTLSVLISFIPVQLSWHKAKPTSPSDGNATSLAETIDNCDSSLSRTYAISSSVISFYIPVAIMIVTYTRIYRIAQKQIRRIAALERAAVHAKNCQTTTGNGKPVECSQPESSFKMSFKRETKVLKTLSVIMGVFVCCWLPFFILNCILPFCGSGETQPFCIDSNTFDVFVWFGWANSSLNPIIYAFNADFRKAFSTLLGCYRLCPATNNAIETVSINNNGAAMFSSHHEPRGSISKECNLVYLIPHAVGSSEDLKKEEAAGIARPLEKLSPALSVILDYDTDVSLEKIQPITQNGQHPTHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Engineered human Gs alpha subunit
Molecular weight formula_weight	29048.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MGCLGNSKTEDQRNEEKAQREANKMIEKQLQKDKQVYRATHRLLLLGADNSGKSTIVKQMRIYHVNSGIFETKFQVDKVNFHMFDVGAQRDERRKWIQCFNDVTAIIFVVDSSDYNRLQEALNDFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRDEFLRISTASGDGRHYCYPHFTCSVDTENARRIFNDCRDIIQRMHLRQYELL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	39020.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

HHHHHHHHMGSLLQSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Molecular weight formula_weight	7432.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

ASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFC

Source Source

Source organism organism	Bos taurus
Common name common_name	Bovine
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	Nanoboy 35
Molecular weight formula_weight	14845.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MQVQLQESGGGLVQPGGSLRLSCAASGFTFSNYKMNWVRQAPGKGLEWVSDISQSGASISYTGSVKGRFTISRDNAKNTLYLQMNSLKPEDTAVYYCARCPAPFTRDCFDVTSTTYAYRGQGTQVTVSSHHHHHH

Source Source

Source organism organism	Lama glama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 non-polymer

Description description	(1R)-6-chloro-1-phenyl-2,3,4,5-tetrahydro-1H-3-benzazepine-7,8-diol
Molecular weight formula_weight	289.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	;2-[2,6-bis(chloranyl)phenyl]-1-[(1S,3R)-3-(hydroxymethyl)-1-methyl-5-(3-methyl-3-oxidanyl-butyl)-3,4-dihydro-1H-isoquinolin-2-yl]ethanone ;
Molecular weight formula_weight	450.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 9 Entity 9 non-polymer

Description description	PALMITIC ACID
Molecular weight formula_weight	256.4 kDa
Source method src_method	syn
Copy count entity_count	6

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d7ljcb_
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.4 — WD40 repeat-like
Family Family family	b.69.4.1 — WD40-repeat

Domain ID domain_id	d7ljcg_
Class class	a — All alpha proteins
Fold Fold fold	a.137 — Non-globular all-alpha subunits of globular proteins
Superfamily Superfamily superfamily	a.137.3 — Transducin (heterotrimeric G protein), gamma chain
Family Family family	a.137.3.1 — Transducin (heterotrimeric G protein), gamma chain

Domain ID domain_id	d7ljcn1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d7ljcn2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

Domain ID domain_id	7ljcA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	7ljcB01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	7ljcN01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	212256
