1ewo
THE CYSTEINE PROTEASE CRUZAIN BOUND TO WRR-204
SAXS Profile

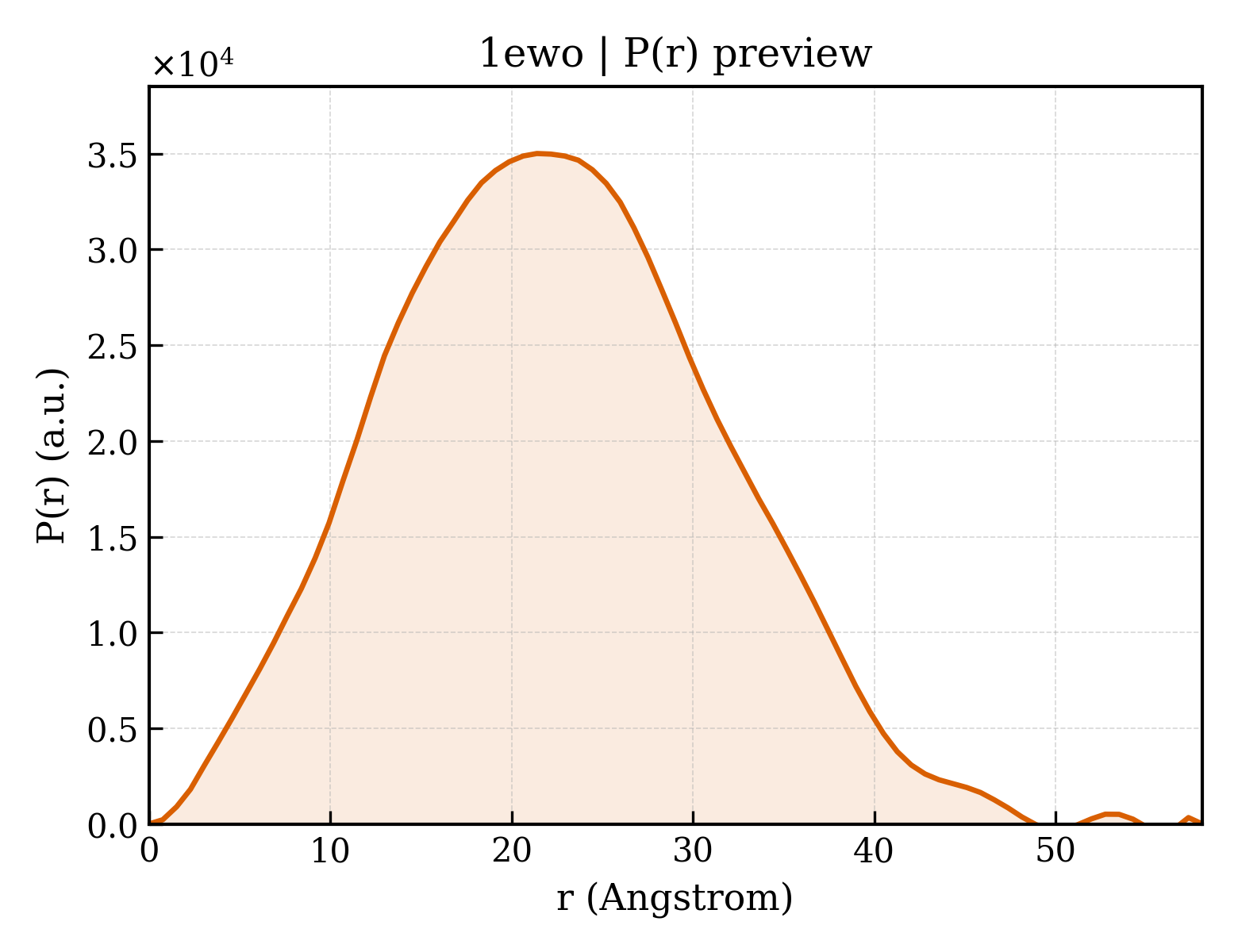

P(r) Distribution
1. Structure Basics
| entry_id | 1ewo |
| deposition_date | 2000-04-26 |
| title | THE CYSTEINE PROTEASE CRUZAIN BOUND TO WRR-204 |
| keywords | cysteine protease, drug design, covalent inhibitor, cruzipain, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.09 Å |
| rg_electron | 15.98 Å |
| i0 | 10385200.00 |
| molecular_weight | 23213.0 kDa |
| excluded_volume | 28618 ų |
| envelope_volume | 31256 ų |
| shell_volume | 16211 ų |
| envelope_diameter | 56.1 Å |
| shell_rg | 22.32 Å |
| envelope_rg | 16.26 Å |
| shape_rg | 15.97 Å |
| total_rg | 16.99 Å |
| total_atoms | 1630 |
| n_residues | 215 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.1 Å |
| rg_real | 16.98 Å |
| rg_real_error | 0.40 Å |
| i0_real | 1.0390e+07 |
| i0_real_error | 1.3770e+05 |
| rg_reciprocal | 16.99 Å |
| i0_reciprocal | 10390000.0000 |
| total_estimate | 0.6095 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 21.4 Å |
| skewness | 0.174 |
| kurtosis | -0.373 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2708000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.722; Stabil: 0.994; Sysdev: 0.257; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
