1eza
AMINO TERMINAL DOMAIN OF ENZYME I FROM ESCHERICHIA COLI NMR, RESTRAINED REGULARIZED MEAN STRUCTURE
SAXS Profile

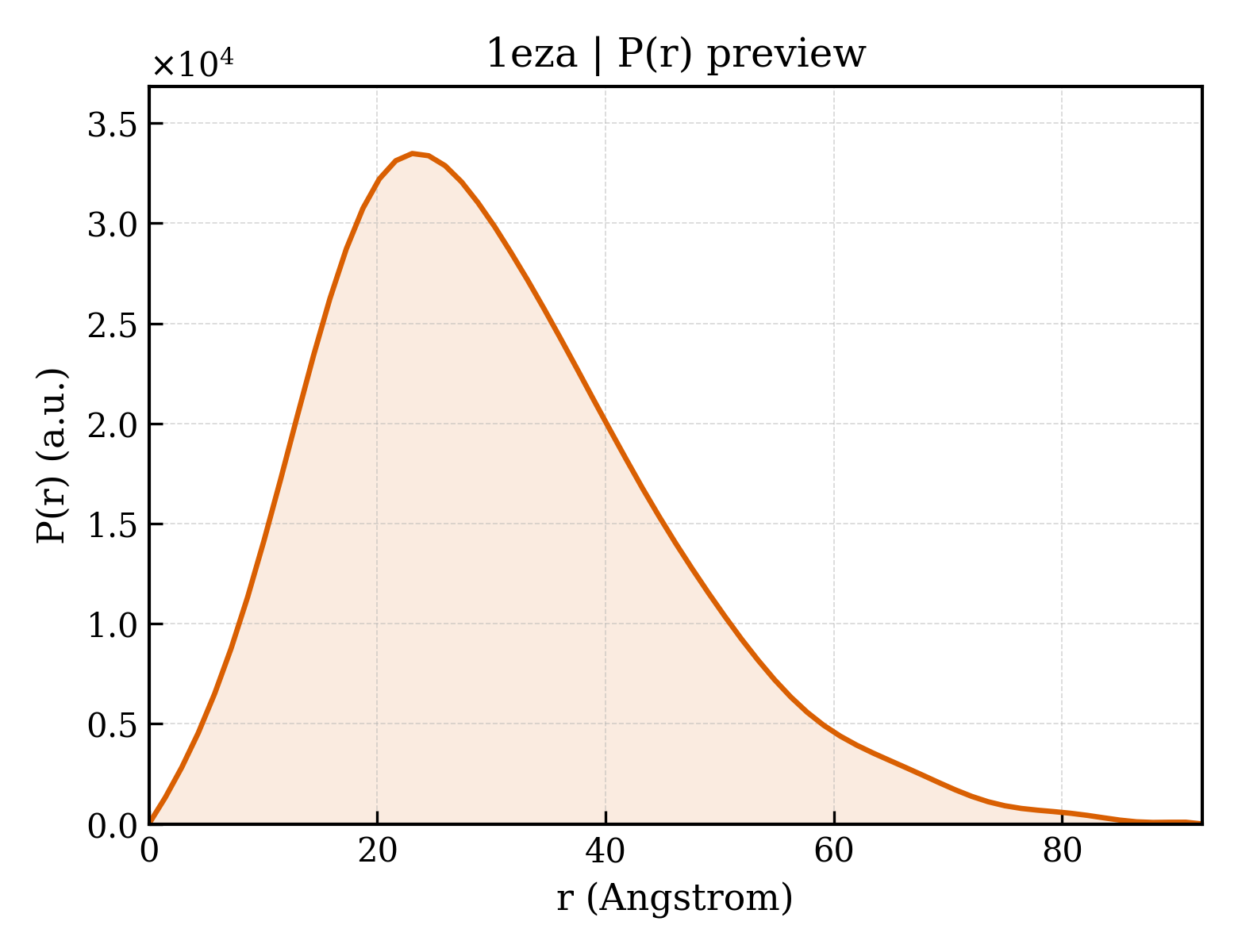

P(r) Distribution
1. Structure Basics
| entry_id | 1eza |
| deposition_date | 1997-01-01 |
| title | AMINO TERMINAL DOMAIN OF ENZYME I FROM ESCHERICHIA COLI NMR, RESTRAINED REGULARIZED MEAN STRUCTURE |
| keywords | PHOSPHOTRANSFERASE; PHOSPHOTRANSFERASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 23.53 Å |
| rg_electron | 22.84 Å |
| i0 | 14409900.00 |
| molecular_weight | 28329.0 kDa |
| excluded_volume | 35594 ų |
| envelope_volume | 48455 ų |
| shell_volume | 19387 ų |
| envelope_diameter | 93.1 Å |
| shell_rg | 27.66 Å |
| envelope_rg | 23.20 Å |
| shape_rg | 22.82 Å |
| total_rg | 23.61 Å |
| total_atoms | 4030 |
| n_residues | 259 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 92.3 Å |
| rg_real | 23.78 Å |
| rg_real_error | 0.91 Å |
| i0_real | 1.4410e+07 |
| i0_real_error | 2.2050e+05 |
| rg_reciprocal | 23.72 Å |
| i0_reciprocal | 14410000.0000 |
| total_estimate | 0.7594 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.1 Å |
| skewness | 0.677 |
| kurtosis | 0.314 |
| angular_range | — – 0.3350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3597000.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.466; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.476; Smooth: 0.995 |
