1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1fai
沉积日期 deposition_date	1992-05-27
结构标题 title	THREE-DIMENSIONAL STRUCTURE OF TWO CRYSTAL FORMS OF FAB R19.9, FROM A MONOCLONAL ANTI-ARSONATE ANTIBODY
关键词 keywords	IMMUNOGLOBULIN; IMMUNOGLOBULIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.02 Å
回转半径 Rg (电子) rg_electron	25.07 Å
零角强度 I(0) i0	39094000.00
分子量 molecular_weight	47218.0 kDa
排除体积 excluded_volume	58521 Å³
包络体积 envelope_volume	73005 Å³
水化壳体积 shell_volume	24591 Å³
包络直径 envelope_diameter	83.0 Å
壳层 Rg shell_rg	32.10 Å
包络 Rg envelope_rg	24.63 Å
形状 Rg shape_rg	25.06 Å
总 Rg total_rg	25.89 Å
总原子数 total_atoms	3320
残基数 n_residues	435
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	80.4 Å
Rg (实空间) rg_real	26.01 Å
Rg 误差 (实空间) rg_real_error	0.50 Å
I(0) (实空间) i0_real	3.9090e+07
I(0) 误差 (实空间) i0_real_error	5.1240e+05
Rg (倒空间) rg_reciprocal	26.02 Å
I(0) (倒空间) i0_reciprocal	39090000.0000
解质量估计 total_estimate	0.7301
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	27.7 Å
偏度 Skewness skewness	0.259
峰度 Kurtosis kurtosis	-0.597
角度范围 angular_range	— – 0.3050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6976000.0000
实空间数据点数 n_real_points	62
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.972; Stabil: 1.000; Sysdev: 0.221; Positv: 1.000; Valcen: 0.984; Smooth: 0.925

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	IGG2B-KAPPA R19.9 FAB (LIGHT CHAIN)
分子量 formula_weight	23690.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L
原子数 atom_count	3320

DIQMTQTTSSLSASLGDRVTISCRASQDISNYLNWYQQKPDGTVKLLIYYTSRLHSGVPSRFSGSGSGTDYSLTISNLEHEDIATYFCQQGSTLPRTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090

Entity 2 polymer

描述 description	IGG2B-KAPPA R19.9 FAB (HEAVY CHAIN)
分子量 formula_weight	23566.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

QVQLQQSGAELVRAGSSVKMSCKASGYTFTSYGVNWVKQRPGQGLEWIGYINPGKGYLSYNEKFKGKTTLTVDRSSSTAYMQLRSLTSEDAAVYFCARSFYGGSDLAVYYFDSWGQGTTLTVSSAKTTPPSVYPLAPGCGDTTGSSVTLGCLVKGYFPESVTVTWNSGSLSSSVHTFPALLQSALYTMSSSVTVPSSTWPSQTVTCSVAHPASSTTVDKKL

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090

▼

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (5 domains)

结构域编号 domain_id	d1faih1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1faih2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1faih3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1fail1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1fail2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

结构域编号 domain_id	1faiH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1faiH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1faiL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1faiL02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	42.000 Å
晶胞边长 b length_b	80.600 Å
晶胞边长 c length_c	75.200 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.20 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	0.1890
R_free r_free	—

fit	/app/data/saxs_computation/fa/1fai/1fai.fit
pddf	/app/data/pr_computation/fa/1fai/1fai.pr.out
profile	/app/data/saxs_computation/fa/1fai/1fai.dat

THREE-DIMENSIONAL STRUCTURE OF TWO CRYSTAL FORMS OF FAB R19.9, FROM A MONOCLONAL ANTI-ARSONATE ANTIBODY

SAXS 散射曲线 SAXS Profile

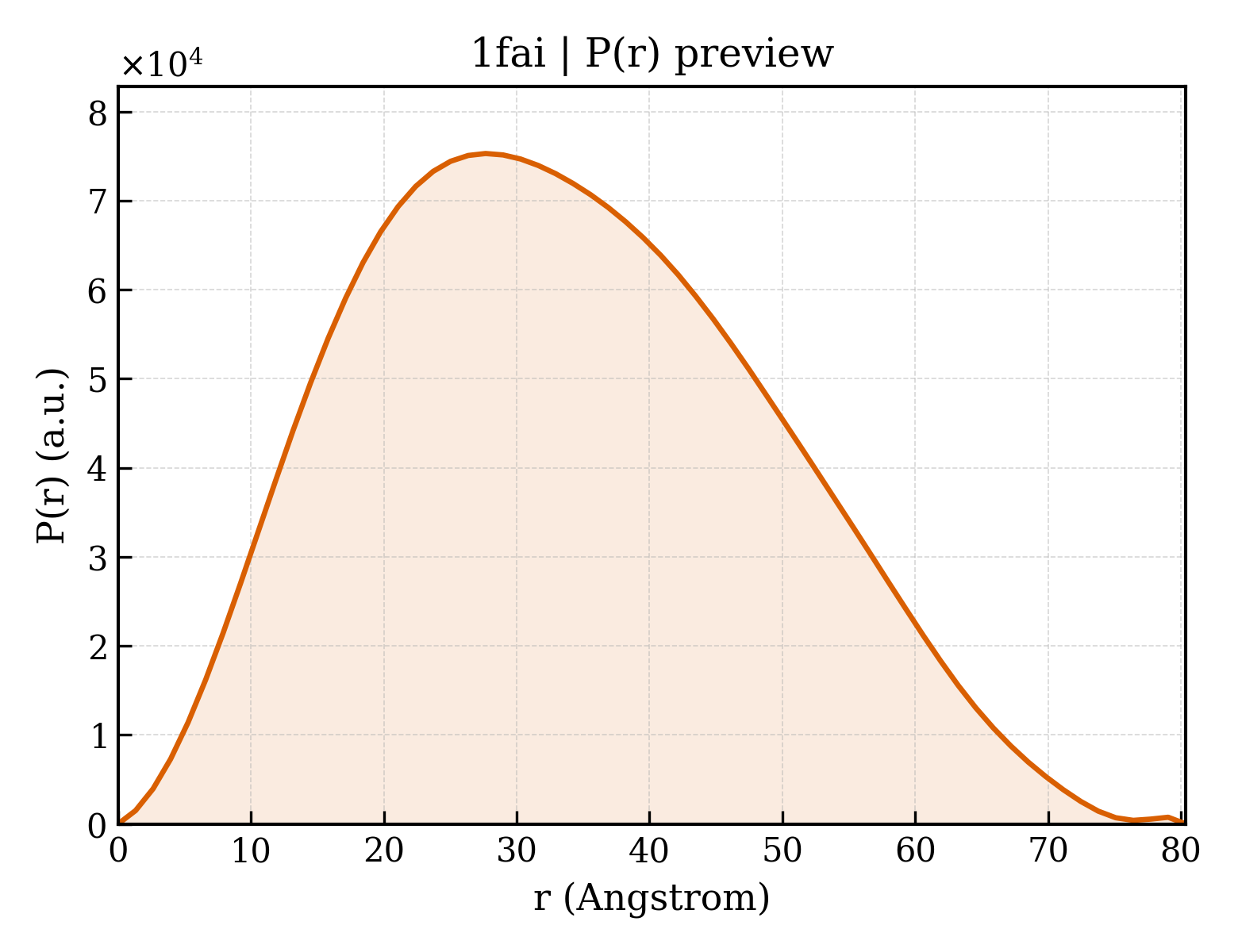

P(r) 距离分布 P(r) Distribution
