8xkk

Ckappa domain of mouse immunoglobulin

Method: SOLUTION NMR Dmax: 49.5 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Immunoglobulin kappa constant

Mus musculus

UniProt P01837

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 2–106 Not recorded No other associated polymer SOLUTION NMR NMR measurement conditions：pH 6；298 K；Ionic strength (raw mmCIF value) Not defined；Pressure 1 NMR sample composition：1.6 mM [U-13C; U-15N] Ckappa domain of mouse immunoglobulin, 5 mM NaPi, 50 mM sodium chloride, 95% H2O/5% D2O | 95% H2O/5% D2O NMR sample composition：1.6 mM [U-13C; U-15N] Ckappa domain of mouse immunoglobulin, 95% H2O/5% D2O | 95% H2O/5% D2O NMR sample composition：1.6 mM [U-13C; U-15N] Ckappa domain of mouse immunoglobulin, 95% H2O/5% D2O | 95% H2O/5% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8XKK Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
15C8 CATALYTIC ANTIBODY 5C8, FREE FAB Deposited 1998-03-18 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 24–235（212 aa） Fragment：FAB
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.5；pH 5.5
Resolution 2.50 Å R-free 0.251
1AHW A COMPLEX OF EXTRACELLULAR DOMAIN OF TISSUE FACTOR WITH AN INHIBITORY FAB (5G9) Deposited 1997-04-10 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–214（214 aa） Fragment：LIGHT CHAIN RESIDUES 1 - 214
Chain D 1–214（214 aa） Fragment：LIGHT CHAIN RESIDUES 1 - 214
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；TF-5G9 CRYSTAL WERE GROWN IN 1.7-2.0M AMMONIUM SULFATE, 0.1M SODIUM CITRATE, PH 5.0-5.5, 0.2% 2-METHYL-2,4-PENTANE-DIOL (MPD), AND 2% PEG 600 AT AN EQUIMOLAR 5G9:TF RATIO. THE CRYSTALS GREW EXTREMELY SLOWLY, TAKING 6-9 MONTHS TO REACH A MAXIMAL SIZE OF 0.4 X 0.4 X 0.8 MM3., pH 7.0
Resolution 3.00 Å R-free 0.285
1AIF ANTI-IDIOTYPIC FAB 409.5.3 (IGG2A) FAB FROM MOUSE Deposited 1994-11-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–213（213 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.90 Å
1AIF ANTI-IDIOTYPIC FAB 409.5.3 (IGG2A) FAB FROM MOUSE Deposited 1994-11-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–213（213 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.90 Å
1F11 F124 FAB FRAGMENT FROM A MONOCLONAL ANTI-PRES2 ANTIBODY Deposited 2000-05-18 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–106（106 aa） Fragment：FAB FRAGMENT (UNP P01665 residues 1-111, P01837 residues 1-106)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；290 K；PEG 400, sodium acetate, ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 3.00 Å R-free 0.271
1F11 F124 FAB FRAGMENT FROM A MONOCLONAL ANTI-PRES2 ANTIBODY Deposited 2000-05-18 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–106（106 aa） Fragment：FAB FRAGMENT (UNP P01665 residues 1-111, P01837 residues 1-106)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；290 K；PEG 400, sodium acetate, ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 3.00 Å R-free 0.271
1FAI THREE-DIMENSIONAL STRUCTURE OF TWO CRYSTAL FORMS OF FAB R19.9, FROM A MONOCLONAL ANTI-ARSONATE ANTIBODY Deposited 1992-05-27 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å
1FSK COMPLEX FORMATION BETWEEN A FAB FRAGMENT OF A MONOCLONAL IGG ANTIBODY AND THE MAJOR ALLERGEN FROM BIRCH POLLEN BET V 1 Deposited 2000-09-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；300 K；12% peg 6000, 0.1M sodium citrate, pH 4.0, VAPOR DIFFUSION, HANGING DROP, temperature 300K
Resolution 2.90 Å R-free 0.285
1FSK COMPLEX FORMATION BETWEEN A FAB FRAGMENT OF A MONOCLONAL IGG ANTIBODY AND THE MAJOR ALLERGEN FROM BIRCH POLLEN BET V 1 Deposited 2000-09-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；300 K；12% peg 6000, 0.1M sodium citrate, pH 4.0, VAPOR DIFFUSION, HANGING DROP, temperature 300K
Resolution 2.90 Å R-free 0.285
1FSK COMPLEX FORMATION BETWEEN A FAB FRAGMENT OF A MONOCLONAL IGG ANTIBODY AND THE MAJOR ALLERGEN FROM BIRCH POLLEN BET V 1 Deposited 2000-09-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；300 K；12% peg 6000, 0.1M sodium citrate, pH 4.0, VAPOR DIFFUSION, HANGING DROP, temperature 300K
Resolution 2.90 Å R-free 0.285
1FSK COMPLEX FORMATION BETWEEN A FAB FRAGMENT OF A MONOCLONAL IGG ANTIBODY AND THE MAJOR ALLERGEN FROM BIRCH POLLEN BET V 1 Deposited 2000-09-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain K 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；300 K；12% peg 6000, 0.1M sodium citrate, pH 4.0, VAPOR DIFFUSION, HANGING DROP, temperature 300K
Resolution 2.90 Å R-free 0.285
1GPO CRYSTAL STRUCTURE OF THE RATIONALLY DESIGNED ANTIBODY M41 AS A FAB FRAGMENT Deposited 1997-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa） Fragment：FAB FRAGMENT
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；2.0 M AMMONIUM SULFATE, 5 % DMSO, 0.1 M CACODYLATE PH 6.5
Resolution 1.95 Å R-free 0.283
1GPO CRYSTAL STRUCTURE OF THE RATIONALLY DESIGNED ANTIBODY M41 AS A FAB FRAGMENT Deposited 1997-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 1–106（106 aa） Fragment：FAB FRAGMENT
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；2.0 M AMMONIUM SULFATE, 5 % DMSO, 0.1 M CACODYLATE PH 6.5
Resolution 1.95 Å R-free 0.283
1KB5 MURINE T-CELL RECEPTOR VARIABLE DOMAIN/FAB COMPLEX Deposited 1997-04-06 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain L 1–106（106 aa） Fragment：FAB
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.2；15% PEG6000, 100MM HEPES PH 6.9-7.5, 200MM NACL, 0.1% NAN3, pH 7.2
Resolution 2.50 Å
1KCR CRYSTAL STRUCTURE OF ANTIBODY PC283 IN COMPLEX WITH PS1 PEPTIDE Deposited 2001-11-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain L 1–106（106 aa） Fragment：light chain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；300 K；18% PEG 3K, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 300K
Resolution 2.90 Å R-free 0.277
1KCS CRYSTAL STRUCTURE OF ANTIBODY PC282 IN COMPLEX WITH PS1 PEPTIDE Deposited 2001-11-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain L 1–106（106 aa） Fragment：light chain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；300 K；20% PEG 8K, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 300K
Resolution 2.50 Å R-free 0.277
1KCU CRYSTAL STRUCTURE OF ANTIBODY PC287 Deposited 2001-11-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa） Fragment：light chain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；300 K；15% PEG 8K, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 300K
Resolution 2.20 Å R-free 0.249
1KCV Crystal structure of antibody pc282 Deposited 2001-11-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa） Fragment：light chain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；300 K；10 % PEG 3K, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 300K
Resolution 1.80 Å R-free 0.233
1LO0 Catalytic Retro-Diels-Alderase Transition State Analogue Complex Deposited 2002-05-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain X 1–106（106 aa） Fragment：Fab fragment
Not recorded BC1 3-{[(9-CYANO-9,10-DIHYDRO-10-METHYLACRIDIN-9-YL)CARBONYL]AMINO}PROPANOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；290 K；PEG, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 2.00 Å R-free 0.255
1LO0 Catalytic Retro-Diels-Alderase Transition State Analogue Complex Deposited 2002-05-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa） Fragment：Fab fragment
Not recorded BC1 3-{[(9-CYANO-9,10-DIHYDRO-10-METHYLACRIDIN-9-YL)CARBONYL]AMINO}PROPANOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；290 K；PEG, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 2.00 Å R-free 0.255
1MLB MONOCLONAL ANTIBODY FAB D44.1 RAISED AGAINST CHICKEN EGG-WHITE LYSOZYME Deposited 1995-03-08 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.10 Å R-free 0.274
1NBY Crystal Structure of HyHEL-63 complexed with HEL mutant K96A Deposited 2002-12-04 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–106（106 aa） Fragment：light chain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；PEG 4000, AMMONIUM ACETATE, SODIUM ACETATE, pH 4.60, VAPOR DIFFUSION, HANGING DROP
Resolution 1.80 Å R-free 0.250
1NDG Crystal structure of Fab fragment of antibody HyHEL-8 complexed with its antigen lysozyme Deposited 2002-12-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–106（106 aa） Fragment：light chain
Not recorded ACY ACETIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP
Resolution 1.90 Å R-free 0.249
1NDM Crystal structure of Fab fragment of antibody HyHEL-26 complexed with lysozyme Deposited 2002-12-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–106（106 aa） Fragment：light chain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP
Resolution 2.10 Å R-free 0.258
1ORQ X-ray structure of a voltage-dependent potassium channel in complex with an Fab Deposited 2003-03-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–106（106 aa）
Not recorded CD CADMIUM ION × 28 K POTASSIUM ION × 24 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；PEG400, Cadmium chloride, Sodium acetate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.20 Å R-free 0.298
1ORQ X-ray structure of a voltage-dependent potassium channel in complex with an Fab Deposited 2003-03-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain A 1–106（106 aa）
Not recorded CD CADMIUM ION × 56 K POTASSIUM ION × 48 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；PEG400, Cadmium chloride, Sodium acetate, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.20 Å R-free 0.298
1ORS X-ray structure of the KvAP potassium channel voltage sensor in complex with an Fab Deposited 2003-03-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PEG4000, Hepes, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.90 Å R-free 0.251
1PSK THE CRYSTAL STRUCTURE OF AN FAB FRAGMENT THAT BINDS TO THE MELANOMA-ASSOCIATED GD2 GANGLIOSIDE Deposited 1997-03-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa） Fragment：FAB
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；30% (W/V) PEG 4000, 1% MPD, TRIS BUFFER, PH 7.5
Resolution 2.80 Å R-free 0.326
25C8 CATALYTIC ANTIBODY 5C8, FAB-HAPTEN COMPLEX Deposited 1998-03-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 24–234（211 aa） Fragment：FAB
Not recorded GEP N-METHYL-N-(PARA-GLUTARAMIDOPHENYL-ETHYL)-PIPERIDINIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.5；pH 5.5
Resolution 2.00 Å R-free 0.292
2F19 THREE-DIMENSIONAL STRUCTURE OF TWO CRYSTAL FORMS OF FAB R19.9, FROM A MONOCLONAL ANTI-ARSONATE ANTIBODY Deposited 1992-05-27 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.80 Å
2MPA BACTERICIDAL ANTIBODY AGAINST NEISSERIA MENINGITIDIS Deposited 1999-06-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain L 8–106（99 aa） Fragment：FAB FRAGMENT
Not recorded CD CADMIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；THE MN12H2 FAB PEPTIDE COMPLEX WAS CRYSTALLIZED FROM 15% W/V PEG 20000, 100 MM SODIUM ACETATE, PH 4.6, 20 MM CDCL2, VAPOR DIFFUSION, HANGING DROP
Resolution 2.60 Å R-free 0.264
4ZXB Structure of the human insulin receptor ectodomain, IRDeltabeta construct, in complex with four Fab molecules Deposited 2015-05-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: decameric
Chain B 1–106（106 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Crystals were produced by vapour diffusion using 1 microlitre of the complex (2.6 mg/ml) in 10 mM HEPES (pH 7.5), 0.02% sodium azide and 10% D-trehalose solution and 1 microlitres of well solution containing 10% PEG 8000, 0.1 M MES (pH 6.5) and 0.1 M MgAc2.
Resolution 3.30 Å R-free 0.237
6FAB THREE-DIMENSIONAL STRUCTURE OF MURINE ANTI-P-AZOPHENYLARSONATE FAB 36-71. 1. X-RAY CRYSTALLOGRAPHY, SITE-DIRECTED MUTAGENESIS, AND MODELING OF THE COMPLEX WITH HAPTEN Deposited 1991-01-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.90 Å

25 other PDB entries and 33 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name IGKC_MOUSE
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–105； UniProt 2–106

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

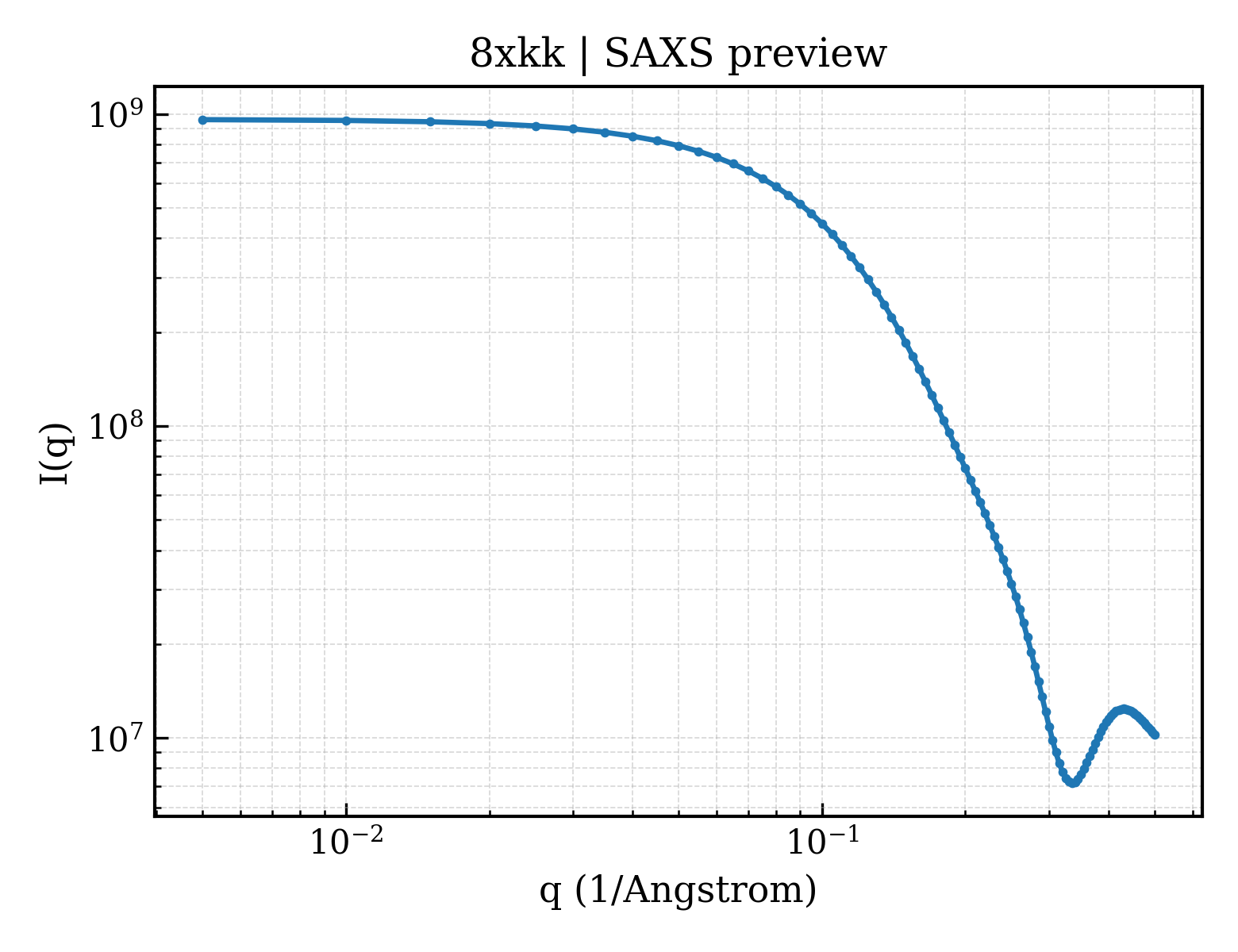

SAXS scattering curve SAXS Profile

SAXS profile for 8xkk

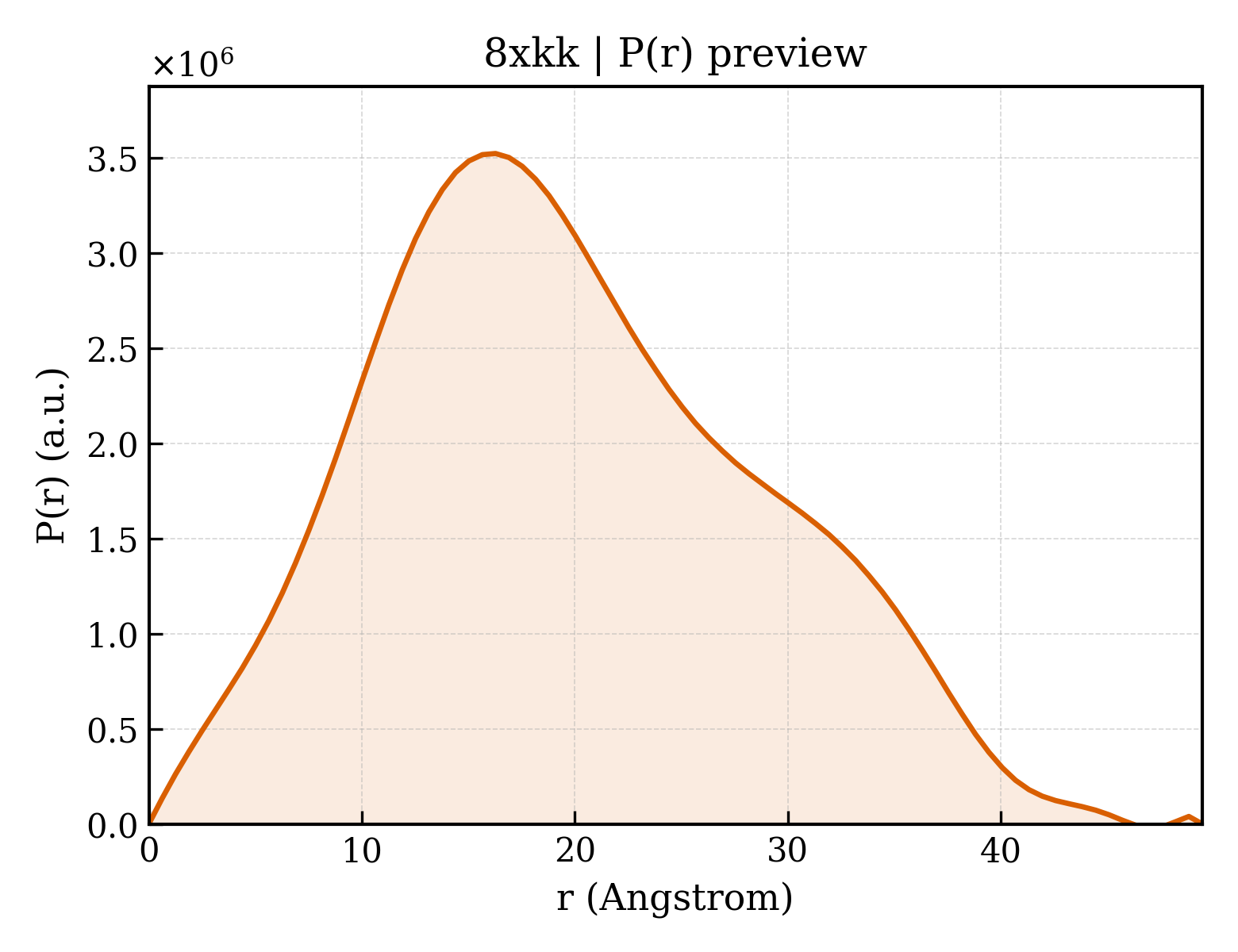

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8xkk
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8xkk
Deposition date deposition_date2023-12-23
最后修订 last_revision2025-02-05
Structure title titleCkappa domain of mouse immunoglobulin
Keywords keywordsSTRUCTURE FROM CYANA 3.98.15, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier15.26 Å
Radius of gyration Rg (electron density) rg_electron15.04 Å
Forward intensity I(0) i0962282000.00
Molecular weight molecular_weight250710.0 kDa
Excluded volume excluded_volume307810 ų
Envelope volume envelope_volume24504 ų
Hydration-shell volume shell_volume13116 ų
Envelope diameter envelope_diameter57.1 Å
Shell Rg shell_rg21.81 Å
Envelope Rg envelope_rg16.93 Å
Shape Rg shape_rg15.05 Å
Total Rg total_rg15.12 Å
Total atoms total_atoms34160
Residues n_residues2240
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax49.5 Å
Rg (real space) rg_real15.28 Å
Rg uncertainty (real space) rg_real_error0.35 Å
I(0) (real space) i0_real9.6230e+08
I(0) uncertainty (real space) i0_real_error1.2130e+07
Rg (reciprocal space) rg_reciprocal15.28 Å
I(0) (reciprocal space) i0_reciprocal962300000.0000
Solution quality estimate total_estimate0.8056
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary16.3 Å
Skewness Skewness skewness0.317
Kurtosis Kurtosis kurtosis-0.516
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha379700.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.835; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

9. Files and Curves (10)
