1gmo

CRYSTAL STRUCTURES OF NK1-HEPARIN COMPLEXES REVEAL THE BASIS FOR NK1 ACTIVITY AND ENABLE ENGINEERING OF POTENT AGONISTS OF THE MET RECEPTOR

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEPATOCYTE GROWTH FACTOR

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 2 其他Polymer 3	;2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid ; × 1 ;2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid ; × 1 ;2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid ; × 1 SULFATE ION × 2 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 water × 2	Consistent with protein count
2	Other combination	Homooligomer	Protein 2 其他Polymer 1	;2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose ; × 1 SULFATE ION × 2 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 water × 2	Consistent with protein count
3	Other combination	Homooligomer	Protein 2 其他Polymer 1	;2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose ; × 1 SULFATE ION × 3 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 water × 2	Consistent with protein count
4	Other combination	Homooligomer	Protein 2 其他Polymer 1	;2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose ; × 1 SULFATE ION × 1 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HGF_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–183； UniProt 28–210 Author chain B； PDBConstruct 1–183； UniProt 28–210 Author chain C； PDBConstruct 1–183； UniProt 28–210 Author chain D； PDBConstruct 1–183； UniProt 28–210 Author chain E； PDBConstruct 1–183； UniProt 28–210 Author chain F； PDBConstruct 1–183； UniProt 28–210 Author chain G； PDBConstruct 1–183； UniProt 28–210 Author chain H； PDBConstruct 1–183； UniProt 28–210

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gmo
Deposition date deposition_date	2001-09-20
Structure title title	CRYSTAL STRUCTURES OF NK1-HEPARIN COMPLEXES REVEAL THE BASIS FOR NK1 ACTIVITY AND ENABLE ENGINEERING OF POTENT AGONISTS OF THE MET RECEPTOR
Keywords keywords	HORMONE, GROWTH FACTOR; HORMONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gmo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gmo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

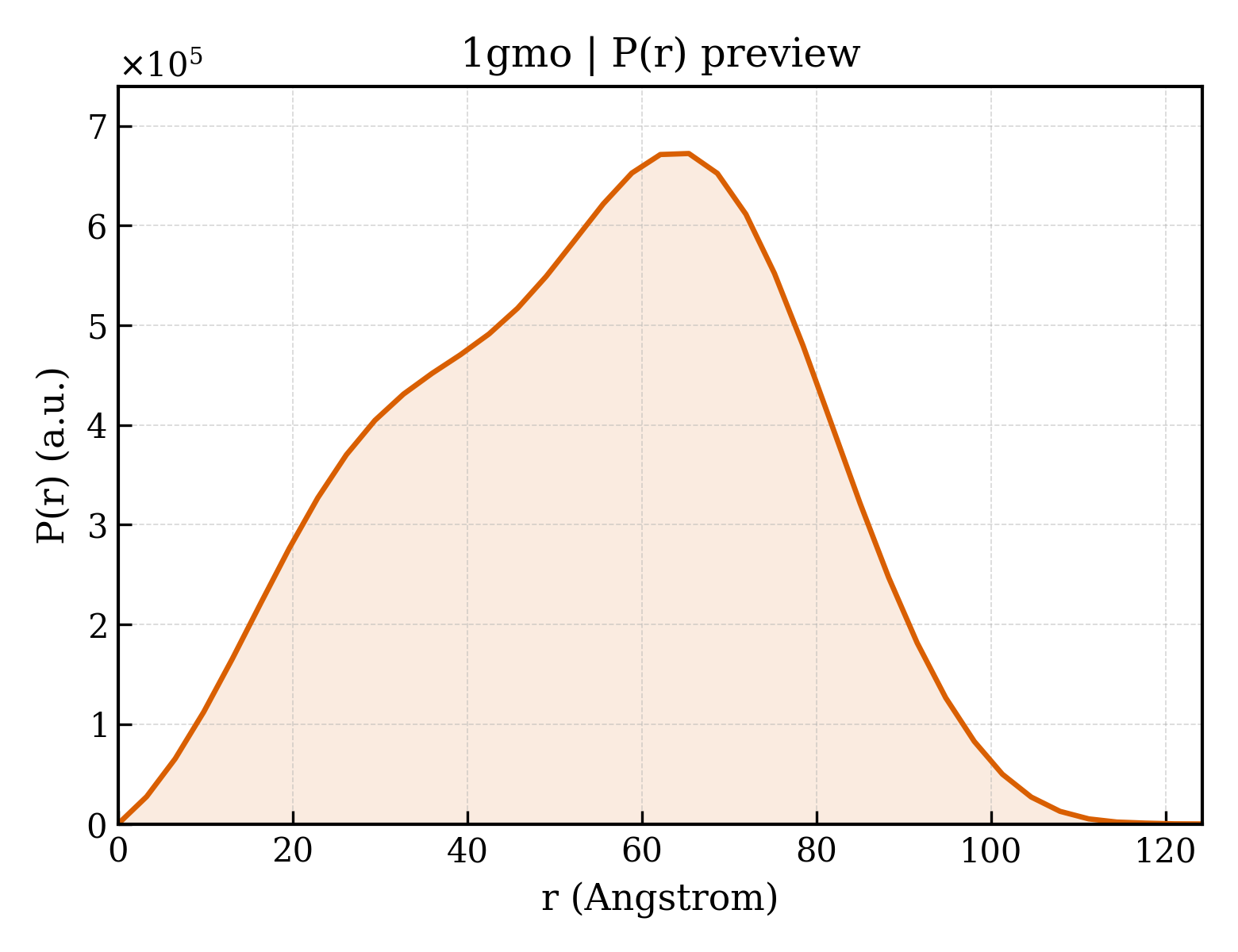

1gmo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.46 Å
Rg (electron density)	22.87 Å
Total Rg	24.03 Å
Atom count	3069
Residues	346
Excluded volume	53216 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gmo__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1gmo__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1gmo__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1gmo__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	HEPATOCYTE GROWTH FACTOR
Molecular weight formula_weight	21173.3 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	11555

YVEGQRKRRNTIHEFKKSAKTTLIKIDPALKIKTKKVNTADQCADRCTRNKGLPFTCKAFVFDKARKQCLWFPFNSMSSGVKKEFGHEFDLYENKDYIRNCIIGKGRSYKGTVSITKSGIKCQPWSSMIPHEHSFLPSSYRGKDLQENYCRNPRGEEGGPWCFTSNPEVRYEVCDIPQCSEVE

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	PICHIA PASTORIS

Entity 2 Entity 2 branched

Description description	;2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid ;
Molecular weight formula_weight	1750.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 branched

Description description	;2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid ;
Molecular weight formula_weight	2006.6 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	;2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid ;
Molecular weight formula_weight	2327.9 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 branched

Description description	;2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose ;
Molecular weight formula_weight	2649.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 branched

Description description	;2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose-(1-4)-2-O-sulfo-alpha-L-idopyranuronic acid-(1-4)-2-deoxy-6-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose ;
Molecular weight formula_weight	1750.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 8 Entity 8 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	183

▼

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

Domain ID domain_id	d1gmoa1
Class class	g — Small proteins
Fold Fold fold	g.10 — Hairpin loop containing domain-like
Superfamily Superfamily superfamily	g.10.1 — Hairpin loop containing domain-like
Family Family family	g.10.1.1 — Hairpin loop containing domain

Domain ID domain_id	d1gmoa2
Class class	g — Small proteins
Fold Fold fold	g.14 — Kringle-like
Superfamily Superfamily superfamily	g.14.1 — Kringle-like
Family Family family	g.14.1.1 — Kringle modules

Domain ID domain_id	d1gmob1
Class class	g — Small proteins
Fold Fold fold	g.10 — Hairpin loop containing domain-like
Superfamily Superfamily superfamily	g.10.1 — Hairpin loop containing domain-like
Family Family family	g.10.1.1 — Hairpin loop containing domain

Domain ID domain_id	d1gmob2
Class class	g — Small proteins
Fold Fold fold	g.14 — Kringle-like
Superfamily Superfamily superfamily	g.14.1 — Kringle-like
Family Family family	g.14.1.1 — Kringle modules

Domain ID domain_id	d1gmoc1
Class class	g — Small proteins
Fold Fold fold	g.10 — Hairpin loop containing domain-like
Superfamily Superfamily superfamily	g.10.1 — Hairpin loop containing domain-like
Family Family family	g.10.1.1 — Hairpin loop containing domain

Domain ID domain_id	d1gmoc2
Class class	g — Small proteins
Fold Fold fold	g.14 — Kringle-like
Superfamily Superfamily superfamily	g.14.1 — Kringle-like
Family Family family	g.14.1.1 — Kringle modules

Domain ID domain_id	d1gmod1
Class class	g — Small proteins
Fold Fold fold	g.10 — Hairpin loop containing domain-like
Superfamily Superfamily superfamily	g.10.1 — Hairpin loop containing domain-like
Family Family family	g.10.1.1 — Hairpin loop containing domain

Domain ID domain_id	d1gmod2
Class class	g — Small proteins
Fold Fold fold	g.14 — Kringle-like
Superfamily Superfamily superfamily	g.14.1 — Kringle-like
Family Family family	g.14.1.1 — Kringle modules

Domain ID domain_id	d1gmoe1
Class class	g — Small proteins
Fold Fold fold	g.10 — Hairpin loop containing domain-like
Superfamily Superfamily superfamily	g.10.1 — Hairpin loop containing domain-like
Family Family family	g.10.1.1 — Hairpin loop containing domain

Domain ID domain_id	d1gmoe2
Class class	g — Small proteins
Fold Fold fold	g.14 — Kringle-like
Superfamily Superfamily superfamily	g.14.1 — Kringle-like
Family Family family	g.14.1.1 — Kringle modules

Domain ID domain_id	d1gmof1
Class class	g — Small proteins
Fold Fold fold	g.10 — Hairpin loop containing domain-like
Superfamily Superfamily superfamily	g.10.1 — Hairpin loop containing domain-like
Family Family family	g.10.1.1 — Hairpin loop containing domain

Domain ID domain_id	d1gmof2
Class class	g — Small proteins
Fold Fold fold	g.14 — Kringle-like
Superfamily Superfamily superfamily	g.14.1 — Kringle-like
Family Family family	g.14.1.1 — Kringle modules

Domain ID domain_id	d1gmog1
Class class	g — Small proteins
Fold Fold fold	g.10 — Hairpin loop containing domain-like
Superfamily Superfamily superfamily	g.10.1 — Hairpin loop containing domain-like
Family Family family	g.10.1.1 — Hairpin loop containing domain

Domain ID domain_id	d1gmog2
Class class	g — Small proteins
Fold Fold fold	g.14 — Kringle-like
Superfamily Superfamily superfamily	g.14.1 — Kringle-like
Family Family family	g.14.1.1 — Kringle modules

Domain ID domain_id	d1gmoh1
Class class	g — Small proteins
Fold Fold fold	g.10 — Hairpin loop containing domain-like
Superfamily Superfamily superfamily	g.10.1 — Hairpin loop containing domain-like
Family Family family	g.10.1.1 — Hairpin loop containing domain

Domain ID domain_id	d1gmoh2
Class class	g — Small proteins
Fold Fold fold	g.14 — Kringle-like
Superfamily Superfamily superfamily	g.14.1 — Kringle-like
Family Family family	g.14.1.1 — Kringle modules

CATH v4.4 (16 domains)

Domain ID domain_id	1gmoA01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

Domain ID domain_id	1gmoA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	20 — Plasminogen Kringle 4
Homologous superfamily homologous superfamily	10 — Plasminogen Kringle 4

Domain ID domain_id	1gmoB01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

Domain ID domain_id	1gmoB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	20 — Plasminogen Kringle 4
Homologous superfamily homologous superfamily	10 — Plasminogen Kringle 4

Domain ID domain_id	1gmoC01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

Domain ID domain_id	1gmoC02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	20 — Plasminogen Kringle 4
Homologous superfamily homologous superfamily	10 — Plasminogen Kringle 4

Domain ID domain_id	1gmoD01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

Domain ID domain_id	1gmoD02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	20 — Plasminogen Kringle 4
Homologous superfamily homologous superfamily	10 — Plasminogen Kringle 4

Domain ID domain_id	1gmoE01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

Domain ID domain_id	1gmoE02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	20 — Plasminogen Kringle 4
Homologous superfamily homologous superfamily	10 — Plasminogen Kringle 4

Domain ID domain_id	1gmoF01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

Domain ID domain_id	1gmoF02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	20 — Plasminogen Kringle 4
Homologous superfamily homologous superfamily	10 — Plasminogen Kringle 4

Domain ID domain_id	1gmoG01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

Domain ID domain_id	1gmoG02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	20 — Plasminogen Kringle 4
Homologous superfamily homologous superfamily	10 — Plasminogen Kringle 4

Domain ID domain_id	1gmoH01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

Domain ID domain_id	1gmoH02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	20 — Plasminogen Kringle 4
Homologous superfamily homologous superfamily	10 — Plasminogen Kringle 4

▶

Unit-cell length a length_a	179.700 Å
Unit-cell length b length_b	174.100 Å
Unit-cell length c length_c	59.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2540
R_work r_work	0.2540
R_free r_free	0.2950

CRYSTAL STRUCTURES OF NK1-HEPARIN COMPLEXES REVEAL THE BASIS FOR NK1 ACTIVITY AND ENABLE ENGINEERING OF POTENT AGONISTS OF THE MET RECEPTOR

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEPATOCYTE GROWTH FACTOR

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1gmo__assembly_1__model_1

1gmo__assembly_1__model_1 | I(q)

1gmo__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 branched

Entity 3 Entity 3 branched

Entity 4 Entity 4 branched

Entity 5 Entity 5 branched

Entity 6 Entity 6 branched

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 water

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

CATH v4.4 (16 domains)

7. Citations (1)

CRYSTAL STRUCTURES OF NK1-HEPARIN COMPLEXES REVEAL THE BASIS FOR NK1 ACTIVITY AND ENABLE ENGINEERING OF POTENT AGONISTS OF THE MET RECEPTOR

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEPATOCYTE GROWTH FACTOR

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1gmo__assembly_1__model_1

1gmo__assembly_1__model_1 | I(q)

1gmo__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 branched

Entity 3 Entity 3 branched

Entity 4 Entity 4 branched

Entity 5 Entity 5 branched

Entity 6 Entity 6 branched

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 water

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

CATH v4.4 (16 domains)

7. Citations (1)
