1gp9

A New Crystal Form of the Nk1 Splice Variant of Hgf/Sf Demonstrates Extensive Hinge Movement and Suggests that the Nk1 Dimer Originates by Domain Swapping

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEPATOCYTE GROWTH FACTOR

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 3 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	P14210
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–177； UniProt 40–210 Author chain B； PDBConstruct 7–177； UniProt 40–210 Author chain C； PDBConstruct 7–177； UniProt 40–210 Author chain D； PDBConstruct 7–177； UniProt 40–210

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gp9
Deposition date deposition_date	2001-10-31
Structure title title	A New Crystal Form of the Nk1 Splice Variant of Hgf/Sf Demonstrates Extensive Hinge Movement and Suggests that the Nk1 Dimer Originates by Domain Swapping
Keywords keywords	;HORMONE/GROWTH FACTOR, HGF/SF, NK1, MET, DOMAIN SWAPPING, PROTEIN ENGINEERING, GROWTH FACTOR, KRINGLE, GLYCOPROTEIN, HORMONE-GROWTH FACTOR complex ;; HORMONE/GROWTH FACTOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gp9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gp9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

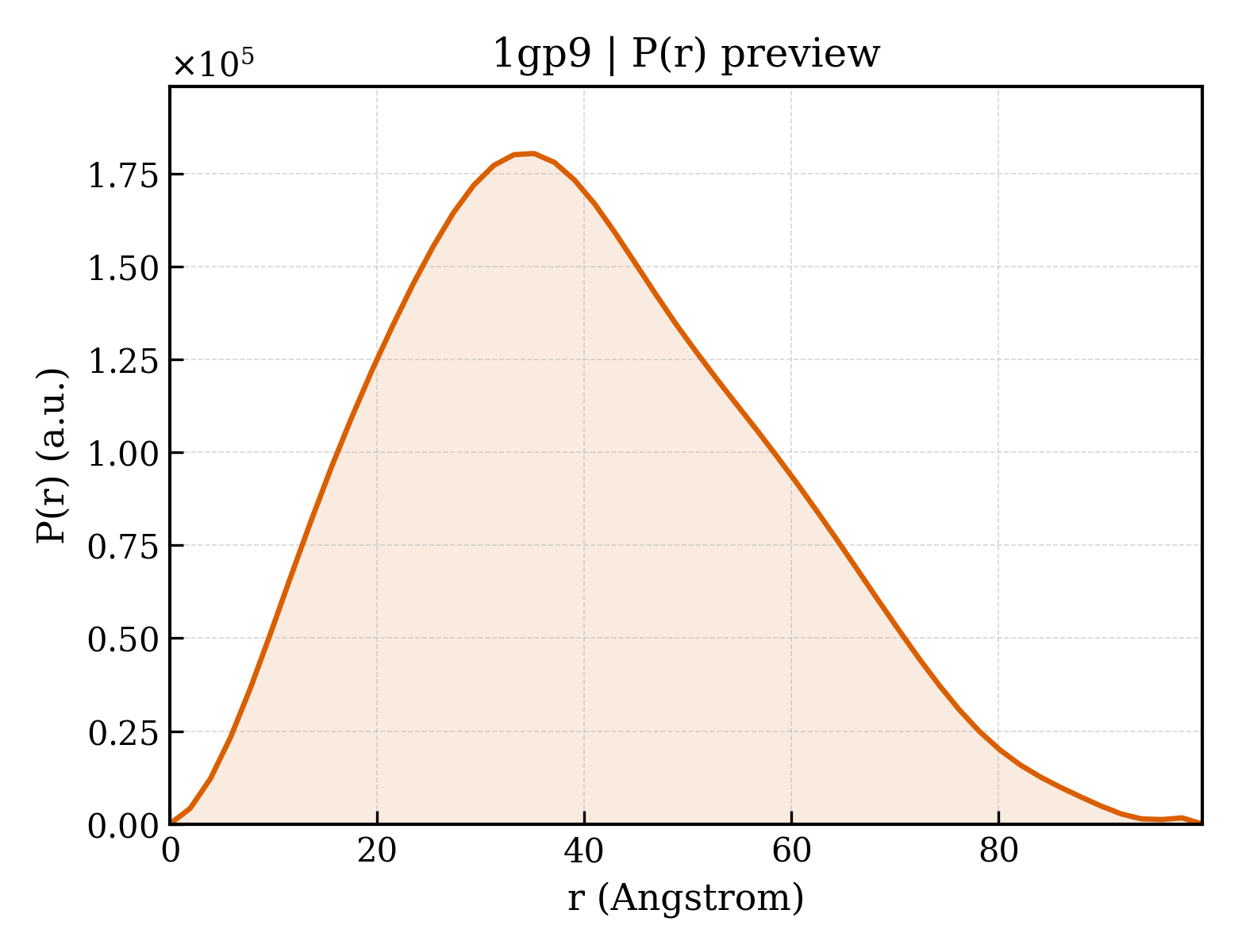

1gp9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.77 Å
Rg (electron density)	21.06 Å
Total Rg	21.88 Å
Atom count	2779
Residues	340
Excluded volume	49415 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gp9__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1gp9__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	HEPATOCYTE GROWTH FACTOR
Molecular weight formula_weight	20329.2 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	5694

EAEAYVHEFKKSAKTTLIKIDPALKIKTKKVNTADQCANRCTRNKGLPFTCKAFVFDKARKQCLWFPFNSMSSGVKKEFGHEFDLYENKDYIRNCIIGKGRSYKGTVSITKSGIKCQPWSSMIPHEHSFLPSSYRGKDLQENYCRNPRGEEGGPWCFTSNPEVRYEVCDIPQCSEVE

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Komagataella pastoris

Entity 2 Entity 2 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	156

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1gp9a1
Class class	g — Small proteins
Fold Fold fold	g.10 — Hairpin loop containing domain-like
Superfamily Superfamily superfamily	g.10.1 — Hairpin loop containing domain-like
Family Family family	g.10.1.1 — Hairpin loop containing domain

Domain ID domain_id	d1gp9a2
Class class	g — Small proteins
Fold Fold fold	g.14 — Kringle-like
Superfamily Superfamily superfamily	g.14.1 — Kringle-like
Family Family family	g.14.1.1 — Kringle modules

Domain ID domain_id	d1gp9b1
Class class	g — Small proteins
Fold Fold fold	g.10 — Hairpin loop containing domain-like
Superfamily Superfamily superfamily	g.10.1 — Hairpin loop containing domain-like
Family Family family	g.10.1.1 — Hairpin loop containing domain

Domain ID domain_id	d1gp9b2
Class class	g — Small proteins
Fold Fold fold	g.14 — Kringle-like
Superfamily Superfamily superfamily	g.14.1 — Kringle-like
Family Family family	g.14.1.1 — Kringle modules

Domain ID domain_id	d1gp9c1
Class class	g — Small proteins
Fold Fold fold	g.10 — Hairpin loop containing domain-like
Superfamily Superfamily superfamily	g.10.1 — Hairpin loop containing domain-like
Family Family family	g.10.1.1 — Hairpin loop containing domain

Domain ID domain_id	d1gp9c2
Class class	g — Small proteins
Fold Fold fold	g.14 — Kringle-like
Superfamily Superfamily superfamily	g.14.1 — Kringle-like
Family Family family	g.14.1.1 — Kringle modules

Domain ID domain_id	d1gp9d1
Class class	g — Small proteins
Fold Fold fold	g.10 — Hairpin loop containing domain-like
Superfamily Superfamily superfamily	g.10.1 — Hairpin loop containing domain-like
Family Family family	g.10.1.1 — Hairpin loop containing domain

Domain ID domain_id	d1gp9d2
Class class	g — Small proteins
Fold Fold fold	g.14 — Kringle-like
Superfamily Superfamily superfamily	g.14.1 — Kringle-like
Family Family family	g.14.1.1 — Kringle modules

CATH v4.4 (8 domains)

Domain ID domain_id	1gp9A01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

Domain ID domain_id	1gp9A02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	20 — Plasminogen Kringle 4
Homologous superfamily homologous superfamily	10 — Plasminogen Kringle 4

Domain ID domain_id	1gp9B01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

Domain ID domain_id	1gp9B02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	20 — Plasminogen Kringle 4
Homologous superfamily homologous superfamily	10 — Plasminogen Kringle 4

Domain ID domain_id	1gp9C01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

Domain ID domain_id	1gp9C02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	20 — Plasminogen Kringle 4
Homologous superfamily homologous superfamily	10 — Plasminogen Kringle 4

Domain ID domain_id	1gp9D01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	4 — Hepatocyte Growth Factor
Homologous superfamily homologous superfamily	10 — Hepatocyte Growth Factor

Domain ID domain_id	1gp9D02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	20 — Plasminogen Kringle 4
Homologous superfamily homologous superfamily	10 — Plasminogen Kringle 4

▶

Unit-cell length a length_a	73.480 Å
Unit-cell length b length_b	78.260 Å
Unit-cell length c length_c	304.460 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	19.920 Å
R factor r_factor	0.2370
R_work r_work	0.2370
R_free r_free	0.2880
