1gsg
Structure of E.coli glutaminyl-tRNA synthetase complexed with trnagln and ATP at 2.8 Angstroms resolution
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1gsg |
| 沉积日期 deposition_date | 1990-04-03 |
| 结构标题 title | Structure of E.coli glutaminyl-tRNA synthetase complexed with trnagln and ATP at 2.8 Angstroms resolution |
| 关键词 keywords | PROTEIN-T-RNA COMPLEX, SINGLE STRAND, PROTEIN/RNA, LIGASE-RNA COMPLEX; LIGASE/RNA |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 30.85 Å |
| 回转半径 Rg (电子) rg_electron | 30.60 Å |
| 零角强度 I(0) i0 | 76322600.00 |
| 分子量 molecular_weight | 62747.0 kDa |
| 排除体积 excluded_volume | 73990 ų |
| 包络体积 envelope_volume | 76051 ų |
| 水化壳体积 shell_volume | 23705 ų |
| 包络直径 envelope_diameter | 103.5 Å |
| 壳层 Rg shell_rg | 32.91 Å |
| 包络 Rg envelope_rg | 29.32 Å |
| 形状 Rg shape_rg | 30.96 Å |
| 总 Rg total_rg | 30.76 Å |
| 总原子数 total_atoms | 75 |
| 残基数 n_residues | 66 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

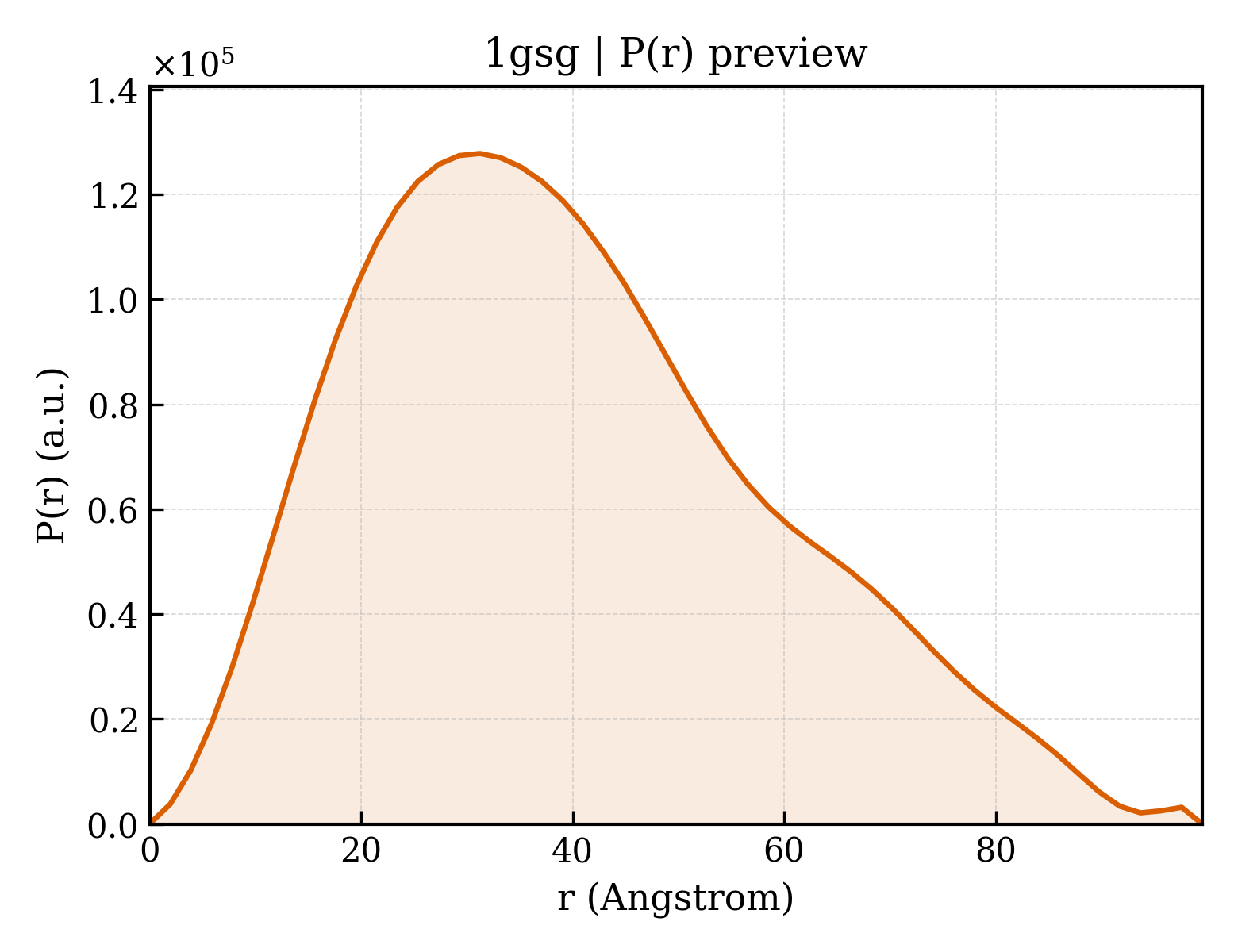

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 99.5 Å |
| Rg (实空间) rg_real | 31.06 Å |
| Rg 误差 (实空间) rg_real_error | 0.63 Å |
| I(0) (实空间) i0_real | 7.6320e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.1360e+06 |
| Rg (倒空间) rg_reciprocal | 30.98 Å |
| I(0) (倒空间) i0_reciprocal | 76320000.0000 |
| 解质量估计 total_estimate | 0.8712 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 31.2 Å |
| 偏度 Skewness skewness | 0.493 |
| 峰度 Kurtosis kurtosis | -0.358 |
| 角度范围 angular_range | — – 0.2550 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 12280000.0000 |
| 实空间数据点数 n_real_points | 52 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.880; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.869; Smooth: 0.815 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 2 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d1gsgp1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.53 — Ribosomal protein L25-like |
| 超家族 Superfamily superfamily | b.53.1 — Ribosomal protein L25-like |
| 家族 Family family | b.53.1.2 — Gln-tRNA synthetase (GlnRS), C-terminal (anticodon-binding) domain |
| 结构域编号 domain_id | d1gsgp2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.26 — Adenine nucleotide alpha hydrolase-like |
| 超家族 Superfamily superfamily | c.26.1 — Nucleotidylyl transferase |
| 家族 Family family | c.26.1.1 — Class I aminoacyl-tRNA synthetases (RS), catalytic domain |
