SAXSdb — 1gwl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NON-CATALYTIC PROTEIN 1

PIROMYCES EQUI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 2 其他Polymer 2	;beta-D-mannopyranose-(1-4)-beta-D-mannopyranose-(1-4)-beta-D-mannopyranose-(1-4)-beta-D-mannopyranose-(1-4)-beta-D-mannopyranose-(1-4)-beta-D-mannopyranose ; × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9C171_PIREQ
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–145； UniProt 335–478

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gwl
Deposition date deposition_date	2002-03-19
Structure title title	Carbohydrate binding module family29 complexed with mannohexaose
Keywords keywords	CARBOHYDRATE BINDING DOMAIN, GLUCOMANNAN, CELLOHEXAOSE, MANNOHEXAOSE, CELLULOSOME; CARBOHYDRATE BINDING DOMAIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gwl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

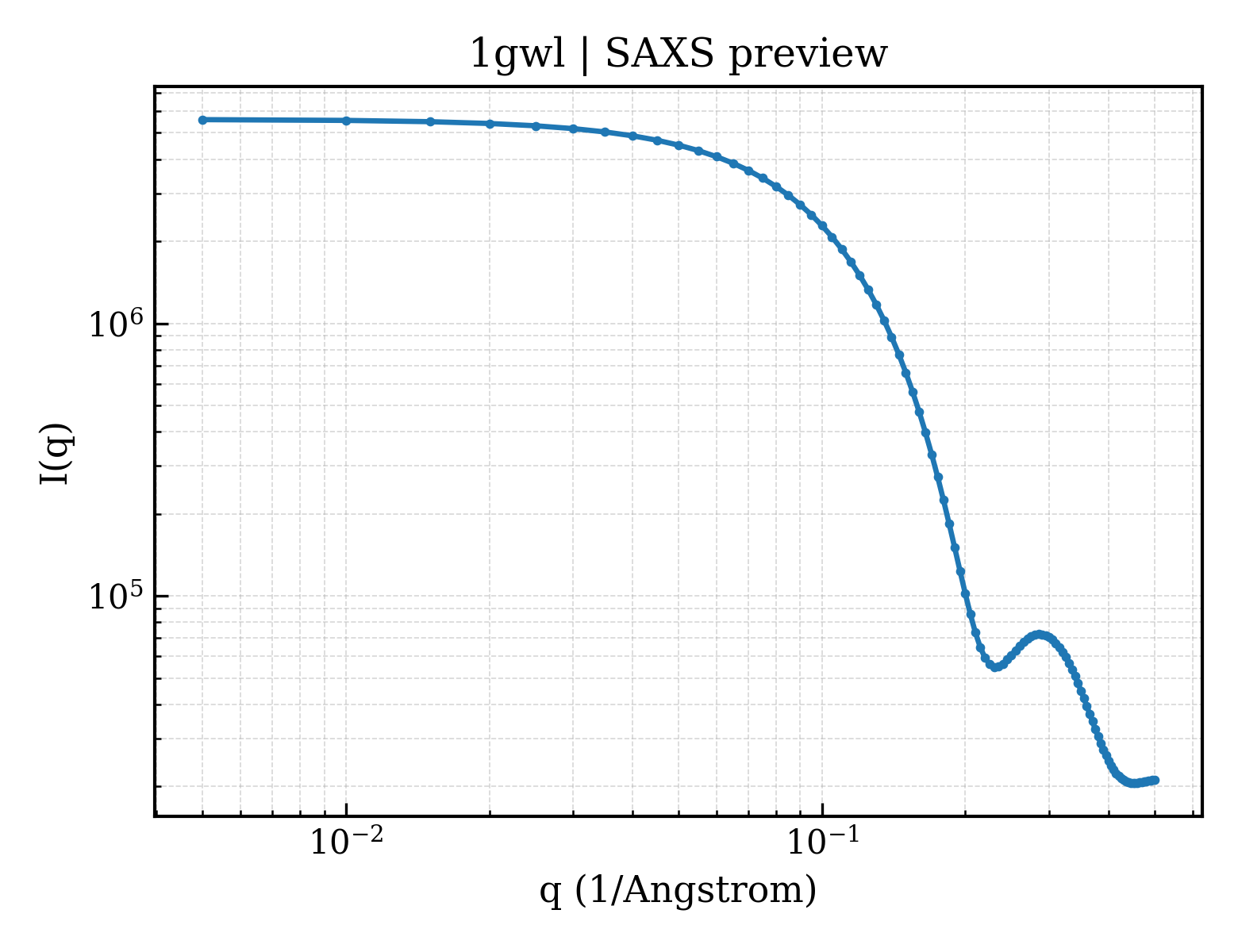

1gwl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1gwl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.11 Å
Rg (electron density)	22.26 Å
Total Rg	23.06 Å
Atom count	2354
Residues	282
Excluded volume	41407 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gwl__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	NON-CATALYTIC PROTEIN 1
Molecular weight formula_weight	17263.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1398

MNVRATYTVIFKNASGLPNGYDNWGWGCTLSYYGGAMIINPQEGKYGAVSLKRNSGSFRGGSLRFDMKNEGKVKILVENSEADEKFEVETISPSDEYVTYILDVDFDLPFDRIDFQDAPGNGDRIWIKNLVHSTGSADDFVDPINLEHHHHHH

Source Source

Source organism organism	PIROMYCES EQUI
NCBI taxonomy ID ncbi_taxonomy_id	99929
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 branched

Description description	;beta-D-mannopyranose-(1-4)-beta-D-mannopyranose-(1-4)-beta-D-mannopyranose-(1-4)-beta-D-mannopyranose-(1-4)-beta-D-mannopyranose-(1-4)-beta-D-mannopyranose ;
Molecular weight formula_weight	990.9 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	200

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1gwla_
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.19 — Family 29 carbohydrate binding module, CBM29

CATH v4.4 (1 domains)

Domain ID domain_id	1gwlA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	430 — Galactose-binding lectin

▶

Unit-cell length a length_a	51.619 Å
Unit-cell length b length_b	43.176 Å
Unit-cell length c length_c	60.731 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.85 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.510 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1560
R_work r_work	0.1540
R_free r_free	0.1790
