SAXSdb — 1w90

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NON-CATALYTIC PROTEIN 1

PIROMYCES EQUI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SODIUM ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	1,2-ETHANEDIOL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9C171
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–145； UniProt 334–478 Author chain B； PDBConstruct 1–145； UniProt 334–478

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1w90
Deposition date deposition_date	2004-10-01
Structure title title	CBM29-2 mutant D114A: Probing the Mechanism of Ligand Recognition by Family 29 Carbohydrate Binding Modules
Keywords keywords	CARBOHYDRATE BINDING DOMAIN, CARBOHYDRATE BINDING MODULE, GLUCOMANNAN, CELLOHEXAOSE, MANNOHEXAOSE, CELLULOSOME; CARBOHYDRATE BINDING DOMAIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1w90__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1w90__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

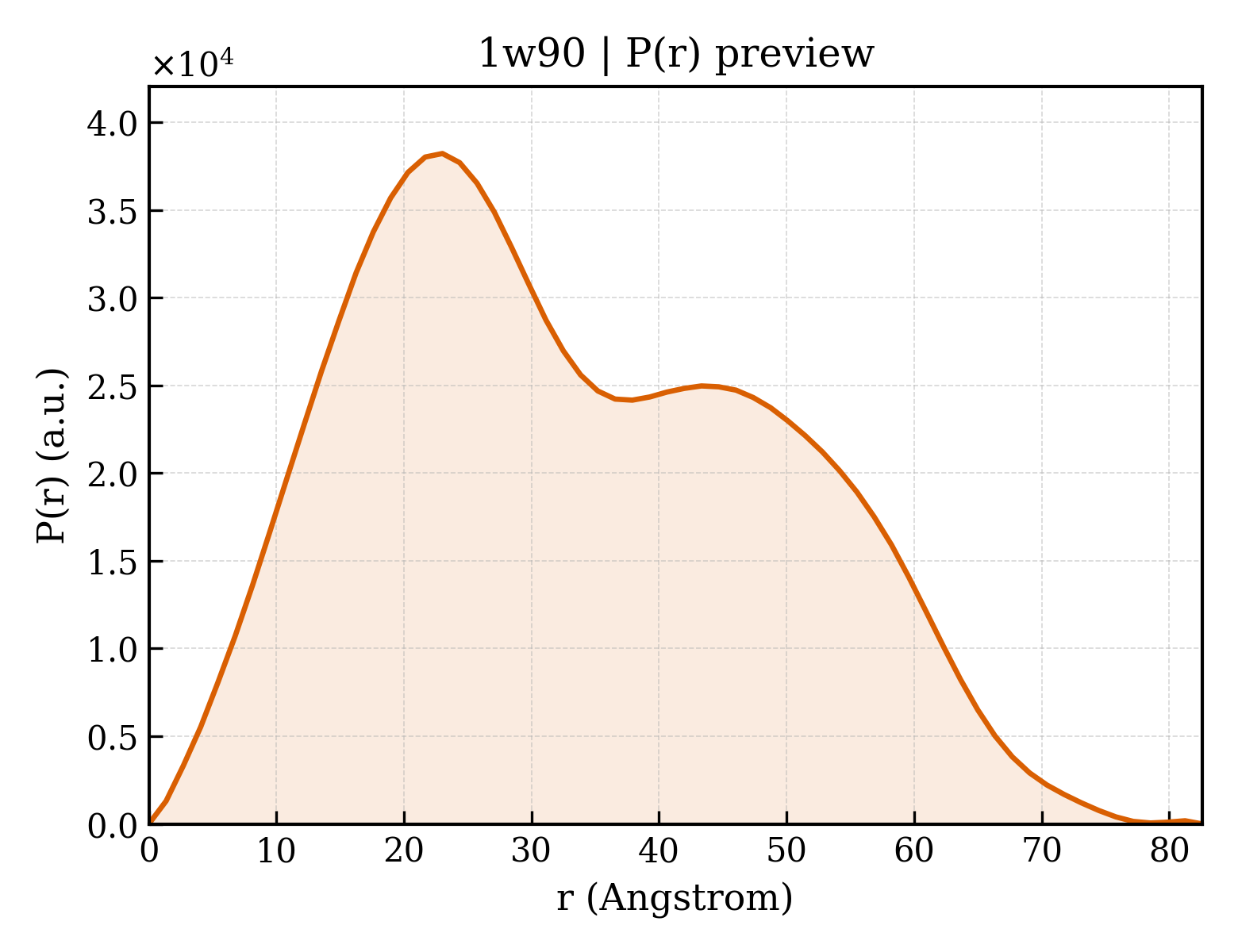

1w90__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.76 Å
Rg (electron density)	15.19 Å
Total Rg	16.25 Å
Atom count	1200
Residues	151
Excluded volume	21026 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1w90__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1w90__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	NON-CATALYTIC PROTEIN 1
Molecular weight formula_weight	17174.9 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2448

SNVRATYTVIFKNASGLPNGYDNWGWGCTLSYYGGAMIINPQEGKYGAVSLKRNSGSFRGGSLRFDMKNEGKVKILVENSEADEKFEVETISPSDEYVTYILDVDFDLPFDRIAFQDAPGNGDRIWIKNLVHSTGSADDFVDPINLEHHHHHH

Source Source

Source organism organism	PIROMYCES EQUI
NCBI taxonomy ID ncbi_taxonomy_id	99929
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	118

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1w90a1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.19 — Family 29 carbohydrate binding module, CBM29

Domain ID domain_id	d1w90a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1w90b_
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.19 — Family 29 carbohydrate binding module, CBM29

CATH v4.4 (2 domains)

Domain ID domain_id	1w90A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	430 — Galactose-binding lectin

Domain ID domain_id	1w90B00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	430 — Galactose-binding lectin

▶

Unit-cell length a length_a	93.190 Å
Unit-cell length b length_b	93.190 Å
Unit-cell length c length_c	82.354 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	37.800 Å
R factor r_factor	0.1830
R_work r_work	0.1800
R_free r_free	0.2350

CBM29-2 mutant D114A: Probing the Mechanism of Ligand Recognition by Family 29 Carbohydrate Binding Modules
