SAXSdb — 1oh3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NON-CATALYTIC PROTEIN 1

PIROMYCES EQUI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 1	;beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-alpha-D-glucopyranose ; × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9C171
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–144； UniProt 334–477 Author chain B； PDBConstruct 1–144； UniProt 334–477

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1oh3
Deposition date deposition_date	2003-05-21
Structure title title	E78R mutant of a carbohydrate binding module family 29
Keywords keywords	CARBOHYDRATE BINDING DOMAIN, GLUCOMANNAN, CELLOHEXAOSE, MANNOHEXAOSE, CELLULOSOME, NCP1; CARBOHYDRATE BINDING DOMAIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1oh3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1oh3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

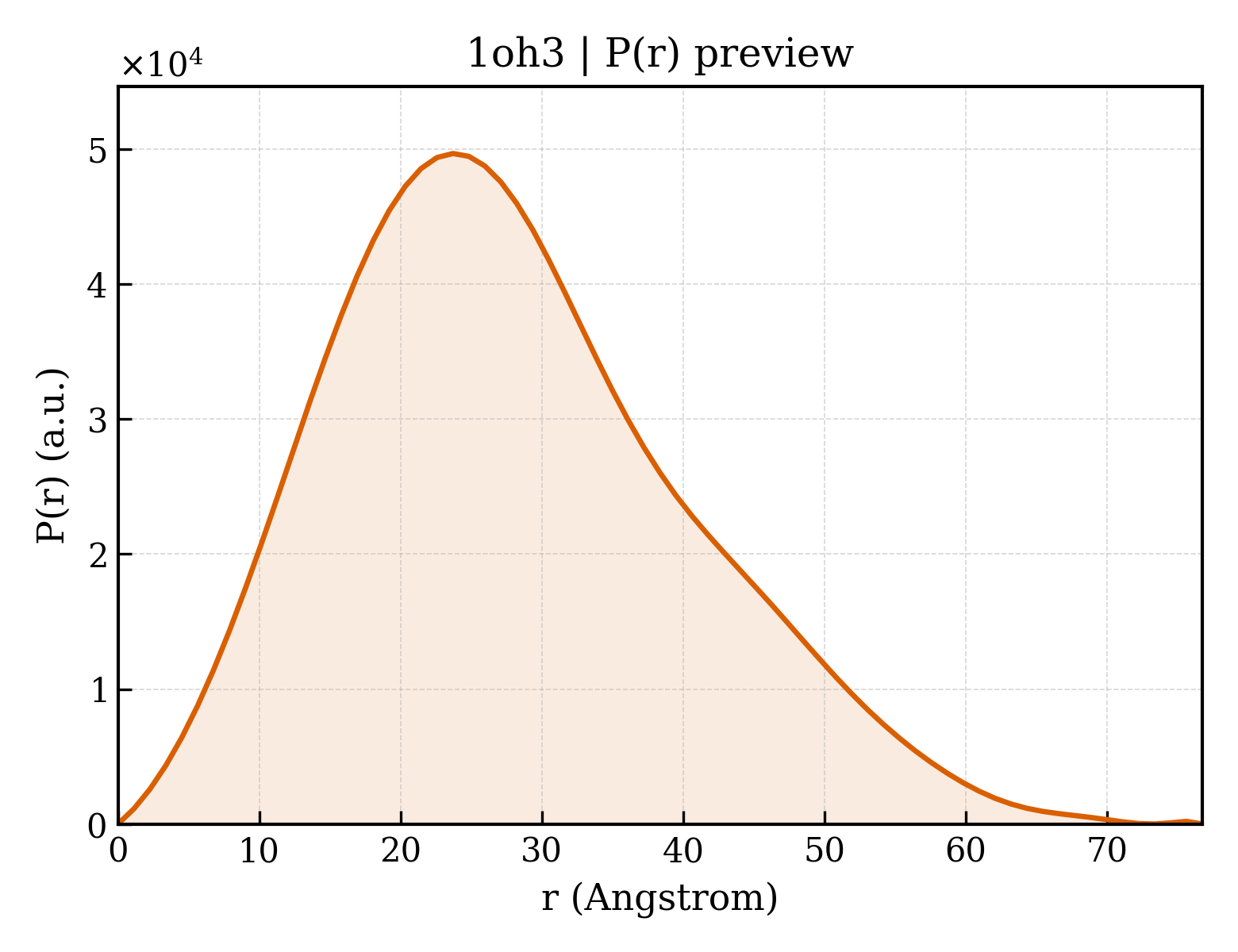

1oh3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.90 Å
Rg (electron density)	14.31 Å
Total Rg	15.55 Å
Atom count	1179
Residues	141
Excluded volume	20781 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1oh3__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1oh3__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	NON-CATALYTIC PROTEIN 1
Molecular weight formula_weight	16061.8 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2604

SNVRATYTVIFKNASGLPNGYDNWGWGCTLSYYGGAMIINPQEGKYGAVSLKRNSGSFRGGSLRFDMKNEGKVKILVRNSEADEKFEVETISPSDEYVTYILDVDFDLPFDRIDFQDAPGNGDRIWIKNLVHSTGSADDFVDPI

Source Source

Source organism organism	PIROMYCES EQUI
NCBI taxonomy ID ncbi_taxonomy_id	99929
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 branched

Description description	;beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-alpha-D-glucopyranose ;
Molecular weight formula_weight	990.9 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	280

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1oh3a_
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.19 — Family 29 carbohydrate binding module, CBM29

Domain ID domain_id	d1oh3b_
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.19 — Family 29 carbohydrate binding module, CBM29

CATH v4.4 (2 domains)

Domain ID domain_id	1oh3A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	430 — Galactose-binding lectin

Domain ID domain_id	1oh3B00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	430 — Galactose-binding lectin

▶

Unit-cell length a length_a	38.671 Å
Unit-cell length b length_b	56.549 Å
Unit-cell length c length_c	129.770 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1710
R_work r_work	0.1700
R_free r_free	0.1870

E78R mutant of a carbohydrate binding module family 29
