SAXSdb — 1hge

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1hge
沉积日期 deposition_date	1991-11-01
结构标题 title	;BINDING OF INFLUENZA VIRUS HEMAGGLUTININ TO ANALOGS OF ITS CELL-SURFACE RECEPTOR, SIALIC ACID: ANALYSIS BY PROTON NUCLEAR MAGNETIC RESONANCE SPECTROSCOPY AND X-RAY CRYSTALLOGRAPHY ;
关键词 keywords	INFLUENZA VIRUS HEMAGGLUTININ, Viral protein; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.66 Å
回转半径 Rg (电子) rg_electron	42.18 Å
零角强度 I(0) i0	483629000.00
分子量 molecular_weight	174060.0 kDa
排除体积 excluded_volume	215130 Å³
包络体积 envelope_volume	274980 Å³
水化壳体积 shell_volume	56536 Å³
包络直径 envelope_diameter	146.7 Å
壳层 Rg shell_rg	45.22 Å
包络 Rg envelope_rg	41.98 Å
形状 Rg shape_rg	42.18 Å
总 Rg total_rg	42.31 Å
总原子数 total_atoms	15333
残基数 n_residues	1509
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	143.0 Å
Rg (实空间) rg_real	42.94 Å
Rg 误差 (实空间) rg_real_error	1.38 Å
I(0) (实空间) i0_real	4.8360e+08
I(0) 误差 (实空间) i0_real_error	8.7070e+06
Rg (倒空间) rg_reciprocal	42.66 Å
I(0) (倒空间) i0_reciprocal	483500000.0000
解质量估计 total_estimate	0.7786
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	42.5 Å
偏度 Skewness skewness	0.506
峰度 Kurtosis kurtosis	-0.457
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	48880000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.725; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.942; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	HEMAGGLUTININ, (G135R), HA1 CHAIN
分子量 formula_weight	36165.6 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E
原子数 atom_count	15549

QDLPGNDNSTATLCLGHHAVPNGTLVKTITDDQIEVTNATELVQSSSTGKICNNPHRILDGIDCTLIDALLGDPHCDVFQNETWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFITEGFTWTGVTQNGRSNACKRGPGSGFFSRLNWLTKSGSTYPVLNVTMPNNDNFDKLYIWGIHHPSTNQEQTSLYVQASGRVTVSTRRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDVLVINSNGNLIAPRGYFKMRTGKSSIMRSDAPIDTCISECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQT

来源 Source

来源生物 organism	Influenza A virus
NCBI 分类编号 ncbi_taxonomy_id	132504

Entity 2 polymer

描述 description	HEMAGGLUTININ, (G135R), HA1 CHAIN
分子量 formula_weight	20212.3 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F

GLFGAIAGFIENGWEGMIDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEEMGNGCFKIYHKCDNACIESIRNGTYDHDVYRDEALNNRFQIKG

来源 Source

来源生物 organism	Influenza A virus
NCBI 分类编号 ncbi_taxonomy_id	132504

Entity 3 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	12

Entity 5 non-polymer

描述 description	2-O-methyl-5-N-acetyl-alpha-D-neuraminic acid
分子量 formula_weight	323.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	72

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1hgea_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.2 — Influenza hemagglutinin headpiece

结构域编号 domain_id	d1hgeb_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

结构域编号 domain_id	d1hgec_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.2 — Influenza hemagglutinin headpiece

结构域编号 domain_id	d1hged_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

结构域编号 domain_id	d1hgee_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.2 — Influenza hemagglutinin headpiece

结构域编号 domain_id	d1hgef_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

CATH v4.4 (6 domains)

结构域编号 domain_id	1hgeA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

结构域编号 domain_id	1hgeB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1hgeC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

结构域编号 domain_id	1hgeD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1hgeE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

结构域编号 domain_id	1hgeF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (10)

;Binding of influenza virus hemagglutinin to analogs of its cell-surface receptor, sialic acid: analysis by proton nuclear magnetic resonance spectroscopy and X-ray crystallography. ;

Biochemistry (1992)

PMID: 1327122 · DOI: 10.1021/bi00155a013 PRIMARY

Crystallographic Detection of a Second Ligand Binding Site in Influenza Virus Hemagglutinin

Proc.Natl.Acad.Sci.USA (1992)

The Structure of a Membrane Fusion Mutant of the Influenza Virus Hemagglutinin

Embo J. (1990)

Refinement of the Influenza Virus Hemagglutinin by Simulated Annealing

J.Mol.Biol. (1990)

Structure of the Influenza Virus Hemagglutinin Complexed with its Receptor, Sialic Acid

Nature (1988)

The Refinement of the Hemagglutinin Membrane Glycoprotein of Influenza Virus

Acta Crystallogr.,Sect.B (1986)

Three-Dimensional Structure of an Antigenic Mutant of the Influenza Virus Hemagglutinin

Nature (1984)

Structure of the Hemagglutinin Membrane Glycoprotein of Influenza Virus at 3 Angstroms Resolution

Nature (1981)

;Structural Identification of the Antibody-Binding Sites of Hong Kong Influenza Hemagglutinin and Their Involvement in Antigenic Variation ;

Nature (1981)

Crystallization and X-Ray Diffraction Studies on the Hemagglutinin Glycoprotein from the Membrane of Influenza Virus

J.Mol.Biol. (1977)

▶

晶胞边长 a length_a	163.100 Å
晶胞边长 b length_b	163.100 Å
晶胞边长 c length_c	176.900 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 41
空间群编号 int_tables_number	76
晶系 crystal_system	—

分辨率 resolution	2.600 Å
最低分辨率 resolution_low	7.000 Å
R 因子 r_factor	0.2250
R_work r_work	0.2250
R_free r_free	—

fit	/app/data/saxs_computation/hg/1hge/1hge.fit
pddf	/app/data/pr_computation/hg/1hge/1hge.pr.out
profile	/app/data/saxs_computation/hg/1hge/1hge.dat

;BINDING OF INFLUENZA VIRUS HEMAGGLUTININ TO ANALOGS OF ITS CELL-SURFACE RECEPTOR, SIALIC ACID: ANALYSIS BY PROTON NUCLEAR MAGNETIC RESONANCE SPECTROSCOPY AND X-RAY CRYSTALLOGRAPHY ;

SAXS 散射曲线 SAXS Profile

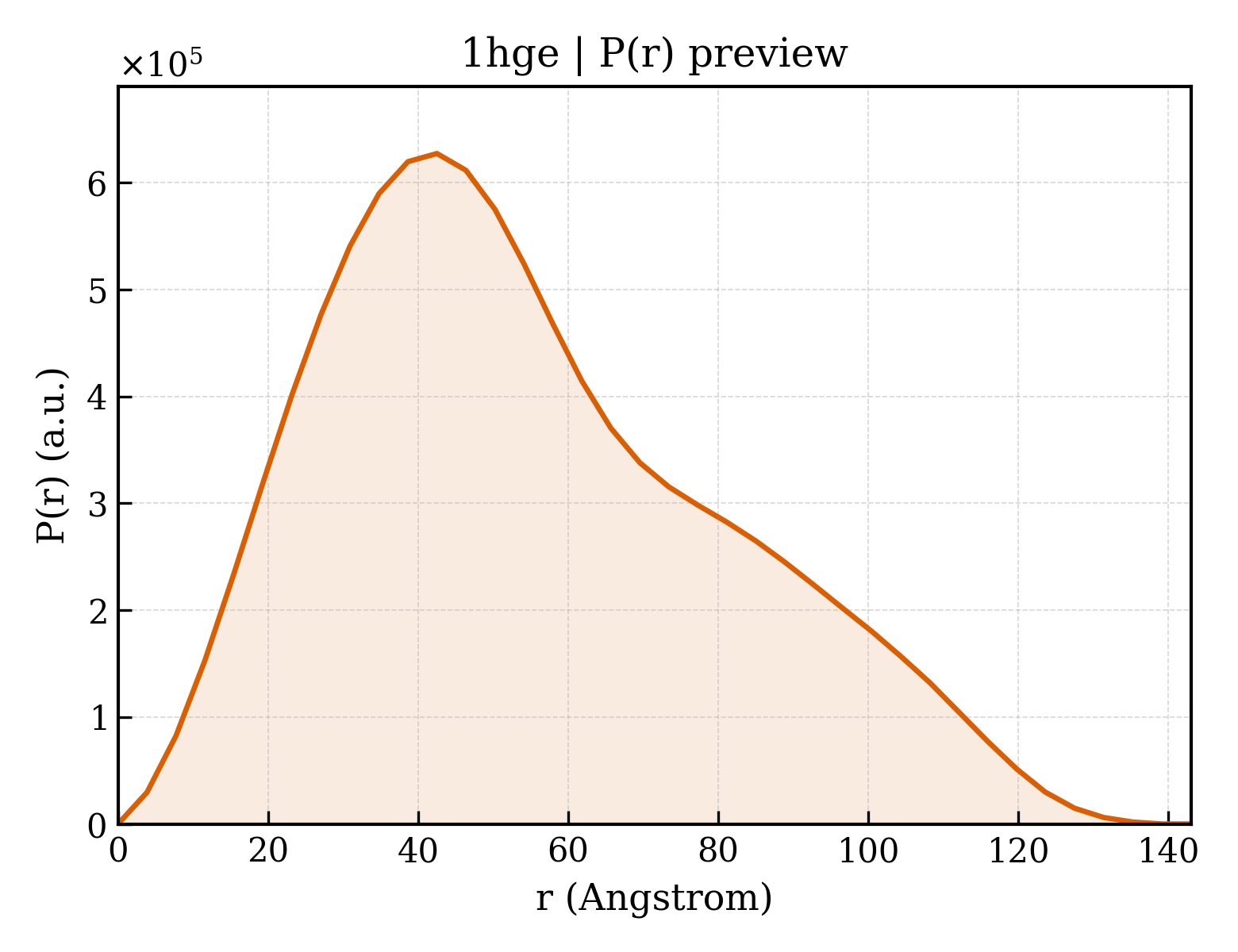

P(r) 距离分布 P(r) Distribution
