1hic

THE NMR SOLUTION STRUCTURE OF HIRUDIN(1-51) AND COMPARISON WITH CORRESPONDING THREE-DIMENSIONAL STRUCTURES DETERMINED USING THE COMPLETE 65-RESIDUE HIRUDIN POLYPEPTIDE CHAIN

Method: SOLUTION NMR D_max: 37.5 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HIRUDIN VARIANT

Hirudo medicinalis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–51	Not recorded	No other associated polymer	SOLUTION NMR mmCIF provides none of the parsed experimental conditions	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1HIC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AD8 COMPLEX OF THROMBIN WITH AND INHIBITOR CONTAINING A NOVEL P1 MOIETY Deposited 1997-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 55–64（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 1 MDL [DEHYDROXY-N-METHYL-TYROSYL-PROLINYL]-[4,4,5,5,5-PENTAFLUORO-3-OXY-1-[3-INDOLYL]-PENT-2-YL]AMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；A DROP WITH 1.62 MG/ML PROTEIN, 0.375 M NACL, 0.09 M PHOSPHATE BUFFER (PH 7.3), 0.5 MM AZIDE, 4.9 MM INHIBITOR AND 15% (W/V) PEG8000 WAS EQUILIBRATED AGAINST 30% (W/V)PEG8000 IN 0.08 M PHOSPHATE BUFFER (PH 7.3), USING A HANGING DROP SETUP., vapor diffusion - hanging drop	Resolution 2.00 Å
1AY6 THROMBIN INHIBITOR FROM THEONALLA, CYCLOTHEANAMIDE-BASED MACROCYCLIC TRIPEPTIDE MOTIF Deposited 1997-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 55–64（10 aa） Fragment：residues 55-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	1ZV amino({3-[(3R,5R,14S,16S,21aR)-5,14-dihydroxy-1,4,17-trioxo-16-(2-phenylethyl)icosahydro-1H-pyrrolo[1,2-d][1,4,7,11]tetraazacyclononadecin-3-yl]propyl}amino)methaniminium × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；CRYSTALLIZED FROM 25% PEG 8K, 0.1M SOD. PHOSPHATE BUFFER PH 7.5. MACROSEEDED TO MAKE LARGER CRYSTALS	Resolution 1.80 Å
1BCU ALPHA-THROMBIN COMPLEXED WITH HIRUGEN AND PROFLAVIN Deposited 1998-05-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–65（12 aa） Fragment：RESIDUES 54-65 OF HIRUDIN	Non-standard monomer：Yes (specific site not provided by mmCIF)	PRL PROFLAVIN × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7	Resolution 2.00 Å R-free 0.212
1H8D X-ray structure of the human alpha-thrombin complex with a tripeptide phosphonate inhibitor. Deposited 2001-02-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 55–64（10 aa） Fragment：RESIDUES 55 TO 64	Non-standard monomer：Yes (specific site not provided by mmCIF)	PHW N-[(benzyloxy)carbonyl]-beta-phenyl-D-phenylalanyl-N-{(1S,3E)-1-[dihydroxy(diphenoxy)-lambda~5~-phosphanyl]-4-methoxybut-3-en-1-yl}-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；20% PEG 8K, 0.05MM NAHPO4, 0.1M NACL, PH 7.20	Resolution 1.40 Å R-free 0.220
1H8I X-ray crystal structure of human alpha-thrombin with a tripeptide phosphonate inhibitor. Deposited 2001-02-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 55–64（10 aa） Fragment：RESIDUES 55 TO 64	Non-standard monomer：Yes (specific site not provided by mmCIF)	PHV N-[(benzyloxy)carbonyl]-beta-phenyl-D-phenylalanyl-N-[(1S)-4-methoxy-1-phosphonobutyl]-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；PH 7.20	Resolution 1.75 Å R-free 0.235
1HRT THE STRUCTURE OF A COMPLEX OF BOVINE ALPHA-THROMBIN AND RECOMBINANT HIRUDIN AT 2.8 ANGSTROMS RESOLUTION Deposited 1993-02-25	Different construct Different oligomeric state Different experimental method Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 1–65（65 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1HXE SERINE PROTEASE Deposited 1995-12-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 55–64（10 aa）	Not recorded	RB RUBIDIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å
1HXF HUMAN THROMBIN COMPLEX WITH HIRUDIN VARIANT Deposited 1996-09-09	Different construct Different oligomeric state Different experimental method Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 55–64（10 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å
2HIR SOLUTION STRUCTURE OF RECOMBINANT HIRUDIN AND THE LYS-47 (RIGHT ARROW) GLU MUTANT. A NUCLEAR MAGNETIC RESONANCE AND HYBRID DISTANCE GEOMETRY-DYNAMICAL SIMULATED ANNEALING STUDY Deposited 1988-12-19	Different construct	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–65（65 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
2JOO The NMR Solution Structure of Recombinant RGD-hirudin Deposited 2007-03-14	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–65（65 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Pressure ambient NMR sample composition 5 mM RGD-hirudin, 0.02mol/L Na2HPO4/NaH2PO4 buffer, pH 7.0, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2PW8 Crystal structure of sulfo-hirudin complexed to thrombin Deposited 2007-05-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 3–65（63 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NI NICKEL (II) ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；0.1M Tris, 20% PEG2K, 0.01M Nickel Chloride. , pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.84 Å R-free 0.233
2V3O Thrombin with 3-cycle with F Deposited 2007-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 56–65（10 aa） Fragment：C-TERMINUS, RESIDUES 56-65	Non-standard monomer：Yes (specific site not provided by mmCIF)	I26 (2R)-[(4-CARBAMIMIDOYLPHENYL)AMINO]{3-[3-(DIMETHYLAMINO)-2,2-DIMETHYLPROPOXY]-5-ETHYL-2-FLUOROPHENYL}ETHANOIC ACID × 1 NA SODIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.79 Å R-free 0.212
2ZC9 Thrombin in complex with Inhibitor Deposited 2007-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：UNP Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 22U D-phenylalanyl-N-(3-chlorobenzyl)-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.58 Å R-free 0.233
2ZDA Exploring Thrombin S1 pocket Deposited 2007-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：UNP Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 PO4 PHOSPHATE ION × 1 32U D-phenylalanyl-N-{4-[amino(iminio)methyl]benzyl}-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.73 Å R-free 0.228
2ZDV Exploring Thrombin S1 pocket Deposited 2007-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：UNP Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 PO4 PHOSPHATE ION × 1 37U D-phenylalanyl-N-(3-fluorobenzyl)-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.72 Å R-free 0.243
2ZF0 Exploring Thrombin S1 Pocket Deposited 2007-12-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：UNP Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 51U D-phenylalanyl-N-(3-methylbenzyl)-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.267
2ZFF Exploring Thrombin S1-pocket Deposited 2008-01-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：UNP Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 53U D-phenylalanyl-N-benzyl-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.47 Å R-free 0.203
2ZFP Thrombin Inibition Deposited 2008-01-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：UNP Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 19U 1-[(2R)-2-aminobutanoyl]-N-(3-chlorobenzyl)-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.25 Å R-free 0.298
2ZGB Thrombin Inhibition Deposited 2008-01-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：UNP Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 21U D-leucyl-N-(3-chlorobenzyl)-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.60 Å R-free 0.231
2ZGX Thrombin Inhibition Deposited 2008-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：UNP Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 29U 1-[(2R)-2-aminobutanoyl]-N-(4-carbamimidoylbenzyl)-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.80 Å R-free 0.229
2ZHQ Thrombin Inhibition Deposited 2008-02-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：UNP Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 27U N-(4-carbamimidoylbenzyl)-1-(3-phenylpropanoyl)-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.96 Å R-free 0.272
2ZI2 Thrombin Inhibition Deposited 2008-02-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：UNP Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 24U 1-butanoyl-N-(4-carbamimidoylbenzyl)-L-prolinamide × 1 BEN BENZAMIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.65 Å R-free 0.225
2ZIQ Thrombin Inhibition Deposited 2008-02-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	26U N-(4-carbamimidoylbenzyl)-1-(4-methylpentanoyl)-L-prolinamide × 1 NA SODIUM ION × 2 BEN BENZAMIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.65 Å R-free 0.225
2ZNK Thrombin Inhibition Deposited 2008-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	31U D-leucyl-N-(4-carbamimidoylbenzyl)-L-prolinamide × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.80 Å R-free 0.229
2ZO3 Bisphenylic Thrombin Inhibitors Deposited 2008-05-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	33U beta-phenyl-D-phenylalanyl-N-(4-carbamimidoylbenzyl)-L-prolinamide × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.70 Å R-free 0.250
3D49 Thrombin Inhibition Deposited 2008-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：UNP Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 BEN BENZAMIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000 , pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.50 Å R-free 0.237
3DHK Bisphenylic Thrombin Inhibitors Deposited 2008-06-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	23U beta-phenyl-D-phenylalanyl-N-(3-chlorobenzyl)-L-prolinamide × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.73 Å R-free 0.249
3DT0 Understanding Thrombin Inhibition Deposited 2008-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	16U N-(3-chlorobenzyl)-1-(4-methylpentanoyl)-L-prolinamide × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.40 Å R-free 0.286
3DUX Understanding Thrombin Inhibition Deposited 2008-07-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	64U 3-cyclohexyl-D-alanyl-N-(3-chlorobenzyl)-L-prolinamide × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.60 Å R-free 0.247
3EGK KNOBLE Inhibitor Deposited 2008-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	M18 {(2S)-1-[N-(tert-butoxycarbonyl)glycyl]pyrrolidin-2-yl}methyl (3-chlorophenyl)acetate × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.312
3EQ0 Thrombin Inhibitor Deposited 2008-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：Residues 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	2TS (2S)-N-[[2-(aminomethyl)-5-chloro-phenyl]methyl]-1-[(2R)-5-carbamimidamido-2-(phenylmethylsulfonylamino)pentanoyl]pyrrolidine-2-carboxamide × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Phosphate Buffer, Sodium Chloride, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.53 Å R-free 0.249
3LDX Discovery and Clinical Evaluation of RWJ-671818, a Thrombin Inhibitor with an Oxyguanidine P1 Motif Deposited 2010-01-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 55–65（11 aa） Fragment：residues 55-65	Not recorded	NLI N-[2-(carbamimidamidooxy)ethyl]-2-{3-[(2,2-difluoro-2-phenylethyl)amino]-6-methyl-2-oxopyrazin-1(2H)-yl}acetamide × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.25 Å R-free 0.224
3UTU High affinity inhibitor of human thrombin Deposited 2011-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 54–64（11 aa） Fragment：UNP RESIDUES 54-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	1TS (2S)-N-[(4-carbamimidoylphenyl)methyl]-1-[(2S)-2-[(3-chloro-4-methoxybenzene)sulfonamido]-3-{[(4-cyanophenyl)methyl]carbamoyl}propanoyl]pyrrolidine-2-carboxamide × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PHOSPHATE BUFFER, SODIUM CHLORIDE, PEG 8000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.55 Å R-free 0.271
4AX9 Human thrombin complexed with Napsagatran, RO0466240 Deposited 2012-06-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 55–65（11 aa） Fragment：C-TERMINAL DOMAIN, RESIDUES 55-65	Not recorded	NA SODIUM ION × 2 N5N 2-[[(2S)-4-[[(3S)-1-carbamimidoylpiperidin-3-yl]methylamino]-2-(naphthalen-2-ylsulfonylamino)-4-oxidanylidene-butanoyl] -cyclopropyl-amino]ethanoic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.196
4BAH Thrombin in complex with inhibitor Deposited 2012-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 53–64（12 aa） Fragment：RESIDUES 62-71	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MEL [((1R)-2-{(2S)-2-[({4-[AMINO(IMINO)METHYL]BENZYL}AMINO)CARBONYL]AZETIDINYL}-1-CYCLOHEXYL-2-OXOETHYL)AMINO]ACETIC ACID × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.94 Å R-free 0.194
4BAK Thrombin in complex with inhibitor Deposited 2012-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 53–64（12 aa） Fragment：RESIDUES 62-71	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 M67 (2S)-N-(4-CARBAMIMIDOYLBENZYL)-1-[(2R)-2-CYCLOHEXYL-2-{[2-OXO-2-(PROPYLAMINO)ETHYL]AMINO}ACETYL]AZETIDINE-2-CARBOXAMIDE × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.94 Å R-free 0.203
4BAM Thrombin in complex with inhibitor Deposited 2012-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 53–64（12 aa） Fragment：RESIDUES 53-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MM9 (2S)-N-[(4-carbamimidoylphenyl)methyl]-1-[(2R)-2-cyclohexyl-2-[[2-(dimethylamino)-2-oxidanylidene-ethyl]amino]ethanoyl]azetidine-2-carboxamide × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.88 Å R-free 0.195
4BAN Thrombin in complex with inhibitor Deposited 2012-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 53–64（12 aa） Fragment：RESIDUES 53-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 M6S (2S)-N-[(4-carbamimidoylphenyl)methyl]-1-[(2R)-2-cyclohexyl-2-[[2-(methylamino)-2-oxidanylidene-ethyl]amino]ethanoyl]azetidine-2-carboxamide × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.87 Å R-free 0.203
4BAQ Thrombin in complex with inhibitor Deposited 2012-09-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 53–64（12 aa） Fragment：RESIDUES 53-64	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 M4Z (2S)-N-[(4-carbamimidoylphenyl)methyl]-1-[(2R)-2-cyclohexyl-2-[[2-(ethylamino)-2-oxidanylidene-ethyl]amino]ethanoyl]azetidine-2-carboxamide × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.89 Å R-free 0.221
4HIR SOLUTION STRUCTURE OF RECOMBINANT HIRUDIN AND THE LYS-47 (RIGHT ARROW) GLU MUTANT. A NUCLEAR MAGNETIC RESONANCE AND HYBRID DISTANCE GEOMETRY-DYNAMICAL SIMULATED ANNEALING STUDY Deposited 1988-12-19	Different construct	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–65（65 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
4LXB Crystal Structure Analysis of thrombin in complex with compound D58 Deposited 2013-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 53–65（13 aa） Fragment：unp residues 53-65	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NA SODIUM ION × 2 7R9 5-Chloro-thiophene-2-carboxylic acid [(S)-2-[2-difluoromethoxy-3-(2-oxo-piperidin-1-yl)-benzenesulfonylamino]-3-((S)-3-dimethylamino-pyrrolidin-1-yl)-3-oxo-propyl]-amide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；0.1 M SODIUM PHASPHATE PH=7.3, 20% PEG8000, 5MG/ML THROMBIN, 0.2 M NACL, 1 mM INHIBNITOR, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.61 Å R-free 0.228
4MLF Crystal structure for the complex of thrombin mutant D102N and hirudin Deposited 2013-09-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–65（65 aa）	Not recorded	NA SODIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ACT ACETATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；293 K；20% PEG 3350, 0.2M Ca acetate, pH 7.3, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.234
4YES Thrombin in complex with (S)-(4-chloro-2-((1-(5-methyl-1H-pyrrole-2-carbonyl)pyrrolidine-2-carboxamido)methyl)phenyl)methanaminium Deposited 2015-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 54–65（12 aa） Fragment：UNP residues 54-65	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1 GOL GLYCEROL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 45S N-[2-(aminomethyl)-5-chlorobenzyl]-1-[(5-methyl-1H-pyrrol-2-yl)carbonyl]-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；28 % PEG 2000 MMe, 100mM BisTris	Resolution 1.50 Å R-free 0.234
5HIR SOLUTION STRUCTURE OF RECOMBINANT HIRUDIN AND THE LYS-47 (RIGHT ARROW) GLU MUTANT. A NUCLEAR MAGNETIC RESONANCE AND HYBRID DISTANCE GEOMETRY-DYNAMICAL SIMULATED ANNEALING STUDY Deposited 1990-01-09	Different construct	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–65（65 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
6HIR SOLUTION STRUCTURE OF RECOMBINANT HIRUDIN AND THE LYS-47 (RIGHT ARROW) GLU MUTANT. A NUCLEAR MAGNETIC RESONANCE AND HYBRID DISTANCE GEOMETRY-DYNAMICAL SIMULATED ANNEALING STUDY Deposited 1990-01-09	Different construct	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–65（65 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
7A0D The Crystal Structure of Bovine Thrombin in complex with Hirudin (C16U/C28U) at 1.6 Angstroms Resolution Deposited 2020-08-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain III 1–65（65 aa）	Mutation：C16U/C28U	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；297 K；38% PEG 4000, 0.1 M sodium phosphate (pH= 4.7), 0.2 M NaCl	Resolution 1.60 Å R-free 0.215
7A0E The Crystal Structure of Bovine Thrombin in complex with Hirudin (C6U/C14U) at 1.9 Angstroms Resolution Deposited 2020-08-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain III 1–65（65 aa）	Mutation：C6U/C14U	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；297 K；38% PEG 4000, 0.1 M sodium phosphate (pH= 4.7), and 0.2 M NaCl	Resolution 1.90 Å R-free 0.263
7A0F The Crystal Structure of Bovine Thrombin in complex with Hirudin (C22U/C39U) at 2.7 Angstroms Resolution Deposited 2020-08-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain III 1–65（65 aa）	Mutation：C22U/C39U	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；297 K；38% PEG 4000, 0.1 M sodium phosphate (pH= 4.7), 0.3 M NaCl	Resolution 2.70 Å R-free 0.253

48 other PDB entries and 48 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ITH1_HIRME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–51； UniProt 1–51

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

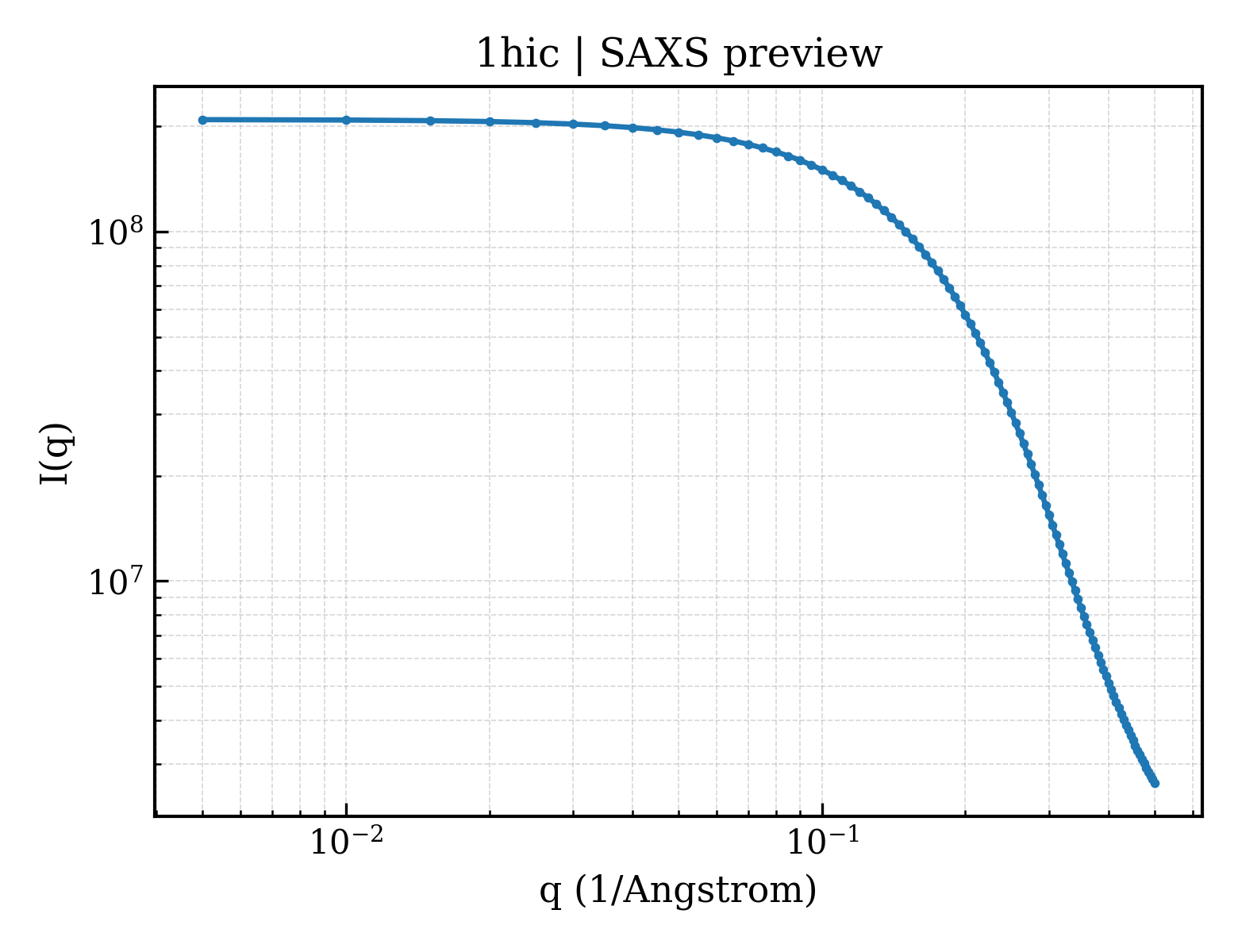

SAXS scattering curve SAXS Profile

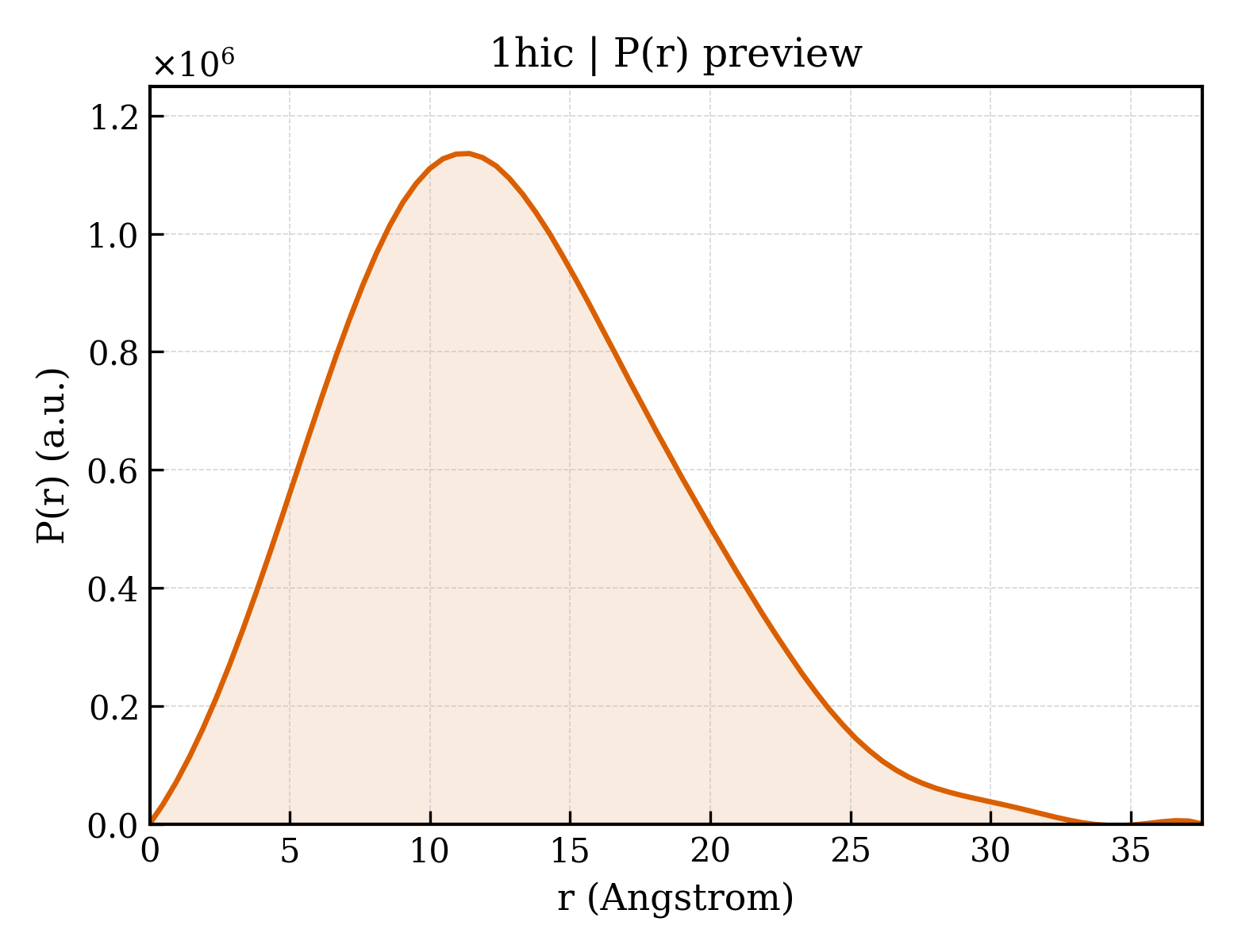

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hic
Deposition date deposition_date	1992-04-30
Structure title title	THE NMR SOLUTION STRUCTURE OF HIRUDIN(1-51) AND COMPARISON WITH CORRESPONDING THREE-DIMENSIONAL STRUCTURES DETERMINED USING THE COMPLETE 65-RESIDUE HIRUDIN POLYPEPTIDE CHAIN
Keywords keywords	HIRUDIN; HIRUDIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	9.97 Å
Radius of gyration Rg (electron density) rg_electron	10.27 Å
Forward intensity I(0) i0	209305000.00
Molecular weight molecular_weight	105400.0 kDa
Excluded volume excluded_volume	125250 Å³
Envelope volume envelope_volume	12654 Å³
Hydration-shell volume shell_volume	9010 Å³
Envelope diameter envelope_diameter	42.7 Å
Shell Rg shell_rg	17.70 Å
Envelope Rg envelope_rg	13.10 Å
Shape Rg shape_rg	10.34 Å
Total Rg total_rg	10.27 Å
Total atoms total_atoms	13920
Residues n_residues	1020
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	37.5 Å
Rg (real space) rg_real	10.00 Å
Rg uncertainty (real space) rg_real_error	0.40 Å
I(0) (real space) i0_real	2.0930e+08
I(0) uncertainty (real space) i0_real_error	2.0360e+06
Rg (reciprocal space) rg_reciprocal	10.00 Å
I(0) (reciprocal space) i0_reciprocal	209300000.0000
Solution quality estimate total_estimate	0.8182
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	11.4 Å
Skewness Skewness skewness	0.437
Kurtosis Kurtosis kurtosis	-0.085
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	51120.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.651; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.716; Smooth: 0.962

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1hica_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.15 — Leech antihemostatic proteins
Family Family family	g.3.15.2 — Hirudin-like

CATH v4.4 (1 domains)

Domain ID domain_id	1hicA00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	10 — Thrombin Inhibitor (Hirudin); Chain I
Homologous superfamily homologous superfamily	10 — Thrombin Inhibitor (Hirudin), subunit I

▶

8. Citations (4)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	HIRUDIN VARIANT
Molecular weight formula_weight	5293.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	13920

来源生物 organism	Hirudo medicinalis
通用名 common_name	medicinal leech
NCBI Class编号 ncbi_taxonomy_id	6421

THE NMR SOLUTION STRUCTURE OF HIRUDIN(1-51) AND COMPARISON WITH CORRESPONDING THREE-DIMENSIONAL STRUCTURES DETERMINED USING THE COMPLETE 65-RESIDUE HIRUDIN POLYPEPTIDE CHAIN

1. Protein Identity and Related Structures Protein Identity & Related Structures

HIRUDIN VARIANT

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

CATH v4.4 (1 domains)

8. Citations (4)

9. Files and Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/hi/1hic/1hic.fit
pddf	/app/data/pr_computation/hi/1hic/1hic.pr.out
profile	/app/data/saxs_computation/hi/1hic/1hic.dat
