SAXSdb — 1hrt

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

THROMBIN (SMALL SUBUNIT)

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	HIRUDIN × 1 （P01050） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	THRB_BOVIN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain L； PDBConstruct 1–49； UniProt 318–366 Author chain H； PDBConstruct 1–259； UniProt 367–625

HIRUDIN

Hirudo medicinalis

UniProt P01050

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	THROMBIN (SMALL SUBUNIT) × 1 （P00735） THROMBIN (LARGE SUBUNIT) × 1 （P00735） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ITH1_HIRME
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain I； PDBConstruct 1–65； UniProt 1–65

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hrt
Deposition date deposition_date	1993-02-25
Structure title title	THE STRUCTURE OF A COMPLEX OF BOVINE ALPHA-THROMBIN AND RECOMBINANT HIRUDIN AT 2.8 ANGSTROMS RESOLUTION
Keywords keywords	SERINE PROTEINASE, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1hrt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1hrt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

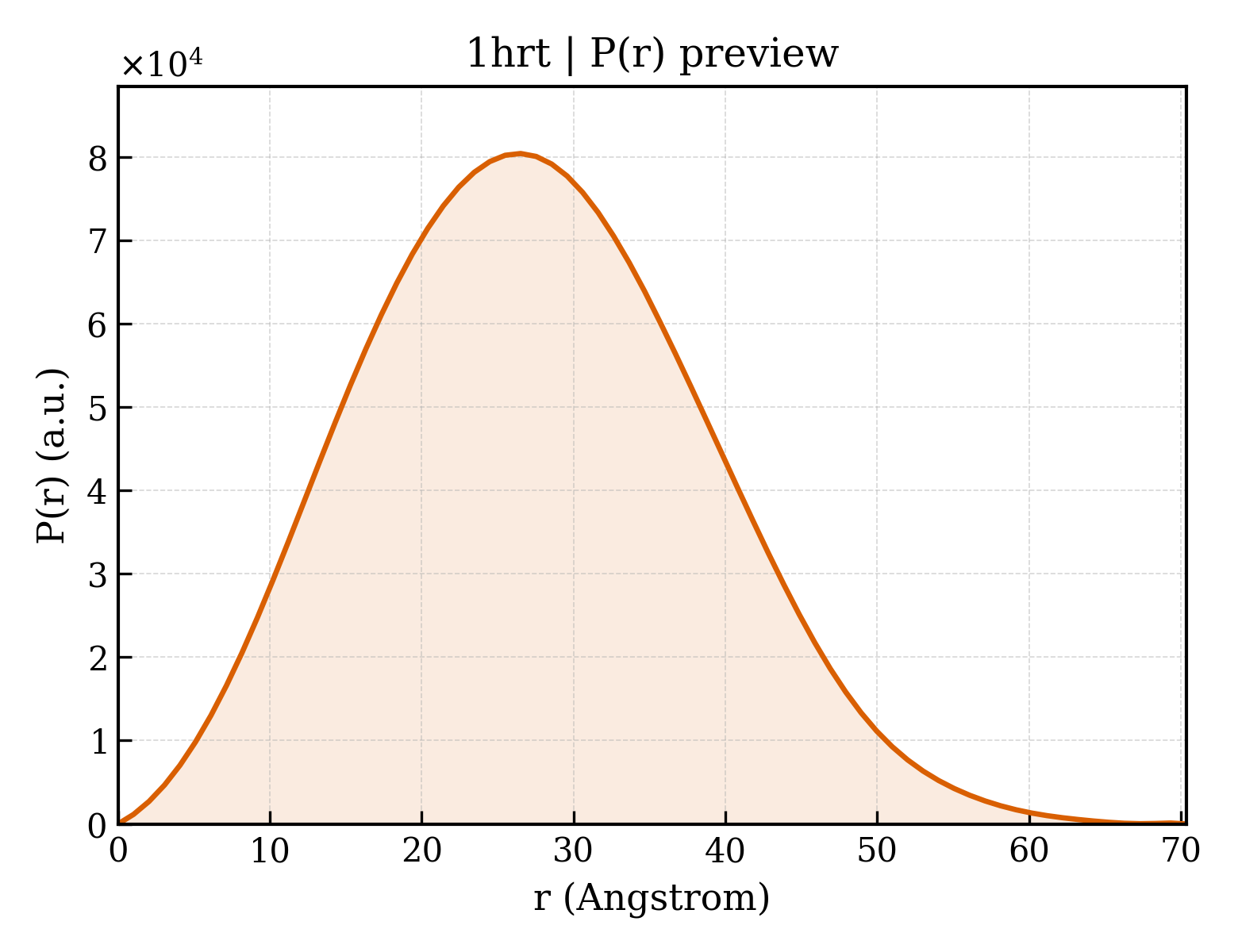

1hrt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.00 Å
Rg (electron density)	19.80 Å
Total Rg	20.79 Å
Atom count	2867
Residues	360
Excluded volume	50778 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1hrt__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	THROMBIN (SMALL SUBUNIT)
Molecular weight formula_weight	5735.2 kDa
EC 编号 ec_number	3.4.21.5
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	2996

TSEDHFQPFFNEKTFGAGEADCGLRPLFEKKQVQDQTEKELFESYIEGR

Source Source

Source organism organism	Bos taurus
Common name common_name	cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	unidentified

Entity 2 Entity 2 polymer

Description description	THROMBIN (LARGE SUBUNIT)
Molecular weight formula_weight	29772.4 kDa
EC 编号 ec_number	3.4.21.5
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

IVEGQDAEVGLSPWQVMLFRKSPQELLCGASLISDRWVLTAAHCLLYPPWDKNFTVDDLLVRIGKHSRTRYERKVEKISMLDKIYIHPRYNWKENLDRDIALLKLKRPIELSDYIHPVCLPDKQTAAKLLHAGFKGRVTGWGNRRETWTTSVAEVQPSVLQVVNLPLVERPVCKASTRIRITDNMFCAGYKPGEGKRGDACEGDSGGPFVMKSPYNNRWYQMGIVSWGEGCDRDGKYGFYTHVFRLKKWIQKVIDRLGS

Source Source

Source organism organism	Bos taurus
Common name common_name	cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	unidentified

Entity 3 Entity 3 polymer

Description description	HIRUDIN
Molecular weight formula_weight	6973.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

VVYTDCTESGQNLCLCEGSNVCGQGNKCILGSDGEKNQCVTGEGTPKPQSHNDGDFEEIPEEYLQ

Source Source

Source organism organism	Hirudo medicinalis
Common name common_name	medicinal leech
NCBI taxonomy ID ncbi_taxonomy_id	6421
Host organism host_organism	unidentified

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	129

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1hrt.1
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1hrti_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.15 — Leech antihemostatic proteins
Family Family family	g.3.15.2 — Hirudin-like

CATH v4.4 (3 domains)

Domain ID domain_id	1hrtH01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1hrtH02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1hrtI00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	10 — Thrombin Inhibitor (Hirudin); Chain I
Homologous superfamily homologous superfamily	10 — Thrombin Inhibitor (Hirudin), subunit I

▶

Unit-cell length a length_a	59.110 Å
Unit-cell length b length_b	102.620 Å
Unit-cell length c length_c	143.260 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	7.000 Å
R factor r_factor	0.1550
R_work r_work	—
R_free r_free	—

THE STRUCTURE OF A COMPLEX OF BOVINE ALPHA-THROMBIN AND RECOMBINANT HIRUDIN AT 2.8 ANGSTROMS RESOLUTION
