1hqy

Nucleotide-Dependent Conformational Changes in a Protease-Associated ATPase HslU

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEAT SHOCK LOCUS HSLV

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	HEAT SHOCK LOCUS HSLU × 6 （P0A6H5） ADENOSINE-5'-DIPHOSPHATE × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HSLV_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–175； UniProt 1–175 Author chain B； PDBConstruct 1–175； UniProt 1–175 Author chain C； PDBConstruct 1–175； UniProt 1–175 Author chain D； PDBConstruct 1–175； UniProt 1–175

HEAT SHOCK LOCUS HSLU

Escherichia coli

UniProt P0A6H5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	HEAT SHOCK LOCUS HSLV × 6 （P31059） ADENOSINE-5'-DIPHOSPHATE × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HSLU_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 8–449； UniProt 2–443 Author chain F； PDBConstruct 8–449； UniProt 2–443

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hqy
Deposition date deposition_date	2000-12-20
Structure title title	Nucleotide-Dependent Conformational Changes in a Protease-Associated ATPase HslU
Keywords keywords	HSLVU, PEPTIDASE-ATPASE COMPLEX, CHAPERONE; CHAPERONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1hqy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1hqy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

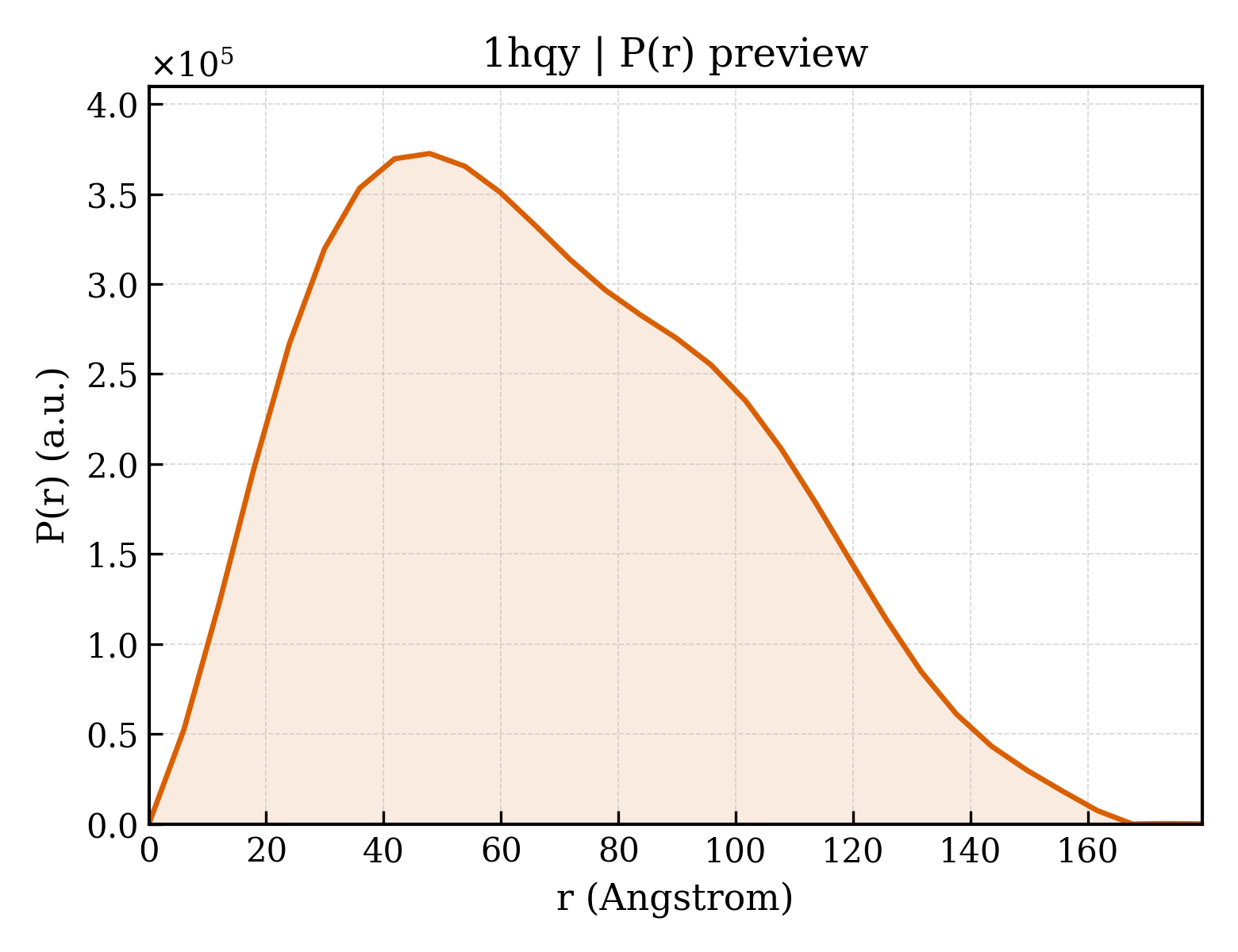

1hqy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	53.56 Å
Rg (electron density)	53.02 Å
Total Rg	53.03 Å
Atom count	27486
Residues	3492
Excluded volume	488780 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1hqy__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1hqy__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	HEAT SHOCK LOCUS HSLV
Molecular weight formula_weight	18986.6 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	11818

TTIVSVRRNGHVVIAGDGQATLGNTVMKGNVKKVRRLYNDKVIAGFAGGTADAFTLFELFERKLEMHQGHLVKAAVELAKDWRTDRMLRKLEALLAVADETASLIITGNGDVVQPENDLIAIGSGGPYAQAAARALLENTELSAREIAEKALDIAGDICIYTNHFHTIEELSYKA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	469008
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	HEAT SHOCK LOCUS HSLU
Molecular weight formula_weight	50495.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

HHHHHHHSEMTPREIVSELDKHIIGQDNAKRSVAIALRNRWRRMQLNEELRHEVTPKNILMIGPTGVGKTEIARRLAKLANAPFIKVEATKFTEVGYVGKEVDSIIRDLTDAAVKMVRVQAIEKNRYRAEELAEERILDVLIPPAKNNWGQTEQQQEPSAARQAFRKKLREGQLDDKEIEIDLAAAPMGVEIMAPPGMEEMTSQLQSMFQNLGGQKQKARKLKIKDAMKLLIEEEAAKLVNPEELKQDAIDAVEQHGIVFIDEIDKICKRGESSGPDVSREGVQRDLLPLVEGCTVSTKHGMVKTDHILFIASGAFQIAKPSDLIPELQGRLPIRVELQALTTSDFERILTEPNASITVQYKALMATEGVNIEFTDSGIKRIAEAAWQVNESTENIGARRLHTVLERLMEEISYDASDLSGQNITIDADYVSKHLDALVADEDLSRFIL

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	469008
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1hqya_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1hqyb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1hqyc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1hqyd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d1hqye1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d1hqye2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1hqyf1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.20 — Extended AAA-ATPase domain

Domain ID domain_id	d1hqyf2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (10 domains)

Domain ID domain_id	1hqyA00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1hqyB00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1hqyC00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1hqyD00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1hqyE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1hqyE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	10 — Ubiquitin-associated (UBA) domain

Domain ID domain_id	1hqyE03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	60 —

Domain ID domain_id	1hqyF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1hqyF02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	10 — Ubiquitin-associated (UBA) domain

Domain ID domain_id	1hqyF03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	60 —

▶

7. Citations (7)

Nucleotide-dependent conformational changes in a protease-associated ATPase HsIU.

Structure (2001)

PMID: 11709174 · DOI: 10.1016/S0969-2126(01)00670-0 PRIMARY

Crystal Structures of the Hslvu Peptidase-ATPase Complex Reveal an ATP-Dependent Proteolysis Mechanism

Structure (2001)

DOI: 10.1016/S0969-2126(01)00570-6

A corrected quaternary arrangement of the peptidase hslv and atpase hslu in a cocrystal structure

J.STRUCT.BIOL. (2001)

DOI: 10.1006/jsbi.2001.4347

Mutational Studies of Hslu and its Docking Mode With Hslv.

Proc.Natl.Acad.Sci.USA (2000)

DOI: 10.1073/pnas.250491797

The Structures of Hslu and the ATP-Dependent Protease HslU-HslV.

Nature (2000)

DOI: 10.1038/35001629

Crystal and Solution Structures of an HslUV Protease-chaperone Complex.

Cell(Cambridge,Mass.) (2000)

DOI: 10.1016/S0092-8674(00)00166-5

ATP-dependent proteases: Docking of Components in a Bacterial Complex

Nature (2000)

DOI: 10.1038/35047165

Unit-cell length a length_a	172.022 Å
Unit-cell length b length_b	172.022 Å
Unit-cell length c length_c	276.569 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 63 2 2
Space-group number int_tables_number	182
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	29.620 Å
R factor r_factor	0.2870
R_work r_work	0.2870
R_free r_free	0.3330
