1i9b

X-RAY STRUCTURE OF ACETYLCHOLINE BINDING PROTEIN (ACHBP)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACETYLCHOLINE BINDING PROTEIN

Lymnaea stagnalis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 5	CALCIUM ION × 8 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 5 water × 5	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 10	CALCIUM ION × 16 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 10 water × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACHP_LYMST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 9–217； UniProt 21–229 Author chain B； PDBConstruct 9–217； UniProt 21–229 Author chain C； PDBConstruct 9–217； UniProt 21–229 Author chain D； PDBConstruct 9–217； UniProt 21–229 Author chain E； PDBConstruct 9–217； UniProt 21–229

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1i9b
Deposition date deposition_date	2001-03-18
Structure title title	X-RAY STRUCTURE OF ACETYLCHOLINE BINDING PROTEIN (ACHBP)
Keywords keywords	pentamer, igg fold, LIGAND BINDING PROTEIN; LIGAND BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1i9b__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

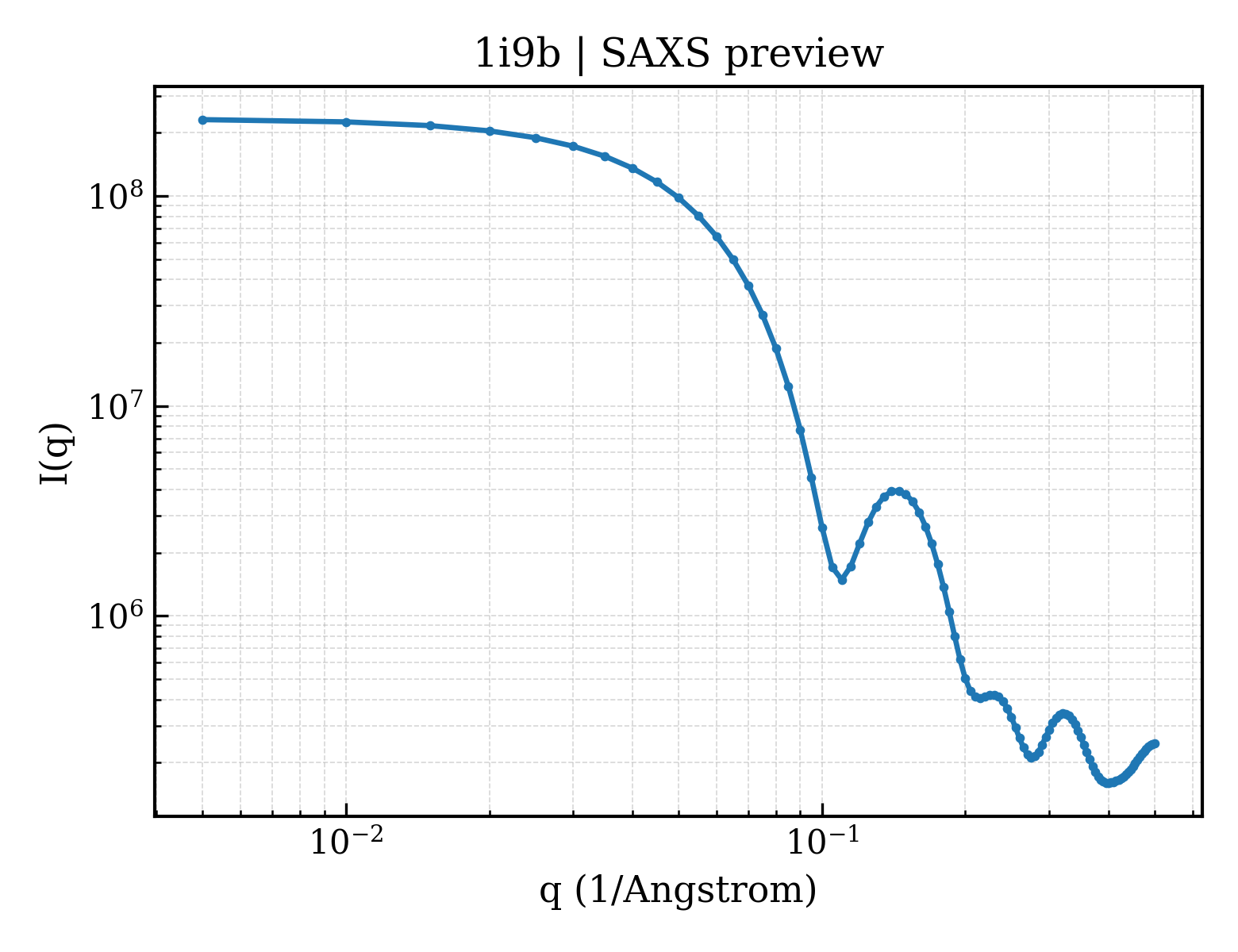

1i9b__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

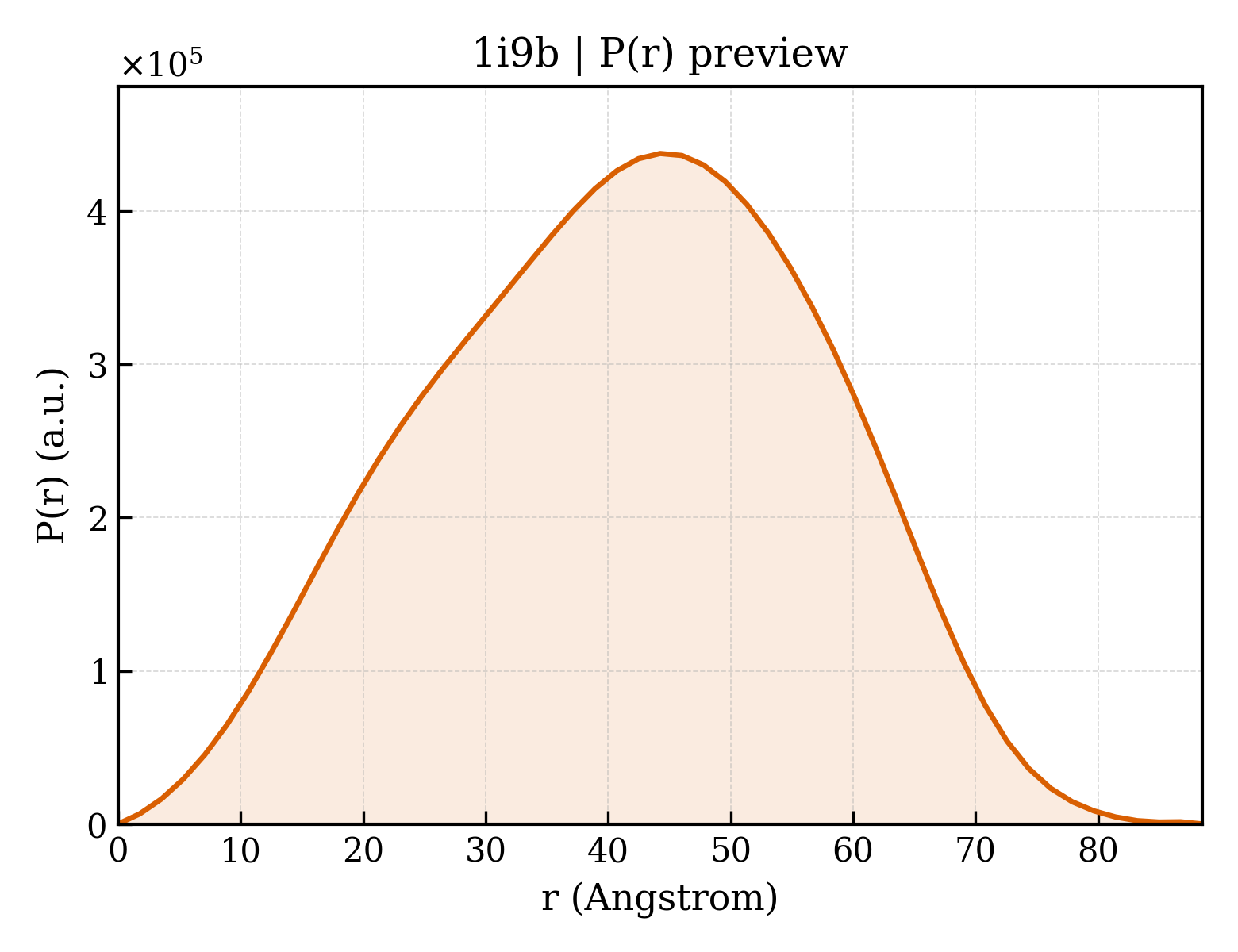

1i9b__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.57 Å
Rg (electron density)	29.80 Å
Total Rg	30.69 Å
Atom count	8278
Residues	1025
Excluded volume	145980 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1i9b__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1i9b__assembly_2__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ACETYLCHOLINE BINDING PROTEIN
Molecular weight formula_weight	24688.3 kDa
Mutation mutation	L1F
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	8299

EAEAYVEFDRADILYNIRQTSRPDVIPTQRDRPVAVSVSLKFINILEVNEITNEVDVVFWQQTTWSDRTLAWNSSHSPDQVSVPISSLWVPDLAAYNAISKPEVLTPQLARVVSDGEVLYMPSIRQRFSCDVSGVDTESGATCRIKIGSWTHHSREISVDPTTENSDDSEYFSQYSRFEILDVTQKKNSVTYSCCPEAYEDVEVSLNFRKKGRSEIL

Source Source

Source organism organism	Lymnaea stagnalis
Common name common_name	great pond snail
NCBI taxonomy ID ncbi_taxonomy_id	6523
Host organism host_organism	Pichia pastoris

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	19

▼

6. Fold Classification (SCOP + CATH) 15 domains

SCOP 2.08 (10 domains)

Domain ID domain_id	d1i9ba1
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1i9ba2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1i9bb1
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1i9bb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1i9bc1
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1i9bc2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1i9bd1
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1i9bd2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1i9be1
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1i9be2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (5 domains)

Domain ID domain_id	1i9bA00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1i9bB00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1i9bC00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1i9bD00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1i9bE00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

▶

Unit-cell length a length_a	141.660 Å
Unit-cell length b length_b	141.660 Å
Unit-cell length c length_c	120.870 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	40

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	19.970 Å
R factor r_factor	0.2600
R_work r_work	0.2600
R_free r_free	0.2970
