1uw6

X-ray structure of acetylcholine binding protein (AChBP) in complex with nicotine

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACETYLCHOLINE-BINDING PROTEIN

LYMNAEA STAGNALIS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 5	(S)-3-(1-METHYLPYRROLIDIN-2-YL)PYRIDINE × 5 water × 5	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 5	(S)-3-(1-METHYLPYRROLIDIN-2-YL)PYRIDINE × 5 water × 5	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 5	(S)-3-(1-METHYLPYRROLIDIN-2-YL)PYRIDINE × 5 water × 5	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 5	(S)-3-(1-METHYLPYRROLIDIN-2-YL)PYRIDINE × 5 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACHP_LYMST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–211； UniProt 19–229 Author chain B； PDBConstruct 1–211； UniProt 19–229 Author chain C； PDBConstruct 1–211； UniProt 19–229 Author chain D； PDBConstruct 1–211； UniProt 19–229 Author chain E； PDBConstruct 1–211； UniProt 19–229 Author chain F； PDBConstruct 1–211； UniProt 19–229 Author chain G； PDBConstruct 1–211； UniProt 19–229 Author chain H； PDBConstruct 1–211； UniProt 19–229 Author chain I； PDBConstruct 1–211； UniProt 19–229 Author chain J； PDBConstruct 1–211； UniProt 19–229 Author chain K； PDBConstruct 1–211； UniProt 19–229 Author chain L； PDBConstruct 1–211； UniProt 19–229 Author chain M； PDBConstruct 1–211； UniProt 19–229 Author chain N； PDBConstruct 1–211； UniProt 19–229 Author chain O； PDBConstruct 1–211； UniProt 19–229 Author chain P； PDBConstruct 1–211； UniProt 19–229 Author chain Q； PDBConstruct 1–211； UniProt 19–229 Author chain R； PDBConstruct 1–211； UniProt 19–229 Author chain S； PDBConstruct 1–211； UniProt 19–229 Author chain T； PDBConstruct 1–211； UniProt 19–229

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1uw6
Deposition date deposition_date	2004-01-30
Structure title title	X-ray structure of acetylcholine binding protein (AChBP) in complex with nicotine
Keywords keywords	PENTAMER, IGG FOLD, ACETYLCHOLINE, NICOTINE, GLYCOPROTEIN; GLYCOPROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1uw6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

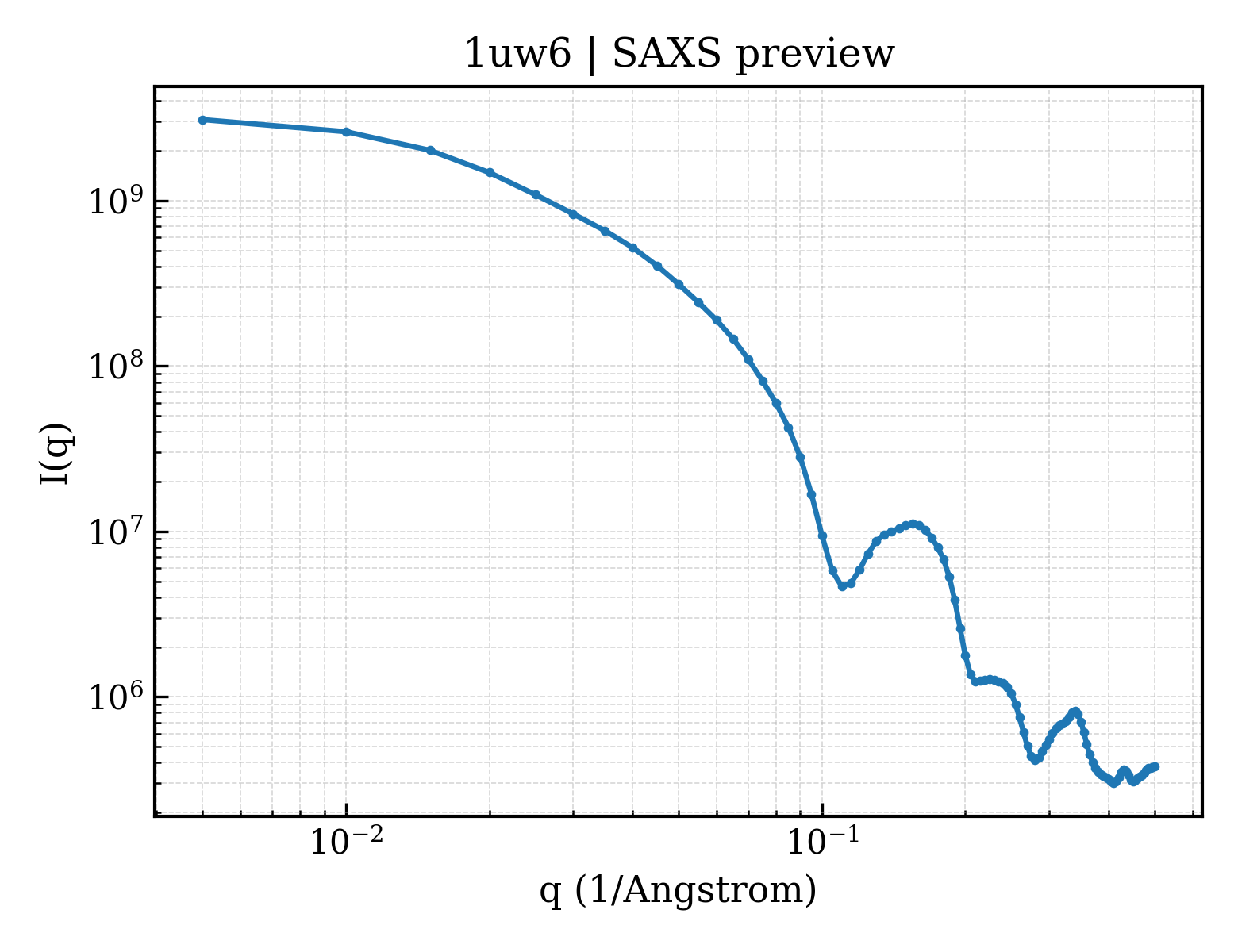

1uw6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

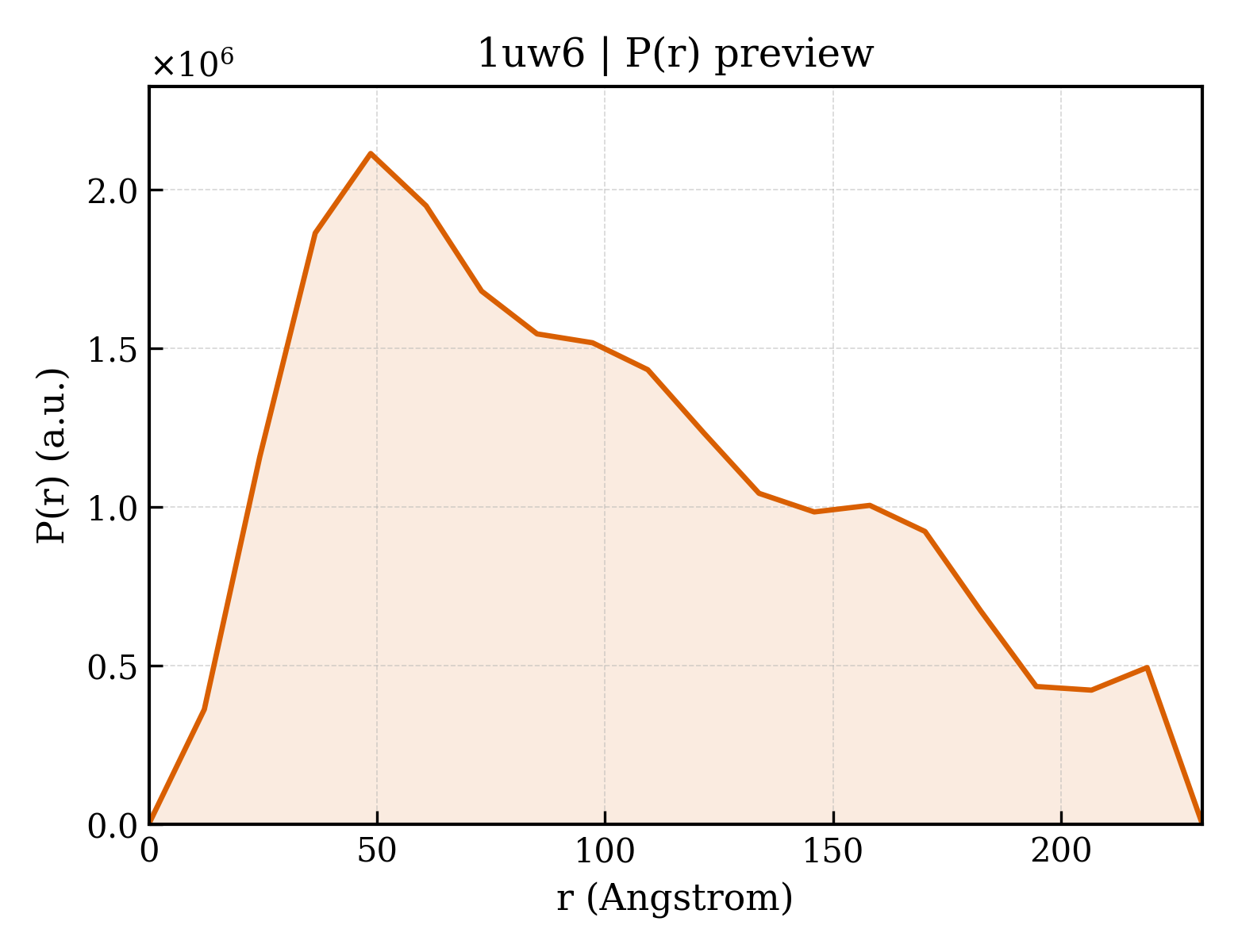

1uw6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.58 Å
Rg (electron density)	29.76 Å
Total Rg	30.64 Å
Atom count	8334
Residues	1034
Excluded volume	146630 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1uw6__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1uw6__assembly_2__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1uw6__assembly_3__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1uw6__assembly_4__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ACETYLCHOLINE-BINDING PROTEIN
Molecular weight formula_weight	24025.7 kDa
Source method src_method	man
Copy count entity_count	20

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T
Atom count atom_count	34788

EFDRADILYNIRQTSRPDVIPTQRDRPVAVSVSLKFINILEVNEITNEVDVVFWQQTTWSDRTLAWNSSHSPDQVSVPISSLWVPDLAAYNAISKPEVLTPQLARVVSDGEVLYMPSIRQRFSCDVSGVDTESGATCRIKIGSWTHHSREISVDPTTENSDDSEYFSQYSRFEILDVTQKKNSVTYSCCPEAYEDVEVSLNFRKKGRSEIL

Source Source

Source organism organism	LYMNAEA STAGNALIS
Common name common_name	GREAT POND SNAIL
NCBI taxonomy ID ncbi_taxonomy_id	6523
Host organism host_organism	KOMAGATAELLA PASTORIS

Entity 2 Entity 2 non-polymer

Description description	(S)-3-(1-METHYLPYRROLIDIN-2-YL)PYRIDINE
Molecular weight formula_weight	162.2 kDa
Source method src_method	syn
Copy count entity_count	20

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1469

▼

6. Fold Classification (SCOP + CATH) 40 domains

SCOP 2.08 (20 domains)

Domain ID domain_id	d1uw6a_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6b_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6c_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6d_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6e_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6f_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6g_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6h_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6i_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6j_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6k_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6l_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6m_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6n_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6o_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6p_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6q_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6r_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6s_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

Domain ID domain_id	d1uw6t_
Class class	b — All beta proteins
Fold Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
Superfamily Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
Family Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

CATH v4.4 (20 domains)

Domain ID domain_id	1uw6A00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6B00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6C00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6D00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6E00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6F00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6G00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6H00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6I00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6J00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6K00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6L00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6M00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6N00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6O00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6P00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6Q00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6R00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6S00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

Domain ID domain_id	1uw6T00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
Homologous superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

▶

Unit-cell length a length_a	233.000 Å
Unit-cell length b length_b	267.422 Å
Unit-cell length c length_c	73.139 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	80

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	12.000 Å
R factor r_factor	0.2239
R_work r_work	0.2216
R_free r_free	0.2653

X-ray structure of acetylcholine binding protein (AChBP) in complex with nicotine

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACETYLCHOLINE-BINDING PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1uw6__assembly_1__model_1

1uw6__assembly_1__model_1 | I(q)

1uw6__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 40 domains

SCOP 2.08 (20 domains)

CATH v4.4 (20 domains)

7. Citations (3)

X-ray structure of acetylcholine binding protein (AChBP) in complex with nicotine

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACETYLCHOLINE-BINDING PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1uw6__assembly_1__model_1

1uw6__assembly_1__model_1 | I(q)

1uw6__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 40 domains

SCOP 2.08 (20 domains)

CATH v4.4 (20 domains)

7. Citations (3)
