1ux2

X-ray structure of acetylcholine binding protein (AChBP)

Method: X-RAY DIFFRACTION

▼

1. 蛋白身份与相关结构 Protein Identity & Related Structures

ACETYLCHOLINE BINDING PROTEIN

LYMNAEA STAGNALIS

当前结构中的状态

Assembly	物理组成	蛋白状态	分子拷贝数	共同组分	数据核对
1	蛋白同源多聚体	同源多聚体	蛋白 5	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 SULFATE ION × 1 AMMONIUM ION × 2 water × 5	与蛋白数一致
2	蛋白同源多聚体	同源多聚体	蛋白 5	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 SULFATE ION × 1 AMMONIUM ION × 2 water × 5	与蛋白数一致

数据库中的同蛋白其他状态

查看构建体与数据证据

UniProt名称	ACHP_LYMST
Isoform	—
PDB实体	1
链与序列区间	作者链 A； PDB构建体 1–212； UniProt 18–229 作者链 B； PDB构建体 1–212； UniProt 18–229 作者链 C； PDB构建体 1–212； UniProt 18–229 作者链 D； PDB构建体 1–212； UniProt 18–229 作者链 E； PDB构建体 1–212； UniProt 18–229 作者链 F； PDB构建体 1–212； UniProt 18–229 作者链 G； PDB构建体 1–212； UniProt 18–229 作者链 H； PDB构建体 1–212； UniProt 18–229 作者链 I； PDB构建体 1–212； UniProt 18–229 作者链 J； PDB构建体 1–212； UniProt 18–229

页面优先展示蛋白身份、当前 assembly、共同组分、聚集状态和跨 PDB 结构链接。链映射与序列区间收在“数据证据”中；数据库内部编号、导入时间和 assembly 操作表达式仅用于维护，因此不在读者页面展示。

▼

2. 结构基本信息 2. Structure Basics

条目编号 entry_id	1ux2
沉积日期 deposition_date	2004-02-18
结构标题 title	X-ray structure of acetylcholine binding protein (AChBP)
关键词 keywords	PENTAMER, IGG FOLD, ACETYLCHOLINE, NICOTINE, GLYCOPROTEIN; GLYCOPROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

3. Official assembly/model 理论 SAXS Official SAXS Profiles

页面只读取最新 assembly 计算结果。每一条曲线都对应明确的 PDB、official biological assembly 和 coordinate model。

1ux2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

下载该曲线 .dat

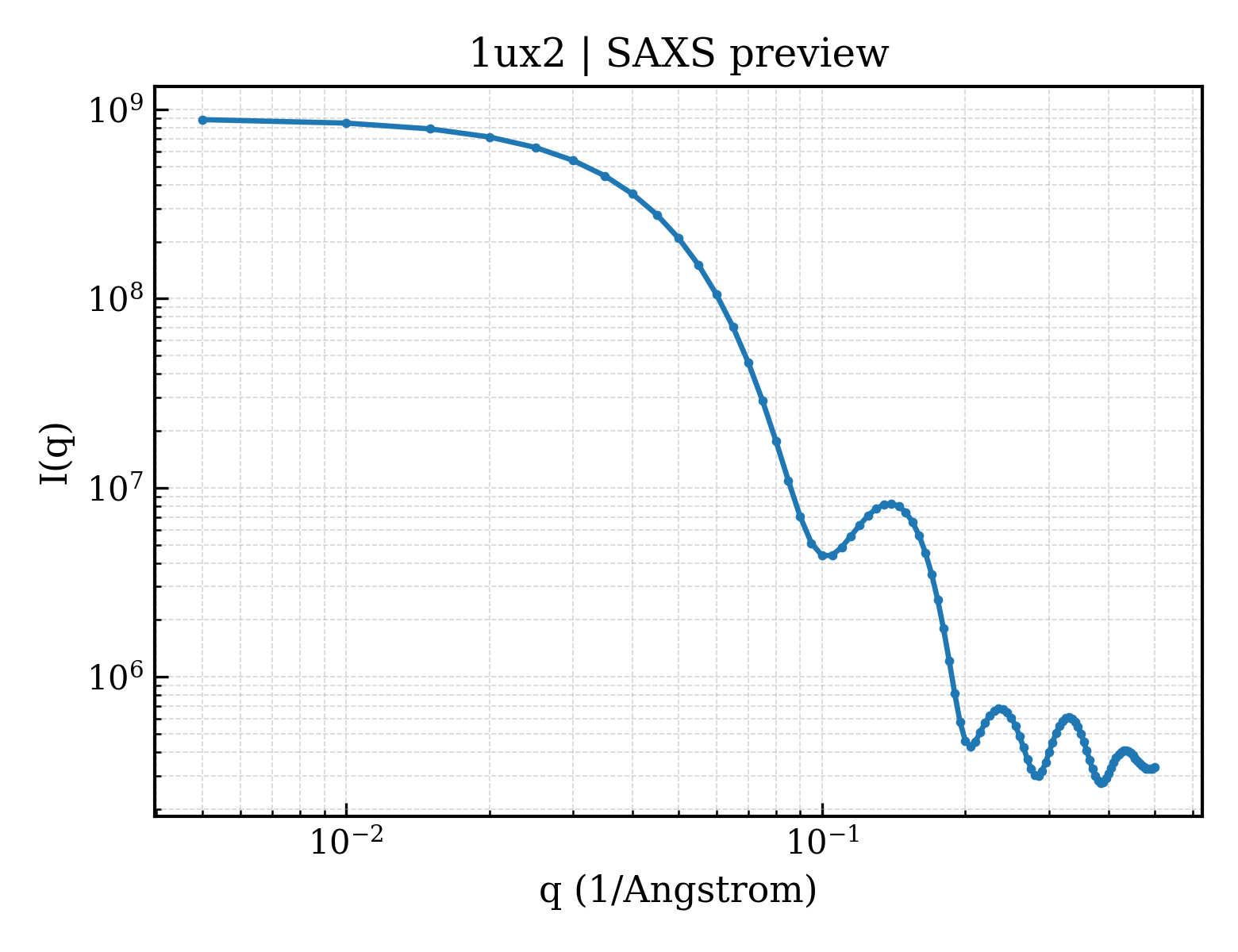

1ux2__assembly_1__model_1 | I(q)

100 个绘图点；横轴和纵轴均采用对数尺度。

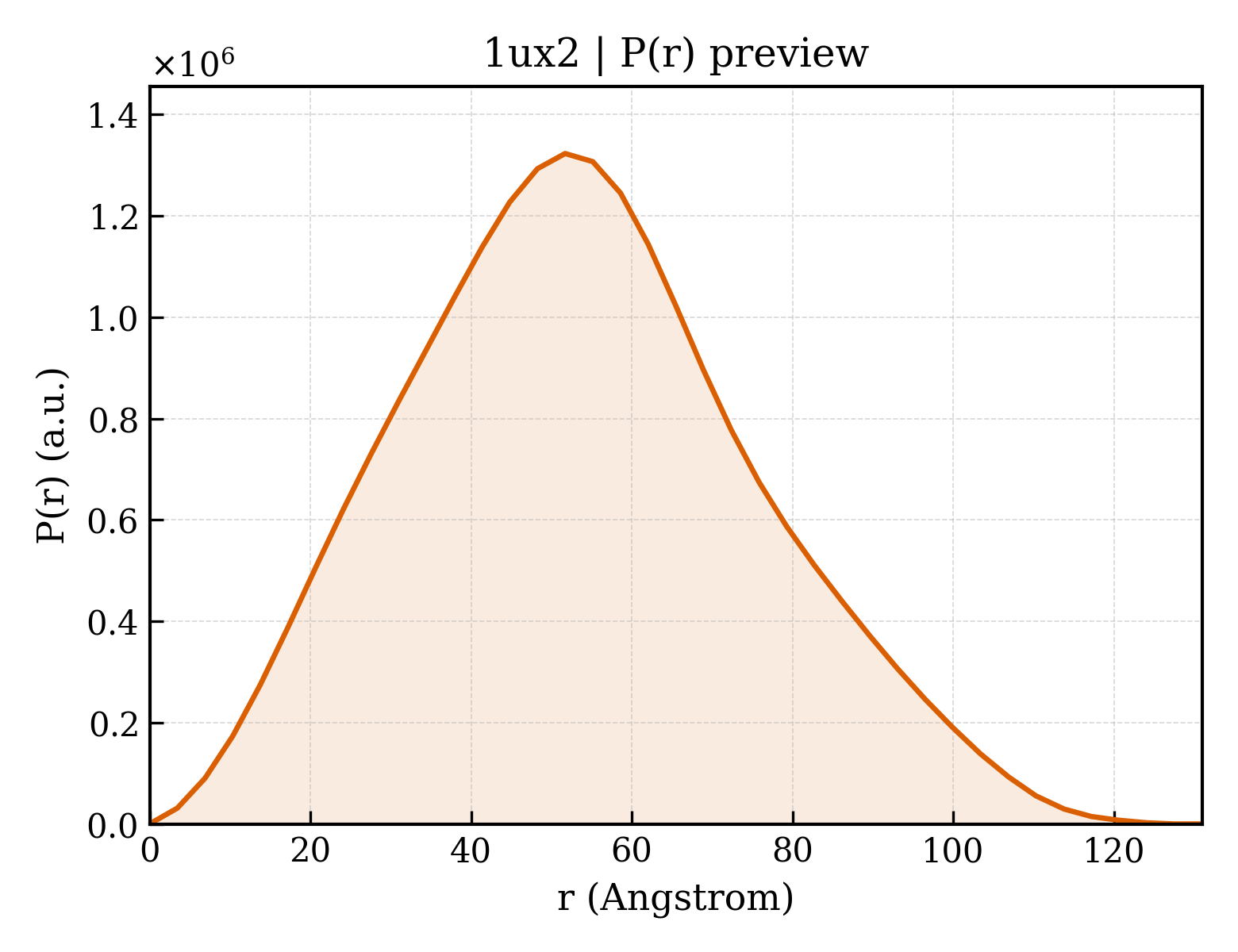

1ux2__assembly_1__model_1 | P(r) · Pending

P(r) 将按相同 assembly/model 分别计算和展示。

Rg（Guinier）	31.78 Å
Rg（电子密度）	30.00 Å
总 Rg	30.86 Å
原子数	8398
残基数	1033
排除体积	147770 Å³
最大 q	0.500 Å⁻¹

Assembly	Model	结构单元	聚集说明	状态	CRYSOL	操作
1	1	`1ux2__assembly_1__model_1`	pentameric （5）	成功	4.1.3-1-20251215 (887e7ef)	查看下载
2	1	`1ux2__assembly_2__model_1`	pentameric （5）	成功	4.1.3-1-20251215 (887e7ef)	查看下载

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合物信息 Entities & Polymers (6)

实体 1 Entity 1 polymer

描述 description	ACETYLCHOLINE BINDING PROTEIN
分子量 formula_weight	24124.8 kDa
来源方法 src_method	man
拷贝数 entity_count	10

聚合物 Polymer

聚合物类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J
原子数 atom_count	18194

VEFDRADILYNIRQTSRPDVIPTQRDRPVAVSVSLKFINILEVNEITNEVDVVFWQQTTWSDRTLAWNSSHSPDQVSVPISSLWVPDLAAYNAISKPEVLTPQLARVVSDGEVLYMPSIRQRFSCDVSGVDTESGATCRIKIGSWTHHSREISVDPTTENSDDSEYFSQYSRFEILDVTQKKNSVTYSCCPEAYEDVEVSLNFRKKGRSEIL

来源 Source

来源生物 organism	LYMNAEA STAGNALIS
通用名 common_name	GREAT POND SNAIL
NCBI 分类编号 ncbi_taxonomy_id	6523
宿主生物 host_organism	KOMAGATAELLA PASTORIS

实体 2 Entity 2 non-polymer

描述 description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
分子量 formula_weight	238.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

实体 3 Entity 3 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	10

实体 4 Entity 4 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

实体 5 Entity 5 non-polymer

描述 description	AMMONIUM ION
分子量 formula_weight	18.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

实体 6 Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1405

▼

6. 折叠分类 (SCOP + CATH) 20 domains

SCOP 2.08 (10 domains)

结构域编号 domain_id	d1ux2a_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
超家族 Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
家族 Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

结构域编号 domain_id	d1ux2b_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
超家族 Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
家族 Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

结构域编号 domain_id	d1ux2c_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
超家族 Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
家族 Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

结构域编号 domain_id	d1ux2d_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
超家族 Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
家族 Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

结构域编号 domain_id	d1ux2e_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
超家族 Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
家族 Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

结构域编号 domain_id	d1ux2f_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
超家族 Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
家族 Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

结构域编号 domain_id	d1ux2g_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
超家族 Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
家族 Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

结构域编号 domain_id	d1ux2h_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
超家族 Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
家族 Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

结构域编号 domain_id	d1ux2i_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
超家族 Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
家族 Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

结构域编号 domain_id	d1ux2j_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.96 — Nicotinic receptor ligand binding domain-like
超家族 Superfamily superfamily	b.96.1 — Nicotinic receptor ligand binding domain-like
家族 Family family	b.96.1.1 — Nicotinic receptor ligand binding domain-like

CATH v4.4 (10 domains)

结构域编号 domain_id	1ux2A00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

结构域编号 domain_id	1ux2B00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

结构域编号 domain_id	1ux2C00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

结构域编号 domain_id	1ux2D00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

结构域编号 domain_id	1ux2E00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

结构域编号 domain_id	1ux2F00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

结构域编号 domain_id	1ux2G00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

结构域编号 domain_id	1ux2H00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

结构域编号 domain_id	1ux2I00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

结构域编号 domain_id	1ux2J00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	170 — Acetylcholine Binding Protein; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Neurotransmitter-gated ion-channel ligand-binding domain

▶

晶胞边长 a length_a	140.639 Å
晶胞边长 b length_b	140.639 Å
晶胞边长 c length_c	238.257 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	80

空间群 space_group	P 41 21 2
空间群编号 int_tables_number	92
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	12.000 Å
R 因子 r_factor	0.2395
R_work r_work	0.2358
R_free r_free	0.2838
