SAXSdb — 1kbj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYTOCHROME B2

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	FLAVIN MONONUCLEOTIDE × 4 1,2-ETHANEDIOL × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYB2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–412； UniProt 180–591 Author chain B； PDBConstruct 1–412； UniProt 180–591

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1kbj
Deposition date deposition_date	2001-11-06
Structure title title	Crystallographic Study of the Recombinant Flavin-binding Domain of Baker's Yeast Flavocytochrome b2: comparison with the Intact Wild-type Enzyme
Keywords keywords	flavin-binding domain of flavocytochrome b2, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1kbj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

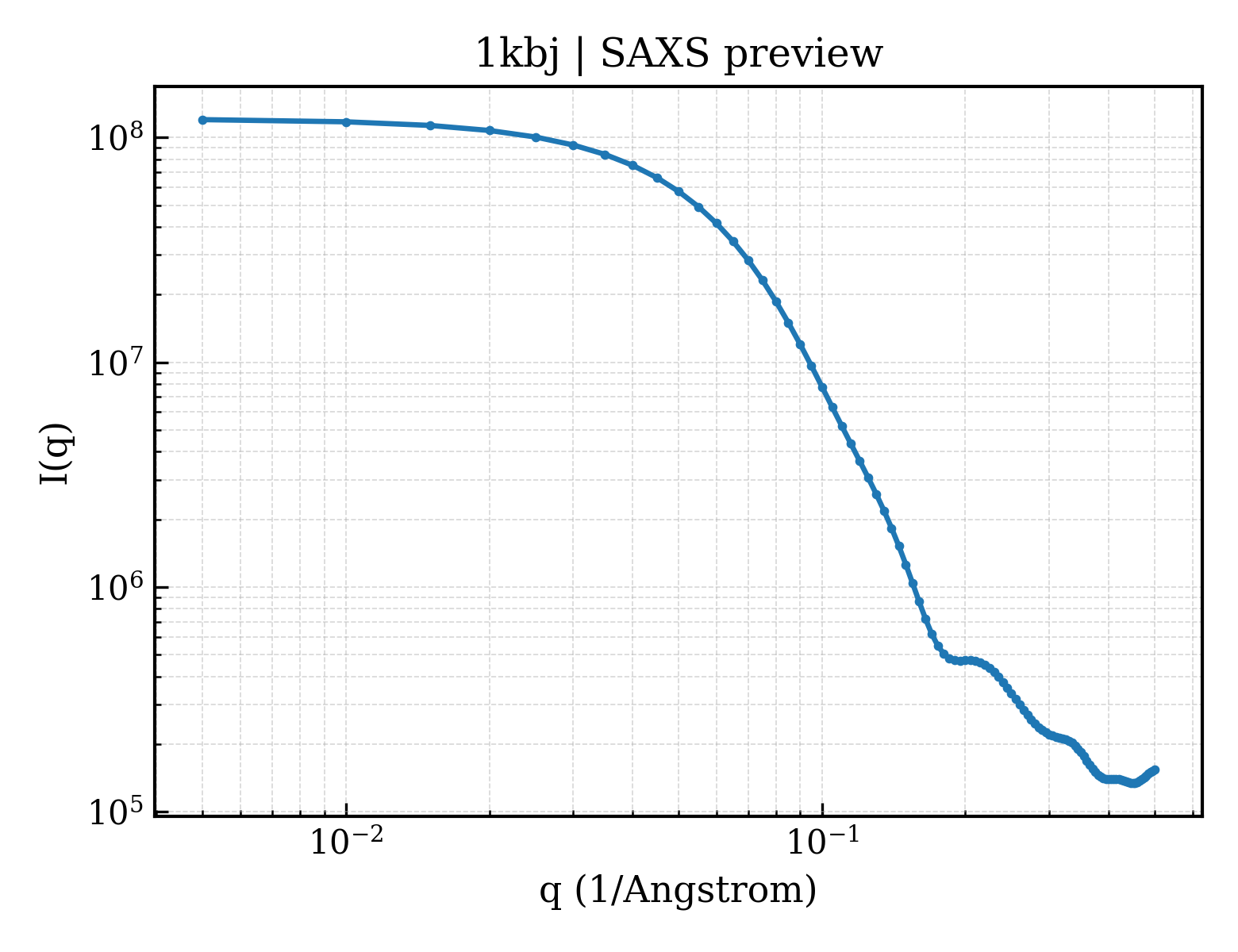

1kbj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

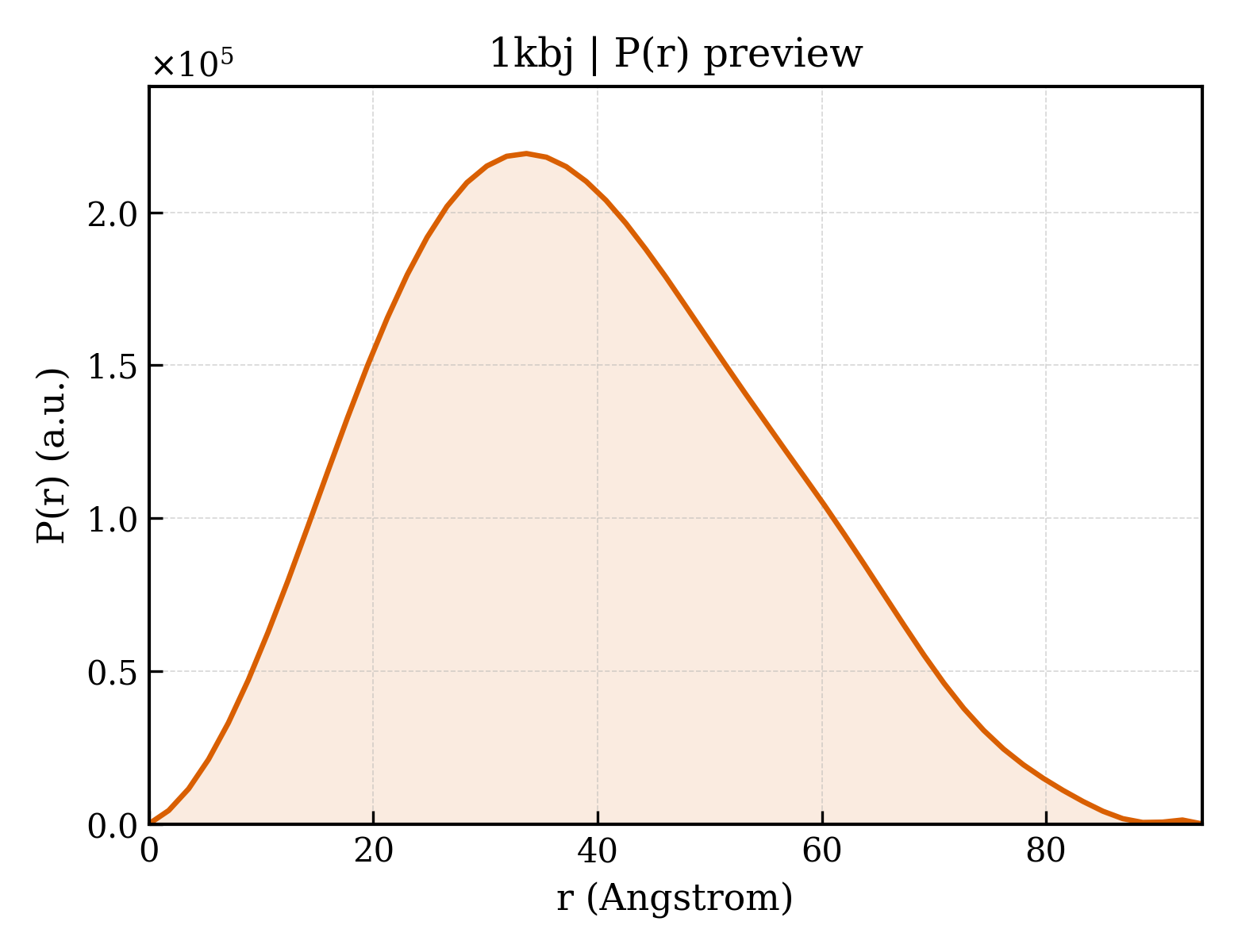

1kbj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.37 Å
Rg (electron density)	34.68 Å
Total Rg	35.43 Å
Atom count	12384
Residues	1570
Excluded volume	221930 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1kbj__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CYTOCHROME B2
Molecular weight formula_weight	45691.3 kDa
EC 编号 ec_number	1.1.2.3
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6614

GETKEDIARKEQLKSLLPPLDNIINLYDFEYLASQTLTKQAWAYYSSGANDEVTHRENHNAYHRIFFKPKILVDVRKVDISTDMLGSHVDVPFYVSATALCKLGNPLEGEKDVARGCGQGVTKVPQMISTLASCSPEEIIEAAPSDKQIQWYQLYVNSDRKITDDLVKNVEKLGVKALFVTVDAPSLGQREKDMKLKFSNTKAGPKAMKKTNVEESQGASRALSKFIDPSLTWKDIEELKKKTKLPIVIKGVQRTEDVIKAAEIGVSGVVLSNHGGRQLDFSRAPIEVLAETMPILEQRNLKDKLEVFVDGGVRRGTDVLKALCLGAKGVGLGRPFLYANSCYGRNGVEKAIEILRDEIEMSMRLLGVTSIAELKPDLLDLSTLKARTVGVPNDVLYNEVYEGPTLTEFEDA

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	370

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1kbja_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.4 — FMN-linked oxidoreductases
Family Family family	c.1.4.1 — FMN-linked oxidoreductases

Domain ID domain_id	d1kbjb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.4 — FMN-linked oxidoreductases
Family Family family	c.1.4.1 — FMN-linked oxidoreductases

CATH v4.4 (2 domains)

Domain ID domain_id	1kbjA01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1kbjB01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	110.730 Å
Unit-cell length b length_b	147.620 Å
Unit-cell length c length_c	64.860 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	—
R_work r_work	0.1570
R_free r_free	0.2030

Crystallographic Study of the Recombinant Flavin-binding Domain of Baker's Yeast Flavocytochrome b2: comparison with the Intact Wild-type Enzyme
