SAXSdb — 1ldc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-LACTATE DEHYDROGENASE

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	FLAVIN MONONUCLEOTIDE × 4 PROTOPORPHYRIN IX CONTAINING FE × 2 PYRUVIC ACID × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYB2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–511； UniProt 81–591 Author chain B； PDBConstruct 1–511； UniProt 81–591

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ldc
Deposition date deposition_date	1995-04-13
Structure title title	X-RAY STRUCTURE OF TWO COMPLEXES OF THE Y143F FLAVOCYTOCHROME B2 MUTANT CRYSTALLIZED IN THE PRESENCE OF LACTATE OR PHENYL-LACTATE
Keywords keywords	FLAVOENZYME, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ldc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

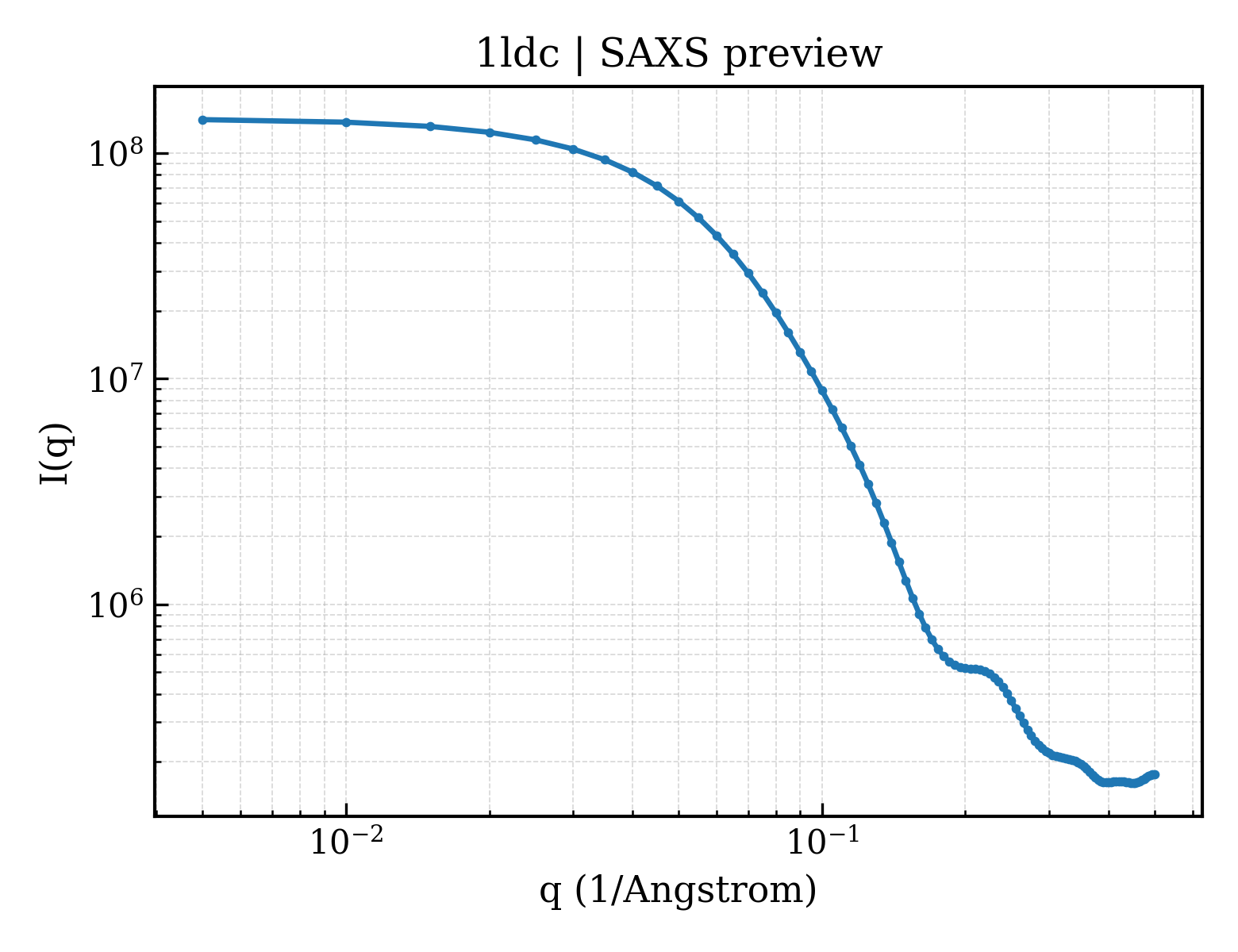

1ldc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1ldc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.38 Å
Rg (electron density)	37.00 Å
Total Rg	37.60 Å
Atom count	16614
Residues	1720
Excluded volume	244750 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ldc__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	L-LACTATE DEHYDROGENASE
Molecular weight formula_weight	56647.9 kDa
EC 编号 ec_number	1.1.2.3
Mutation mutation	Y143F
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8726

EPKLDMNKQKISPAEVAKHNKPDDCWVVINGYVYDLTRFLPNHPGGQDVIKFNAGKDVTAIFEPLHAPNVIDKYIAPEKKLGPLQGSMPPELVCPPYAPGETKEDIARKEQLKSLLPPLDNIINLYDFEYLASQTLTKQAWAFYSSGANDEVTHRENHNAYHRIFFKPKILVDVRKVDISTDMLGSHVDVPFYVSATALCKLGNPLEGEKDVARGCGQGVTKVPQMISTLASCSPEEIIEAAPSDKQIQWYQLYVNSDRKITDDLVKNVEKLGVKALFVTVDAPSLGQREKDMKLKFSNTKAGPKAMKKTNVEESQGASRALSKFIDPSLTWKDIEELKKKTKLPIVIKGVQRTEDVIKAAEIGVSGVVLSNHGGRQLDFSRAPIEVLAETMPILEQRNLKDKLEVFVDGGVRRGTDVLKALCLGAKGVGLGRPFLYANSCYGRNGVEKAIEILRDEIEMSMRLLGVTSIAELKPDLLDLSTLKARTVGVPNDVLYNEVYEGPTLTEFEDA

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	PYRUVIC ACID
Molecular weight formula_weight	88.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	141

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1ldca1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.4 — FMN-linked oxidoreductases
Family Family family	c.1.4.1 — FMN-linked oxidoreductases

Domain ID domain_id	d1ldca2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.120 — Cytochrome b5-like heme/steroid binding domain
Superfamily Superfamily superfamily	d.120.1 — Cytochrome b5-like heme/steroid binding domain
Family Family family	d.120.1.1 — Cytochrome b5

Domain ID domain_id	d1ldcb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.4 — FMN-linked oxidoreductases
Family Family family	c.1.4.1 — FMN-linked oxidoreductases

CATH v4.4 (3 domains)

Domain ID domain_id	1ldcA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	120 — Flavocytochrome B2; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Cytochrome b5-like heme/steroid binding domain

Domain ID domain_id	1ldcA02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1ldcB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	164.500 Å
Unit-cell length b length_b	164.500 Å
Unit-cell length c length_c	114.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	0.1950
R_work r_work	0.1950
R_free r_free	—

X-RAY STRUCTURE OF TWO COMPLEXES OF THE Y143F FLAVOCYTOCHROME B2 MUTANT CRYSTALLIZED IN THE PRESENCE OF LACTATE OR PHENYL-LACTATE
