1ltj

;Crystal Structure of Recombinant Human Fibrinogen Fragment D with the Peptide Ligands Gly-Pro-Arg-Pro-Amide and Gly-His-Arg-Pro-Amide ;

Method: X-RAY DIFFRACTION D_max: 205.4 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ltj
沉积日期 deposition_date	2002-05-20
结构标题 title	;Crystal Structure of Recombinant Human Fibrinogen Fragment D with the Peptide Ligands Gly-Pro-Arg-Pro-Amide and Gly-His-Arg-Pro-Amide ;
关键词 keywords	;blood coagulation, fibrinogen, fibrinogen fragment D, recombinant fibrinogen fragment D, recombinant fibrinogen, recombinant fibrinogen fragment D with two peptide ligands, BLOOD CLOTTING ;; BLOOD CLOTTING
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	56.44 Å
回转半径 Rg (电子) rg_electron	57.93 Å
零角强度 I(0) i0	356760000.00
分子量 molecular_weight	151480.0 kDa
排除体积 excluded_volume	187140 Å³
包络体积 envelope_volume	263720 Å³
水化壳体积 shell_volume	43393 Å³
包络直径 envelope_diameter	217.8 Å
壳层 Rg shell_rg	48.75 Å
包络 Rg envelope_rg	57.29 Å
形状 Rg shape_rg	57.94 Å
总 Rg total_rg	57.62 Å
总原子数 total_atoms	10643
残基数 n_residues	1315
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

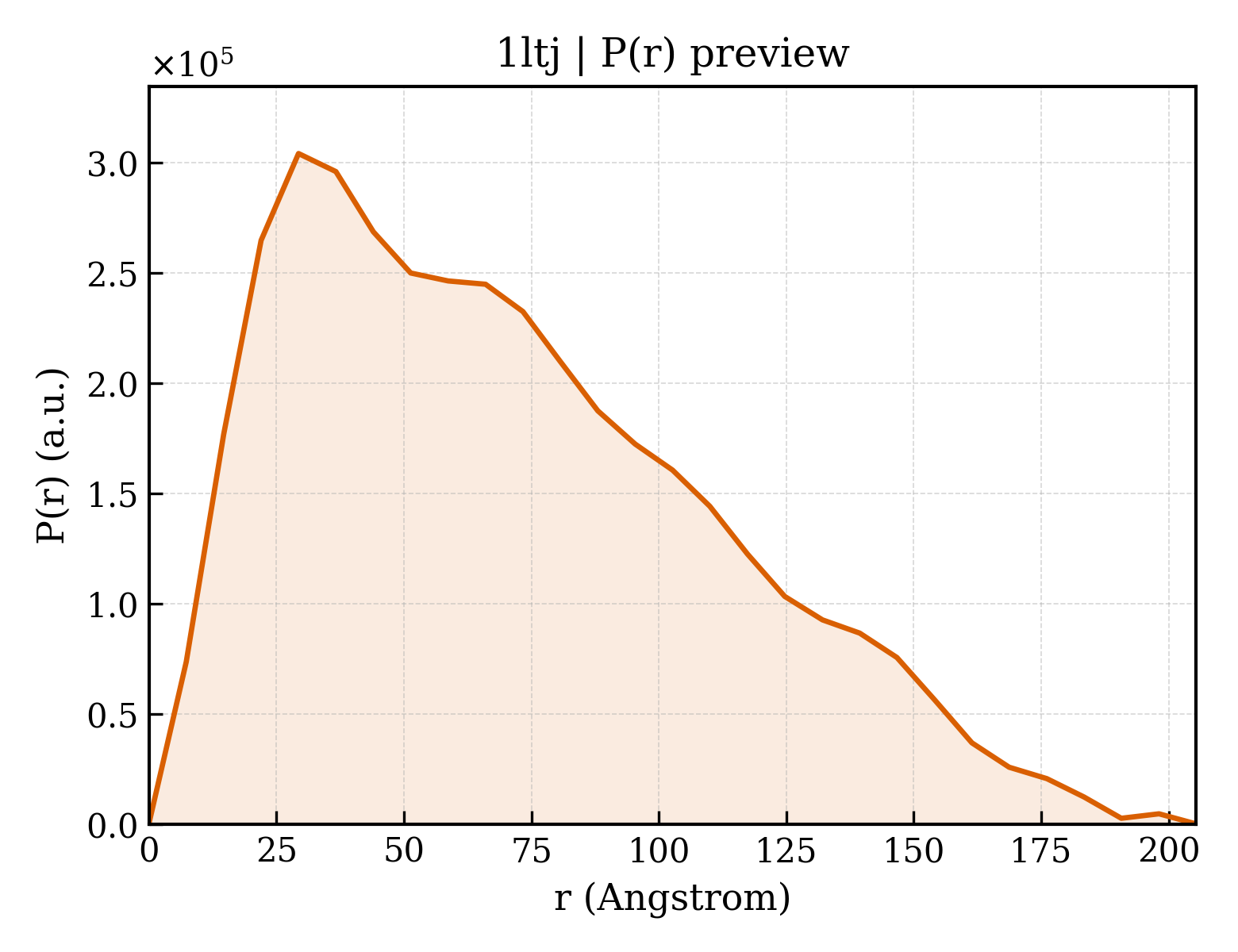

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	205.4 Å
Rg (实空间) rg_real	57.47 Å
Rg 误差 (实空间) rg_real_error	3.14 Å
I(0) (实空间) i0_real	3.5680e+08
I(0) 误差 (实空间) i0_real_error	8.0890e+06
Rg (倒空间) rg_reciprocal	55.56 Å
I(0) (倒空间) i0_reciprocal	355700000.0000
解质量估计 total_estimate	0.6619
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.4 Å
偏度 Skewness skewness	0.594
峰度 Kurtosis kurtosis	-0.404
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	7688000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.325; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.200; Smooth: 0.425

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	Fibrinogen alpha/alpha-E chain
分子量 formula_weight	7747.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D
原子数 atom_count	10893

VIEKVQHIQLLQKNVRAQLVDMKRLEVDIDIKIRSCRGSCSRALAREVDLKDYEDQQKQLEQVIAK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 polymer

描述 description	Fibrinogen Beta chain
分子量 formula_weight	35940.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,E

HQLYIDETVNSNIPTNLRVLRSILENLRSKIQKLESDVSAQMEYCRTPCTVSCNIPVVSGKECEEIIRKGGETSEMYLIQPDSSVKPYRVYCDMNTENGGWTVIQNRQDGSVDFGRKWDPYKQGFGNVATNTDGKNYCGLPGEYWLGNDKISQLTRMGPTELLIEMEDWKGDKVKAHYGGFTVQNEANKYQISVNKYRGTAGNALMDGASQLMGENRTMTIHNGMFFSTYDRDNDGWLTSDPRKQCSKEDGGGWWYNRCHAANPNGRYYWGGQYTWDMAKHGTDDGVVWMNWKGSWYSMRKMSMKIRPFFPQQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 3 polymer

描述 description	Fibrinogen Gamma chain
分子量 formula_weight	35218.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,F

YEASILTHDSSIRYLQEIYNSNNQKIVNLKEKVAQLEAQCQEPCKDTVQIHDITGKDCQDIANKGAKQSGLYFIKPLKANQQFLVYCEIDGSGNGWTVFQKRLDGSVDFKKNWIQYKEGFGHLSPTGTTEFWLGNEKIHLISTQSAIPYALRVELEDWNGRTSTADYAMFKVGPEADKYRLTYAYFAGGDAGDAFDGFDFGDDPSDKFFTSHNGMQFSTWDNDNDKFEGNCAEQDGSGWWMNKCHAGHLNGVYYQGGTYSKASTPNGYDNGIIWATWKTRWYSMKKTTMKIIPFNRLTIGEGQQHHLGGAK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 4 polymer

描述 description	Gly-Pro-Arg-Pro
分子量 formula_weight	426.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,I

GPRP

Entity 5 polymer

描述 description	Gly-His-Arg-Pro
分子量 formula_weight	467.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,J

GHRP

Entity 6 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	570.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 7 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 8 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	250

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (10 domains)

结构域编号 domain_id	d1ltja_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1ltjb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.171 — Fibrinogen C-terminal domain-like
超家族 Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
家族 Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

结构域编号 domain_id	d1ltjb2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1ltjc1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.171 — Fibrinogen C-terminal domain-like
超家族 Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
家族 Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

结构域编号 domain_id	d1ltjc2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1ltjd_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1ltje1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.171 — Fibrinogen C-terminal domain-like
超家族 Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
家族 Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

结构域编号 domain_id	d1ltje2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

结构域编号 domain_id	d1ltjf1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.171 — Fibrinogen C-terminal domain-like
超家族 Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
家族 Family family	d.171.1.1 — Fibrinogen C-terminal domain-like

结构域编号 domain_id	d1ltjf2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.8 — Fibrinogen coiled-coil and central regions
家族 Family family	h.1.8.1 — Fibrinogen coiled-coil and central regions

CATH v4.4 (14 domains)

结构域编号 domain_id	1ltjA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1ltjB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

结构域编号 domain_id	1ltjB02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

结构域编号 domain_id	1ltjB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1ltjC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

结构域编号 domain_id	1ltjC02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

结构域编号 domain_id	1ltjC03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1ltjD00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1ltjE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

结构域编号 domain_id	1ltjE02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

结构域编号 domain_id	1ltjE03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	1ltjF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

结构域编号 domain_id	1ltjF02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

结构域编号 domain_id	1ltjF03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	50 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	89.284 Å
晶胞边长 b length_b	94.218 Å
晶胞边长 c length_c	226.936 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	18.020 Å
R 因子 r_factor	—
R_work r_work	0.2120
R_free r_free	0.2700

fit	/app/data/saxs_computation/lt/1ltj/1ltj.fit
pddf	/app/data/pr_computation/lt/1ltj/1ltj.pr.out
profile	/app/data/saxs_computation/lt/1ltj/1ltj.dat

;Crystal Structure of Recombinant Human Fibrinogen Fragment D with the Peptide Ligands Gly-Pro-Arg-Pro-Amide and Gly-His-Arg-Pro-Amide ;

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (8)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 polymer

聚合体 Polymer

来源 Source

Entity 3 polymer

聚合体 Polymer

来源 Source

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 branched

Entity 7 non-polymer

Entity 8 water

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (10 domains)

CATH v4.4 (14 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
