1mim

IGG FAB FRAGMENT (CD25-BINDING)

Method: X-RAY DIFFRACTION D_max: 77.8 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHIMERIC SDZ CHI621

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain L； UniProt 135–348	Fragment：IGG FAB	CHIMERIC SDZ CHI621 × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1MIM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A4J DIELS ALDER CATALYTIC ANTIBODY GERMLINE PRECURSOR Deposited 1998-01-30	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–104（104 aa） Fragment：FAB	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；19% PEG 8K, 20% GLYCEROL, 200MM MG(CH3COO)2, 10MM CDS04 100MM BISTRIS PH 6.0	Resolution 2.10 Å R-free 0.292
1A4J DIELS ALDER CATALYTIC ANTIBODY GERMLINE PRECURSOR Deposited 1998-01-30	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–104（104 aa） Fragment：FAB	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；19% PEG 8K, 20% GLYCEROL, 200MM MG(CH3COO)2, 10MM CDS04 100MM BISTRIS PH 6.0	Resolution 2.10 Å R-free 0.292
1A4K DIELS ALDER CATALYTIC ANTIBODY WITH TRANSITION STATE ANALOGUE Deposited 1998-01-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–104（104 aa） Fragment：FAB	Not recorded	CD CADMIUM ION × 2 FRA [4-(4-ACETYLAMINO-PHENYL)-3,5-DIOXO-4-AZA-TRICYCLO[5.2.2.0 2,6]UNDEC-1-YLCARBAMOYLOXY]-ACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；17% PEG 8K, 200MM (NH4)2SO4, 10MM CDS0 100MM TRIS PH 8.0	Resolution 2.40 Å R-free 0.291
1A4K DIELS ALDER CATALYTIC ANTIBODY WITH TRANSITION STATE ANALOGUE Deposited 1998-01-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–104（104 aa） Fragment：FAB	Not recorded	CD CADMIUM ION × 2 FRA [4-(4-ACETYLAMINO-PHENYL)-3,5-DIOXO-4-AZA-TRICYCLO[5.2.2.0 2,6]UNDEC-1-YLCARBAMOYLOXY]-ACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；17% PEG 8K, 200MM (NH4)2SO4, 10MM CDS0 100MM TRIS PH 8.0	Resolution 2.40 Å R-free 0.291
1D5B UNLIGANDED MATURE OXY-COPE CATALYTIC ANTIBODY Deposited 1999-10-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–104（104 aa） Fragment：chimeric fab fragment (UNP Q7TS98 reisues 23-129, P01834 residues 1-104) Chain L 1–104（104 aa） Fragment：chimeric fab fragment (UNP Q7TS98 reisues 23-129, P01834 residues 1-104)	Not recorded	CD CADMIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；25%PEG 1000, 100mM sodium acetate, 300mM CdCl2, 100mM ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.285
1D5B UNLIGANDED MATURE OXY-COPE CATALYTIC ANTIBODY Deposited 1999-10-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–104（104 aa） Fragment：chimeric fab fragment (UNP Q7TS98 reisues 23-129, P01834 residues 1-104)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；25%PEG 1000, 100mM sodium acetate, 300mM CdCl2, 100mM ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.285
1D5B UNLIGANDED MATURE OXY-COPE CATALYTIC ANTIBODY Deposited 1999-10-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–104（104 aa） Fragment：chimeric fab fragment (UNP Q7TS98 reisues 23-129, P01834 residues 1-104)	Not recorded	CD CADMIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；25%PEG 1000, 100mM sodium acetate, 300mM CdCl2, 100mM ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.285
1D5I UNLIGANDED GERMLINE PRECURSOR OF AN OXY-COPE CATALYTIC ANTIBODY Deposited 1999-10-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–104（104 aa） Fragment：chimeric fab fragment (UNP Q7TS98 reisues 23-129, P01834 residues 1-104)	Not recorded	CD CADMIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；75mM Hepes pH 7.0 9% PEG 4000 150 mM Ammonium Sulfate 20% 1,4 butanediol 100 mM Cadmium Chloride, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.263
1D6V CONFORMATION EFFECTS IN BIOLOGICAL CATALYSIS INTRODUCED BY OXY-COPE ANTIBODY MATURATION Deposited 1999-10-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–104（104 aa） Fragment：chimeric fab fragment (UNP Q7TS98 reisues 23-129, P01834 residues 1-104)	Not recorded	CD CADMIUM ION × 4 HOP (1S,2S,5S)2-(4-GLUTARIDYLBENZYL)-5-PHENYL-1-CYCLOHEXANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；292 K；9% polyethylene glycol 4000 250mM ammonium sulfate 80mM Cadmium Chloride 75mM Hepes 20% 1,4 butanediol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 19K	Resolution 2.00 Å R-free 0.264
1HKL FREE AND LIGANDED FORM OF AN ESTEROLYTIC CATALYTIC ANTIBODY Deposited 1996-12-20	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 23–236（214 aa） Fragment：VARIABLE DOMAINS OF LIGHT AND HEAVY CHAINS AND CONSTANT DOMAINS OF LIGHT AND HEAVY CHAINS	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.68 Å R-free 0.244
1I7Z ANTIBODY GNC92H2 BOUND TO LIGAND Deposited 2001-03-12	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–106（106 aa）	Not recorded	COC COCAINE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å R-free 0.265
1I7Z ANTIBODY GNC92H2 BOUND TO LIGAND Deposited 2001-03-12	Different construct Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–106（106 aa）	Not recorded	COC COCAINE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å R-free 0.265
1UCB STRUCTURE OF UNCOMPLEXED FAB COMPARED TO COMPLEX (1CLY, 1CLZ) Deposited 1996-02-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–106（106 aa） Fragment：MOUSE VH AND VL DOMAINS, HUMAN CL KAPPA AND CH1 IGG1 DOMAINS	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；0.1 M SODIUM ACETATE (PH 4.6), 0.1 M AMMONIUM SULFATE, 15 % PEG 8000.	Resolution 2.50 Å R-free 0.276
3O11 Anti-beta-amyloid antibody c706 fab in space group c2 Deposited 2010-07-20	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–106（106 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 3.5；293 K；0.1 M CITRATE PH 3.5, 18% PEG 8000 CRYO CONDITIONS, 0.1 M CITRATE PH 3.5, 25% PEG 8000, 20% GLYCEROL, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.80 Å R-free 0.304
3O11 Anti-beta-amyloid antibody c706 fab in space group c2 Deposited 2010-07-20	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–106（106 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 3.5；293 K；0.1 M CITRATE PH 3.5, 18% PEG 8000 CRYO CONDITIONS, 0.1 M CITRATE PH 3.5, 25% PEG 8000, 20% GLYCEROL, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.80 Å R-free 0.304
3QCT Crystal structure of the humanized apo LT3015 anti-lysophosphatidic acid antibody Fab fragment Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–105（105 aa）	Not recorded	SO4 SULFATE ION × 2 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1 M HEPES sodium pH 7.5, 2% PEG 400 (v/v), and 1.75 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.15 Å R-free 0.287
3QCU Crystal structure of the LT3015 antibody Fab fragment in complex with lysophosphatidic acid (14:0) Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–105（105 aa）	Not recorded	NKN (2R)-2-hydroxy-3-(phosphonooxy)propyl tetradecanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；0.095 M sodium citrate pH 5.6, 19% (v/v) isopropanol, 19% (w/v) PEG 4000, and 5% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.98 Å R-free 0.252
3QCU Crystal structure of the LT3015 antibody Fab fragment in complex with lysophosphatidic acid (14:0) Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 1–105（105 aa）	Not recorded	NKN (2R)-2-hydroxy-3-(phosphonooxy)propyl tetradecanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；0.095 M sodium citrate pH 5.6, 19% (v/v) isopropanol, 19% (w/v) PEG 4000, and 5% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.98 Å R-free 0.252
3QCV Crystal structure of the LT3015 antibody Fab fragment in complex with lysophosphatidic acid (18:2) Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–105（105 aa）	Not recorded	18L (2R)-2-hydroxy-3-(phosphonooxy)propyl (9Z,12Z)-octadeca-9,12-dienoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.095 M sodium citrate pH 5.6, 19% (v/v) isopropanol, 19% (w/v) PEG 4000, and 5% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.51 Å R-free 0.266
3QCV Crystal structure of the LT3015 antibody Fab fragment in complex with lysophosphatidic acid (18:2) Deposited 2011-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 1–105（105 aa）	Not recorded	18L (2R)-2-hydroxy-3-(phosphonooxy)propyl (9Z,12Z)-octadeca-9,12-dienoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.095 M sodium citrate pH 5.6, 19% (v/v) isopropanol, 19% (w/v) PEG 4000, and 5% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.51 Å R-free 0.266
3U0W AD related murine antibody Fragment Deposited 2011-09-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–106（106 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；100mM citric acid, 20%(v/v) 2-propanol, 20%(w/v) PEG 4000, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.235
3U7W Crystal structure of NIH45-46 Fab Deposited 2011-10-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–106（106 aa）	Not recorded	GOL GLYCEROL × 3 SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；12% polyethylene glycol 20,000, 0.1 M sodium acetate pH 5.0, 0.1 M sodium/potassium tartrate, 0.02 M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.60 Å R-free 0.238
3U7Y Structure of NIH45-46 Fab in complex with gp120 of 93TH057 HIV Deposited 2011-10-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 1–106（106 aa）	Not recorded	FLC CITRATE ANION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；12% isopropanol, 10% polyethylene glycol 10,000, 0.1 M sodium citrate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.45 Å R-free 0.256
3VH8 KIR3DL1 in complex with HLA-B*5701 Deposited 2011-08-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 93–101（9 aa） Fragment：UNP residues 93-101	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；16% PEG 3350, 2% tacsimate pH 5.0, 0.1M tri-sodium citrate pH 5.6., VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.80 Å R-free 0.237
3VH8 KIR3DL1 in complex with HLA-B*5701 Deposited 2011-08-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 93–101（9 aa） Fragment：UNP residues 93-101	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；16% PEG 3350, 2% tacsimate pH 5.0, 0.1M tri-sodium citrate pH 5.6., VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.80 Å R-free 0.237
3X11 Crystal structure of HLA-B*57:01.I80N.L82R.R83G Deposited 2014-10-24	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 93–101（9 aa） Fragment：UNP residues 93-101	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；298 K；12-20% PEG4000, 0.2M ammonium acetate, 0.1M tri-sodium citrate pH 5.4., VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.15 Å R-free 0.231
3X12 Crystal structure of HLA-B*57:01.I80N Deposited 2014-10-24	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 93–101（9 aa） Fragment：UNP residues 1-9	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；298 K；12-20% PEG4000, 0.2M ammonium acetate, 0.1M tri-sodium citrate pH 5.4., VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.80 Å R-free 0.219
4D9R Inhibiting Alternative Pathway Complement Activation by Targeting the Exosite on Factor D Deposited 2012-01-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 1–106（106 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1 M Tris-HCl, 0.02 M NH4PO4, MPD 50.0% v/v, 0.01 M hexamine cobalt (III) chloride, pH 8.5, vapor diffusion, hanging drop, temperature 277K	Resolution 2.42 Å R-free 0.251
4D9R Inhibiting Alternative Pathway Complement Activation by Targeting the Exosite on Factor D Deposited 2012-01-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–106（106 aa）	Not recorded	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1 M Tris-HCl, 0.02 M NH4PO4, MPD 50.0% v/v, 0.01 M hexamine cobalt (III) chloride, pH 8.5, vapor diffusion, hanging drop, temperature 277K	Resolution 2.42 Å R-free 0.251
4YDV STRUCTURE OF THE ANTIBODY 7B2 THAT CAPTURES HIV-1 VIRIONS Deposited 2015-02-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 1–106（106 aa） Fragment：HIV ANTIBODY 7B2 LIGHT CHAIN,HIV ANTIBODY 7B2 LIGHT CHAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；298 K；6% PEG 20,000, 5% 2-PROPANOL, 0.1 M CITRIC ACID PH 3.5	Resolution 2.70 Å R-free 0.223
4YDV STRUCTURE OF THE ANTIBODY 7B2 THAT CAPTURES HIV-1 VIRIONS Deposited 2015-02-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–106（106 aa） Fragment：HIV ANTIBODY 7B2 LIGHT CHAIN,HIV ANTIBODY 7B2 LIGHT CHAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；298 K；6% PEG 20,000, 5% 2-PROPANOL, 0.1 M CITRIC ACID PH 3.5	Resolution 2.70 Å R-free 0.223
5B38 KIR3DL1005 in complex with HLA-B57:01 Deposited 2016-02-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 93–101（9 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；14 to 18% PEG 3350, 2% tacsimate pH 5.0, 0.1 M tri-sodium citrate pH 5.6	Resolution 2.30 Å R-free 0.251
5B39 KIR3DL1015 in complex with HLA-B57:01 Deposited 2016-02-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 93–101（9 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；14 to 18% PEG 3350, 2% tacsimate pH 5.0, 0.1 M tri-sodium citrate pH 5.6	Resolution 2.50 Å R-free 0.229
5C7K Crystal structure BG505 SOSIP gp140 HIV-1 Env trimer bound to broadly neutralizing antibodies PGT128 and 8ANC195 Deposited 2015-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 18 PDB declaration: octadecameric	Chain F 1–106（106 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 18 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；280 K；0.05 M lithium sulfate, 0.05 M sodium sulfate, 26% (w/v) PEG 400 and 0.1 M Tris-HCl pH 8.3	Resolution 4.60 Å R-free 0.295
5ESV Crystal Structure of Broadly Neutralizing Antibody CH03, Isolated from Donor CH0219, in Complex with Scaffolded Trimeric HIV-1 Env V1V2 Domain from the Clade C Superinfecting Strain of Donor CAP256. Deposited 2015-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain B 1–106（106 aa） Chain D 1–106（106 aa） Chain L 1–106（106 aa）	Not recorded	ZN ZINC ION × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；10% PEG8000, .1M CaCl, 20% MPD, .1M Na Acetate pH 5.5, frozen in 15% sucrose as cryoprotectant	Resolution 3.10 Å R-free 0.259
5ESZ Crystal Structure of Broadly Neutralizing Antibody CH04, Isolated from Donor CH0219, in Complex with Scaffolded Trimeric HIV-1 Env V1V2 Domain from the Clade AE Strain A244 Deposited 2015-11-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 1–106（106 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；54% isopropanol .1M Tris pH 8.5 Cryo used was 15% 2R3R	Resolution 4.19 Å R-free 0.282
5ESZ Crystal Structure of Broadly Neutralizing Antibody CH04, Isolated from Donor CH0219, in Complex with Scaffolded Trimeric HIV-1 Env V1V2 Domain from the Clade AE Strain A244 Deposited 2015-11-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain L 1–106（106 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；54% isopropanol .1M Tris pH 8.5 Cryo used was 15% 2R3R	Resolution 4.19 Å R-free 0.282
5ESZ Crystal Structure of Broadly Neutralizing Antibody CH04, Isolated from Donor CH0219, in Complex with Scaffolded Trimeric HIV-1 Env V1V2 Domain from the Clade AE Strain A244 Deposited 2015-11-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–106（106 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；54% isopropanol .1M Tris pH 8.5 Cryo used was 15% 2R3R	Resolution 4.19 Å R-free 0.282
5ESZ Crystal Structure of Broadly Neutralizing Antibody CH04, Isolated from Donor CH0219, in Complex with Scaffolded Trimeric HIV-1 Env V1V2 Domain from the Clade AE Strain A244 Deposited 2015-11-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain B 1–106（106 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；54% isopropanol .1M Tris pH 8.5 Cryo used was 15% 2R3R	Resolution 4.19 Å R-free 0.282
5EWI Crystal Structure of the Human Fab VRC38.01, an HIV-1 V1V2-Directed Neutralizing Antibody Isolated from Donor N90 Deposited 2015-11-20	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 1–106（106 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；14% PEG400, 13% PEG8000, 0.1M Tris pH 8.5, 0.1M MgCl, No Cryo	Resolution 1.60 Å R-free 0.202
5VEB Crystal structure of a Fab binding to extracellular domain 5 of Cadherin-6 Deposited 2017-04-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–107（107 aa）	Not recorded	A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；20% (w/v) PEG3350, 0.2M di-ammonium hydrogen citrate	Resolution 2.34 Å R-free 0.252
5VEB Crystal structure of a Fab binding to extracellular domain 5 of Cadherin-6 Deposited 2017-04-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 1–107（107 aa）	Not recorded	A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；20% (w/v) PEG3350, 0.2M di-ammonium hydrogen citrate	Resolution 2.34 Å R-free 0.252
5VIY BG505 SOSIP.664 in complex with broadly neutralizing antibodies BG1 and 8ANC195 Deposited 2017-04-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain G 1–107（107 aa） Chain I 1–107（107 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 13	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 6.20 Å
6AU5 Structure of cetuximab with aminoheptanoic acid-linked n-butylarginine meditope variant Deposited 2017-08-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–106（106 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate, pH 4.0, 1.6 M ammonium sulfate	Resolution 2.48 Å R-free 0.227
6AU5 Structure of cetuximab with aminoheptanoic acid-linked n-butylarginine meditope variant Deposited 2017-08-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–106（106 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate, pH 4.0, 1.6 M ammonium sulfate	Resolution 2.48 Å R-free 0.227
6AXP Structure of cetuximab with aminoheptanoic acid-linked n-octylarginine meditope variant Deposited 2017-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–106（106 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate pH 4.0, 1.6 M ammonium sulfate	Resolution 2.48 Å R-free 0.228
6AXP Structure of cetuximab with aminoheptanoic acid-linked n-octylarginine meditope variant Deposited 2017-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–106（106 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate pH 4.0, 1.6 M ammonium sulfate	Resolution 2.48 Å R-free 0.228
6AYN Structure of cetuximab with aminoheptanoic acid-linked N-(3-aminopropyl)-L-arginine meditope variant Deposited 2017-09-08	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–106（106 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M citrate pH 5, 1.6 M ammonium sulfate	Resolution 2.48 Å R-free 0.222
6AYN Structure of cetuximab with aminoheptanoic acid-linked N-(3-aminopropyl)-L-arginine meditope variant Deposited 2017-09-08	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–106（106 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M citrate pH 5, 1.6 M ammonium sulfate	Resolution 2.48 Å R-free 0.222
6AZK Structure of cetuximab with aminoheptanoic acid-linked N-(3-hydroxypropyl)-L-arginine meditope variant Deposited 2017-09-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–106（106 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M citrate pH 5, 1.8 M ammonium sulfate	Resolution 2.48 Å R-free 0.213
6AZK Structure of cetuximab with aminoheptanoic acid-linked N-(3-hydroxypropyl)-L-arginine meditope variant Deposited 2017-09-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–106（106 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M citrate pH 5, 1.8 M ammonium sulfate	Resolution 2.48 Å R-free 0.213
6AZL Structure of cetuximab with aminoheptanoic acid-linked N-carboxyethylarginine meditope variant Deposited 2017-09-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–106（106 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M citrate pH 5.5, 1.8 M ammonium sulfate	Resolution 2.48 Å R-free 0.216
6AZL Structure of cetuximab with aminoheptanoic acid-linked N-carboxyethylarginine meditope variant Deposited 2017-09-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–106（106 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M citrate pH 5.5, 1.8 M ammonium sulfate	Resolution 2.48 Å R-free 0.216
6B9Y Trastuzumab Fab v3 in complex with 5-phenyl meditope variant Deposited 2017-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–107（107 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Tris pH 7.5, 15% PEG3350, 24 mM NaCl	Resolution 2.14 Å R-free 0.218
6B9Z Trastuzumab Fab v3 Deposited 2017-10-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–107（107 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Tris, pH 7.5, 24 mM NaCl, 15% PEG3350	Resolution 1.82 Å R-free 0.189
6BAE Trastuzumab Fab v3 in complex with CQFDLSTRRLKC Deposited 2017-10-12	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–107（107 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Tris pH 7.5, 24 mM NaCl, 15% PEG 3350	Resolution 2.14 Å R-free 0.224
6BAH Trastuzumab Fab v3 with 5-diphenyl meditope variant Deposited 2017-10-12	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–107（107 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Tris, pH 7.5, 24 mM NaCl, 15% PEG 3350	Resolution 1.90 Å R-free 0.194
6OGE Cryo-EM structure of Her2 extracellular domain-Trastuzumab Fab-Pertuzumab Fab complex Deposited 2019-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–107（107 aa） Chain D 1–107（107 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.36 Å
6OKP B41 SOSIP.664 in complex with the silent-face antibody SF12 and V3-targeting antibody 10-1074 Deposited 2019-04-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain N 1–107（107 aa） Chain P 1–107（107 aa） Chain R 1–107（107 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 33	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；0 blot force, 3 second blot time, 3 uL sample added to freshly glow-discharged grids	Resolution 3.28 Å
7CZY S protein of SARS-CoV-2 in complex bound with P5A-2F11_2B Deposited 2020-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain K 1–107（107 aa） Chain N 1–107（107 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 28	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7CZZ S protein of SARS-CoV-2 in complex bound with P5A-2F11_3B Deposited 2020-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain K 1–107（107 aa） Chain M 1–107（107 aa） Chain N 1–107（107 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 27	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7XQ8 Structure of human B-cell antigen receptor of the IgM isotype Deposited 2022-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain L 1–107（107 aa） Chain R 1–107（107 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8C1C Structure of IgE bound to the ectodomain of FceRIa Deposited 2022-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain L 1–107（107 aa） Chain Y 1–107（107 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8DAO Crystal structure of SARS-CoV-2 spike stem fusion peptide in complex with neutralizing antibody COV44-79 Deposited 2022-06-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 1–107（107 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.1 M Tris, pH 8.5, 0.01 M nickel (II) chloride, and 20% PEG monomethyl ether 2000	Resolution 2.80 Å R-free 0.284
8DAO Crystal structure of SARS-CoV-2 spike stem fusion peptide in complex with neutralizing antibody COV44-79 Deposited 2022-06-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain H 1–107（107 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.1 M Tris, pH 8.5, 0.01 M nickel (II) chloride, and 20% PEG monomethyl ether 2000	Resolution 2.80 Å R-free 0.284

44 other PDB entries and 65 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KAC_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain L； PDBConstruct 2–210； UniProt 135–348

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

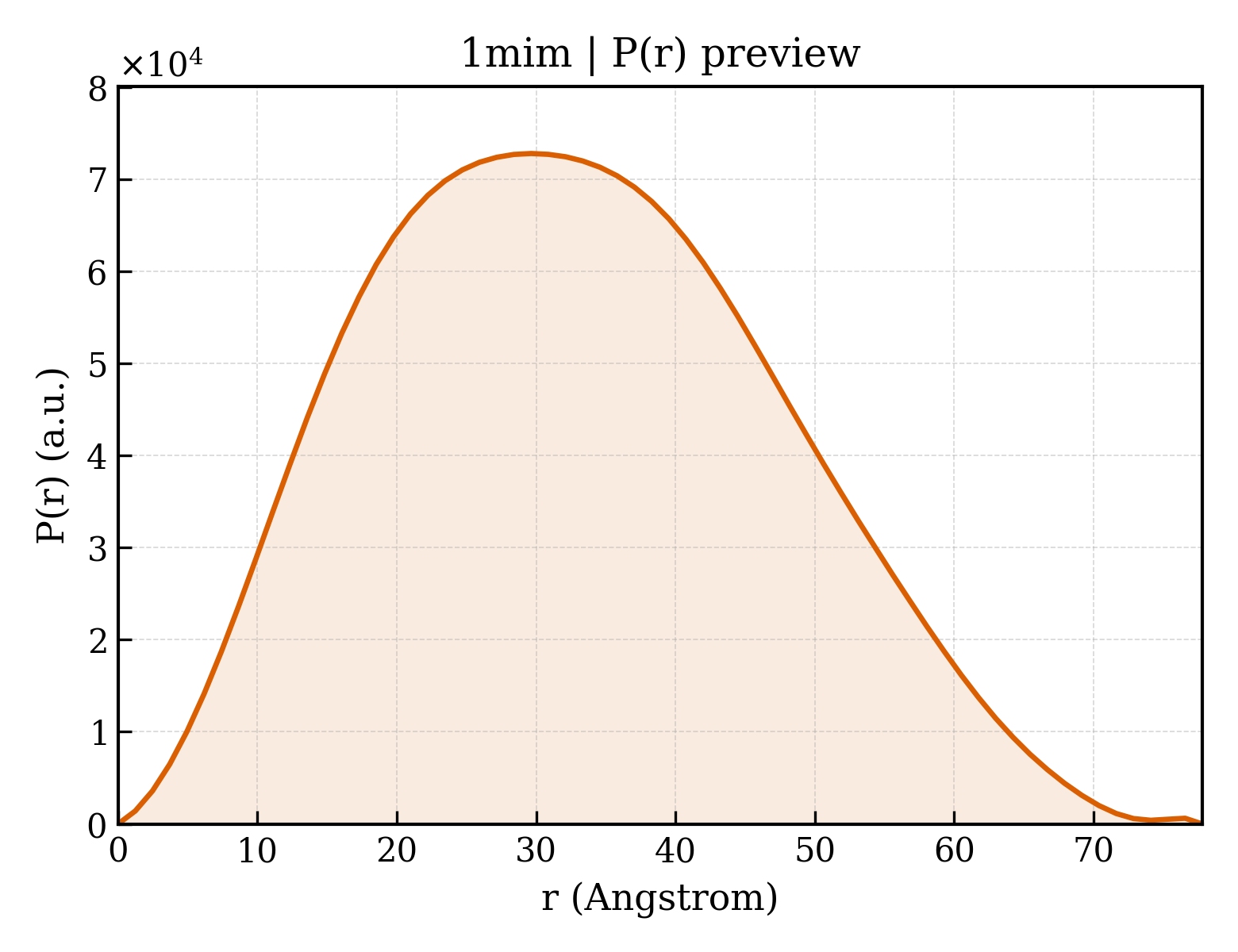

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mim
Deposition date deposition_date	1995-12-04
Structure title title	IGG FAB FRAGMENT (CD25-BINDING)
Keywords keywords	IMMUNOGLOBULIN, C REGION; IMMUNOGLOBULIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.33 Å
Radius of gyration Rg (electron density) rg_electron	24.42 Å
Forward intensity I(0) i0	36721100.00
Molecular weight molecular_weight	45973.0 kDa
Excluded volume excluded_volume	57081 Å³
Envelope volume envelope_volume	70984 Å³
Hydration-shell volume shell_volume	24427 Å³
Envelope diameter envelope_diameter	79.6 Å
Shell Rg shell_rg	31.44 Å
Envelope Rg envelope_rg	23.96 Å
Shape Rg shape_rg	24.41 Å
Total Rg total_rg	25.24 Å
Total atoms total_atoms	3234
Residues n_residues	425
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	77.8 Å
Rg (real space) rg_real	25.29 Å
Rg uncertainty (real space) rg_real_error	0.47 Å
I(0) (real space) i0_real	3.6720e+07
I(0) uncertainty (real space) i0_real_error	5.0340e+05
Rg (reciprocal space) rg_reciprocal	25.30 Å
I(0) (reciprocal space) i0_reciprocal	36720000.0000
Solution quality estimate total_estimate	0.9150
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.6 Å
Skewness Skewness skewness	0.223
Kurtosis Kurtosis kurtosis	-0.580
Angular range angular_range	— – 0.3150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7183000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.976; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.975

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CHIMERIC SDZ CHI621
Molecular weight formula_weight	22882.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	3303

QIVSTQSPAIMSASPGEKVTMTCSASSSRSYMQWYQQKPGTSPKRWIYDTSKLASGVPARFSGSGSGTSYSLTISSMEAEDAATYYCHQRSSYTFGGGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606

Entity 2 Entity 2 polymer

Description description	CHIMERIC SDZ CHI621
Molecular weight formula_weight	23144.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QLQQSGTVLARPGASVKMSCKASGYSFTRYWMHWIKQRPGQGLEWIGAIYPGNSDTSYNQKFEGKAKLTAVTSASTAYMELSSLTHEDSAVYYCSRDYGYYFDFWGQGTTLTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	69

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1mimh1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1mimh2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1miml1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1miml2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

Domain ID domain_id	1mimH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1mimH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1mimL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1mimL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (2)

▶

Unit-cell length a length_a	39.580 Å
Unit-cell length b length_b	59.760 Å
Unit-cell length c length_c	102.090 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.98 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1960
R_work r_work	0.1960
R_free r_free	—

fit	/app/data/saxs_computation/mi/1mim/1mim.fit
pddf	/app/data/pr_computation/mi/1mim/1mim.pr.out
profile	/app/data/saxs_computation/mi/1mim/1mim.dat

IGG FAB FRAGMENT (CD25-BINDING)

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHIMERIC SDZ CHI621

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)
