6oge

Cryo-EM structure of Her2 extracellular domain-Trastuzumab Fab-Pertuzumab Fab complex

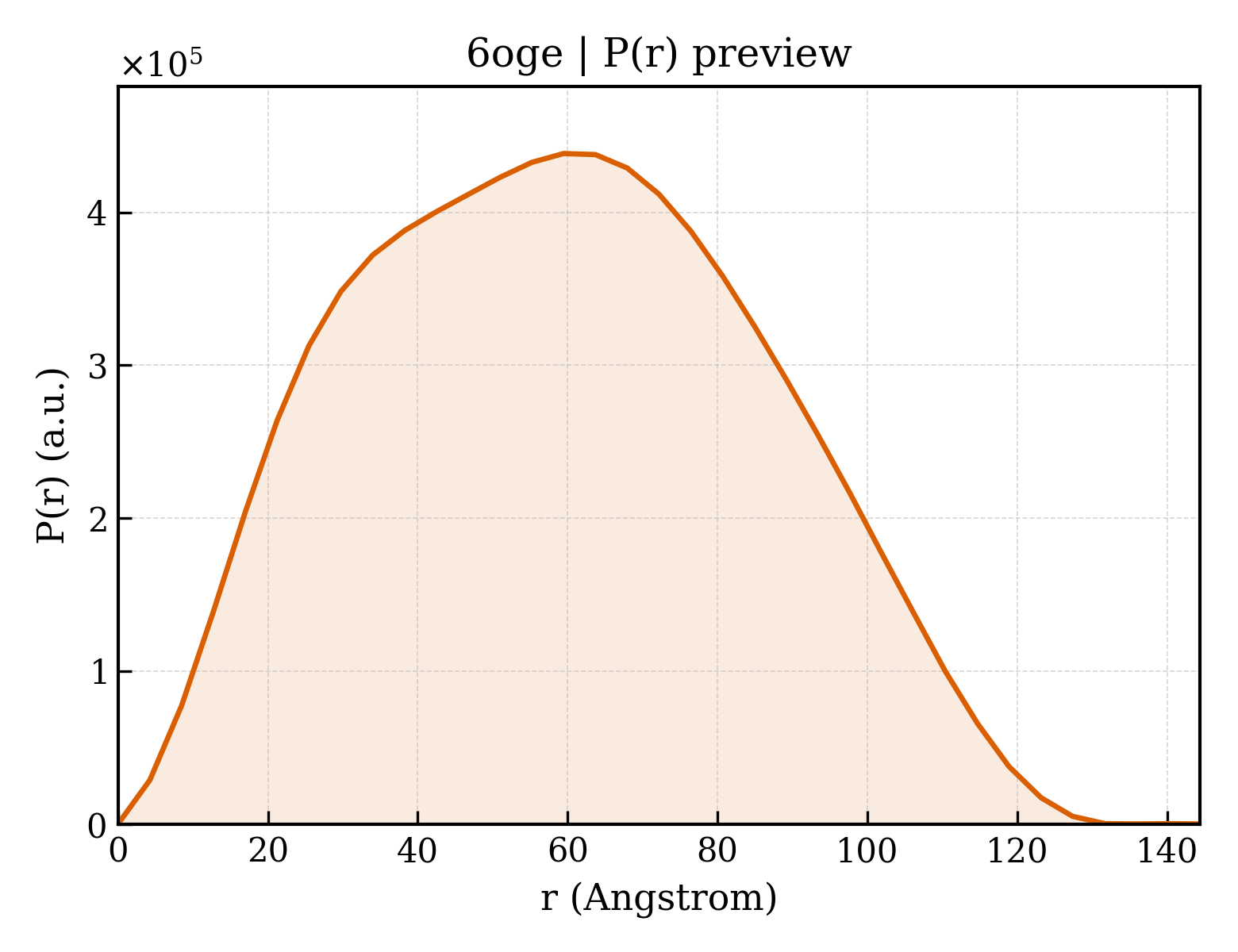

Method: ELECTRON MICROSCOPY Dmax: 144.4 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Receptor tyrosine-protein kinase erbB-2

Homo sapiens

UniProt P04626

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Other combination Heteromer Protein × 5 其他Polymer 1 PDB declaration: pentameric（5） Consistent with protein copy count Chain A； UniProt 23–644 Not recorded Pertuzumab FAB LIGHT CHAIN × 1 （P01834） Pertuzumab FAB HEAVY CHAIN × 1 （P0DOX5） Trastuzumab FAB LIGHT CHAIN × 1 （P01834） Trastuzumab FAB HEAVY CHAIN × 1 （Q6GMX6） ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.36 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6OGE Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1MW4 Solution structure of the human Grb7-SH2 domain in complex with a 10 amino acid peptide pY1139 Deposited 2002-09-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1135–1144（10 aa） Fragment：SH2 domain binding site
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.6；298 K；Ionic strength (raw mmCIF value) 100 mM NaCl；Pressure 1
NMR sample composition 0.7mM Grb7 SH2 U-15N, 13C, 50mM acetate | 90% H2O/10% D2O
Resolution not provided
1N8Z Crystal structure of extracellular domain of human HER2 complexed with Herceptin Fab Deposited 2002-11-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–629（607 aa） Fragment：extracellular domain
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；20-30% PEG 5000 MME, 0.1M MES pH6.5, 0.2M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.52 Å R-free 0.284
1QR1 POOR BINDING OF A HER-2/NEU EPITOPE (GP2) TO HLA-A2.1 IS DUE TO A LACK OF INTERACTIONS IN THE CENTER OF THE PEPTIDE Deposited 1999-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 654–662（9 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；14% PEG 6000, 25 mM MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 22K
Resolution 2.40 Å R-free 0.284
1QR1 POOR BINDING OF A HER-2/NEU EPITOPE (GP2) TO HLA-A2.1 IS DUE TO A LACK OF INTERACTIONS IN THE CENTER OF THE PEPTIDE Deposited 1999-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 654–662（9 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；14% PEG 6000, 25 mM MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 22K
Resolution 2.40 Å R-free 0.284
1S78 Insights into ErbB signaling from the structure of the ErbB2-pertuzumab complex Deposited 2004-01-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–646（624 aa） Fragment：extracellular domain (residues 23-646)
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG 3350, ammonium formate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.25 Å R-free 0.268
1S78 Insights into ErbB signaling from the structure of the ErbB2-pertuzumab complex Deposited 2004-01-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 23–646（624 aa） Fragment：extracellular domain (residues 23-646)
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG 3350, ammonium formate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.25 Å R-free 0.268
2A91 Crystal structure of ErbB2 domains 1-3 Deposited 2005-07-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–530（509 aa） Fragment：residues 1-510 + FLAG peptide
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；PEG 1500, glycerol, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.50 Å R-free 0.264
2JWA ErbB2 transmembrane segment dimer spatial structure Deposited 2007-10-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 641–684（44 aa） Fragment：UNP residues 641-684
Chain B 641–684（44 aa） Fragment：UNP residues 641-684
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 5；313 K；Pressure ambient
NMR sample composition 2.0mM [U-15N] ErbB2, 64mM [U-2H] DHPC, 16mM [U-2H] DMPC, 95% H2O/5% D2O | 95% H2O/5% D2O
NMR sample composition 2.0mM [U-13C; U-15N] ErbB2, 64mM [U-2H] DHPC, 16mM [U-2H] DMPC, 95% H2O/5% D2O | 95% H2O/5% D2O
NMR sample composition 1.0mM [U-13C; U-15N] ErbB2, 64mM [U-2H] DHPC, 16mM [U-2H] DMPC, 1.0mM ErbB2, 95% H2O/5% D2O | 95% H2O/5% D2O
Resolution not provided
2KS1 Heterodimeric association of Transmembrane domains of ErbB1 and ErbB2 receptors Enabling Kinase Activation Deposited 2009-12-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 641–684（44 aa） Fragment：ErbB2TM domain, UNP residues 641-684
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 4.5；313 K；Ionic strength (raw mmCIF value) 10；Pressure ambient
NMR sample composition 1 mM [U-100% 15N] ErbB1TM-1, 1 mM [U-100% 15N] ErbB2TM-2, 12 mM DMPC-3, 48 mM DHPC-4, 95% H2O/5% D2O | 95% H2O/5% D2O
NMR sample composition 1 mM [U-100% 13C; U-100% 15N] ErbB1TM-5, 1 mM ErbB2TM-6, 12 mM [U-2H] DMPC-7, 48 mM [U-2H] DHPC-8, 100% D2O | 100% D2O
NMR sample composition 1 mM ErbB1TM-9, 1 mM [U-100% 13C; U-100% 15N] ErbB2TM-10, 12 mM [U-2H] DMPC-11, 48 mM [U-2H] DHPC-12, 95% H2O/5% D2O | 95% H2O/5% D2O
NMR sample composition 1 mM [U-100% 13C; U-100% 15N] ErbB1TM-13, 1 mM ErbB2TM-14, 12 mM [U-2H] DMPC-15, 48 mM [U-2H] DHPC-16, 95% H2O/5% D2O | 95% H2O/5% D2O
Resolution not provided
2L4K Water refined solution structure of the human Grb7-SH2 domain in complex with the 10 amino acid peptide pY1139 Deposited 2010-10-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1135–1144（10 aa） Fragment：unp residues 1135-1144
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.6；298 K；Pressure ambient
NMR sample composition 0.6-0.8 mM [U-100% 13C; U-100% 15N] Grb7-SH2 domain-1, 0.6-0.8 mM [U-100% 13C; U-100% 15N] pY1139 peptide-2, 52.2 mM acetic acid-3, 100 mM sodium chloride-4, 5 mM DTT-5, 1 mM EDTA-6, 0.9 mM sodium azide-7, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2N2A Spatial structure of HER2/ErbB2 dimeric transmembrane domain in the presence of cytoplasmic juxtamembrane domains Deposited 2015-05-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 644–700（57 aa） Fragment：transmembrane domain (UNP residues 644-700)
Chain B 644–700（57 aa） Fragment：transmembrane domain (UNP residues 644-700)
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 3.5；318 K；Ionic strength (raw mmCIF value) 0.05；Pressure ambient
NMR sample composition 4 mM [U-100% 2H] DPC, 1 mM [U-100% 13C; U-100% 15N] labeled protein, 1 mM unlabeled protein, 50 mM sodium acetate, 0.1 % sodium azide, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 4 mM [U-100% 2H] DPC, 1 mM [U-100% 13C; U-100% 15N] labeled protein, 50 mM sodium acetate, 0.1 % sodium azide, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 4 mM [U-100% 2H] DPC, 1 mM [U-100% 13C; U-100% 15N] labeled protein, 50 mM sodium acetate, 0.1 % sodium azide, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
3BE1 Dual specific bH1 Fab in complex with the extracellular domain of HER2/ErbB-2 Deposited 2007-11-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–646（624 aa） Fragment：sequence database residues 23-646
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；Crystals of the Fab/HER2 complex were obtained by mixing protein solution (11 mg/ml protein, 25 mM Tris-HCl pH 8 and 150 mM sodium chloride) with crystallization buffer containing 25% w/v PEG2000, 0.1M MES pH 6.5. Before data collection the crystals were flash frozen in liquid nitrogen with 20% Ethylene Glycol as cryo-protectant, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.90 Å R-free 0.277
3H3B Crystal structure of the single-chain Fv (scFv) fragment of an anti-ErbB2 antibody chA21 in complex with residues 1-192 of ErbB2 extracellular domain Deposited 2009-04-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–214（192 aa） Fragment：extracellular domain, UNP residues 23-214
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；15% polyethylene glycol 4000, 100mM 3-(1-pyridino)-1-propane sulfonate, 100mM Na cacodylate pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.45 Å R-free 0.255
3H3B Crystal structure of the single-chain Fv (scFv) fragment of an anti-ErbB2 antibody chA21 in complex with residues 1-192 of ErbB2 extracellular domain Deposited 2009-04-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–214（192 aa） Fragment：extracellular domain, UNP residues 23-214
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；15% polyethylene glycol 4000, 100mM 3-(1-pyridino)-1-propane sulfonate, 100mM Na cacodylate pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.45 Å R-free 0.255
3MZW HER2 extracelluar region with affinity matured 3-helix affibody ZHER2:342 Deposited 2010-05-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–646（624 aa） Fragment：Extracellular domain residues 23-646
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；279 K；0.05M sodium chloride, 7.5% PEG3350, 0.1M ammonium acetate, VAPOR DIFFUSION, HANGING DROP, temperature 279K
Resolution 2.90 Å R-free 0.278
3N85 Crystallographic trimer of HER2 extracellular regions in complex with tryptophan-rich antibody fragment Deposited 2010-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 23–646（624 aa） Fragment：UNP residues 23-646
Not recorded CL CHLORIDE ION × 3 SO4 SULFATE ION × 48 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；NaCl, Na/K-phosphate, Li-sulfate, pH 7.3, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.20 Å R-free 0.230
3PP0 Crystal Structure of the Kinase domain of Human HER2 (erbB2). Deposited 2010-11-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 706–1009（304 aa） Fragment：kinase domain, residues 706-1009
Mutation：M706A, Q711L, M712L 03Q 2-{2-[4-({5-chloro-6-[3-(trifluoromethyl)phenoxy]pyridin-3-yl}amino)-5H-pyrrolo[3,2-d]pyrimidin-5-yl]ethoxy}ethanol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；20% PEG 3550, 200mM di-Ammonium Tartrate, 100 mM PIPES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298.0K
Resolution 2.25 Å R-free 0.260
3PP0 Crystal Structure of the Kinase domain of Human HER2 (erbB2). Deposited 2010-11-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 706–1009（304 aa） Fragment：kinase domain, residues 706-1009
Mutation：M706A, Q711L, M712L 03Q 2-{2-[4-({5-chloro-6-[3-(trifluoromethyl)phenoxy]pyridin-3-yl}amino)-5H-pyrrolo[3,2-d]pyrimidin-5-yl]ethoxy}ethanol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；20% PEG 3550, 200mM di-Ammonium Tartrate, 100 mM PIPES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298.0K
Resolution 2.25 Å R-free 0.260
3RCD HER2 Kinase Domain Complexed with TAK-285 Deposited 2011-03-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 713–1028（316 aa） Fragment：UNP residues 713-1028
Not recorded 03P N-{2-[4-({3-chloro-4-[3-(trifluoromethyl)phenoxy]phenyl}amino)-5H-pyrrolo[3,2-d]pyrimidin-5-yl]ethyl}-3-hydroxy-3-methylbutanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；20% PEG 3550, 200MM DI-AMMONIUM TARTRATE, 100 MM PIPES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.21 Å R-free 0.294
3RCD HER2 Kinase Domain Complexed with TAK-285 Deposited 2011-03-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 713–1028（316 aa） Fragment：UNP residues 713-1028
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；20% PEG 3550, 200MM DI-AMMONIUM TARTRATE, 100 MM PIPES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.21 Å R-free 0.294
3RCD HER2 Kinase Domain Complexed with TAK-285 Deposited 2011-03-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 713–1028（316 aa） Fragment：UNP residues 713-1028
Not recorded 03P N-{2-[4-({3-chloro-4-[3-(trifluoromethyl)phenoxy]phenyl}amino)-5H-pyrrolo[3,2-d]pyrimidin-5-yl]ethyl}-3-hydroxy-3-methylbutanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；20% PEG 3550, 200MM DI-AMMONIUM TARTRATE, 100 MM PIPES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.21 Å R-free 0.294
3RCD HER2 Kinase Domain Complexed with TAK-285 Deposited 2011-03-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 713–1028（316 aa） Fragment：UNP residues 713-1028
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；20% PEG 3550, 200MM DI-AMMONIUM TARTRATE, 100 MM PIPES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.21 Å R-free 0.294
3RCD HER2 Kinase Domain Complexed with TAK-285 Deposited 2011-03-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 713–1028（316 aa） Fragment：UNP residues 713-1028
Chain B 713–1028（316 aa） Fragment：UNP residues 713-1028
Not recorded 03P N-{2-[4-({3-chloro-4-[3-(trifluoromethyl)phenoxy]phenyl}amino)-5H-pyrrolo[3,2-d]pyrimidin-5-yl]ethyl}-3-hydroxy-3-methylbutanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；20% PEG 3550, 200MM DI-AMMONIUM TARTRATE, 100 MM PIPES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.21 Å R-free 0.294
3RCD HER2 Kinase Domain Complexed with TAK-285 Deposited 2011-03-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 713–1028（316 aa） Fragment：UNP residues 713-1028
Chain D 713–1028（316 aa） Fragment：UNP residues 713-1028
Not recorded 03P N-{2-[4-({3-chloro-4-[3-(trifluoromethyl)phenoxy]phenyl}amino)-5H-pyrrolo[3,2-d]pyrimidin-5-yl]ethyl}-3-hydroxy-3-methylbutanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；20% PEG 3550, 200MM DI-AMMONIUM TARTRATE, 100 MM PIPES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 3.21 Å R-free 0.294
3WLW Molecular Architecture of the ErbB2 Extracellular Domain Homodimer Deposited 2013-11-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–586（564 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；291 K；0.1M Ammonium acetate, 0.1M BIS-TRIS pH 5.7, 13% w/v Polyethylene glycol 10000, VAPOR DIFFUSION, HANGING DROP, temperature 291.0K
Resolution 3.09 Å R-free 0.269
3WLW Molecular Architecture of the ErbB2 Extracellular Domain Homodimer Deposited 2013-11-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 23–586（564 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；291 K；0.1M Ammonium acetate, 0.1M BIS-TRIS pH 5.7, 13% w/v Polyethylene glycol 10000, VAPOR DIFFUSION, HANGING DROP, temperature 291.0K
Resolution 3.09 Å R-free 0.269
3WSQ Structure of HER2 with an Fab Deposited 2014-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–586（564 aa） Fragment：UNP residues 23-586
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；1.1M sodium malonate pH 7.0, 0.1M HEPES 7.0, 0.5% v/v Jeffamine ED-2001, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 3.50 Å R-free 0.258
4HRL Structural Basis for Eliciting a Cytotoxic Effect in HER2-Overexpressing Cancer Cells via Binding to the Extracellular Domain of HER2 Deposited 2012-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–219（196 aa） Fragment：N-terminal extracellular domain I, UNP RESIDUES 24-219
Mutation：N46D, N102D, N165D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；293 K；0.2M ammonium acetate, 0.1M sodium citrate, 30% PEG 4000, pH 5.6, vapor diffusion, temperature 293K
Resolution 2.55 Å R-free 0.253
4HRM Structural Basis for Eliciting a Cytotoxic Effect in HER2-Overexpressing Cancer Cells via Binding to the Extracellular Domain of HER2 Deposited 2012-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 24–219（196 aa） Fragment：N-terminal extracellular domain I, UNP RESIDUES 24-219
Chain C 24–219（196 aa） Fragment：N-terminal extracellular domain I, UNP RESIDUES 24-219
Mutation：N46D, N102D, N165D Mutation：N46D, N102D, N165D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 4.2；293 K；0.2 M sodium chloride, 0.1 M phosphate citrate, 20% PEG 8000, pH 4.2, vapor diffusion, temperature 293K
Resolution 3.20 Å R-free 0.339
4HRN Structural Basis for Eliciting a Cytotoxic Effect in HER2-Overexpressing Cancer Cells via Binding to the Extracellular Domain of HER2 Deposited 2012-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 529–625（97 aa） Fragment：Domain IV, UNP RESIDUES 529-625
Chain D 529–625（97 aa） Fragment：Domain IV, UNP RESIDUES 529-625
Mutation：N8D, N49D Mutation：N8D, N49D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 4；293 K；0.05M succinic acid, 29% ammonium sulfate, pH 4.0, vapor diffusion, temperature 293K
Resolution 2.65 Å R-free 0.249
4HRN Structural Basis for Eliciting a Cytotoxic Effect in HER2-Overexpressing Cancer Cells via Binding to the Extracellular Domain of HER2 Deposited 2012-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 529–625（97 aa） Fragment：Domain IV, UNP RESIDUES 529-625
Mutation：N8D, N49D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 4；293 K；0.05M succinic acid, 29% ammonium sulfate, pH 4.0, vapor diffusion, temperature 293K
Resolution 2.65 Å R-free 0.249
4HRN Structural Basis for Eliciting a Cytotoxic Effect in HER2-Overexpressing Cancer Cells via Binding to the Extracellular Domain of HER2 Deposited 2012-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 529–625（97 aa） Fragment：Domain IV, UNP RESIDUES 529-625
Mutation：N8D, N49D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 4；293 K；0.05M succinic acid, 29% ammonium sulfate, pH 4.0, vapor diffusion, temperature 293K
Resolution 2.65 Å R-free 0.249
4NND Structural basis of PTPN18 fingerprint on distinct HER2 tyrosine phosphorylation sites Deposited 2013-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 1109–1114（6 aa） Fragment：phosphorylated peptide (UNP residues 1109-1114)
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；293 K；0.1 M HEPES, 25% PEG3350, 6% Jeffamine M-600, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.291
4NND Structural basis of PTPN18 fingerprint on distinct HER2 tyrosine phosphorylation sites Deposited 2013-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1109–1114（6 aa） Fragment：phosphorylated peptide (UNP residues 1109-1114)
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；293 K；0.1 M HEPES, 25% PEG3350, 6% Jeffamine M-600, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.291
4NND Structural basis of PTPN18 fingerprint on distinct HER2 tyrosine phosphorylation sites Deposited 2013-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1109–1114（6 aa） Fragment：phosphorylated peptide (UNP residues 1109-1114)
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；293 K；0.1 M HEPES, 25% PEG3350, 6% Jeffamine M-600, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.291
4NND Structural basis of PTPN18 fingerprint on distinct HER2 tyrosine phosphorylation sites Deposited 2013-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 1109–1114（6 aa） Fragment：phosphorylated peptide (UNP residues 1109-1114)
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；293 K；0.1 M HEPES, 25% PEG3350, 6% Jeffamine M-600, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.291
5K33 Crystal structure of extracellular domain of HER2 in complex with Fcab STAB19 Deposited 2016-05-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 23–629（607 aa）
Not recorded GOL GLYCEROL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295 K；0.05 M MES, 10% w/v PEG3350
Resolution 3.30 Å R-free 0.271
5KWG Crystal structure of extracellular domain of HER2 in complex with Fcab H10-03-6 Deposited 2016-07-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 23–653（631 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295 K；50 mM Citric acid, 18% (w/v) PEG 3350
Resolution 4.30 Å R-free 0.369
5MY6 Crystal structure of a HER2-Nb complex Deposited 2017-01-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–645（622 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.25；293.15 K；100 mM HEPES pH 7.25, 10% 2-propanol, 22% PEG 4000
Resolution 2.25 Å R-free 0.220
5O4G HER2 in complex with Fab MF3958 Deposited 2017-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–628（606 aa） Fragment：UNP residues 23-628
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；0.1 M MES pH 6.0, 15% PEG 6000
Resolution 3.00 Å R-free 0.271
5OB4 NMR spatial structure of HER2 TM domain dimer in DPC micelles. Deposited 2017-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 31–74（44 aa） Fragment：UNP residues 31-74
Chain B 31–74（44 aa） Fragment：UNP residues 31-74
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6；313 K；Ionic strength (raw mmCIF value) 30；Pressure AMBIENT
NMR sample composition 2.5 mM [U-100% 13C; U-100% 15N] HER2TM, 2.5 mM HER2TM, 200 mM [U-99% 2H] DPC, 20 mM potassium phosphate, 0.01 % sodium azide, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
6ATT 39S Fab bound to HER2 ecd Deposited 2017-08-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–652（630 aa） Fragment：UNP residues 23-652
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；295 K；PEG8000, ethylene glycol, MES buffer
Resolution 3.77 Å R-free 0.289
6BGT Structure of Trastuzumab Fab mutant in complex with Her2 extracellular domain Deposited 2017-10-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–652（652 aa） Fragment：UNP residues 1-652
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；100 mM MES, pH 6.5, 18% PEG3350, 10% glycerol
Resolution 2.70 Å R-free 0.247
6J71 HuA21-scFv in complex with the extracellular domain(ECD) of HER2 Deposited 2019-01-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–639（618 aa）
Not recorded BMA beta-D-mannopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；0.1 M MES monohydrate pH 6.5, 12% (w/v) PEG 20,000
Resolution 2.92 Å R-free 0.267
6LBX Crystal structure of HER2 Domain IV and Rb-H2 Deposited 2019-11-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 531–626（96 aa） Fragment：Domain IV
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；290 K；0.1M Sodium Citrate/Citric Acid (pH 5.5), 20% PEG 3000
Resolution 2.03 Å R-free 0.228
7JXH HER2 in complex with JBJ-08-178-01 Deposited 2020-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 703–1024（322 aa） Fragment：kinase domain
Not recorded VOY (2E)-N-[3-cyano-7-ethoxy-4-({3-methyl-4-[([1,2,4]triazolo[1,5-a]pyridin-7-yl)oxy]phenyl}amino)quinolin-6-yl]-4-(dimethylamino)but-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M PIPES pH 6.5, 0.3 M ammonium tartrate, 25% (w/v) PEG 3350
Resolution 3.27 Å R-free 0.285
7JXH HER2 in complex with JBJ-08-178-01 Deposited 2020-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 703–1024（322 aa） Fragment：kinase domain
Not recorded VOY (2E)-N-[3-cyano-7-ethoxy-4-({3-methyl-4-[([1,2,4]triazolo[1,5-a]pyridin-7-yl)oxy]phenyl}amino)quinolin-6-yl]-4-(dimethylamino)but-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M PIPES pH 6.5, 0.3 M ammonium tartrate, 25% (w/v) PEG 3350
Resolution 3.27 Å R-free 0.285
7JXH HER2 in complex with JBJ-08-178-01 Deposited 2020-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 703–1024（322 aa） Fragment：kinase domain
Not recorded VOY (2E)-N-[3-cyano-7-ethoxy-4-({3-methyl-4-[([1,2,4]triazolo[1,5-a]pyridin-7-yl)oxy]phenyl}amino)quinolin-6-yl]-4-(dimethylamino)but-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M PIPES pH 6.5, 0.3 M ammonium tartrate, 25% (w/v) PEG 3350
Resolution 3.27 Å R-free 0.285
7JXH HER2 in complex with JBJ-08-178-01 Deposited 2020-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 703–1024（322 aa） Fragment：kinase domain
Not recorded VOY (2E)-N-[3-cyano-7-ethoxy-4-({3-methyl-4-[([1,2,4]triazolo[1,5-a]pyridin-7-yl)oxy]phenyl}amino)quinolin-6-yl]-4-(dimethylamino)but-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M PIPES pH 6.5, 0.3 M ammonium tartrate, 25% (w/v) PEG 3350
Resolution 3.27 Å R-free 0.285
7JXH HER2 in complex with JBJ-08-178-01 Deposited 2020-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 703–1024（322 aa） Fragment：kinase domain
Not recorded VOY (2E)-N-[3-cyano-7-ethoxy-4-({3-methyl-4-[([1,2,4]triazolo[1,5-a]pyridin-7-yl)oxy]phenyl}amino)quinolin-6-yl]-4-(dimethylamino)but-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M PIPES pH 6.5, 0.3 M ammonium tartrate, 25% (w/v) PEG 3350
Resolution 3.27 Å R-free 0.285
7JXH HER2 in complex with JBJ-08-178-01 Deposited 2020-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain F 703–1024（322 aa） Fragment：kinase domain
Not recorded VOY (2E)-N-[3-cyano-7-ethoxy-4-({3-methyl-4-[([1,2,4]triazolo[1,5-a]pyridin-7-yl)oxy]phenyl}amino)quinolin-6-yl]-4-(dimethylamino)but-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M PIPES pH 6.5, 0.3 M ammonium tartrate, 25% (w/v) PEG 3350
Resolution 3.27 Å R-free 0.285
7JXH HER2 in complex with JBJ-08-178-01 Deposited 2020-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain G 703–1024（322 aa） Fragment：kinase domain
Not recorded VOY (2E)-N-[3-cyano-7-ethoxy-4-({3-methyl-4-[([1,2,4]triazolo[1,5-a]pyridin-7-yl)oxy]phenyl}amino)quinolin-6-yl]-4-(dimethylamino)but-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M PIPES pH 6.5, 0.3 M ammonium tartrate, 25% (w/v) PEG 3350
Resolution 3.27 Å R-free 0.285
7JXH HER2 in complex with JBJ-08-178-01 Deposited 2020-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain H 703–1024（322 aa） Fragment：kinase domain
Not recorded VOY (2E)-N-[3-cyano-7-ethoxy-4-({3-methyl-4-[([1,2,4]triazolo[1,5-a]pyridin-7-yl)oxy]phenyl}amino)quinolin-6-yl]-4-(dimethylamino)but-2-enamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M PIPES pH 6.5, 0.3 M ammonium tartrate, 25% (w/v) PEG 3350
Resolution 3.27 Å R-free 0.285
7MN5 Structure of the HER2/HER3/NRG1b Heterodimer Extracellular Domain Deposited 2021-04-30 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–1029（1029 aa） Fragment：Extracellular Domain
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.93 Å
7MN6 Structure of the HER2 S310F/HER3/NRG1b Heterodimer Extracellular Domain Deposited 2021-04-30 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–1029（1029 aa） Fragment：Extracellular Domain
Mutation：S310F NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.09 Å
7MN8 Structure of the HER2/HER3/NRG1b Heterodimer Extracellular Domain bound to Trastuzumab Fab Deposited 2021-04-30 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–1029（1029 aa）
Mutation：S310F NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.45 Å
7PCD HER2 IN COMPLEX WITH A COVALENT INHIBITOR Deposited 2021-08-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 703–1029（327 aa） Fragment：NONE
Not recorded 70I 1-[4-[4-[[3,5-bis(chloranyl)-4-([1,2,4]triazolo[1,5-a]pyridin-7-yloxy)phenyl]amino]pyrimido[5,4-d]pyrimidin-6-yl]piperazin-1-yl]-4-(3-fluoranylazetidin-1-yl)butan-1-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.75；293 K；18% PEG3350, 50mM ammonium tartrate, 150mM sodium tartrate and 100mM BIS-TRIS
Resolution 1.77 Å R-free 0.241
7QVK NM-02 in complex with HER2-ECD Deposited 2022-01-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain AAA 23–646（624 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；13% PEG6000 (w/v), 0.1 M MES pH 6.5, 7% 2-methyl-2,4-pentanediol
Resolution 3.10 Å R-free 0.330
8FFJ Structure of Zanidatamab bound to HER2 Deposited 2022-12-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain X 23–644（622 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.50 Å
8HGO The EGF-bound EGFR/HER2 ectodomain complex Deposited 2022-11-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–693（693 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；25mM Hepes, 150mM NaCl, 0.02%DDM-0.002%CHS
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
8HGP The EREG-bound EGFR/HER2 ectodomain complex Deposited 2022-11-15 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–693（693 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.53 Å
8JYR Crystal structure of anti-HER2 antibody H2Mab-119 in complex with HER2 domain I Deposited 2023-07-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–216（194 aa） Fragment：domain I
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Sodium citrate pH5.5, 20% w/v PEG3000
Resolution 1.69 Å R-free 0.209
8PWH Atomic structure and conformational variability of the HER2-Trastuzumab-Pertuzumab complex Deposited 2023-07-20 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 23–646（624 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8Q6J Atomic structure and conformational variability of the HER2-Trastuzumab-Pertuzumab complex Deposited 2023-08-11 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 23–646（624 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8U4K Structure of the HER2/HER4/BTC Heterodimer Extracellular Domain Deposited 2023-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 24–629（606 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.27 Å
8U4L Structure of the HER2/HER4/NRG1b Heterodimer Extracellular Domain Deposited 2023-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 24–629（606 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
8U8X crystal structure of the receptor tyrosine kinase Human HER2 (ERBB2) YVMA mutant kinase domain in complex with inhibitor compound 27 Deposited 2023-09-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 694–1029（336 aa） Fragment：kinase domain
Mutation：YVMA inserted after residue 84 W9N 1-{(1R,3r,5S)-3-[(3M)-4-methyl-3-{3-methyl-4-[(1-methyl-1H-benzimidazol-5-yl)oxy]phenyl}-1H-pyrazolo[3,4-d]pyrimidin-1-yl]-8-azabicyclo[3.2.1]octan-8-yl}propan-1-one × 1 PEG DI(HYDROXYETHYL)ETHER × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；8% PEG 3350, 0.1M Tris pH8.5, 0.5M NaCl
Resolution 1.69 Å R-free 0.203
8VB5 Crystal structure of kinase domain of HER2 Exon 20 insertion mutant in complex with tucatinib Deposited 2023-12-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 703–1029（327 aa）
Not recorded A1AAC Tucatinib × 1 EDO 1,2-ETHANEDIOL × 6 CL CHLORIDE ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M Bicine pH 8.5, 11% w/v PEG 1500, 0.5mM Tucatinib
Resolution 1.48 Å R-free 0.187
8VQD HER2 S310F in complex with TL1 Fab Deposited 2024-01-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–652（630 aa）
Mutation：S310F No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM Tris, 150mM NaCl, 0.7mM fluorinated octyl maltoside
cryo-EM vitrification conditions Cryogen ETHANE；Vitrification carried out with blot force 5, blot time 4 s
Resolution 2.61 Å
8VQE Homodimeric structure of HER2 S310F extracellular region Deposited 2024-01-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 23–652（630 aa）
Chain B 23–652（630 aa）
Mutation：S310F Mutation：S310F No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM Tris, 150mM NaCl, 0.7mM Fluorinated octyl maltoside
cryo-EM vitrification conditions Cryogen ETHANE；Vitrified
Resolution 2.67 Å
9IUT Crystal structure of cancer-specific anti-HER2 antibody H2Mab-250 in complex with epitope peptide Deposited 2024-07-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 611–618（8 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.2 M MgCl2, 0.1 M Bis-Tris pH 5.7, 25% w/v PEG 3350
Resolution 2.09 Å R-free 0.236
9IUT Crystal structure of cancer-specific anti-HER2 antibody H2Mab-250 in complex with epitope peptide Deposited 2024-07-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 611–618（8 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.2 M MgCl2, 0.1 M Bis-Tris pH 5.7, 25% w/v PEG 3350
Resolution 2.09 Å R-free 0.236
9L1S Structure of the HER2 (S310F) - pertuzumab (T30S/D31A) complex Deposited 2024-12-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–652（630 aa）
Mutation：S310F No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9MTE CryoEM structure of extracellular domain of human HER2 complexed with two nano-bodies 27A05 and 47D05 Deposited 2025-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–652（630 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM Hepes pH7.5, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE；BF4 Bt4
Resolution 2.66 Å
9MTX CryoEM structure of extracellular domain of human HER2 complexed with nano-bodies 29E09 Deposited 2025-01-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–652（630 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM Hepes pH7.5, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.06 Å
9QBF HER2/ErbB2 extracellular domain (ECD) in compact conformation in complex with trastuzumab (TZB) antibody Deposited 2025-03-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–1029（1007 aa）
Mutation：Del1-22,Del1030-1255,C789S,C805S,C965S. No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9QBG HER2/ErbB2 extracellular domain (ECD) in extended conformation in complex with trastuzumab (TZB) antibody Deposited 2025-03-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–1029（1007 aa）
Mutation：Del1-22,Del1030-1255,C789S,C805S,C965S. No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9QBH HER2/ErbB2 extracellular domain (ECD) from a near full-length construct solubilized in amphipols. Deposited 2025-03-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–1029（1007 aa）
Mutation：Del1-22,Del1030-1255,C789S,C805S,C965S. No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.77 Å
9T3R Structure of human HER2 in complex with EPS232 Fab Deposited 2025-10-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–652（630 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9T3S Structure of human HER2 in complex with EPS226 Fab Deposited 2025-10-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–652（630 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å

57 other PDB entries and 80 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ERBB2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–622； UniProt 23–644

Pertuzumab FAB LIGHT CHAIN

Homo sapiens

UniProt P01834

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Other combination Heteromer Protein × 5 其他Polymer 1 PDB declaration: pentameric（5） Consistent with protein copy count Chain B； UniProt 1–107 Chain D； UniProt 1–107 Not recorded Receptor tyrosine-protein kinase erbB-2 × 1 （P04626） Pertuzumab FAB HEAVY CHAIN × 1 （P0DOX5） Trastuzumab FAB HEAVY CHAIN × 1 （Q6GMX6） ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.36 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6OGE Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1A4J DIELS ALDER CATALYTIC ANTIBODY GERMLINE PRECURSOR Deposited 1998-01-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–104（104 aa） Fragment：FAB
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；19% PEG 8K, 20% GLYCEROL, 200MM MG(CH3COO)2, 10MM CDS04 100MM BISTRIS PH 6.0
Resolution 2.10 Å R-free 0.292
1A4J DIELS ALDER CATALYTIC ANTIBODY GERMLINE PRECURSOR Deposited 1998-01-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa） Fragment：FAB
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；19% PEG 8K, 20% GLYCEROL, 200MM MG(CH3COO)2, 10MM CDS04 100MM BISTRIS PH 6.0
Resolution 2.10 Å R-free 0.292
1A4K DIELS ALDER CATALYTIC ANTIBODY WITH TRANSITION STATE ANALOGUE Deposited 1998-01-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–104（104 aa） Fragment：FAB
Not recorded CD CADMIUM ION × 2 FRA [4-(4-ACETYLAMINO-PHENYL)-3,5-DIOXO-4-AZA-TRICYCLO[5.2.2.0 2,6]UNDEC-1-YLCARBAMOYLOXY]-ACETIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；17% PEG 8K, 200MM (NH4)2SO4, 10MM CDS0 100MM TRIS PH 8.0
Resolution 2.40 Å R-free 0.291
1A4K DIELS ALDER CATALYTIC ANTIBODY WITH TRANSITION STATE ANALOGUE Deposited 1998-01-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa） Fragment：FAB
Not recorded CD CADMIUM ION × 2 FRA [4-(4-ACETYLAMINO-PHENYL)-3,5-DIOXO-4-AZA-TRICYCLO[5.2.2.0 2,6]UNDEC-1-YLCARBAMOYLOXY]-ACETIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；17% PEG 8K, 200MM (NH4)2SO4, 10MM CDS0 100MM TRIS PH 8.0
Resolution 2.40 Å R-free 0.291
1D5B UNLIGANDED MATURE OXY-COPE CATALYTIC ANTIBODY Deposited 1999-10-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa） Fragment：chimeric fab fragment (UNP Q7TS98 reisues 23-129, P01834 residues 1-104)
Chain L 1–104（104 aa） Fragment：chimeric fab fragment (UNP Q7TS98 reisues 23-129, P01834 residues 1-104)
Not recorded CD CADMIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；25%PEG 1000, 100mM sodium acetate, 300mM CdCl2, 100mM ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.285
1D5B UNLIGANDED MATURE OXY-COPE CATALYTIC ANTIBODY Deposited 1999-10-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–104（104 aa） Fragment：chimeric fab fragment (UNP Q7TS98 reisues 23-129, P01834 residues 1-104)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；25%PEG 1000, 100mM sodium acetate, 300mM CdCl2, 100mM ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.285
1D5B UNLIGANDED MATURE OXY-COPE CATALYTIC ANTIBODY Deposited 1999-10-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–104（104 aa） Fragment：chimeric fab fragment (UNP Q7TS98 reisues 23-129, P01834 residues 1-104)
Not recorded CD CADMIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；25%PEG 1000, 100mM sodium acetate, 300mM CdCl2, 100mM ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.285
1D5I UNLIGANDED GERMLINE PRECURSOR OF AN OXY-COPE CATALYTIC ANTIBODY Deposited 1999-10-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–104（104 aa） Fragment：chimeric fab fragment (UNP Q7TS98 reisues 23-129, P01834 residues 1-104)
Not recorded CD CADMIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；75mM Hepes pH 7.0 9% PEG 4000 150 mM Ammonium Sulfate 20% 1,4 butanediol 100 mM Cadmium Chloride, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.00 Å R-free 0.263
1D6V CONFORMATION EFFECTS IN BIOLOGICAL CATALYSIS INTRODUCED BY OXY-COPE ANTIBODY MATURATION Deposited 1999-10-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–104（104 aa） Fragment：chimeric fab fragment (UNP Q7TS98 reisues 23-129, P01834 residues 1-104)
Not recorded CD CADMIUM ION × 4 HOP (1S,2S,5S)2-(4-GLUTARIDYLBENZYL)-5-PHENYL-1-CYCLOHEXANOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；292 K；9% polyethylene glycol 4000 250mM ammonium sulfate 80mM Cadmium Chloride 75mM Hepes 20% 1,4 butanediol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 19K
Resolution 2.00 Å R-free 0.264
1HKL FREE AND LIGANDED FORM OF AN ESTEROLYTIC CATALYTIC ANTIBODY Deposited 1996-12-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 23–236（214 aa） Fragment：VARIABLE DOMAINS OF LIGHT AND HEAVY CHAINS AND CONSTANT DOMAINS OF LIGHT AND HEAVY CHAINS
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.68 Å R-free 0.244
1I7Z ANTIBODY GNC92H2 BOUND TO LIGAND Deposited 2001-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–106（106 aa）
Not recorded COC COCAINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.30 Å R-free 0.265
1I7Z ANTIBODY GNC92H2 BOUND TO LIGAND Deposited 2001-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–106（106 aa）
Not recorded COC COCAINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.30 Å R-free 0.265
1MIM IGG FAB FRAGMENT (CD25-BINDING) Deposited 1995-12-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 135–348（214 aa） Fragment：IGG FAB
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.60 Å
1UCB STRUCTURE OF UNCOMPLEXED FAB COMPARED TO COMPLEX (1CLY, 1CLZ) Deposited 1996-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa） Fragment：MOUSE VH AND VL DOMAINS, HUMAN CL KAPPA AND CH1 IGG1 DOMAINS
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.6；0.1 M SODIUM ACETATE (PH 4.6), 0.1 M AMMONIUM SULFATE, 15 % PEG 8000.
Resolution 2.50 Å R-free 0.276
3O11 Anti-beta-amyloid antibody c706 fab in space group c2 Deposited 2010-07-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 3.5；293 K；0.1 M CITRATE PH 3.5, 18% PEG 8000 CRYO CONDITIONS, 0.1 M CITRATE PH 3.5, 25% PEG 8000, 20% GLYCEROL, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.80 Å R-free 0.304
3O11 Anti-beta-amyloid antibody c706 fab in space group c2 Deposited 2010-07-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–106（106 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 3.5；293 K；0.1 M CITRATE PH 3.5, 18% PEG 8000 CRYO CONDITIONS, 0.1 M CITRATE PH 3.5, 25% PEG 8000, 20% GLYCEROL, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.80 Å R-free 0.304
3QCT Crystal structure of the humanized apo LT3015 anti-lysophosphatidic acid antibody Fab fragment Deposited 2011-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–105（105 aa）
Not recorded SO4 SULFATE ION × 2 PGE TRIETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1 M HEPES sodium pH 7.5, 2% PEG 400 (v/v), and 1.75 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.15 Å R-free 0.287
3QCU Crystal structure of the LT3015 antibody Fab fragment in complex with lysophosphatidic acid (14:0) Deposited 2011-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–105（105 aa）
Not recorded NKN (2R)-2-hydroxy-3-(phosphonooxy)propyl tetradecanoate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；0.095 M sodium citrate pH 5.6, 19% (v/v) isopropanol, 19% (w/v) PEG 4000, and 5% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 1.98 Å R-free 0.252
3QCU Crystal structure of the LT3015 antibody Fab fragment in complex with lysophosphatidic acid (14:0) Deposited 2011-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 1–105（105 aa）
Not recorded NKN (2R)-2-hydroxy-3-(phosphonooxy)propyl tetradecanoate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；0.095 M sodium citrate pH 5.6, 19% (v/v) isopropanol, 19% (w/v) PEG 4000, and 5% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 1.98 Å R-free 0.252
3QCV Crystal structure of the LT3015 antibody Fab fragment in complex with lysophosphatidic acid (18:2) Deposited 2011-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–105（105 aa）
Not recorded 18L (2R)-2-hydroxy-3-(phosphonooxy)propyl (9Z,12Z)-octadeca-9,12-dienoate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.095 M sodium citrate pH 5.6, 19% (v/v) isopropanol, 19% (w/v) PEG 4000, and 5% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.51 Å R-free 0.266
3QCV Crystal structure of the LT3015 antibody Fab fragment in complex with lysophosphatidic acid (18:2) Deposited 2011-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 1–105（105 aa）
Not recorded 18L (2R)-2-hydroxy-3-(phosphonooxy)propyl (9Z,12Z)-octadeca-9,12-dienoate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.095 M sodium citrate pH 5.6, 19% (v/v) isopropanol, 19% (w/v) PEG 4000, and 5% (v/v) glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.51 Å R-free 0.266
3U0W AD related murine antibody Fragment Deposited 2011-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；100mM citric acid, 20%(v/v) 2-propanol, 20%(w/v) PEG 4000, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.00 Å R-free 0.235
3U7W Crystal structure of NIH45-46 Fab Deposited 2011-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa）
Not recorded GOL GLYCEROL × 3 SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；12% polyethylene glycol 20,000, 0.1 M sodium acetate pH 5.0, 0.1 M sodium/potassium tartrate, 0.02 M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.60 Å R-free 0.238
3U7Y Structure of NIH45-46 Fab in complex with gp120 of 93TH057 HIV Deposited 2011-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain L 1–106（106 aa）
Not recorded FLC CITRATE ANION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；12% isopropanol, 10% polyethylene glycol 10,000, 0.1 M sodium citrate pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.45 Å R-free 0.256
3VH8 KIR3DL1 in complex with HLA-B*5701 Deposited 2011-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 93–101（9 aa） Fragment：UNP residues 93-101
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；16% PEG 3350, 2% tacsimate pH 5.0, 0.1M tri-sodium citrate pH 5.6., VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 1.80 Å R-free 0.237
3VH8 KIR3DL1 in complex with HLA-B*5701 Deposited 2011-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 93–101（9 aa） Fragment：UNP residues 93-101
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；16% PEG 3350, 2% tacsimate pH 5.0, 0.1M tri-sodium citrate pH 5.6., VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 1.80 Å R-free 0.237
3X11 Crystal structure of HLA-B*57:01.I80N.L82R.R83G Deposited 2014-10-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 93–101（9 aa） Fragment：UNP residues 93-101
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；298 K；12-20% PEG4000, 0.2M ammonium acetate, 0.1M tri-sodium citrate pH 5.4., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.15 Å R-free 0.231
3X12 Crystal structure of HLA-B*57:01.I80N Deposited 2014-10-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 93–101（9 aa） Fragment：UNP residues 1-9
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；298 K；12-20% PEG4000, 0.2M ammonium acetate, 0.1M tri-sodium citrate pH 5.4., VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.80 Å R-free 0.219
4D9R Inhibiting Alternative Pathway Complement Activation by Targeting the Exosite on Factor D Deposited 2012-01-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain L 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1 M Tris-HCl, 0.02 M NH4PO4, MPD 50.0% v/v, 0.01 M hexamine cobalt (III) chloride, pH 8.5, vapor diffusion, hanging drop, temperature 277K
Resolution 2.42 Å R-free 0.251
4D9R Inhibiting Alternative Pathway Complement Activation by Targeting the Exosite on Factor D Deposited 2012-01-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–106（106 aa）
Not recorded CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1 M Tris-HCl, 0.02 M NH4PO4, MPD 50.0% v/v, 0.01 M hexamine cobalt (III) chloride, pH 8.5, vapor diffusion, hanging drop, temperature 277K
Resolution 2.42 Å R-free 0.251
4YDV STRUCTURE OF THE ANTIBODY 7B2 THAT CAPTURES HIV-1 VIRIONS Deposited 2015-02-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain L 1–106（106 aa） Fragment：HIV ANTIBODY 7B2 LIGHT CHAIN,HIV ANTIBODY 7B2 LIGHT CHAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；298 K；6% PEG 20,000, 5% 2-PROPANOL, 0.1 M CITRIC ACID PH 3.5
Resolution 2.70 Å R-free 0.223
4YDV STRUCTURE OF THE ANTIBODY 7B2 THAT CAPTURES HIV-1 VIRIONS Deposited 2015-02-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–106（106 aa） Fragment：HIV ANTIBODY 7B2 LIGHT CHAIN,HIV ANTIBODY 7B2 LIGHT CHAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；298 K；6% PEG 20,000, 5% 2-PROPANOL, 0.1 M CITRIC ACID PH 3.5
Resolution 2.70 Å R-free 0.223
5B38 KIR3DL1*005 in complex with HLA-B*57:01 Deposited 2016-02-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 93–101（9 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；14 to 18% PEG 3350, 2% tacsimate pH 5.0, 0.1 M tri-sodium citrate pH 5.6
Resolution 2.30 Å R-free 0.251
5B39 KIR3DL1*015 in complex with HLA-B*57:01 Deposited 2016-02-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 93–101（9 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；14 to 18% PEG 3350, 2% tacsimate pH 5.0, 0.1 M tri-sodium citrate pH 5.6
Resolution 2.50 Å R-free 0.229
5C7K Crystal structure BG505 SOSIP gp140 HIV-1 Env trimer bound to broadly neutralizing antibodies PGT128 and 8ANC195 Deposited 2015-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 18 PDB declaration: octadecameric
Chain F 1–106（106 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 18 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；280 K；0.05 M lithium sulfate, 0.05 M sodium sulfate, 26% (w/v) PEG 400 and 0.1 M Tris-HCl pH 8.3
Resolution 4.60 Å R-free 0.295
5ESV Crystal Structure of Broadly Neutralizing Antibody CH03, Isolated from Donor CH0219, in Complex with Scaffolded Trimeric HIV-1 Env V1V2 Domain from the Clade C Superinfecting Strain of Donor CAP256. Deposited 2015-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–106（106 aa）
Chain D 1–106（106 aa）
Chain L 1–106（106 aa）
Not recorded ZN ZINC ION × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；10% PEG8000, .1M CaCl, 20% MPD, .1M Na Acetate pH 5.5, frozen in 15% sucrose as cryoprotectant
Resolution 3.10 Å R-free 0.259
5ESZ Crystal Structure of Broadly Neutralizing Antibody CH04, Isolated from Donor CH0219, in Complex with Scaffolded Trimeric HIV-1 Env V1V2 Domain from the Clade AE Strain A244 Deposited 2015-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain L 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；54% isopropanol .1M Tris pH 8.5 Cryo used was 15% 2R3R
Resolution 4.19 Å R-free 0.282
5ESZ Crystal Structure of Broadly Neutralizing Antibody CH04, Isolated from Donor CH0219, in Complex with Scaffolded Trimeric HIV-1 Env V1V2 Domain from the Clade AE Strain A244 Deposited 2015-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain L 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；54% isopropanol .1M Tris pH 8.5 Cryo used was 15% 2R3R
Resolution 4.19 Å R-free 0.282
5ESZ Crystal Structure of Broadly Neutralizing Antibody CH04, Isolated from Donor CH0219, in Complex with Scaffolded Trimeric HIV-1 Env V1V2 Domain from the Clade AE Strain A244 Deposited 2015-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；54% isopropanol .1M Tris pH 8.5 Cryo used was 15% 2R3R
Resolution 4.19 Å R-free 0.282
5ESZ Crystal Structure of Broadly Neutralizing Antibody CH04, Isolated from Donor CH0219, in Complex with Scaffolded Trimeric HIV-1 Env V1V2 Domain from the Clade AE Strain A244 Deposited 2015-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；54% isopropanol .1M Tris pH 8.5 Cryo used was 15% 2R3R
Resolution 4.19 Å R-free 0.282
5EWI Crystal Structure of the Human Fab VRC38.01, an HIV-1 V1V2-Directed Neutralizing Antibody Isolated from Donor N90 Deposited 2015-11-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；14% PEG400, 13% PEG8000, 0.1M Tris pH 8.5, 0.1M MgCl, No Cryo
Resolution 1.60 Å R-free 0.202
5VEB Crystal structure of a Fab binding to extracellular domain 5 of Cadherin-6 Deposited 2017-04-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–107（107 aa）
Not recorded A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；20% (w/v) PEG3350, 0.2M di-ammonium hydrogen citrate
Resolution 2.34 Å R-free 0.252
5VEB Crystal structure of a Fab binding to extracellular domain 5 of Cadherin-6 Deposited 2017-04-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain L 1–107（107 aa）
Not recorded A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；20% (w/v) PEG3350, 0.2M di-ammonium hydrogen citrate
Resolution 2.34 Å R-free 0.252
5VIY BG505 SOSIP.664 in complex with broadly neutralizing antibodies BG1 and 8ANC195 Deposited 2017-04-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain G 1–107（107 aa）
Chain I 1–107（107 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 13 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 6.20 Å
6AU5 Structure of cetuximab with aminoheptanoic acid-linked n-butylarginine meditope variant Deposited 2017-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–106（106 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate, pH 4.0, 1.6 M ammonium sulfate
Resolution 2.48 Å R-free 0.227
6AU5 Structure of cetuximab with aminoheptanoic acid-linked n-butylarginine meditope variant Deposited 2017-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–106（106 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate, pH 4.0, 1.6 M ammonium sulfate
Resolution 2.48 Å R-free 0.227
6AXP Structure of cetuximab with aminoheptanoic acid-linked n-octylarginine meditope variant Deposited 2017-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–106（106 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate pH 4.0, 1.6 M ammonium sulfate
Resolution 2.48 Å R-free 0.228
6AXP Structure of cetuximab with aminoheptanoic acid-linked n-octylarginine meditope variant Deposited 2017-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–106（106 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate pH 4.0, 1.6 M ammonium sulfate
Resolution 2.48 Å R-free 0.228
6AYN Structure of cetuximab with aminoheptanoic acid-linked N-(3-aminopropyl)-L-arginine meditope variant Deposited 2017-09-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M citrate pH 5, 1.6 M ammonium sulfate
Resolution 2.48 Å R-free 0.222
6AYN Structure of cetuximab with aminoheptanoic acid-linked N-(3-aminopropyl)-L-arginine meditope variant Deposited 2017-09-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–106（106 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M citrate pH 5, 1.6 M ammonium sulfate
Resolution 2.48 Å R-free 0.222
6AZK Structure of cetuximab with aminoheptanoic acid-linked N-(3-hydroxypropyl)-L-arginine meditope variant Deposited 2017-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–106（106 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M citrate pH 5, 1.8 M ammonium sulfate
Resolution 2.48 Å R-free 0.213
6AZK Structure of cetuximab with aminoheptanoic acid-linked N-(3-hydroxypropyl)-L-arginine meditope variant Deposited 2017-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–106（106 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M citrate pH 5, 1.8 M ammonium sulfate
Resolution 2.48 Å R-free 0.213
6AZL Structure of cetuximab with aminoheptanoic acid-linked N-carboxyethylarginine meditope variant Deposited 2017-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–106（106 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M citrate pH 5.5, 1.8 M ammonium sulfate
Resolution 2.48 Å R-free 0.216
6AZL Structure of cetuximab with aminoheptanoic acid-linked N-carboxyethylarginine meditope variant Deposited 2017-09-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–106（106 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M citrate pH 5.5, 1.8 M ammonium sulfate
Resolution 2.48 Å R-free 0.216
6B9Y Trastuzumab Fab v3 in complex with 5-phenyl meditope variant Deposited 2017-10-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–107（107 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Tris pH 7.5, 15% PEG3350, 24 mM NaCl
Resolution 2.14 Å R-free 0.218
6B9Z Trastuzumab Fab v3 Deposited 2017-10-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–107（107 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Tris, pH 7.5, 24 mM NaCl, 15% PEG3350
Resolution 1.82 Å R-free 0.189
6BAE Trastuzumab Fab v3 in complex with CQFDLSTRRLKC Deposited 2017-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–107（107 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Tris pH 7.5, 24 mM NaCl, 15% PEG 3350
Resolution 2.14 Å R-free 0.224
6BAH Trastuzumab Fab v3 with 5-diphenyl meditope variant Deposited 2017-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–107（107 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Tris, pH 7.5, 24 mM NaCl, 15% PEG 3350
Resolution 1.90 Å R-free 0.194
6OKP B41 SOSIP.664 in complex with the silent-face antibody SF12 and V3-targeting antibody 10-1074 Deposited 2019-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain N 1–107（107 aa）
Chain P 1–107（107 aa）
Chain R 1–107（107 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 33 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；0 blot force, 3 second blot time, 3 uL sample added to freshly glow-discharged grids
Resolution 3.28 Å
7CZY S protein of SARS-CoV-2 in complex bound with P5A-2F11_2B Deposited 2020-09-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric
Chain K 1–107（107 aa）
Chain N 1–107（107 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 28 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7CZZ S protein of SARS-CoV-2 in complex bound with P5A-2F11_3B Deposited 2020-09-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain K 1–107（107 aa）
Chain M 1–107（107 aa）
Chain N 1–107（107 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 27 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7XQ8 Structure of human B-cell antigen receptor of the IgM isotype Deposited 2022-05-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain L 1–107（107 aa）
Chain R 1–107（107 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 14 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8C1C Structure of IgE bound to the ectodomain of FceRIa Deposited 2022-12-20 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain L 1–107（107 aa）
Chain Y 1–107（107 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8DAO Crystal structure of SARS-CoV-2 spike stem fusion peptide in complex with neutralizing antibody COV44-79 Deposited 2022-06-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain F 1–107（107 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.1 M Tris, pH 8.5, 0.01 M nickel (II) chloride, and 20% PEG monomethyl ether 2000
Resolution 2.80 Å R-free 0.284
8DAO Crystal structure of SARS-CoV-2 spike stem fusion peptide in complex with neutralizing antibody COV44-79 Deposited 2022-06-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain H 1–107（107 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.1 M Tris, pH 8.5, 0.01 M nickel (II) chloride, and 20% PEG monomethyl ether 2000
Resolution 2.80 Å R-free 0.284

44 other PDB entries and 65 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name IGKC_HUMAN
Isoform —
PDB entities 2, 4
Chains and sequence ranges Author chain B； PDBConstruct 108–214； UniProt 1–107 Author chain D； PDBConstruct 108–214； UniProt 1–107

Pertuzumab FAB HEAVY CHAIN

Homo sapiens

UniProt P0DOX5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Other combination Heteromer Protein × 5 其他Polymer 1 PDB declaration: pentameric（5） Consistent with protein copy count Chain C； UniProt 109–222 Not recorded Receptor tyrosine-protein kinase erbB-2 × 1 （P04626） Pertuzumab FAB LIGHT CHAIN × 1 （P01834） Trastuzumab FAB LIGHT CHAIN × 1 （P01834） Trastuzumab FAB HEAVY CHAIN × 1 （Q6GMX6） ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.36 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6OGE Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1D5B UNLIGANDED MATURE OXY-COPE CATALYTIC ANTIBODY Deposited 1999-10-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 120–220（101 aa） Fragment：chimeric fab fragment (UNP K7T9I5 residues 1-112, P0DOX5 residues 120-220)
Chain H 120–220（101 aa） Fragment：chimeric fab fragment (UNP K7T9I5 residues 1-112, P0DOX5 residues 120-220)
Not recorded CD CADMIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；25%PEG 1000, 100mM sodium acetate, 300mM CdCl2, 100mM ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.285
1D5B UNLIGANDED MATURE OXY-COPE CATALYTIC ANTIBODY Deposited 1999-10-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 120–220（101 aa） Fragment：chimeric fab fragment (UNP K7T9I5 residues 1-112, P0DOX5 residues 120-220)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；25%PEG 1000, 100mM sodium acetate, 300mM CdCl2, 100mM ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.285
1D5B UNLIGANDED MATURE OXY-COPE CATALYTIC ANTIBODY Deposited 1999-10-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 120–220（101 aa） Fragment：chimeric fab fragment (UNP K7T9I5 residues 1-112, P0DOX5 residues 120-220)
Not recorded CD CADMIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；25%PEG 1000, 100mM sodium acetate, 300mM CdCl2, 100mM ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.285
1D5I UNLIGANDED GERMLINE PRECURSOR OF AN OXY-COPE CATALYTIC ANTIBODY Deposited 1999-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 120–220（101 aa） Fragment：chimeric fab fragment (UNP K7T9I5 residues 1-112, P0DOX5 residues 120-220)
Not recorded CD CADMIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；75mM Hepes pH 7.0 9% PEG 4000 150 mM Ammonium Sulfate 20% 1,4 butanediol 100 mM Cadmium Chloride, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.00 Å R-free 0.263
1D6V CONFORMATION EFFECTS IN BIOLOGICAL CATALYSIS INTRODUCED BY OXY-COPE ANTIBODY MATURATION Deposited 1999-10-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 120–220（101 aa） Fragment：chimeric fab fragment (UNP K7T9I5 residues 1-112, P0DOX5 residues 120-220)
Not recorded CD CADMIUM ION × 4 HOP (1S,2S,5S)2-(4-GLUTARIDYLBENZYL)-5-PHENYL-1-CYCLOHEXANOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；292 K；9% polyethylene glycol 4000 250mM ammonium sulfate 80mM Cadmium Chloride 75mM Hepes 20% 1,4 butanediol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 19K
Resolution 2.00 Å R-free 0.264
1HZH CRYSTAL STRUCTURE OF THE INTACT HUMAN IGG B12 WITH BROAD AND POTENT ACTIVITY AGAINST PRIMARY HIV-1 ISOLATES: A TEMPLATE FOR HIV VACCINE DESIGN Deposited 2001-01-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 117–449（333 aa）
Chain K 117–449（333 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295.5 K；NH4SO4, cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295.5K
Resolution 2.70 Å R-free 0.273
1N0X Crystal Structure of a Broadly Neutralizing Anti-HIV-1 Antibody in Complex with a Peptide Mimotope Deposited 2002-10-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain H 117–222（106 aa） Fragment：UNP residues 117-222
Chain K 117–222（106 aa） Fragment：UNP residues 117-222
Not recorded GOL GLYCEROL × 8 SO4 SULFATE ION × 4 CXS 3-CYCLOHEXYL-1-PROPYLSULFONIC ACID × 1 K POTASSIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10.5；295.5 K；ammonium sulfate, lithium sulfate, CAPS buffer, pH 10.5, VAPOR DIFFUSION, SITTING DROP, temperature 295.5K
Resolution 1.80 Å R-free 0.252
3PGF Crystal structure of maltose bound MBP with a conformationally specific synthetic antigen binder (sAB) Deposited 2010-11-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 121–227（107 aa）
Not recorded IMD IMIDAZOLE × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；292 K；19% PEG 3400, 8% Tacsimate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.10 Å R-free 0.227
4R26 Crystal structure of human Fab PGT124, a broadly neutralizing and potent HIV-1 neutralizing antibody Deposited 2014-08-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 115–223（109 aa）
Not recorded GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% PEG 4000, 0.2M MgCl2, 0.1M Tris-HCL, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.50 Å R-free 0.267
4R2G Crystal Structure of PGT124 Fab bound to HIV-1 JRCSF gp120 core and to CD4 Deposited 2014-08-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain Q 115–223（109 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CL CHLORIDE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；2.4M ammonium sulphate, 0.1M Tris, 13% glycerol, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.28 Å R-free 0.263
4R2G Crystal Structure of PGT124 Fab bound to HIV-1 JRCSF gp120 core and to CD4 Deposited 2014-08-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 115–223（109 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 CL CHLORIDE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；2.4M ammonium sulphate, 0.1M Tris, 13% glycerol, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.28 Å R-free 0.263
4R2G Crystal Structure of PGT124 Fab bound to HIV-1 JRCSF gp120 core and to CD4 Deposited 2014-08-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain J 115–223（109 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CL CHLORIDE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；2.4M ammonium sulphate, 0.1M Tris, 13% glycerol, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.28 Å R-free 0.263
4R2G Crystal Structure of PGT124 Fab bound to HIV-1 JRCSF gp120 core and to CD4 Deposited 2014-08-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain N 115–223（109 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CL CHLORIDE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；2.4M ammonium sulphate, 0.1M Tris, 13% glycerol, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.28 Å R-free 0.263
5O4E Crystal structure of VEGF in complex with heterodimeric Fcab JanusCT6 Deposited 2017-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 227–449（223 aa）
Chain B 227–449（223 aa）
Chain C 227–448（222 aa）
Chain D 227–449（223 aa）
Mutation：T350V, T366L, K392L, T394W Mutation：;T350V, L351Y, T359R, K360F, N361Y, E388D, N389I, F389a, P389b, N389c, G389d, L389e, F405A, Y407V, D413P, K414Y, S415P, R416S, Q418L, Q419M, N421T, V422R, S440H, S442E, L443Y, S444Q, P445W, G446P, K447T ; Mutation：T350V, T366L, K392L, T394W Mutation：;T350V, L351Y, T359R, K360F, N361Y, E388D, N389I, F389a, P389b, N389c, G389d, L389e, F405A, Y407V, D413P, K414Y, S415P, R416S, Q418L, Q419M, N421T, V422R, S440H, S442E, L443Y, S444Q, P445W, G446P, K447T ; MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 10 MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 1 CAC CACODYLATE ION × 2 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；0.1 M Sodium cacodylate, 40% (v/v) MPD, 5% (w/v) PEG 8000
Resolution 2.15 Å R-free 0.236
5VJ6 BG505 SOSIP.664 in complex with broadly neutralizing antibodies PG9 and 8ANC195 Deposited 2017-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain H 117–224（108 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 11.50 Å
5VU0 Crystal structure of the complex between afucosylated/galactosylated human IgG1 Fc and Fc gamma receptor IIIa (CD16A) with Man5 N-glycans Deposited 2017-05-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 230–446（217 aa） Fragment：Fc region (UNP residues 230-446)
Chain B 230–446（217 aa） Fragment：Fc region (UNP residues 230-446)
Not recorded EDO 1,2-ETHANEDIOL × 5 PEG DI(HYDROXYETHYL)ETHER × 4 NA SODIUM ION × 9 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM Bis-Tris Propane pH 7.5, 16% PEG 20k, 100 mM Potassium thiocyanate, Cryo protection - 20% Ethylene Glycol
Resolution 2.26 Å R-free 0.237
5VZX Crystal structure of crenezumab Fab Deposited 2017-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 115–227（113 aa）
Chain H 115–227（113 aa）
Not recorded SO4 SULFATE ION × 11 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2.4 M ammonium sulfate, 0.1M HEPES pH 7.5
Resolution 2.50 Å R-free 0.230
5VZX Crystal structure of crenezumab Fab Deposited 2017-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 115–227（113 aa）
Not recorded SO4 SULFATE ION × 6 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2.4 M ammonium sulfate, 0.1M HEPES pH 7.5
Resolution 2.50 Å R-free 0.230
5VZX Crystal structure of crenezumab Fab Deposited 2017-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 115–227（113 aa）
Not recorded SO4 SULFATE ION × 5 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2.4 M ammonium sulfate, 0.1M HEPES pH 7.5
Resolution 2.50 Å R-free 0.230
5VZY Crystal structure of crenezumab Fab in complex with Abeta Deposited 2017-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 115–227（113 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M magnesium chloride hexahydrate, 0.1 M Tris hydrochloride pH 8.5, 30% w/v polyethylene glycol 4000
Resolution 2.32 Å R-free 0.249
5W5L Crystal structure of human IgG1-Sigma Fc fragment Deposited 2017-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 227–449（223 aa） Fragment：Sigma Fc fragment, UNP residues 227-449
Chain B 227–449（223 aa） Fragment：Sigma Fc fragment, UNP residues 227-449
Mutation：L234A, L235A, A237G, P238S, H268A, A330S, P331S Mutation：L234A, L235A, A237G, P238S, H268A, A330S, P331S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；9% PEG 20,000, 0.1 M Sodium Acetate, pH 5.5
Resolution 1.90 Å R-free 0.229
5WAV Fc AbVance: Increasing our knowledge of antibody structural space to enable faster and better decision-making in antibody drug discovery. Deposited 2017-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 240–448（209 aa）
Chain B 240–448（209 aa）
Not recorded GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；0.1M Hepes pH7.5 10% v/v polyethylene glycol 8000 8% v/v ethylene glycol
Resolution 2.60 Å R-free 0.260
5XJE Crystal structure of fucosylated IgG1 Fc complexed with bis-glycosylated soluble form of Fc gamma receptor IIIa Deposited 2017-05-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 227–449（223 aa） Fragment：UNP RESIDUES 227-449
Chain B 227–449（223 aa） Fragment：UNP RESIDUES 227-449
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；12% PEG 20000, 0.1 M MES (pH 6.5), 4% Zwittergent 3-12
Resolution 2.40 Å R-free 0.281
5XJF Crystal structure of fucosylated IgG Fc Y296W mutant complexed with bis-glycosylated soluble form of Fc gamma receptor IIIa Deposited 2017-05-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 227–449（223 aa） Fragment：UNP RESIDUES 227-449
Chain B 227–449（223 aa） Fragment：UNP RESIDUES 227-449
Mutation：Y298W Mutation：Y298W CL CHLORIDE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；12% PEG 20000, 0.1 M MES (pH 6.5), 4% Zwittergent 3-14
Resolution 2.50 Å R-free 0.270
5XMH Crystal structure of an IgM rheumatoid factor YES8c in complex with IgG1 Fc Deposited 2017-05-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 239–446（208 aa） Fragment：UNP RESIDUES 239-446
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；Tris-HCl, sodium acetate, PEG 4000
Resolution 2.80 Å R-free 0.272
5XMH Crystal structure of an IgM rheumatoid factor YES8c in complex with IgG1 Fc Deposited 2017-05-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 239–446（208 aa） Fragment：UNP RESIDUES 239-446
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；Tris-HCl, sodium acetate, PEG 4000
Resolution 2.80 Å R-free 0.272
5Y56 Fc mutant (K392D/K409D/D399K) Deposited 2017-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 238–445（208 aa） Fragment：UNP residues 238-445
Chain B 238–445（208 aa） Fragment：UNP residues 238-445
Mutation：K392D/K409D/D399K Mutation：K392D/K409D/D399K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；1.5M (NH4)2SO4, 10% Glycerol, 0.1M Tris-Hcl (pH 7.5)
Resolution 2.65 Å R-free 0.298
5YC5 Crystal structure of human IgG-Fc in complex with aglycan and optimized Fc gamma receptor IIIa Deposited 2017-09-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 226–448（223 aa） Fragment：Fc fragment, UNP residues 226-448
Chain B 226–448（223 aa） Fragment：Fc fragment, UNP residues 226-448
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293.15 K；20mM Tris-HCl, 100mM NaCl, 14% PEG 3350
Resolution 2.71 Å R-free 0.273
6APD Crystal structure of RSV F bound by AM22 and the infant antibody ADI-19425 Deposited 2017-08-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain J 109–223（115 aa）
Chain K 109–223（115 aa）
Chain N 109–223（115 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；10% PEG 4000 10% 2-propanol 0.1 M sodium citrate pH 5.5
Resolution 4.10 Å R-free 0.256
6ARP Structure of a mutant Cetuximab Fab fragment Deposited 2017-08-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 120–222（103 aa）
Not recorded SO4 SULFATE ION × 3 GOL GLYCEROL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM sodium citrate, 1.6 M ammonium sulfate, 5% glycerol
Resolution 1.70 Å R-free 0.197
6ARP Structure of a mutant Cetuximab Fab fragment Deposited 2017-08-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 120–222（103 aa）
Not recorded SO4 SULFATE ION × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM sodium citrate, 1.6 M ammonium sulfate, 5% glycerol
Resolution 1.70 Å R-free 0.197
6ARU Structure of Cetuximab Fab mutant in complex with EGFR extracellular domain Deposited 2017-08-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 120–222（103 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；150 mM ammonium sulfate, 16.5% PEG3350, 10 mM cadmium chloride, 100 mM imidazole, 5% glycerol
Resolution 3.20 Å R-free 0.267
6B70 Cryo-EM structure of human insulin degrading enzyme in complex with FAB H11-E heavy chain, FAB H11-E light chain and insulin Deposited 2017-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 125–219（95 aa）
Chain E 125–219（95 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE；The cryo grids were made using Spotiton and homemade plunger
Resolution 3.70 Å
6B7Z Cryo-EM structure of human insulin degrading enzyme in complex with FAB H11 heavy chain and FAB H11 light chain Deposited 2017-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 125–219（95 aa）
Chain E 125–219（95 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE；The cryo grids were made using Spotiton
Resolution 6.50 Å
6BF7 Cryo-EM structure of human insulin degrading enzyme in complex with FAB H11-E heavy chain, FAB H11-E light chain Deposited 2017-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 125–219（95 aa）
Chain E 125–219（95 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE；The cryo grids were made using Spotiton
Resolution 6.50 Å
6BF9 Cryo-EM structure of human insulin degrading enzyme in complex with FAB H11-E heavy chain, FAB H11-E light chain Deposited 2017-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 125–219（95 aa）
Chain E 125–219（95 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE；The cryo grids were made using Spotiton
Resolution 7.20 Å
6BFT Structure of Bevacizumab Fab mutant in complex with VEGF Deposited 2017-10-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 120–227（108 aa）
Chain H 120–227（108 aa）
Not recorded SO4 SULFATE ION × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；100 mM MES, 6.0, 225 mM ammonium sulfate, 13% PEG4000, 10% isopropanol
Resolution 2.55 Å R-free 0.220
6BGT Structure of Trastuzumab Fab mutant in complex with Her2 extracellular domain Deposited 2017-10-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 109–222（114 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；100 mM MES, pH 6.5, 18% PEG3350, 10% glycerol
Resolution 2.70 Å R-free 0.247
6BKB Structure of Hepatitis C Virus Envelope Glycoprotein E2 core from genotype 6a bound to broadly neutralizing antibody AR3A Deposited 2017-11-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 109–222（114 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；20% (w/v) PEG 3500, 0.2M sodium-citrate
Resolution 2.80 Å R-free 0.267
6BKC Structure of Hepatitis C Virus Envelope Glycoprotein E2 core from genotype 6a bound to broadly neutralizing antibody AR3B Deposited 2017-11-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 109–222（114 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；293 K；20% (w/v) PEG 3500, 0.2M Li-chloride
Resolution 2.60 Å R-free 0.276
6BZ4 Human IgG1 lacking complement-dependent cytotoxicity: hu3S193 Fc mutant K322A Deposited 2017-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 239–446（208 aa）
Chain B 239–446（208 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；PEG 6000, 0.1 M MES, 25% V/V ETHYLENE GLYCOL
Resolution 2.40 Å R-free 0.249
6DKJ human GIPR ECD and Fab complex Deposited 2018-05-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 109–222（114 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；10% PEG 4000 and 20% isopropanol
Resolution 1.95 Å R-free 0.238
6DKJ human GIPR ECD and Fab complex Deposited 2018-05-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 109–222（114 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；10% PEG 4000 and 20% isopropanol
Resolution 1.95 Å R-free 0.238
6EAQ Glycosylated FCGR3B / CD16b in complex with afucosylated IgG1 Fc Deposited 2018-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 227–446（220 aa）
Chain B 227–446（220 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；pH 6.0 50 mM MES, 8% PEG3350 and 60 mM NaCl
Resolution 2.22 Å R-free 0.244
6FCZ Model of gC1q-Fc complex based on 7A EM map Deposited 2017-12-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain H 234–449（216 aa） Fragment：UNP residues 234-449
Chain K 234–449（216 aa） Fragment：UNP residues 234-449
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 10.00 Å
6FGO Fc in complex with engineered calcium binding domain Z Deposited 2018-01-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 239–448（210 aa）
Chain C 239–448（210 aa）
Not recorded PEG DI(HYDROXYETHYL)ETHER × 5 GOL GLYCEROL × 7 CA CALCIUM ION × 2 CL CHLORIDE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；24 % PEG3350, 0.1 M LiCl2, 0.1 M MES pH 6.0
Resolution 2.50 Å R-free 0.232
6FGO Fc in complex with engineered calcium binding domain Z Deposited 2018-01-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 239–448（210 aa）
Chain D 239–448（210 aa）
Not recorded GOL GLYCEROL × 8 CA CALCIUM ION × 2 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；24 % PEG3350, 0.1 M LiCl2, 0.1 M MES pH 6.0
Resolution 2.50 Å R-free 0.232
6G1E BEAT Fc with improved heterodimerization (Q3A-D84.4Q) Deposited 2018-03-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 223–449（227 aa）
Mutation：L234A, L235A, Q347E, Y349A, L351F, S364T, T366V, K370T, T394D, V397L, D399E, D401Q, F405A, Y407S, K409R, T411R Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；CRYSTALS GROWN BY VAPOR DIFFUSION BY MIXING 12.0 MG/ML PROTEIN IN 10 MM HEPES PH8.0, 100 MM NACL, 1 MM EDTA, EQUALLY WITH 33.00 %(W/V) PEG 1500
Resolution 1.88 Å R-free 0.272
6IFJ Structure of bispecific Fc Deposited 2018-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 218–449（232 aa）
Chain B 218–449（232 aa）
Mutation：E357K,K409R Mutation：K370E GOL GLYCEROL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291.15 K；0.1M Hepes, pH7.5, 12%(w/v) polyethylene glycol 3350
Resolution 2.40 Å R-free 0.231
6IQG X-ray crystal structure of Fc and peptide complex Deposited 2018-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 238–447（210 aa）
Chain B 238–447（210 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；PEG 3350, KI
Resolution 3.00 Å R-free 0.273
6IQH X-ray crystal structure of covalent-bonded complex of Fc and peptide Deposited 2018-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 238–447（210 aa）
Chain B 238–447（210 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；293 K；0.1 M CHES pH 10.0, 0.3M NaCl, 20% (w/v) PEG 8000
Resolution 3.00 Å R-free 0.293
6KA7 The complex structure of Human IgG Fc and its binding Repebody Deposited 2019-06-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 240–447（208 aa）
Chain D 240–447（208 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；Tris HCl, PEG 4000, Sodium chloride
Resolution 3.00 Å R-free 0.333
6MB3 Cryo-EM structure of the circumsporozoite protein of Plasmodium falciparum with a vaccine-elicited antibody reveals maturation of inter-antibody contacts Deposited 2018-08-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain A 109–223（115 aa）
Chain B 109–223（115 aa）
Chain C 109–223（115 aa）
Chain D 109–223（115 aa）
Chain F 109–223（115 aa）
Chain G 109–223（115 aa）
Chain H 109–223（115 aa）
Chain I 109–223（115 aa）
Chain J 109–223（115 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.37 Å
6MSY Anti-HIV-1 Fab Fab 2G12 + Man4 re-refinement Deposited 2018-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 120–221（102 aa）
Not recorded UNX UNKNOWN LIGAND × 8 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；295 K；27% Peg 4000, 0.05M sodium acetate
Resolution 2.00 Å R-free 0.242
6MU3 Anti-HIV-1 Fab 2G12 + Man7 re-refinement Deposited 2018-10-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 120–221（102 aa）
Chain M 120–221（102 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；295 K；20% Peg 4000, 0.2M sodium tartrate
Resolution 2.33 Å R-free 0.234
6MUB Anti-HIV-1 Fab 2G12 + Man5 re-refinement Deposited 2018-10-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 120–222（103 aa）
Chain M 120–222（103 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；295 K；1.6M sodium/potassium phosphate
Resolution 2.50 Å R-free 0.280
6N2X Anti-HIV-1 Fab 2G12 + Man9 re-refinement Deposited 2018-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 120–220（101 aa）
Chain M 120–220（101 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；25% Peg 400, 0.2M imidazole malate
Resolution 3.00 Å R-free 0.283
6N32 Anti-HIV-1 Fab 2G12 re-refinement Deposited 2018-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 120–221（102 aa）
Chain K 120–221（102 aa）
Not recorded SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；1.05M ammonium sulfate, 18% Peg 6000, 0.1M imidazole malate
Resolution 2.20 Å R-free 0.227
6N35 Anti-HIV-1 Fab 2G12 + Man1-2 re-refinement Deposited 2018-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 120–220（101 aa）
Chain M 120–220（101 aa）
Not recorded BEZ BENZOIC ACID × 1 GOL GLYCEROL × 1 MAN alpha-D-mannopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；2M Sodium/Potassium Phosphate
Resolution 1.75 Å R-free 0.238
6OKQ Crystal structure of the SF12 Fab Deposited 2019-04-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 109–226（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100 mM HEPES, pH 7.5, 1.8 M sodium formate
Resolution 3.20 Å R-free 0.299
6OKQ Crystal structure of the SF12 Fab Deposited 2019-04-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 109–226（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100 mM HEPES, pH 7.5, 1.8 M sodium formate
Resolution 3.20 Å R-free 0.299
6OKQ Crystal structure of the SF12 Fab Deposited 2019-04-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 109–226（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100 mM HEPES, pH 7.5, 1.8 M sodium formate
Resolution 3.20 Å R-free 0.299
6UBI N123-VRC34.05 HIV neutralizing antibody in complex with HIV fusion peptide residue 512-519 Deposited 2019-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 117–226（110 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M HEPES, pH 7, 30% PEG6000
Resolution 1.90 Å R-free 0.288
6UBI N123-VRC34.05 HIV neutralizing antibody in complex with HIV fusion peptide residue 512-519 Deposited 2019-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 117–226（110 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M HEPES, pH 7, 30% PEG6000
Resolution 1.90 Å R-free 0.288
6UGW Crystal structure of the Fc fragment of PF06438179/GP1111 an infliximab biosimilar in a C-centered orthorhombic crystal form, Lot A Deposited 2019-09-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 220–449（230 aa） Fragment：LotA_Fc
Not recorded ZN ZINC ION × 6 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；10 mg/mL protein with JCSG+ E7 (266849e7): 10% 2-propanol, 200 mM zinc acetate, 100 mM sodium cacodylate, pH 6.5, cryoprotectant: 20% ethylene glycol, puckID kux1-2
Resolution 2.00 Å R-free 0.219
6UGX Crystal structure of the Fc fragment of PF06438179/GP1111 an infliximab biosimilar in a primative orthorhombic crystal form, Lot A Deposited 2019-09-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 220–449（230 aa）
Chain B 220–449（230 aa）
Not recorded K POTASSIUM ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；10 mg/mL protein with 200 mM potassium nitrate, 20% PEG3350, cryoprotectant: 20% ethylene glycol, puckID sxt1-6
Resolution 2.10 Å R-free 0.256
6UGY Crystal structure of the Fc fragment of anti-TNFa antibody infliximab (Remicade) in a primative orthorhombic crystal form, Lot C Deposited 2019-09-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 220–449（230 aa） Fragment：LotC_Fc
Not recorded ZN ZINC ION × 6 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；10 mg/mL protein with JCSG+ E7 Opt screen H2 (267146h2): 4% 2-propanol, 200 mM zinc acetate, 100 mM sodium cacodylate, pH 6.8, cryoprotectant: 20% ethylene glycol, puckID kux1-9
Resolution 2.10 Å R-free 0.228
6UOE 3-25 Fab germline-reversion variant bound to an HCMV gB-derived peptide Deposited 2019-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 109–223（115 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1 M magnesium chloride, 13.4% PEG3350, 16.75% PEG400, 0.1 M Tris, pH 8.5
Resolution 1.80 Å R-free 0.186
6V8Z VRC03 and 10-1074 Bound BG505 F14 HIV-1 SOSIP Envelope Trimer Structure Deposited 2019-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 18 PDB declaration: octadecameric
Chain C 117–220（104 aa）
Chain I 117–220（104 aa）
Chain O 117–220（104 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 21 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6VSL Crystal structure of a human fucosylated IgG1 Fc expressed in tobacco plants (Nicotiana benthamiana) Deposited 2020-02-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 236–446（211 aa） Fragment：crystallizable fragment (UNP residues 236-446)
Chain B 236–446（211 aa） Fragment：crystallizable fragment (UNP residues 236-446)
Not recorded MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；15% PEG4000, 0.1 M HEPES, pH 7.0
Resolution 2.10 Å R-free 0.250
6VSZ Crystal structure of a human afucosylated IgG1 Fc expressed in tobacco plants (Nicotiana benthamiana) Deposited 2020-02-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 236–446（211 aa） Fragment：crystallizable fragment (UNP residues 236-446)
Chain B 236–446（211 aa） Fragment：crystallizable fragment (UNP residues 236-446)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；15% PEG4000, 0.1 M HEPES, pH 7.0
Resolution 2.60 Å R-free 0.276
6X3I NNAS Fc mutant Deposited 2020-05-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 227–449（223 aa） Fragment：Fc
Not recorded BMA beta-D-mannopyranose × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；30% polyethylene glycol 1500
Resolution 2.27 Å R-free 0.221
6YSC GLYCOSYLATED KNOB-HOLE/DUMMY FC FRAGMENT Deposited 2020-04-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 223–449（227 aa）
Chain B 223–449（227 aa）
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；294 K；15% (w/v) PEG4000, 0.1M HEPES
Resolution 2.05 Å R-free 0.293
6YT7 GLYCOSYLATED KNOB/DUMMY-HOLE FC FRAGMENT Deposited 2020-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 223–449（227 aa）
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；25% (w/v) PEG2000 MME, 0.1M HEPES
Resolution 1.55 Å R-free 0.273
6YTB GLYCOSYLATED KNOB/DUMMY-HOLE/DUMMY FC FRAGMENT Deposited 2020-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 223–449（227 aa）
Chain B 223–449（227 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；20% (w/v) PEG3350, 0.2M potassium formate
Resolution 1.65 Å R-free 0.249
7CZQ S protein of SARS-CoV-2 in complex bound with P2B-1A10 Deposited 2020-09-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 115–449（335 aa）
Chain J 115–449（335 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 28 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7CZT S protein of SARS-CoV-2 in complex bound with P5A-2G9 Deposited 2020-09-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 109–449（341 aa）
Chain I 109–449（341 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 28 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
7CZU S protein of SARS-CoV-2 in complex bound with P5A-1B6_2B Deposited 2020-09-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 109–449（341 aa）
Chain J 109–449（341 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 28 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7CZV S protein of SARS-CoV-2 in complex bound with P5A-1B6_3B Deposited 2020-09-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain H 109–449（341 aa）
Chain I 109–449（341 aa）
Chain J 109–449（341 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 31 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7T17 Zika Virus asymmetric unit bound with IgM antibody DH1017 Fab fragment Deposited 2021-12-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 540 PDB declaration: 540-meric
Chain H 120–224（105 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.26 Å
7T17 Zika Virus asymmetric unit bound with IgM antibody DH1017 Fab fragment Deposited 2021-12-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain H 120–224（105 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.26 Å
7T17 Zika Virus asymmetric unit bound with IgM antibody DH1017 Fab fragment Deposited 2021-12-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 45 PDB declaration: 45-meric
Chain H 120–224（105 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.26 Å
7T17 Zika Virus asymmetric unit bound with IgM antibody DH1017 Fab fragment Deposited 2021-12-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 54 PDB declaration: 54-meric
Chain H 120–224（105 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.26 Å
7T17 Zika Virus asymmetric unit bound with IgM antibody DH1017 Fab fragment Deposited 2021-12-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain H 120–224（105 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.26 Å
7URU Crystal structure of the low affinity Fc gamma receptor IIIA variant in complex with the Fc of IgG1. Deposited 2022-04-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 227–449（223 aa）
Chain B 227–449（223 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；8% PEG 8000 0.1 M HEPES pH 7.0
Resolution 2.40 Å R-free 0.262
7X13 Structure of IgG-Fc hexamer Deposited 2022-02-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric
Chain A 223–443（221 aa）
Chain B 223–443（221 aa）
Chain C 223–443（221 aa）
Chain D 223–443（221 aa）
Chain E 223–443（221 aa）
Chain F 223–443（221 aa）
Chain G 223–443（221 aa）
Chain H 223–443（221 aa）
Chain I 223–443（221 aa）
Chain J 223–443（221 aa）
Chain K 223–443（221 aa）
Chain L 223–443（221 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8DAO Crystal structure of SARS-CoV-2 spike stem fusion peptide in complex with neutralizing antibody COV44-79 Deposited 2022-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 120–222（103 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.1 M Tris, pH 8.5, 0.01 M nickel (II) chloride, and 20% PEG monomethyl ether 2000
Resolution 2.80 Å R-free 0.284
8DAO Crystal structure of SARS-CoV-2 spike stem fusion peptide in complex with neutralizing antibody COV44-79 Deposited 2022-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain G 120–222（103 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.1 M Tris, pH 8.5, 0.01 M nickel (II) chloride, and 20% PEG monomethyl ether 2000
Resolution 2.80 Å R-free 0.284
8DBZ CryoEM structure of Hantavirus ANDV Gn(H) protein complex with 2Fabs ANDV-5 and ANDV-34 Deposited 2022-06-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain F 120–222（103 aa） Fragment：UNP residues 120-222
Chain H 120–222（103 aa） Fragment：UNP residues 120-222
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8DV1 SARS-CoV-2 Wuhan-hu-1-Spike-RBD bound to linker variant of affinity matured ACE2 mimetic CVD432 Deposited 2022-07-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 218–449（232 aa）
Mutation：K31F,N33D,H34S,E35Q NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8DV2 SARS-CoV-2 Wuhan-hu-1-Spike-RBD bound to computationally engineered ACE2 mimetic CVD293 Deposited 2022-07-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 218–449（232 aa）
Mutation：K31F,H34I,E35Q NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8ECQ Bovine Fab 2G3 Deposited 2022-09-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 115–222（108 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 3 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277.15 K；10% glycerol, 0.1M Mes, 5% Peg1000, 30% Peg600
Resolution 2.00 Å R-free 0.253
8ECV Bovine Fab 2F12 Deposited 2022-09-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 114–222（109 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；293.15 K；0.2M sodium chloride, 0.1M phosphate-citrate buffer, 20% Peg6000
Resolution 1.81 Å R-free 0.261
8ECV Bovine Fab 2F12 Deposited 2022-09-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 114–222（109 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；293.15 K；0.2M sodium chloride, 0.1M phosphate-citrate buffer, 20% Peg6000
Resolution 1.81 Å R-free 0.261
8ECZ Bovine Fab 4C1 Deposited 2022-09-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 114–222（109 aa）
Not recorded PO4 PHOSPHATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.1M Tris, 50% MPD, 0.2M ammonium dihydrogen phosphate
Resolution 2.82 Å R-free 0.258
8ECZ Bovine Fab 4C1 Deposited 2022-09-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 114–222（109 aa）
Not recorded PO4 PHOSPHATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.1M Tris, 50% MPD, 0.2M ammonium dihydrogen phosphate
Resolution 2.82 Å R-free 0.258
8ED1 Bovine Fab 5C1 Deposited 2022-09-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 114–222（109 aa）
Not recorded GOL GLYCEROL × 3 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277.15 K；0.1M Tris, 10% glycerol, 20% Peg300, 5% Peg8000
Resolution 2.31 Å R-free 0.267
8EDF Bovine Fab SKD in complex with Sars COV-2 receptor binding domain Deposited 2022-09-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 114–222（109 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；293.15 K；0.4M Lithium chloride, 10% Peg6000, 0.1M sodium citrate
Resolution 3.40 Å R-free 0.299
8GHR Structure of human ENPP1 in complex with variable heavy domain VH27.2 Deposited 2023-03-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 218–449（232 aa）
Chain B 218–449（232 aa）
Not recorded ZN ZINC ION × 4 AMP ADENOSINE MONOPHOSPHATE × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CA CALCIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；phosphate buffered saline
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TTM IgG1 Fc Heterodimer combYSelect1 Deposited 2023-08-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 218–449（232 aa）
Chain B 218–449（232 aa）
Mutation：K409S, T411Y Mutation：L368S, D399Y No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；0.1M BisTris pH 6.5 and 21% PEG MME 5000
Resolution 2.51 Å R-free 0.242
8TUD IgG1 Fc Heterodimer combYSelect2 Deposited 2023-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 218–449（232 aa）
Chain B 218–449（232 aa）
Mutation：D399Y, K447S Mutation：K409S, T411Y No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；0.1M Bis Tris pH 6.5 and 29% PEG MME 2000
Resolution 3.00 Å R-free 0.285
8URO Crystal structure of IgG1-Fc fragment (E382S) in complex with Corynebacterial ENGase CU43 (D187A-E189A) Deposited 2023-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 218–449（232 aa）
Chain C 218–449（232 aa）
Mutation：E382S Mutation：E382S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M Ammonium acetate 0.1 M MES 6.5 30 %v/v Glycerol ethoxylate (MIDAS 2-31)
Resolution 3.62 Å R-free 0.369
8URO Crystal structure of IgG1-Fc fragment (E382S) in complex with Corynebacterial ENGase CU43 (D187A-E189A) Deposited 2023-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 218–449（232 aa）
Chain F 218–449（232 aa）
Mutation：E382S Mutation：E382S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M Ammonium acetate 0.1 M MES 6.5 30 %v/v Glycerol ethoxylate (MIDAS 2-31)
Resolution 3.62 Å R-free 0.369
8W4L Crystal structure of closed conformation of human immunoglobulin Fc in presence of EndoSz Deposited 2023-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 227–449（223 aa）
Chain B 227–449（223 aa）
Not recorded CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；100 mM MES PH 6.0 200 mM Zinc acetate 10 % PEG 8000
Resolution 3.10 Å R-free 0.257
8W4M Crystal structure of open conformation of human immunoglobulin Fc in presence of EndoSz Deposited 2023-08-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 227–449（223 aa）
Not recorded ZN ZINC ION × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；100 mM MES PH 6.5 200 mM Zinc acetate 10 % PEG 8000
Resolution 2.18 Å R-free 0.255
8ZCK Serial Femtosecond Crystallography Structure of Fc Fragment of Human IgG1 from Biosimilar VEGF-Trap Deposited 2024-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 239–446（208 aa） Fragment：Fc Fragment
Chain B 239–446（208 aa） Fragment：Fc Fragment
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；298 K；0.1M Bis-Tris pH 6.5, 25% w/v Polyethylene glycol 3350
Resolution 2.00 Å R-free 0.227
8ZCL Ambient Temperature Crystal Structure of Fc Fragment of Human IgG1 from Biosimilar VEGF-Trap Deposited 2024-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 239–446（208 aa） Fragment：Fc Fragment
Chain B 239–446（208 aa） Fragment：Fc Fragment
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1M Bis-Tris pH 6.5, 25% w/v Polyethylene glycol 3350
Resolution 2.60 Å R-free 0.236
8ZCM Cryogenic Temperature Crystal Structure of Fc Fragment of Human IgG1 from Biosimilar VEGF-Trap Deposited 2024-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 239–446（208 aa） Fragment：Fc Fragment
Chain B 239–446（208 aa） Fragment：Fc Fragment
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；298 K；0.1M Bis-Tris pH 6.5, 25% w/v Polyethylene glycol 3350
Resolution 2.64 Å R-free 0.409
9BEX X-ray crystallography structural model of the immunoglobulin G1 (IgG1) Fc D270C K326C variant Deposited 2024-04-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain AAA 218–449（232 aa）
Chain BBB 218–449（232 aa）
Mutation：D270C,K326C Mutation：D270C,K326C PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M HEPES pH 7.5, 10% PEG 3350
Resolution 2.25 Å R-free 0.302
9CRT Crystal structure of IgG1 FC at natural pH Deposited 2024-07-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 238–449（212 aa）
Chain B 238–449（212 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；0.1 M Hepes pH 7.5 and 20% PEG 20,000
Resolution 2.19 Å R-free 0.282
9CXL Crystal structure of IgG1 FC WT at pH 5.5 Deposited 2024-07-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 238–449（212 aa）
Chain B 238–449（212 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；295 K；1 M Ammonium sulfate, 0.1 M Sodium citrate pH 5.5
Resolution 2.33 Å R-free 0.279
9CY6 Crystal structure of IgG1 FC M252H at pH 7.5 Deposited 2024-08-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 238–449（212 aa）
Chain B 238–449（212 aa）
Mutation：M252H Mutation：M252H No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.1 M Bis-tris propane pH 7.5, and 8% PEG8K
Resolution 2.06 Å R-free 0.282
9D06 Crystal structure of IgG1 FC M252R at pH 5.6 Deposited 2024-08-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 238–449（212 aa）
Chain B 238–449（212 aa）
Mutation：M252R Mutation：M252R No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；295 K；0.1M Sodium citrate pH 5.6, 20% Propanol and 20% PEG 4K
Resolution 2.33 Å R-free 0.279
9D09 Crystal structure of IgG1 FC M252H at pH 5.6 Deposited 2024-08-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 238–449（212 aa）
Chain B 238–449（212 aa）
Mutation：M252H Mutation：M252H No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；295 K；0.1M Sodium citrate pH 5.6, 20% Propanol and 20% PEG 4000
Resolution 2.92 Å R-free 0.283
9D9Q Crystal structure of IgG1 FC M252R at pH 8.0 Deposited 2024-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 238–449（212 aa）
Chain B 238–449（212 aa）
Mutation：M252R Mutation：M252R No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.1 M Tris pH 8.0 and 0.08M Sodium formate and 7.5% PEG20K
Resolution 2.82 Å R-free 0.367
9DAZ Molecular basis of pathogenicity of the recently emerged FCoV-23 coronavirus. Complex of fAPN with FCoV-23 RBD Deposited 2024-08-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 218–449（232 aa）
Chain C 218–449（232 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
9IIE Cryogenic Temperature Crystal Structure of Fc Fragment of Human IgG1 from Biosimilar VEGF-Trap Deposited 2024-06-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 239–446（208 aa） Fragment：Fc Fragment
Chain B 239–446（208 aa） Fragment：Fc Fragment
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1M Bis-Tris pH 6.5, 25% w/v Polyethylene glycol 3350
Resolution 3.14 Å R-free 0.309
9K2Y Human IgG1 Fc fragments, mutant (2CT1.1) Deposited 2024-10-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 227–449（223 aa）
Chain B 227–449（223 aa）
Chain C 227–449（223 aa）
Chain D 227–449（223 aa）
Not recorded GAL beta-D-galactopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；50mM Sodium phosphate pH 7.0, 16% PEG 3350
Resolution 3.12 Å R-free 0.281
9K34 Human IgG1 Fc fragments, mutant (2CT1.9) Deposited 2024-10-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 227–449（223 aa）
Chain B 227–449（223 aa）
Chain C 227–449（223 aa）
Chain D 227–449（223 aa）
Not recorded FUL beta-L-fucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；50mM HEPES pH 7.0, 10% PEG 3350
Resolution 3.00 Å R-free 0.279
9KHH Structure of the complex of LGR4 with Norrin (2:2) Deposited 2024-11-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 220–449（230 aa）
Chain F 220–449（230 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.65 Å
9LOC Cryo-EM structure of human FcRL5 bound to IgG-Fc Deposited 2025-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: 13-meric
Chain B 218–443（226 aa）
Chain C 218–443（226 aa）
Chain D 218–443（226 aa）
Chain E 218–443（226 aa）
Chain F 218–443（226 aa）
Chain G 218–443（226 aa）
Chain H 218–443（226 aa）
Chain I 218–443（226 aa）
Chain J 218–443（226 aa）
Chain K 218–443（226 aa）
Chain L 218–443（226 aa）
Chain M 218–443（226 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 13 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9LOD Local structure of human FcRL5 bound to IgG-Fc Deposited 2025-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 218–443（226 aa）
Chain C 218–443（226 aa）
Chain D 218–443（226 aa）
Chain E 218–443（226 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
9MCX CRYSTAL STRUCTURE OF HUMAN IGG1 FC FRAGMENT-FC-GAMMA RECEPTOR IIA COMPLEX H131 VARIANT Deposited 2024-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 227–449（223 aa）
Chain B 227–449（223 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；25% PEG 2000 MME, 0.1 M HEPES pH 7.5
Resolution 2.38 Å R-free 0.234
9MCY CRYSTAL STRUCTURE OF HUMAN IGG1 FC FRAGMENT-FC-GAMMA RECEPTOR IIA COMPLEX R131 VARIANT Deposited 2024-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 227–449（223 aa）
Chain B 227–449（223 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；10% PEG 5000 MME, 12% isopropanol , 0.1 M MES pH 6.5
Resolution 2.85 Å R-free 0.236
9MCY CRYSTAL STRUCTURE OF HUMAN IGG1 FC FRAGMENT-FC-GAMMA RECEPTOR IIA COMPLEX R131 VARIANT Deposited 2024-12-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 227–449（223 aa）
Chain D 227–449（223 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；10% PEG 5000 MME, 12% isopropanol , 0.1 M MES pH 6.5
Resolution 2.85 Å R-free 0.236
9OUV Crystal structure of human IGG1 FC fragment-FC-gamma receptor IIB complex Deposited 2025-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 227–449（223 aa）
Chain B 227–449（223 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；150 mM sodium chloride 100 mM Tris-HCl pH 8.0 8% PEG 6000
Resolution 3.07 Å R-free 0.241
9UO5 Cryo-EM structure of the human IgG-Fc hexamer Deposited 2025-04-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric
Chain A 218–443（226 aa）
Chain B 218–443（226 aa）
Chain C 218–443（226 aa）
Chain D 218–443（226 aa）
Chain E 218–443（226 aa）
Chain F 218–443（226 aa）
Chain G 218–443（226 aa）
Chain H 218–443（226 aa）
Chain I 218–443（226 aa）
Chain J 218–443（226 aa）
Chain K 218–443（226 aa）
Chain L 218–443（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9UOK Structure of the complex of LGR4_ECD with Norrin Deposited 2025-04-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 220–449（230 aa）
Chain F 220–449（230 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å

105 other PDB entries and 128 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name IGG1_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 109–222； UniProt 109–222

Trastuzumab FAB HEAVY CHAIN

Homo sapiens

UniProt Q6GMX6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Other combination Heteromer Protein × 5 其他Polymer 1 PDB declaration: pentameric（5） Consistent with protein copy count Chain E； UniProt 124–235 Not recorded Receptor tyrosine-protein kinase erbB-2 × 1 （P04626） Pertuzumab FAB LIGHT CHAIN × 1 （P01834） Pertuzumab FAB HEAVY CHAIN × 1 （P0DOX5） Trastuzumab FAB LIGHT CHAIN × 1 （P01834） ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.36 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6OGE Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1ZA6 The structure of an antitumor CH2-domain-deleted humanized antibody Deposited 2005-04-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 225–465（241 aa）
Chain D 225–465（241 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；290 K；4 M sodium formate, 1.5 mM Triton X-100 detergent, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 290K, pH 7.20
Resolution 2.80 Å R-free 0.296
1ZA6 The structure of an antitumor CH2-domain-deleted humanized antibody Deposited 2005-04-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 225–465（241 aa）
Chain H 225–465（241 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；290 K；4 M sodium formate, 1.5 mM Triton X-100 detergent, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 290K, pH 7.20
Resolution 2.80 Å R-free 0.296
1ZA6 The structure of an antitumor CH2-domain-deleted humanized antibody Deposited 2005-04-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain B 225–465（241 aa）
Chain D 225–465（241 aa）
Chain F 225–465（241 aa）
Chain H 225–465（241 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；290 K；4 M sodium formate, 1.5 mM Triton X-100 detergent, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 290K, pH 7.20
Resolution 2.80 Å R-free 0.296
1ZA6 The structure of an antitumor CH2-domain-deleted humanized antibody Deposited 2005-04-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 225–465（241 aa）
Chain D 225–465（241 aa）
Chain F 225–465（241 aa）
Chain H 225–465（241 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；290 K；4 M sodium formate, 1.5 mM Triton X-100 detergent, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 290K, pH 7.20
Resolution 2.80 Å R-free 0.296
4D9L Fab structure of anti-HIV-1 gp120 V2 mAb 697 Deposited 2012-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 131–237（107 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；296 K；18% polyethylene glycol 8000 and 0.1 M Tris pH 8.5 , VAPOR DIFFUSION, HANGING DROP, temperature 296K
Resolution 2.48 Å R-free 0.238
4D9L Fab structure of anti-HIV-1 gp120 V2 mAb 697 Deposited 2012-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 131–237（107 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；296 K；18% polyethylene glycol 8000 and 0.1 M Tris pH 8.5 , VAPOR DIFFUSION, HANGING DROP, temperature 296K
Resolution 2.48 Å R-free 0.238
4D9L Fab structure of anti-HIV-1 gp120 V2 mAb 697 Deposited 2012-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 131–237（107 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；296 K；18% polyethylene glycol 8000 and 0.1 M Tris pH 8.5 , VAPOR DIFFUSION, HANGING DROP, temperature 296K
Resolution 2.48 Å R-free 0.238
4D9L Fab structure of anti-HIV-1 gp120 V2 mAb 697 Deposited 2012-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain K 131–237（107 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；296 K；18% polyethylene glycol 8000 and 0.1 M Tris pH 8.5 , VAPOR DIFFUSION, HANGING DROP, temperature 296K
Resolution 2.48 Å R-free 0.238
5O1R human Fab 5H2 bound to NHBA-C3 from Neisseria meningitidis serogroup B Deposited 2017-05-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 20–240（221 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.1 M TRIS pH 8.0 and 1.6 M lithium sulphate
Resolution 2.86 Å R-free 0.222
5O1R human Fab 5H2 bound to NHBA-C3 from Neisseria meningitidis serogroup B Deposited 2017-05-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 20–240（221 aa）
Not recorded EDO 1,2-ETHANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.1 M TRIS pH 8.0 and 1.6 M lithium sulphate
Resolution 2.86 Å R-free 0.222
5UTZ Human IL-2/Fab complex Deposited 2017-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 128–238（111 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；295 K；100 mM sodium citrate, pH 5.0, 20% PEG6000
Resolution 2.75 Å R-free 0.247
5UTZ Human IL-2/Fab complex Deposited 2017-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 128–238（111 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；295 K；100 mM sodium citrate, pH 5.0, 20% PEG6000
Resolution 2.75 Å R-free 0.247
5UTZ Human IL-2/Fab complex Deposited 2017-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 128–238（111 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；295 K；100 mM sodium citrate, pH 5.0, 20% PEG6000
Resolution 2.75 Å R-free 0.247
5UTZ Human IL-2/Fab complex Deposited 2017-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 128–238（111 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；295 K；100 mM sodium citrate, pH 5.0, 20% PEG6000
Resolution 2.75 Å R-free 0.247
5VR9 CH1/Ckappa Fab based on Matuzumab Deposited 2017-05-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 122–238（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；294 K；see publication for details
Resolution 2.15 Å R-free 0.244
5VR9 CH1/Ckappa Fab based on Matuzumab Deposited 2017-05-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 122–238（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；294 K；see publication for details
Resolution 2.15 Å R-free 0.244
5VSI CH1/Ckappa Fab mutant 15.1 Deposited 2017-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 122–235（114 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 5 EDO 1,2-ETHANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；294 K；see publication
Resolution 1.51 Å R-free 0.227
6AL4 CRYSTAL STRUCTURE OF ANTI-CD19 ANTIBODY B43 FAB Deposited 2017-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 125–238（114 aa） Fragment：FD,FD,FD,FD
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.1；293 K；20% PEG 3350, 0.2 M NA PHOSPHATE DIBASIC
Resolution 2.45 Å R-free 0.236
6AL4 CRYSTAL STRUCTURE OF ANTI-CD19 ANTIBODY B43 FAB Deposited 2017-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 125–238（114 aa） Fragment：FD,FD,FD,FD
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.1；293 K；20% PEG 3350, 0.2 M NA PHOSPHATE DIBASIC
Resolution 2.45 Å R-free 0.236
6AL4 CRYSTAL STRUCTURE OF ANTI-CD19 ANTIBODY B43 FAB Deposited 2017-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 125–238（114 aa） Fragment：FD,FD,FD,FD
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.1；293 K；20% PEG 3350, 0.2 M NA PHOSPHATE DIBASIC
Resolution 2.45 Å R-free 0.236
6APD Crystal structure of RSV F bound by AM22 and the infant antibody ADI-19425 Deposited 2017-08-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain D 123–239（117 aa）
Chain F 123–239（117 aa）
Chain H 123–239（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；10% PEG 4000 10% 2-propanol 0.1 M sodium citrate pH 5.5
Resolution 4.10 Å R-free 0.256
6B9Y Trastuzumab Fab v3 in complex with 5-phenyl meditope variant Deposited 2017-10-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 124–238（115 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Tris pH 7.5, 15% PEG3350, 24 mM NaCl
Resolution 2.14 Å R-free 0.218
6BAH Trastuzumab Fab v3 with 5-diphenyl meditope variant Deposited 2017-10-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 124–238（115 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Tris, pH 7.5, 24 mM NaCl, 15% PEG 3350
Resolution 1.90 Å R-free 0.194
6DC4 RSV-neutralizing human antibody AM22 Deposited 2018-05-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 123–239（117 aa）
Not recorded EDO 1,2-ETHANEDIOL × 17 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.02 M 1,6-Hexanediol, 0.02 M 1-Butanol, 0.02 M 1,2-Propanediol (racemic), 0.02 M 2-Propanol, 0.02 M 1,4-Butanediol, 0.02 M 1,3-Propanediol, 0.1 M MES/imidazole pH 6.5, 10% PEG 8000, 20% ethylene glycol
Resolution 1.70 Å R-free 0.205
6DC5 RSV prefusion F in complex with AM22 Fab Deposited 2018-05-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 123–239（117 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CD CADMIUM ION × 1 PEG DI(HYDROXYETHYL)ETHER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；32% PEG 400, 4% PEG 3350, 0.01 M cadmium chloride, 0.1 M sodium acetate pH 5.5
Resolution 3.50 Å R-free 0.280
6DC5 RSV prefusion F in complex with AM22 Fab Deposited 2018-05-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 123–239（117 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CD CADMIUM ION × 1 PEG DI(HYDROXYETHYL)ETHER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；32% PEG 400, 4% PEG 3350, 0.01 M cadmium chloride, 0.1 M sodium acetate pH 5.5
Resolution 3.50 Å R-free 0.280
6DC5 RSV prefusion F in complex with AM22 Fab Deposited 2018-05-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 123–239（117 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CD CADMIUM ION × 1 PEG DI(HYDROXYETHYL)ETHER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；32% PEG 400, 4% PEG 3350, 0.01 M cadmium chloride, 0.1 M sodium acetate pH 5.5
Resolution 3.50 Å R-free 0.280
6VPY I33M (I3.2 mutant from CH103 Lineage) Deposited 2020-02-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 125–240（116 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；1.5 M ammonium sulfate, 100 mM HEPES, pH 7.23, 5% PEG400
Resolution 2.36 Å R-free 0.223
6VPY I33M (I3.2 mutant from CH103 Lineage) Deposited 2020-02-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 125–240（116 aa）
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；1.5 M ammonium sulfate, 100 mM HEPES, pH 7.23, 5% PEG400
Resolution 2.36 Å R-free 0.223
7CZR S protein of SARS-CoV-2 in complex bound with P5A-1B8_2B Deposited 2020-09-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 123–465（343 aa）
Chain J 123–465（343 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 30 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7CZS S protein of SARS-CoV-2 in complex bound with P5A-1B8_3B Deposited 2020-09-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain H 123–465（343 aa）
Chain I 123–465（343 aa）
Chain J 123–465（343 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 31 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7CZX S protein of SARS-CoV-2 in complex bound with P5A-1B9 Deposited 2020-09-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain H 121–465（345 aa）
Chain I 121–465（345 aa）
Chain J 121–465（345 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 33 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7D00 S protein of SARS-CoV-2 in complex bound with FabP5A-1B8 Deposited 2020-09-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric
Chain H 123–465（343 aa）
Chain J 123–465（343 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 28 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8BBO SARS-CoV-2 Delta-RBD complexed with BA.2-36 Fab Deposited 2022-10-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 20–240（221 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；2% (v/v) PEG400, 0.1M imidazole pH7.0 and 24% (w/v) PEG MME 5000.
Resolution 2.75 Å R-free 0.252

18 other PDB entries and 34 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name Q6GMX6_HUMAN
Isoform —
PDB entities 5
Chains and sequence ranges Author chain E； PDBConstruct 109–220； UniProt 124–235

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 6oge

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 6oge
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id6oge
Deposition date deposition_date2019-04-02
Structure title titleCryo-EM structure of Her2 extracellular domain-Trastuzumab Fab-Pertuzumab Fab complex
Keywords keywordsHer2 extracellular domain, Trastuzumab, Pertuzumab, transferase-immune system complex; transferase/immune system
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier45.88 Å
Radius of gyration Rg (electron density) rg_electron45.56 Å
Forward intensity I(0) i0421211000.00
Molecular weight molecular_weight163860.0 kDa
Excluded volume excluded_volume202920 ų
Envelope volume envelope_volume302310 ų
Hydration-shell volume shell_volume56753 ų
Envelope diameter envelope_diameter140.0 Å
Shell Rg shell_rg48.37 Å
Envelope Rg envelope_rg44.55 Å
Shape Rg shape_rg45.52 Å
Total Rg total_rg45.81 Å
Total atoms total_atoms11494
Residues n_residues1483
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax144.4 Å
Rg (real space) rg_real45.80 Å
Rg uncertainty (real space) rg_real_error1.44 Å
I(0) (real space) i0_real4.2120e+08
I(0) uncertainty (real space) i0_real_error7.1900e+06
Rg (reciprocal space) rg_reciprocal45.88 Å
I(0) (reciprocal space) i0_reciprocal421300000.0000
Solution quality estimate total_estimate0.8992
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary59.5 Å
Skewness Skewness skewness0.121
Kurtosis Kurtosis kurtosis-0.757
Angular range angular_range— – 0.1700 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha29940000.0000
Real-space data points n_real_points35
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.970; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.777
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

▶

8. Citations (1)

▶

9. Files and Curves (10)
