SAXSdb — 9khh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Norrin,Immunoglobulin gamma-1 heavy chain

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	MB52 × 2 Leucine-rich repeat-containing G-protein coupled receptor 4 × 2 （Q9BXB1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IGG1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 172–401； UniProt 220–449 Author chain F； PDBConstruct 172–401； UniProt 220–449

Norrin,Immunoglobulin gamma-1 heavy chain

Homo sapiens

UniProt Q00604

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	MB52 × 2 Leucine-rich repeat-containing G-protein coupled receptor 4 × 2 （Q9BXB1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDP_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 39–147； UniProt 25–133 Author chain F； PDBConstruct 39–147； UniProt 25–133

Leucine-rich repeat-containing G-protein coupled receptor 4

Homo sapiens

UniProt Q9BXB1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	MB52 × 2 Norrin,Immunoglobulin gamma-1 heavy chain × 2 （P0DOX5,Q00604）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LGR4_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 16–943； UniProt 24–951 Author chain D； PDBConstruct 16–943； UniProt 24–951

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9khh
Deposition date deposition_date	2024-11-10
Structure title title	Structure of the complex of LGR4 with Norrin (2:2)
Keywords keywords	LGR4 Norrin, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9khh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9khh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

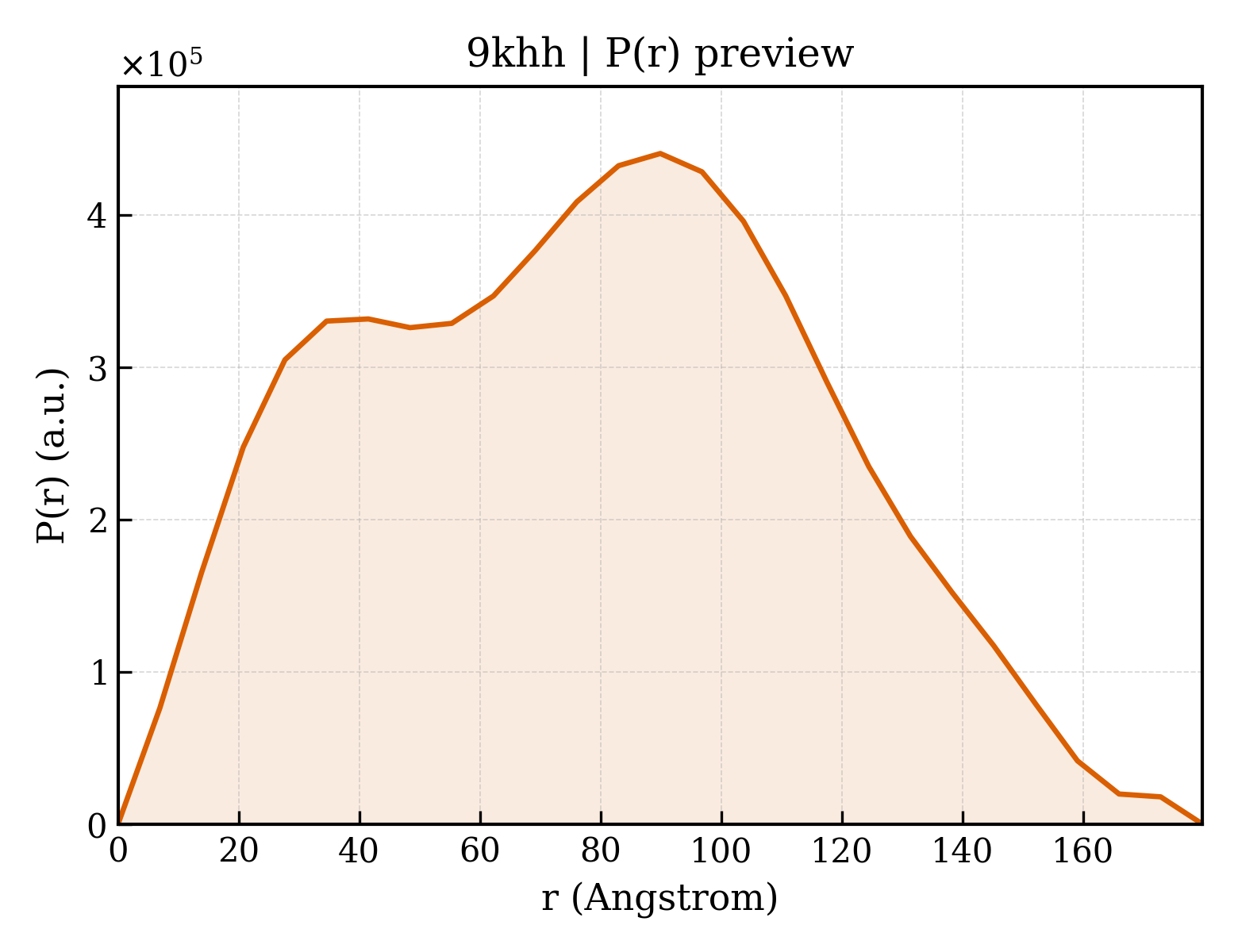

9khh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	61.03 Å
Rg (electron density)	57.85 Å
Total Rg	56.81 Å
Atom count	12354
Residues	1871
Excluded volume	210350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9khh__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	MB52
Molecular weight formula_weight	59266.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	12354

MKKIWLALAGLVLAFSASAQVQLVESGGGLVQTKTTTSVIDTTNDAQNLLTQAQTIVNTLKDYCPILIAKSSSSNGGTNNANTPSWQTAGGGKNSCATFGAEFSAASDMINNAQKIVQETQQLSANQPKNITQPHNLNLNSPSSLTALAQKMLKNAQSQAEILKLANQVESDFNKLSSGHLKDYIGKCDASAISSANMTMQNQKNNWGNGCAGVEETQSLLKTSAADFNNQTPQINQAQNLANTLIQELGNNPFRASGGGSGGGGSGKLSDTYEQLSRLLTNDNGTNSKTSAQAINQAVNNLNERAKTLAGGTTNSPAYQATLLALRSVLGLWNSMGYAVICGGYTKSPGENNQKDFHYTDENGNGTTINCGGSTNSNGTHSYNGTNTLKADKNVSLSIEQYEKIHEAYQILSKALKQAGLAPLNSKGEKLEAHVTTSKYGSLRLSCAASGYTYSPYCMGWFRQAPGKAREGVATVDLDGSTIYADSVKGRFTISQDNAKNTLYLQMNSLKPEDTAMYYCASRTRAGVTCGLNWAIFSYWGQGTQVTVSSHHHHHH

Source Source

Source organism organism	Camelus dromedarius
NCBI taxonomy ID ncbi_taxonomy_id	9838
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Norrin,Immunoglobulin gamma-1 heavy chain
Molecular weight formula_weight	45313.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

MLLVNQSHQGFNKEHTSKMVSAIVLYVLLAAAAHSAFAKTDSSFIMDSDPRRCMRHHYVDSISHPLYKCSSKMVLLARCEGHCSQASRSEPLVSFSTVLKQPFRSSCHCCRPQTSKLKALRLRCSGGMRLTATYRYILSCHCEECNSGGSGGSGGLEVLFQGPGGSGGSGGKSCDKTHTCPPCPAPELLGGPSVFLFPPKPKDTLMISRTPEVTCVVVDVSHEDPEVKFNWYVDGVEVHNAKTKPREEQYNSTYRVVSVLTVLHQDWLNGKEYKCKVSNKALPAPIEKTISKAKGQPREPQVYTLPPSRDELTKNQVSLTCLVKGFYPSDIAVEWESNGQPENNYKATPPVLDSDGSFFLYSKLTVDKSRWQQGNVFSCSVMHEALHNHYTQKSLSLSPGKDYKDDDDK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Leucine-rich repeat-containing G-protein coupled receptor 4
Molecular weight formula_weight	105397.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MKTIIALSYIFCLVFAAPPLCAAPCSCDGDRRVDCSGKGLTAVPEGLSAFTQALDISMNNITQLPEDAFKNFPFLEELQLAGNDLSFIHPKALSGLKELKVLTLQNNQLKTVPSEAIRGLSALQSLRLDANHITSVPEDSFEGLVQLRHLWLDDNSLTEVPVHPLSNLPTLQALTLALNKISSIPDFAFTNLSSLVVLHLHNNKIRSLSQHCFDGLDNLETLDLNYNNLGEFPQAIKALPSLKELGFHSNSISVIPDGAFDGNPLLRTIHLYDNPLSFVGNSAFHNLSDLHSLVIRGASMVQQFPNLTGTVHLESLTLTGTKISSIPNNLCQEQKMLRTLDLSYNNIRDLPSFNGCHALEEISLQRNQIYQIKEGTFQGLISLRILDLSRNLIHEIHSRAFATLGPITNLDVSFNELTSFPTEGLNGLNQLKLVGNFKLKEALAAKDFVNLRSLSVPYAYQCCAFWGCDSYANLNTEDNSLQDHSVAQEKGTADAANVTSTLENEEHSQIIIHCTPSTGAFKPCEYLLGSWMIRLTVWFIFLVALFFNLLVILTTFASCTSLPSSKLFIGLISVSNLFMGIYTGILTFLDAVSWGRFAEFGIWWETGSGCKVAGFLAVFSSESAIFLLMLATVERSLSAKDIMKNGKSNHLKQFRVAALLAFLGATVAGCFPLFHRGEYSASPLCLPFPTGETPSLGFTVTLVLLNSLAFLLMAVIYTKLYCNLEKEDLSENSQSSMIKHVAWLIFTNCIFFCPVAFFSFAPLITAISISPEIMKSVTLIFFPLPACLNPVLYVFFNPKFKEDWKLLKRRVTKKSGSVSVSISSQGGCLEQDFYYDCGMYSHLQGNLTVCDCCESFLLTKPVSCKHLIKSHSCPALAVASCQRPEGYWSDCGTQSAHSDYADEEDSFVSDSSDQVQACGRACFYQSRGFPLVRYAYNLPRVKDAAADYKDDDDK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.65 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	771783
