SAXSdb — 8edf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SKD Fab Light chain

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	SKD Fab heavy chain × 1 （P0DOX5） Spike protein S1 × 1 （P0DTC2） 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IGLC2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain L； PDBConstruct 126–216； UniProt 16–106

SKD Fab heavy chain

Homo sapiens

UniProt P0DOX5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	SKD Fab Light chain × 1 （P0DOY2） Spike protein S1 × 1 （P0DTC2） 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IGG1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 164–272； UniProt 114–222

Spike protein S1

Severe acute respiratory syndrome coronavirus 2

UniProt P0DTC2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	SKD Fab Light chain × 1 （P0DOY2） SKD Fab heavy chain × 1 （P0DOX5） 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_SARS2
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–194； UniProt 334–527

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8edf
Deposition date deposition_date	2022-09-04
Structure title title	Bovine Fab SKD in complex with Sars COV-2 receptor binding domain
Keywords keywords	antibody, SARS Cov-2, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8edf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

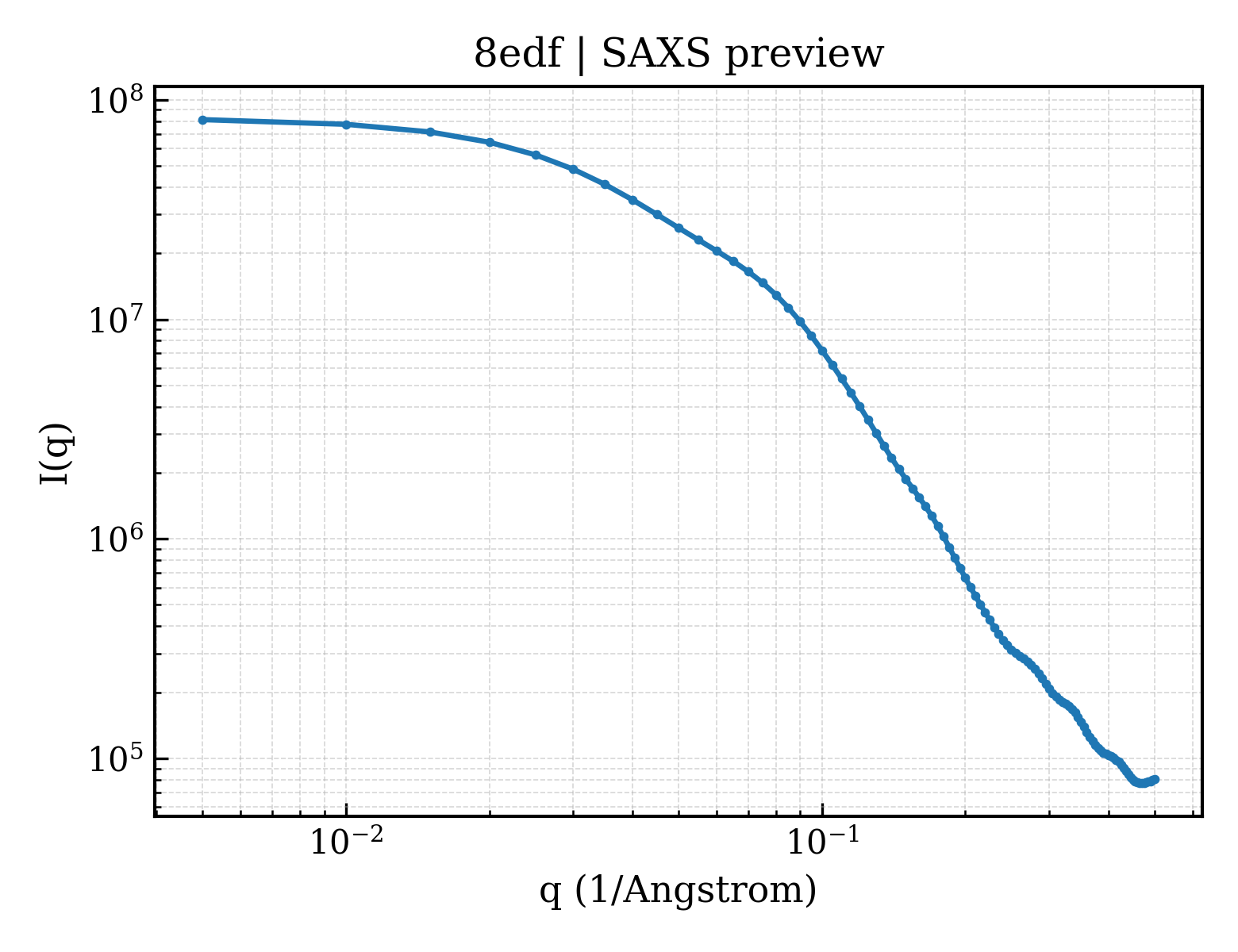

8edf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

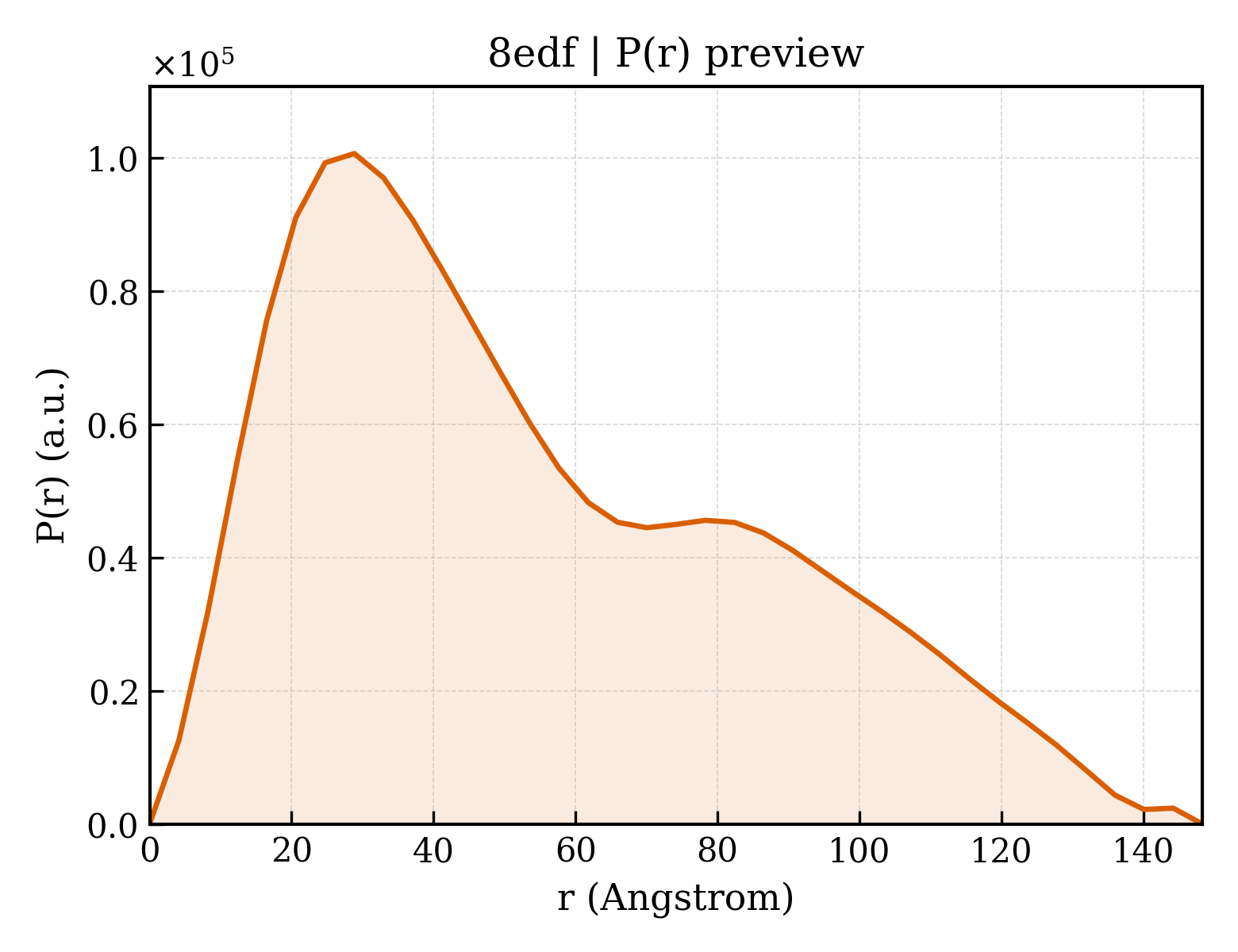

8edf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.60 Å
Rg (electron density)	45.22 Å
Total Rg	44.96 Å
Atom count	9914
Residues	671
Excluded volume	89073 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8edf__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	SKD Fab Light chain
Molecular weight formula_weight	22527.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	9914

QAVLNQPSSVSGSLGQRVSITCSGSSSNVGNGYVSWYQLIPGSAPRTLIYGDTSRASGVPDRFSGSRSGNTATLTISSLQAEDEADYFCASAEDSSSNAVFGSGTTLTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

Source Source

Source organism organism	Bos taurus
Common name common_name	cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	SKD Fab heavy chain
Molecular weight formula_weight	28454.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLRESGPSLVKPSQTLSLTCTASGFSLSDKAVGWVRQAPGKALEWLGSIDTGGNTGYNPGLKSRLSITKDNSKSQVSLSVSSVTTEDSATYYCTTVHQRTSEKRSCPGGSSRRYPSGASCDVSGGACACYVSNCRGVLCPTLNEIVAYTYEWHVDAWGQGLLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Spike protein S1
Molecular weight formula_weight	22601.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

NLCPFGEVFNATRFASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCVIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCGPHHHHHH

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
Common name common_name	2019-nCoV, SARS-CoV-2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	162.841 Å
Unit-cell length b length_b	162.841 Å
Unit-cell length c length_c	125.171 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	tetragonal

Resolution resolution	3.400 Å
Low-resolution limit resolution_low	26.740 Å
R factor r_factor	0.2771
R_work r_work	0.2759
R_free r_free	0.2994
