SAXSdb — 9c7s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;Spike protein S2' ;

Severe acute respiratory syndrome coronavirus 2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Fab COV-3891 heavy chain × 1 Fab COV-3891 light chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_SARS2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–268； UniProt 322–589

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9c7s
Deposition date deposition_date	2024-06-11
Structure title title	Cryo EM structure of SARS-COV-2 (BQ 1.1) RBD in complex with Fab COV2-3891 (local refine)
Keywords keywords	VIRAL-PROTEIN, Fab, IMMUNE SYSTEM, SARS-CoV-2, VIRAL PROTEIN, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9c7s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9c7s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

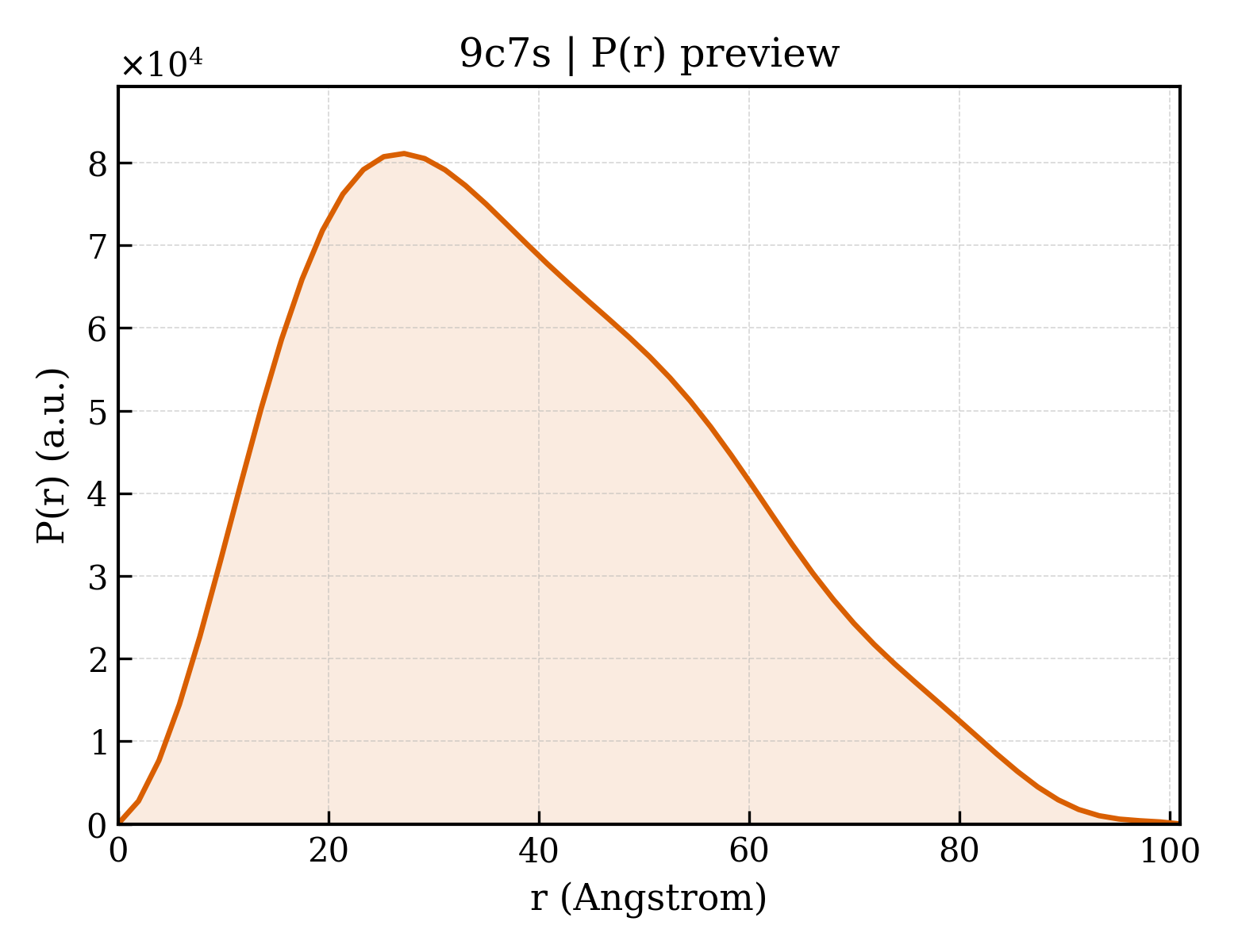

9c7s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.19 Å
Rg (electron density)	30.02 Å
Total Rg	30.74 Å
Atom count	3837
Residues	491
Excluded volume	67772 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9c7s__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	;Spike protein S2' ;
Molecular weight formula_weight	30083.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	3837

PTESIVRFPNITNLCPFDEVFNATTFASVYAWNRKRISNCVADYSVLYNFAPFFAFKCYGVSPTKLNDLCFTNVYADSFVIRGNEVSQIAPGQTGNIADYNYKLPDDFTGCVIAWNSNKLDSTVGGNYNYRYRLFRKSKLKPFERDISTEIYQAGNKPCNGVAGVNCYFPLQSYGFRPTYGVGHQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFNFNGLTGTGVLTESNKKFLPFQQFGRDIADTTDAVRDPQTLEILDITP

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
Common name common_name	2019-nCoV, SARS-CoV-2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Fab COV-3891 heavy chain
Molecular weight formula_weight	12689.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVLLVQSGAEVKKPGASVKVSCKASGYTFTNNHLNWLRQAPGQGREWMGIIDPRSGGSSLAQKFQGRVTMTSVTSTNTVYMEMVSLKSEDTAVYYCARGGSKWYEGFDNWGQGTLV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Fab COV-3891 light chain
Molecular weight formula_weight	11317.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

VLTQAPSASGTPGQRATISCSGSYSNIGNNNVYWYQQLPETAPKLLIYNNDQRPSGVPDRFSASKSGTSASLAISGLRSEDEAEYFCAAWNNGLSGSNWVFGGGTQL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	167000
