1. Protein Identity and Related Structures Protein Identity & Related Structures

E-FICS-v3

Severe acute respiratory syndrome coronavirus 2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 9	Heavy chain of VN01H1 Fab × 3 Light chain of VN01H1 Fab × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 water × 9	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_SARS2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 176–393； UniProt 914–1131 Author chain A； PDBConstruct 395–525； UniProt 703–833 Author chain D； PDBConstruct 176–393； UniProt 914–1131 Author chain D； PDBConstruct 395–525； UniProt 703–833 Author chain G； PDBConstruct 176–393； UniProt 914–1131 Author chain G； PDBConstruct 395–525； UniProt 703–833

E-FICS-v3

Severe acute respiratory syndrome coronavirus 2

UniProt Q12306

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 9	Heavy chain of VN01H1 Fab × 3 Light chain of VN01H1 Fab × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 water × 9	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SUMO_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 21–114； UniProt 1–94 Author chain D； PDBConstruct 21–114； UniProt 1–94 Author chain G； PDBConstruct 21–114； UniProt 1–94

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	11hk
Deposition date deposition_date	2026-02-24
Structure title title	SARS-CoV-2 spike S2 trimer stabilized in the early fusion intermediate conformation (E-FICs-v3) bound to the VN01H1 Fab (Fab local refinement)
Keywords keywords	;S2prime, coronavirus, SARS-CoV-2, spike, fusion, entry, antiviral, Structural Genomics, Seattle Structural Genomics Center for Infectious Disease, SSGCID, VIRAL PROTEIN-HYDROLASE complex, VN01H1, VIRAL PROTEIN ;; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

11hk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

11hk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

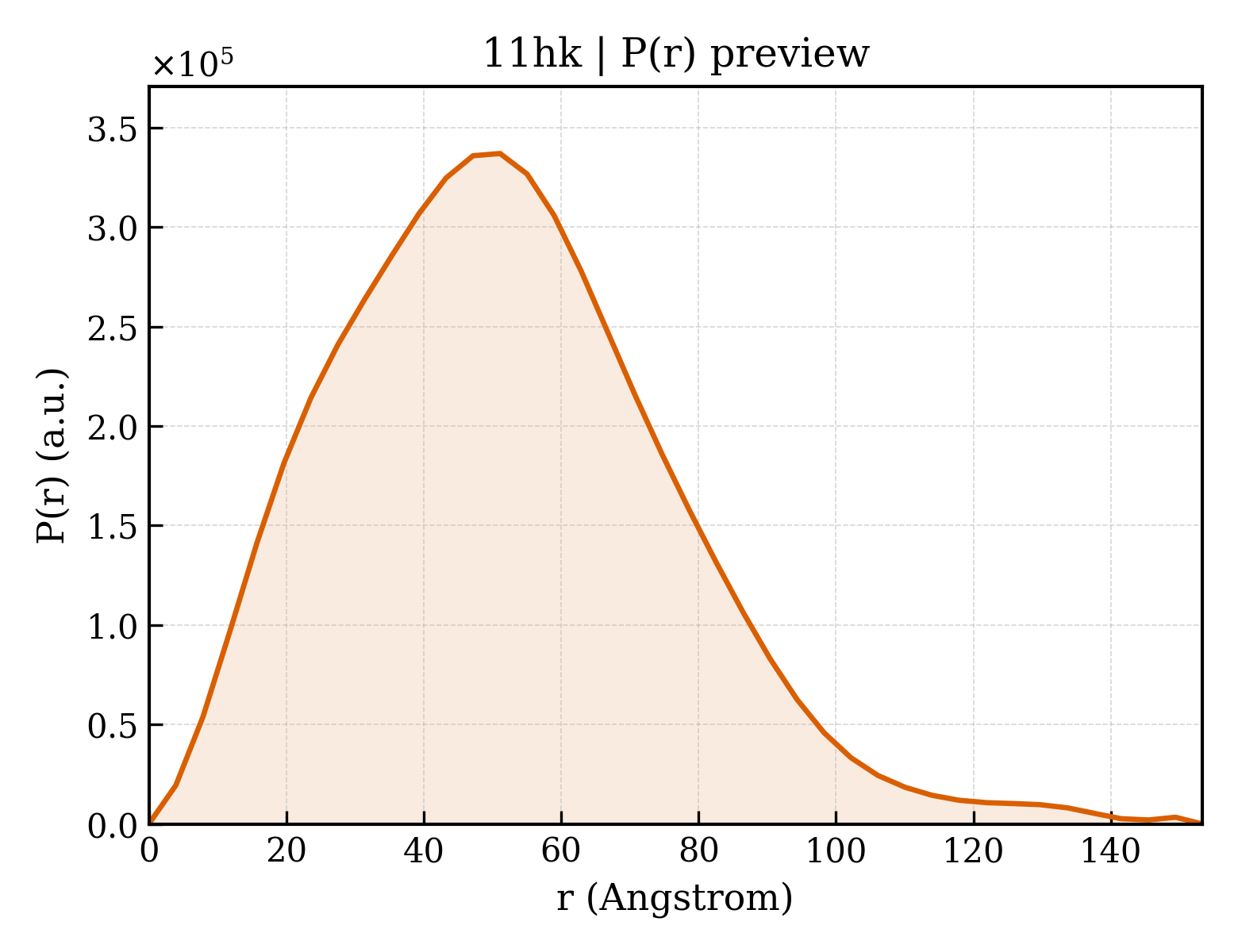

11hk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.12 Å
Rg (electron density)	39.95 Å
Total Rg	40.07 Å
Atom count	9204
Residues	1254
Excluded volume	162770 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`11hk__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	E-FICS-v3
Molecular weight formula_weight	67787.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D,G
Atom count atom_count	9288

MTRLTVLALLAGLLASSRASMSDSEVNQEAKPEVKPEVKPETHINLKVSDGSSEIFFKIKKTTPLRRLMEAFAKRQGKEMDSLRFLYDGIRIQADQTPEDLDMEDNDIIEAHRENDDDDKTGTGSQSNAESVQNHTFEVLNNTIRALELILRKLEILYEMILQLHEEVEAIQKAINVLYENQKLIANQFNSAIGKIQDSLSSTASALGKLQDVVNQNAQALNTLVKQLSSNFGAISSVLNDILSRLAKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRASANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYVPAQEKNFTTAPAICHDGKAHFPREGVFVSNGTHWFVTQRNFYEPQIITTDNTFVSGNCDVVIGTNSVAYSNNSIAIPTNFTISVTTEILPVSMTKTSVDCTMYICGDSTECSNLLLQYGSFCTQLNRALTGIAVEQDKNTQEVFAQVKQIYKTPPIKDFGGFNFSQILPDPSKPSKRSFIEDLLFNKVTLADAGFTIDKEKWKEWRKEMENLTKEIKETLEEARKTLKQAEETFKTPSSGGTDDDDKTGSLNDIFEAQKIEWHEQGSHHHHHHHH

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Heavy chain of VN01H1 Fab
Molecular weight formula_weight	24131.1 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E,H

EVQLVESGGGLVLPGGSLRLSCSASGFTFSDFSMHWVRQSPGKGLEYVSAITSSGSSTYYPDSVKGRFTISRDNSKNTLYLQMGSLRVEDTAVYWCVKNSDVFRFPHLYFDVWGRGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Light chain of VN01H1 Fab
Molecular weight formula_weight	23413.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F,I

DIVMTQSPATLSVSPGDRATLSCRASQSVSSNLAWYQQKPGQAPRLLIYGASTRAAGIPARFSGSGSGTEFTLTISSLQSEDFAVYYCQQYDNWPSITFGQGTRLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	84

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.70 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	121952

SARS-CoV-2 spike S2 trimer stabilized in the early fusion intermediate conformation (E-FICs-v3) bound to the VN01H1 Fab (Fab local refinement)
