8rbu

Crystal structure of HLA-A*11:01 in complex with SVLNDILARL, an 10-mer epitope from SARS-CoV-2 Spike (S975-984)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HLA class I histocompatibility antigen

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） ;Spike protein S2' ; × 1 （P0DTC2） DI(HYDROXYETHYL)ETHER × 1 1,2-ETHANEDIOL × 8 CHLORIDE ION × 2 SULFATE ION × 2 SODIUM ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5S3G3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–365； UniProt 1–365

Beta-2-microglobulin

Homo sapiens

UniProt P61769

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen × 1 （Q5S3G3） ;Spike protein S2' ; × 1 （P0DTC2） DI(HYDROXYETHYL)ETHER × 1 1,2-ETHANEDIOL × 8 CHLORIDE ION × 2 SULFATE ION × 2 SODIUM ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2MG_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–100； UniProt 21–119

;Spike protein S2' ;

OrganismNot specified

UniProt P0DTC2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen × 1 （Q5S3G3） Beta-2-microglobulin × 1 （P61769） DI(HYDROXYETHYL)ETHER × 1 1,2-ETHANEDIOL × 8 CHLORIDE ION × 2 SULFATE ION × 2 SODIUM ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_SARS2
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–10； UniProt 975–984

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8rbu
Deposition date deposition_date	2023-12-05
Structure title title	Crystal structure of HLA-A*11:01 in complex with SVLNDILARL, an 10-mer epitope from SARS-CoV-2 Spike (S975-984)
Keywords keywords	human leukocyte antigen, major histocompatibility complex, HLA-A11, HLA-A*11:01, SARS-CoV-2, Spike, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8rbu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8rbu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

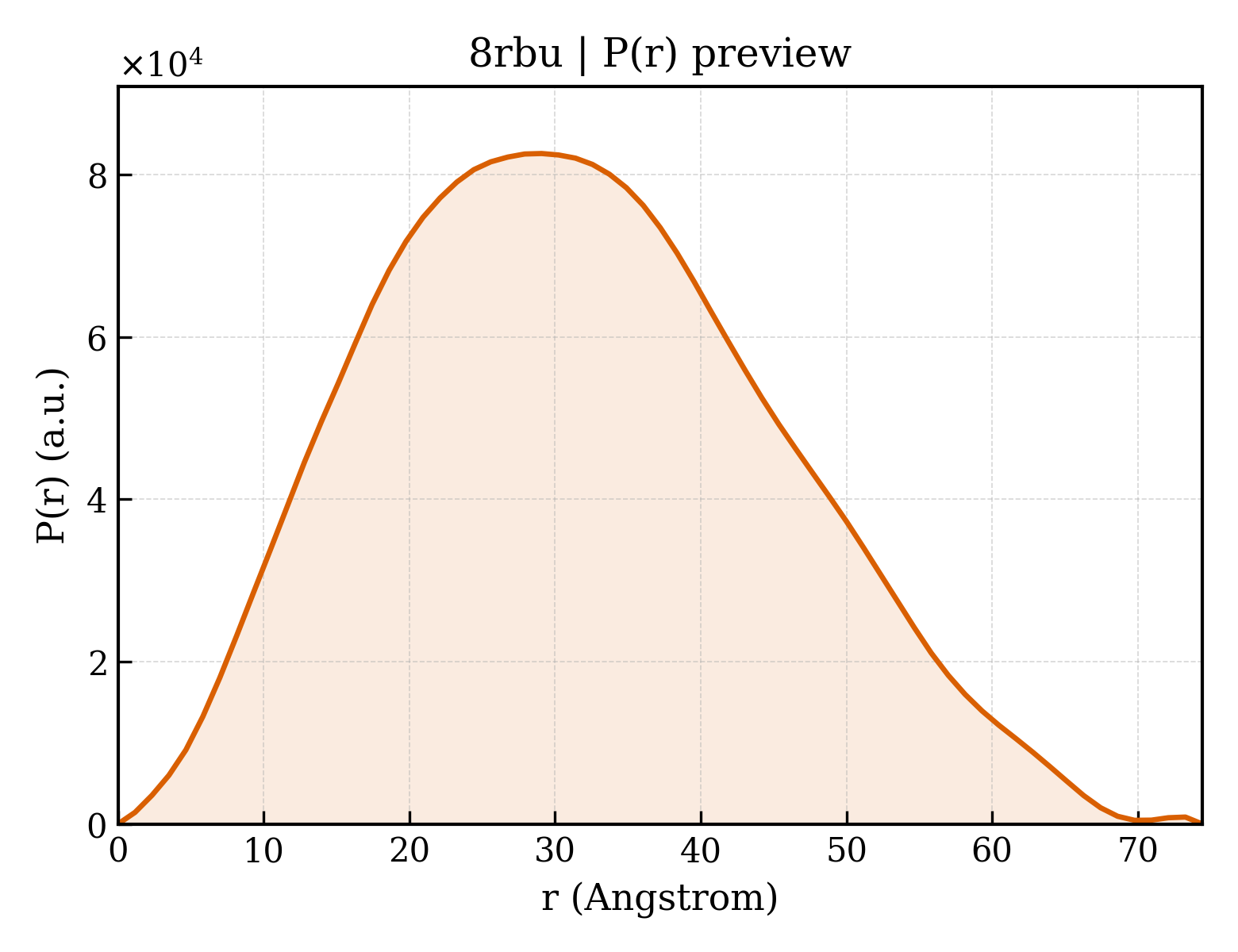

8rbu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.23 Å
Rg (electron density)	23.09 Å
Total Rg	23.93 Å
Atom count	3204
Residues	385
Excluded volume	56034 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8rbu__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	HLA class I histocompatibility antigen
Molecular weight formula_weight	40985.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3229

MAVMAPRTLLLLLSGALALTQTWAGSHSMRYFYTSVSRPGRGEPRFIAVGYVDDTQFVRFDSDAASQRMEPRAPWIEQEGPEYWDQETRNVKAQSQTDRVDLGTLRGYYNQSEDGSHTIQIMYGCDVGPDGRFLRGYRQDAYDGKDYIALNEDLRSWTAADMAAQITKRKWEAAHAAEQQRAYLEGRCVEWLRRYLENGKETLQRTDPPKTHMTHHPISDHEATLRCWALGFYPAEITLTWQRDGEDQTQDTELVETRPAGDGTFQKWAAVVVPSGEEQRYTCHVQHEGLPKPLTLRWELSSQPTIPIVGIIAGLVLLGAVITGAVVAAVMWRRKSSDRKGGSYTQAASSDSAQGSDVSLTACKV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 polymer

Description description	Beta-2-microglobulin
Molecular weight formula_weight	11879.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 3 Entity 3 polymer

Description description	;Spike protein S2' ;
Molecular weight formula_weight	1114.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

SVLNDILARL

Entity 4 Entity 4 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 6 Entity 6 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	16

▶

Unit-cell length a length_a	86.992 Å
Unit-cell length b length_b	86.992 Å
Unit-cell length c length_c	107.183 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 3 2 1
Space-group number int_tables_number	150
Crystal system crystal_system	trigonal

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	43.670 Å
R factor r_factor	0.2061
R_work r_work	0.2039
R_free r_free	0.2523
