8zer

Crystal structure of the complex of Wuhan SARS-CoV-2 RBD (319-541) with P2C5 nanobody

Method: X-RAY DIFFRACTION D_max: 145.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8zer
沉积日期 deposition_date	2024-05-06
结构标题 title	Crystal structure of the complex of Wuhan SARS-CoV-2 RBD (319-541) with P2C5 nanobody
关键词 keywords	SARS-CoV-2, Spike glycoprotein fragment, complex with nanobody, VIRAL PROTEIN, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	50.55 Å
回转半径 Rg (电子) rg_electron	50.29 Å
零角强度 I(0) i0	474844000.00
分子量 molecular_weight	176880.0 kDa
排除体积 excluded_volume	219280 Å³
包络体积 envelope_volume	340680 Å³
水化壳体积 shell_volume	58079 Å³
包络直径 envelope_diameter	160.2 Å
壳层 Rg shell_rg	51.94 Å
包络 Rg envelope_rg	48.61 Å
形状 Rg shape_rg	50.25 Å
总 Rg total_rg	50.49 Å
总原子数 total_atoms	12457
残基数 n_residues	1569
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

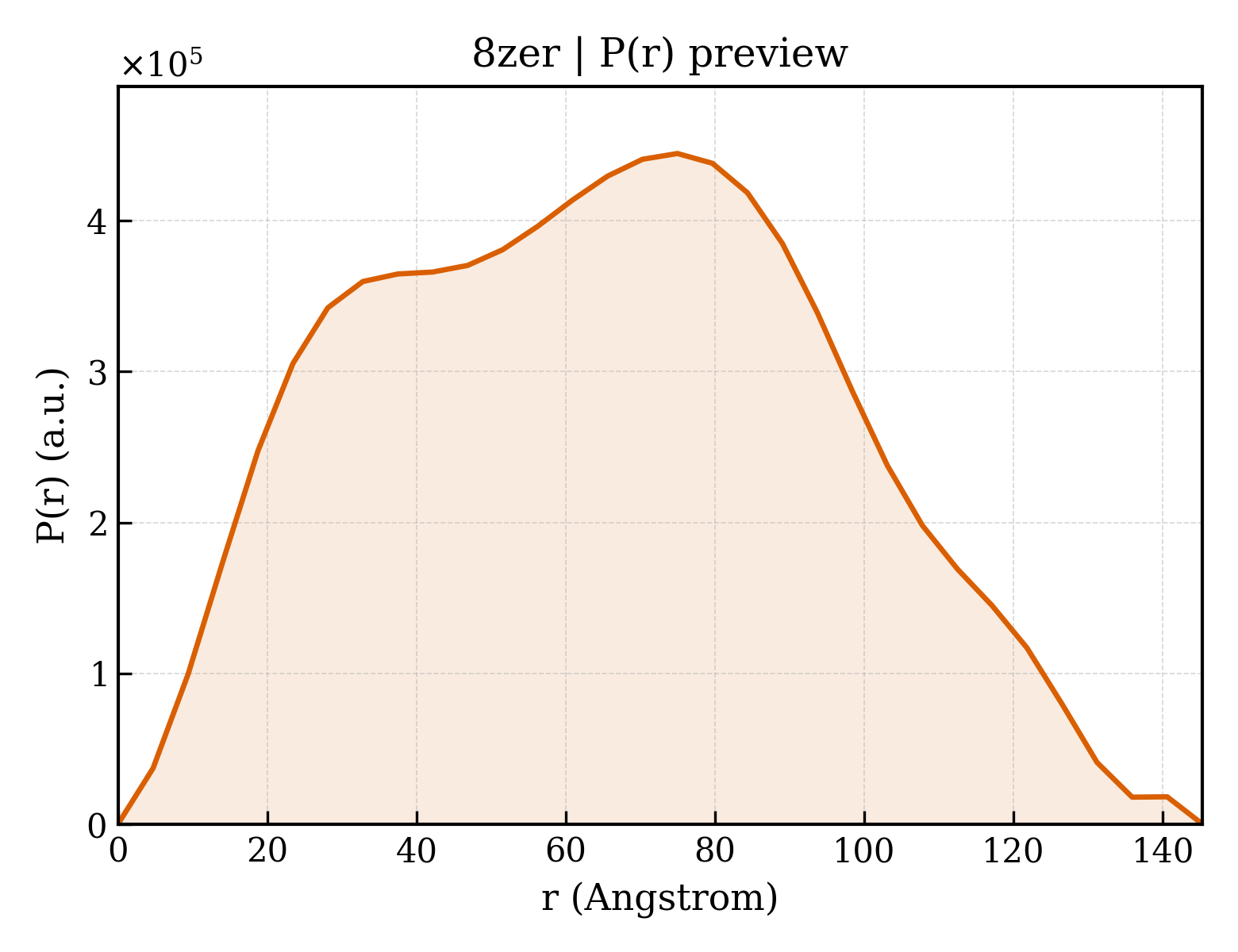

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	145.3 Å
Rg (实空间) rg_real	50.53 Å
Rg 误差 (实空间) rg_real_error	1.26 Å
I(0) (实空间) i0_real	4.7480e+08
I(0) 误差 (实空间) i0_real_error	8.7600e+06
Rg (倒空间) rg_reciprocal	50.55 Å
I(0) (倒空间) i0_reciprocal	474900000.0000
解质量估计 total_estimate	0.8412
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	75.0 Å
偏度 Skewness skewness	0.111
峰度 Kurtosis kurtosis	-0.771
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	21190000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.988; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Spike protein S1
分子量 formula_weight	26647.9 kDa
来源方法 src_method	man
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C,E,G,I
原子数 atom_count	12475

RVQPTESIVRFPNITNLCPFGEVFNATRFASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCVIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFGSHHHHHHHHHH

来源 Source

来源生物 organism	Severe acute respiratory syndrome coronavirus 2
NCBI 分类编号 ncbi_taxonomy_id	2697049
宿主生物 host_organism	Cricetulus griseus

Entity 2 polymer

描述 description	Nanobody P2C5
分子量 formula_weight	16046.5 kDa
来源方法 src_method	man
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D,F,H,J

EVQLVESGGGSVQAGGSLRLSCVASGYTYCSYDMSWYRQAPGKEREFVSIIRRDGSTAYTDAVKGRFAISRDNAKNTLYLQMNSLEPEDTAMYYCKSWACSSGEYLYQGDWGQGTQVTVSSAAAEQKLISEEDLNGAAHHHHHHGS

来源 Source

来源生物 organism	Camelus bactrianus
NCBI 分类编号 ncbi_taxonomy_id	9837
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 4 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 5 branched

描述 description	;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-beta-D-mannopyranose-(1-4)-[beta-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1276.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	72.483 Å
晶胞边长 b length_b	177.458 Å
晶胞边长 c length_c	209.861 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	20

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	45.170 Å
R 因子 r_factor	0.2248
R_work r_work	0.2218
R_free r_free	0.2827

fit	/app/data/saxs_computation/ze/8zer/8zer.fit
pddf	/app/data/pr_computation/ze/8zer/8zer.pr.out
profile	/app/data/saxs_computation/ze/8zer/8zer.dat
