7tlt

SARS-CoV-2 Spike-derived peptide S489-497 (YFPLQSYGF) presented by HLA-A*29:02

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HLA class I histocompatibility antigen, A alpha chain

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） Spike protein S1 peptide × 1 （P0DTC2） SULFATE ION × 3 MAGNESIUM ION × 2 SODIUM ION × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） Spike protein S1 peptide × 1 （P0DTC2） SULFATE ION × 2 SODIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B0UXQ0_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–365； UniProt 1–365 Author chain C； PDBConstruct 1–365； UniProt 1–365

Beta-2-microglobulin

Homo sapiens

UniProt P61769

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A alpha chain × 1 （B0UXQ0） Spike protein S1 peptide × 1 （P0DTC2） SULFATE ION × 3 MAGNESIUM ION × 2 SODIUM ION × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A alpha chain × 1 （B0UXQ0） Spike protein S1 peptide × 1 （P0DTC2） SULFATE ION × 2 SODIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2MG_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–100； UniProt 21–119 Author chain D； PDBConstruct 2–100； UniProt 21–119

Spike protein S1 peptide

OrganismNot specified

UniProt P0DTC2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A alpha chain × 1 （B0UXQ0） Beta-2-microglobulin × 1 （P61769） SULFATE ION × 3 MAGNESIUM ION × 2 SODIUM ION × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A alpha chain × 1 （B0UXQ0） Beta-2-microglobulin × 1 （P61769） SULFATE ION × 2 SODIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_SARS2
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–9； UniProt 489–497 Author chain F； PDBConstruct 1–9； UniProt 489–497

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7tlt
Deposition date deposition_date	2022-01-18
Structure title title	SARS-CoV-2 Spike-derived peptide S489-497 (YFPLQSYGF) presented by HLA-A*29:02
Keywords keywords	human leukocyte antigen, major histocompatibility complex, HLA-A29, HLA-A*29:02, SARS-CoV-2, Spike, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7tlt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7tlt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

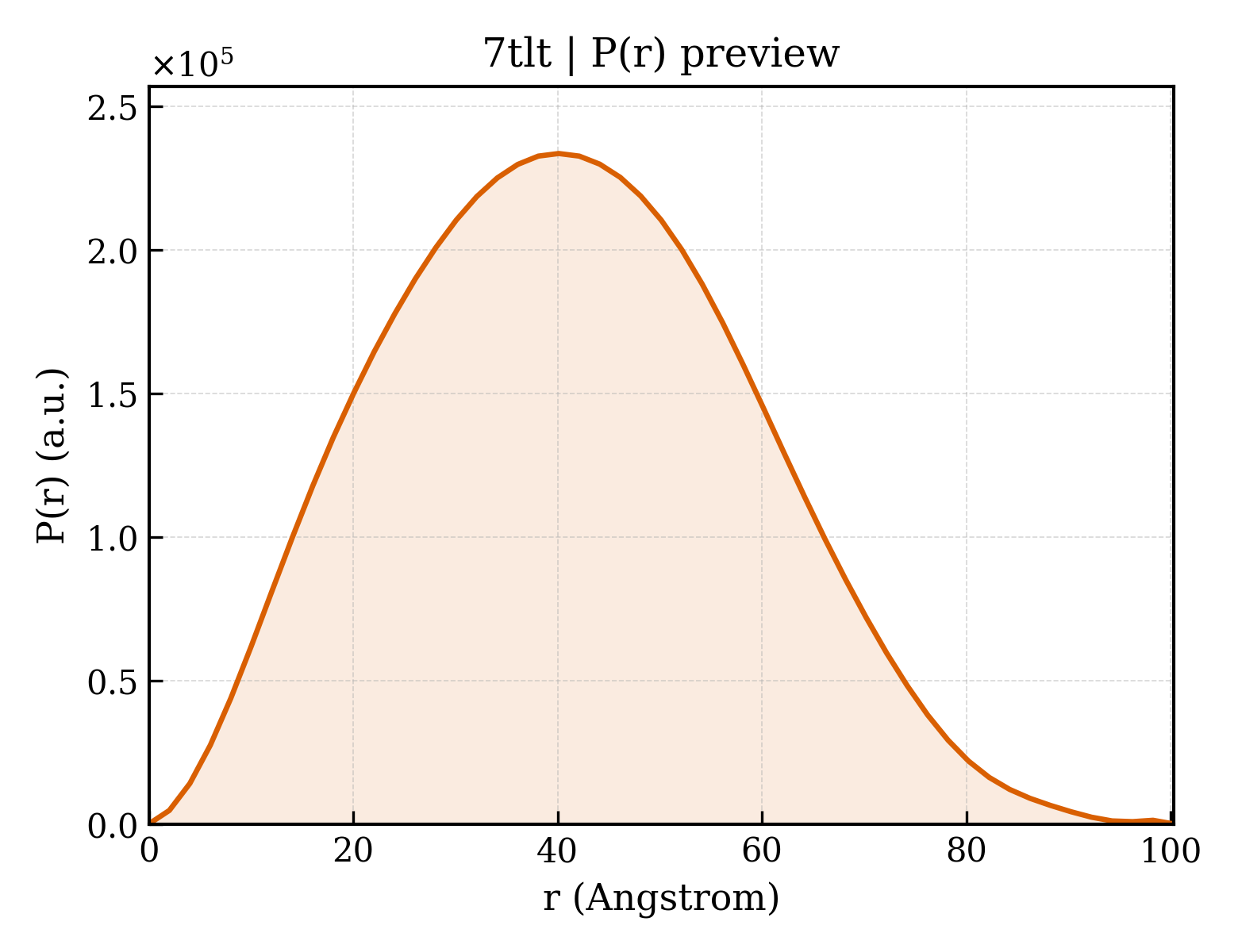

7tlt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.32 Å
Rg (electron density)	23.17 Å
Total Rg	24.01 Å
Atom count	3156
Residues	383
Excluded volume	54999 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7tlt__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`7tlt__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	HLA class I histocompatibility antigen, A alpha chain
Molecular weight formula_weight	40888.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	6403

MAVMAPRTLLLLLLGALALTQTWAGSHSMRYFTTSVSRPGRGEPRFIAVGYVDDTQFVRFDSDAASQRMEPRAPWIEQEGPEYWDLQTRNVKAQSQTDRANLGTLRGYYNQSEAGSHTIQMMYGCDVGSDGRFLRGYRQDAYDGKDYIALNEDLRSWTAADMAAQITQRKWEAARVAEQLRAYLEGTCVEWLRRYLENGKETLQRTDAPKTHMTHHAVSDHEATLRCWALSFYPAEITLTWQRDGEDQTQDTELVETRPAGDGTFQKWASVVVPSGQEQRYTCHVQHEGLPKPLTLRWEPSSQPTIPIVGIIAGLVLFGAVFAGAVVAAVRWRRKSSDRKGGSYSQAASSDSAQGSDMSLTACKV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 polymer

Description description	Beta-2-microglobulin
Molecular weight formula_weight	11879.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 3 Entity 3 polymer

Description description	Spike protein S1 peptide
Molecular weight formula_weight	1121.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

YFPLQSYGF

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	nat
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	nat
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	30

▶

Unit-cell length a length_a	48.812 Å
Unit-cell length b length_b	64.467 Å
Unit-cell length c length_c	76.422 Å
Unit-cell angle α angle_alpha	106.53 °
Unit-cell angle β angle_beta	92.43 °
Unit-cell angle γ angle_gamma	97.51 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	41.290 Å
R factor r_factor	0.1950
R_work r_work	0.1920
R_free r_free	0.2380
