1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1hhh
沉积日期 deposition_date	1993-06-30
结构标题 title	THE ANTIGENIC IDENTITY OF PEPTIDE(SLASH)MHC COMPLEXES: A COMPARISON OF THE CONFORMATION OF FIVE PEPTIDES PRESENTED BY HLA-A2
关键词 keywords	HISTOCOMPATIBILITY ANTIGEN; HISTOCOMPATIBILITY ANTIGEN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.15 Å
回转半径 Rg (电子) rg_electron	22.93 Å
零角强度 I(0) i0	36213900.00
分子量 molecular_weight	44816.0 kDa
排除体积 excluded_volume	55308 Å³
包络体积 envelope_volume	67370 Å³
水化壳体积 shell_volume	24585 Å³
包络直径 envelope_diameter	77.1 Å
壳层 Rg shell_rg	29.76 Å
包络 Rg envelope_rg	23.00 Å
形状 Rg shape_rg	22.91 Å
总 Rg total_rg	23.80 Å
总原子数 total_atoms	3167
残基数 n_residues	385
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	82.2 Å
Rg (实空间) rg_real	24.08 Å
Rg 误差 (实空间) rg_real_error	0.70 Å
I(0) (实空间) i0_real	3.6210e+07
I(0) 误差 (实空间) i0_real_error	5.1570e+05
Rg (倒空间) rg_reciprocal	24.10 Å
I(0) (倒空间) i0_reciprocal	36210000.0000
解质量估计 total_estimate	0.8068
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	29.6 Å
偏度 Skewness skewness	0.234
峰度 Kurtosis kurtosis	-0.488
角度范围 angular_range	— – 0.3300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	9709000.0000
实空间数据点数 n_real_points	65
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.838; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	CLASS I HISTOCOMPATIBILITY ANTIGEN (HLA-A*0201) (ALPHA CHAIN)
分子量 formula_weight	31854.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	3167

GSHSMRYFFTSVSRPGRGEPRFIAVGYVDDTQFVRFDSDAASQRMEPRAPWIEQEGPEYWDGETRKVKAHSQTHRVDLGTLRGYYNQSEAGSHTVQRMYGCDVGSDWRFLRGYHQYAYDGKDYIALKEDLRSWTAADMAAQTTKHKWEAAHVAEQLRAYLEGTCVEWLRRYLENGKETLQRTDAPKTHMTHHAVSDHEATLRCWALSFYPAEITLTWQRDGEDQTQDTELVETRPAGDGTFQKWAAVVVPSGQEQRYTCHVQHEGLPKPLTLRWE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	BETA 2-MICROGLOBULIN
分子量 formula_weight	11879.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	HEPATITIS B NUCLEOCAPSID PROTEIN (RESIDUES 18-27)
分子量 formula_weight	1155.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

FLPSDFFPSV

来源 Source

来源生物 organism	Hepatitis B virus
NCBI 分类编号 ncbi_taxonomy_id	10407

▼

6. 折叠分类 (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1hhha1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1hhha2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.19 — MHC antigen-recognition domain
超家族 Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
家族 Family family	d.19.1.1 — MHC antigen-recognition domain

结构域编号 domain_id	d1hhhb2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1hhhb3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

结构域编号 domain_id	1hhhA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

结构域编号 domain_id	1hhhA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1hhhB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (8)

The antigenic identity of peptide-MHC complexes: a comparison of the conformations of five viral peptides presented by HLA-A2.

Cell(Cambridge,Mass.) (1993)

PMID: 7694806 · DOI: 10.1016/0092-8674(93)90490-H PRIMARY

Definition of a Minimal Optimal Cytotoxic T-Cell Epitope within the Hepatitis B Virus Nucleocapsid Protein

J.Virol. (1993)

;Hla-A2-Peptide Complexes: Refolding and Crystallization of Molecules Expressed in Escherichia Coli and Complexed with Single Antigenic Peptides ;

Proc.Natl.Acad.Sci.USA (1992)

;The Three-Dimensional Structure of Hla-B27 at 2.1 Angstroms Resolution Suggests a General Mechanism for Tight Peptide Binding to Mhc ;

Cell(Cambridge,Mass.) (1992)

Refined Structure of the Human Histocompatibility Antigen Hla-A2 at 2.6 Angstroms Resolution

J.Mol.Biol. (1991)

Structure of the Human Class I Histocompatibility Antigen, Hla-A2

Nature (1987)

The Foreign Antigen Binding Site and T Cell Recognition Regions of Class I Histocompatibility Antigens

Nature (1987)

Crystallization and X-Ray Diffraction Studies on the Histocompatibility Antigens Hla-A2 and Hla-A28 from Human Cell Membranes

J.Mol.Biol. (1985)

▶

晶胞边长 a length_a	60.630 Å
晶胞边长 b length_b	81.240 Å
晶胞边长 c length_c	94.760 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	0.2860
R_work r_work	0.2860
R_free r_free	—

fit	/app/data/saxs_computation/hh/1hhh/1hhh.fit
pddf	/app/data/pr_computation/hh/1hhh/1hhh.pr.out
profile	/app/data/saxs_computation/hh/1hhh/1hhh.dat

THE ANTIGENIC IDENTITY OF PEPTIDE(SLASH)MHC COMPLEXES: A COMPARISON OF THE CONFORMATION OF FIVE PEPTIDES PRESENTED BY HLA-A2

SAXS 散射曲线 SAXS Profile

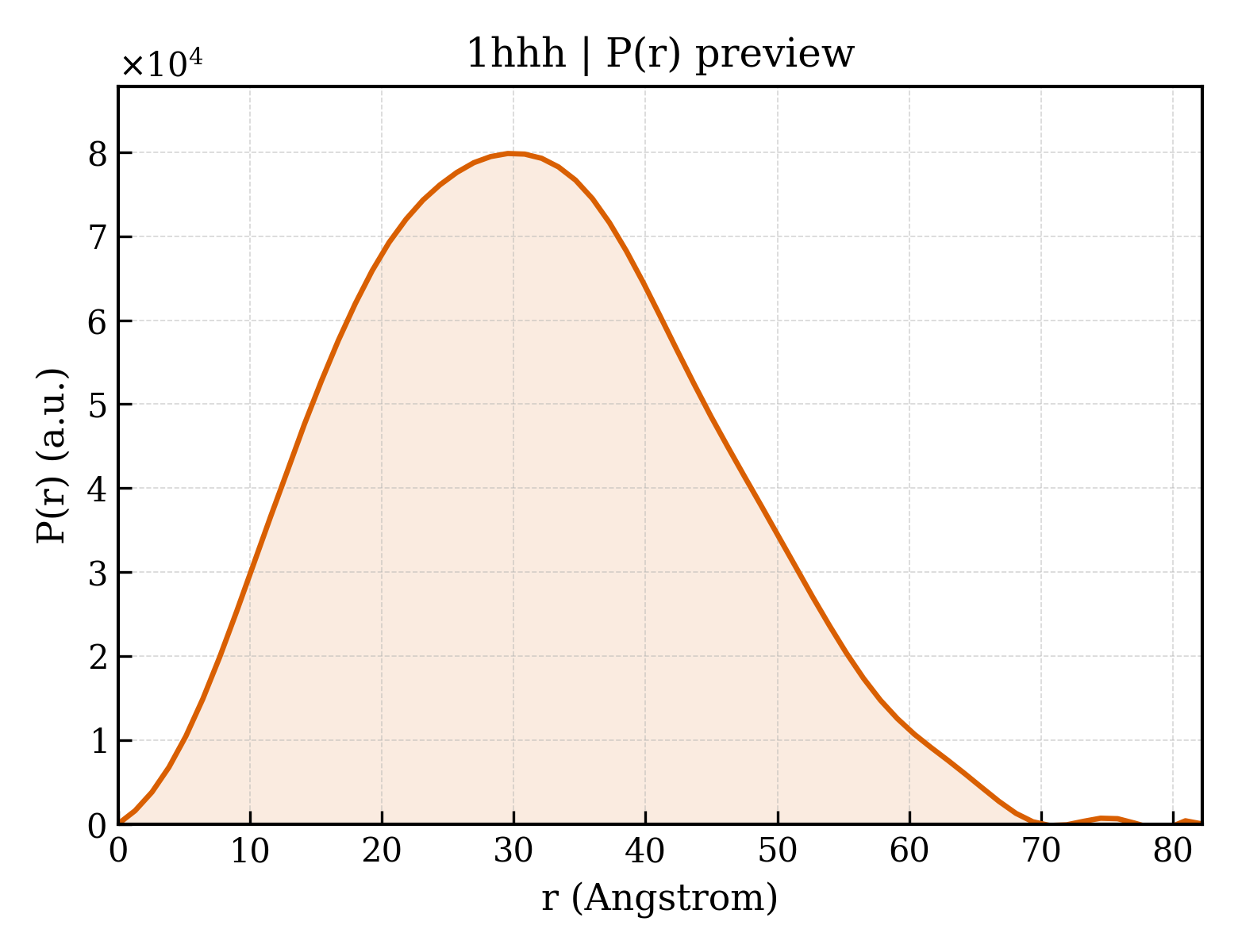

P(r) 距离分布 P(r) Distribution
