1. Protein Identity and Related Structures Protein Identity & Related Structures

MHC class I antigen

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Beta-2-microglobulin × 1 （P61769） Nucleoprotein NP4 epitope × 1 （Q08041） 3180 TCR alpha chain × 1 3180 TCR beta chain × 1 water × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 5	Beta-2-microglobulin × 1 （P61769） Nucleoprotein NP4 epitope × 1 （Q08041） 3180 TCR alpha chain × 1 3180 TCR beta chain × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	F4NBT2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–276； UniProt 25–300 Author chain F； PDBConstruct 1–276； UniProt 25–300

Beta-2-microglobulin

Homo sapiens

UniProt P61769

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	MHC class I antigen × 1 （F4NBT2） Nucleoprotein NP4 epitope × 1 （Q08041） 3180 TCR alpha chain × 1 3180 TCR beta chain × 1 water × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 5	MHC class I antigen × 1 （F4NBT2） Nucleoprotein NP4 epitope × 1 （Q08041） 3180 TCR alpha chain × 1 3180 TCR beta chain × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2MG_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–100； UniProt 21–119 Author chain G； PDBConstruct 2–100； UniProt 21–119

Nucleoprotein NP4 epitope

OrganismNot specified

UniProt Q08041

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	MHC class I antigen × 1 （F4NBT2） Beta-2-microglobulin × 1 （P61769） 3180 TCR alpha chain × 1 3180 TCR beta chain × 1 water × 5	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 5	MHC class I antigen × 1 （F4NBT2） Beta-2-microglobulin × 1 （P61769） 3180 TCR alpha chain × 1 3180 TCR beta chain × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NCAP_I72A4
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–9； UniProt 418–426 Author chain H； PDBConstruct 1–9； UniProt 418–426

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8en8
Deposition date deposition_date	2022-09-29
Structure title title	Cross-reactive 3180 TCR recognition of HLA-B*35:01-NP4 epitope from 1972 influenza strain
Keywords keywords	HLA B*3501, NP418 EPITOPE, T CELL IMMUNITY, GLYCOPROTEIN, HOST-VIRUS INTERACTION, IMMUNE RESPONSE, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8en8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8en8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

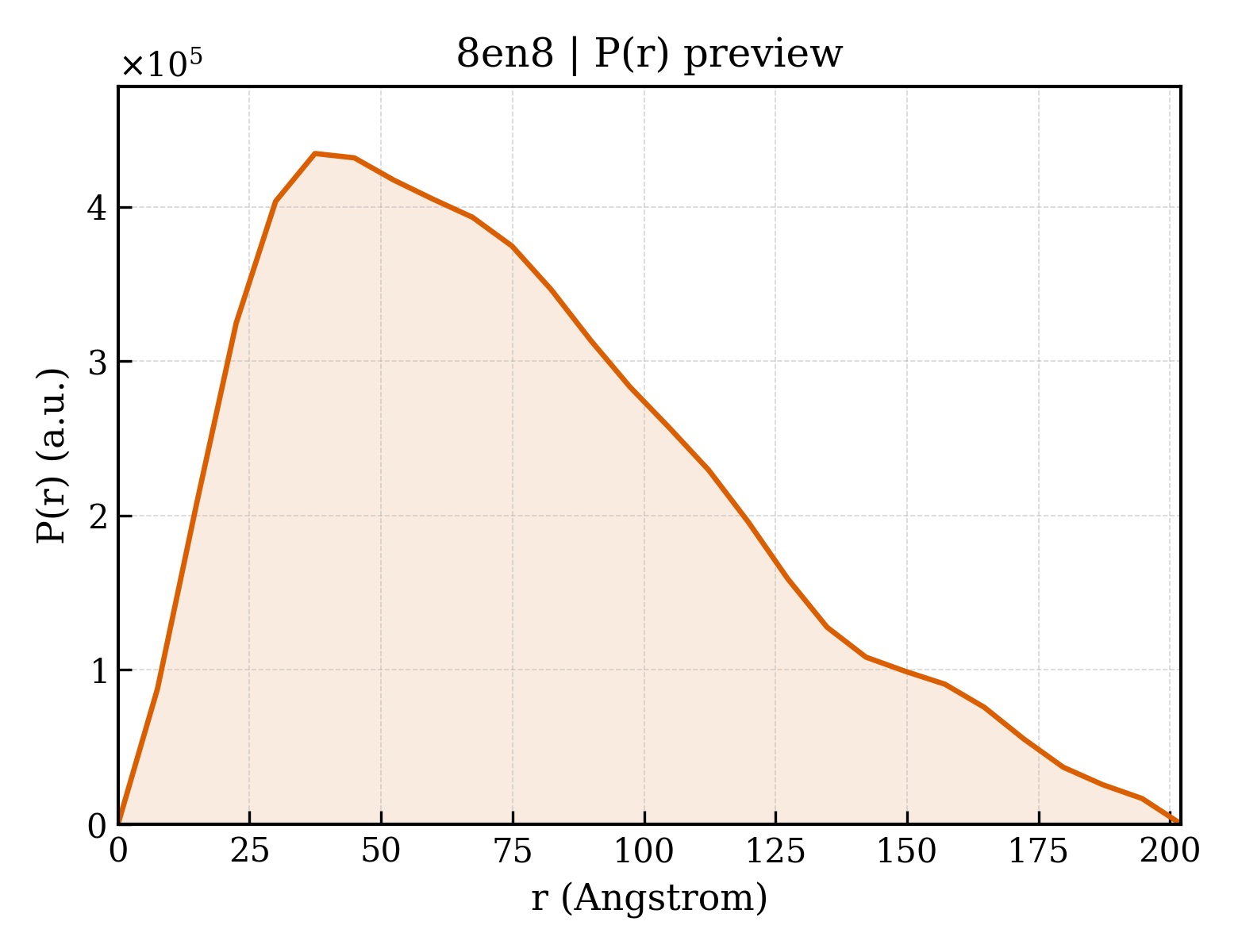

8en8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.57 Å
Rg (electron density)	37.81 Å
Total Rg	37.89 Å
Atom count	6687
Residues	834
Excluded volume	117260 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8en8__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8en8__assembly_2__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	MHC class I antigen
Molecular weight formula_weight	31940.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,F
Atom count atom_count	13859

GSHSMRYFYTAMSRPGRGEPRFIAVGYVDDTQFVRFDSDAASPRTEPRAPWIEQEGPEYWDRNTQIFKTNTQTYRESLRNLRGYYNQSEAGSHIIQRMYGCDLGPDGRLLRGHDQSAYDGKDYIALNEDLSSWTAADTAAQITQRKWEAARVAEQLRAYLEGLCVEWLRRYLENGKETLQRADPPKTHVTHHPVSDHEATLRCWALGFYPAEITLTWQRDGEDQTQDTELVETRPAGDRTFQKWAAVVVPSGEEQRYTCHVQHEGLPKPLTLRWEP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Beta-2-microglobulin
Molecular weight formula_weight	11879.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,G

MIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Nucleoprotein NP4 epitope
Molecular weight formula_weight	1052.3 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,H

LPFDKSTIM

Entity 4 Entity 4 polymer

Description description	3180 TCR alpha chain
Molecular weight formula_weight	22704.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,I

MGENVEQHPSTLSVQEGDSAVIKCTYSDSASNYFPWYKQELGKRPQLIIDIRSNVGEKKDQRIAVTLNKTAKHFSLHITETQPEDSAVYFCAADGGAGSYQLTFGKGTKLSVIPNIQNPDPAVYQLRDSKSSDKSVCLFTDFDSQTNVSQSKDSDVYITDKCVLDMRSMDFKSNSAVAWSNKSDFACANAFNNSIIPEDTFFPSP

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	3180 TCR beta chain
Molecular weight formula_weight	27520.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,J

VVSQHPSRVICKSGTSVKIECRSLDFQATTMFWYRQFPKQSLMLMATSNEGSKATYEQGVEKDKFLINHASLTLSTLTVTSAHPEDSSFYICSAGPTSGRTDTQYFGPGTRLTVLEDLKNVFPPEVAVFEPSEAEISHTQKATLVCLATGFYPDHVELSWWVNGKEVHSGVCTDPQPLKEQPALNDSRYALSSRLRVSATFWQNPRNHFRCQVQFYGLSENDEWTQDRAKPVTQIVSAEAWGRAD

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	469

▶

Unit-cell length a length_a	79.770 Å
Unit-cell length b length_b	116.686 Å
Unit-cell length c length_c	253.184 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	27.196 Å
R factor r_factor	0.2091
R_work r_work	0.2071
R_free r_free	0.2485
