9qwj

Crystal structure of S2c TCR in complex with CD1c

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-2-microglobulin,T-cell surface glycoprotein CD1c

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3 其他Polymer 1	TCR alpha × 1 TCR beta × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 1,2-ETHANEDIOL × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 beta-D-mannopyranose × 1 DODECANE × 2 CALCIUM ION × 1 water × 3	Consistent with protein count
2	Insufficient information	Heteromer	Protein 3 其他Polymer 1	TCR alpha × 1 TCR beta × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 1,2-ETHANEDIOL × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 beta-D-mannopyranose × 1 CALCIUM ION × 2 DECANE × 2 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD1C_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 135–408； UniProt 24–297 Author chain N； PDBConstruct 135–408； UniProt 24–297

Beta-2-microglobulin,T-cell surface glycoprotein CD1c

Homo sapiens

UniProt P61769

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3 其他Polymer 1	TCR alpha × 1 TCR beta × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 1,2-ETHANEDIOL × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 beta-D-mannopyranose × 1 DODECANE × 2 CALCIUM ION × 1 water × 3	Consistent with protein count
2	Insufficient information	Heteromer	Protein 3 其他Polymer 1	TCR alpha × 1 TCR beta × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 1,2-ETHANEDIOL × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 beta-D-mannopyranose × 1 CALCIUM ION × 2 DECANE × 2 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2MG_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 21–118； UniProt 21–118 Author chain N； PDBConstruct 21–118； UniProt 21–118

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9qwj
Deposition date deposition_date	2025-04-14
Last revision last_revision	2025-08-20
Structure title title	Crystal structure of S2c TCR in complex with CD1c
Keywords keywords	T cell receptor, TCR, CD1c, lipids, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9qwj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9qwj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

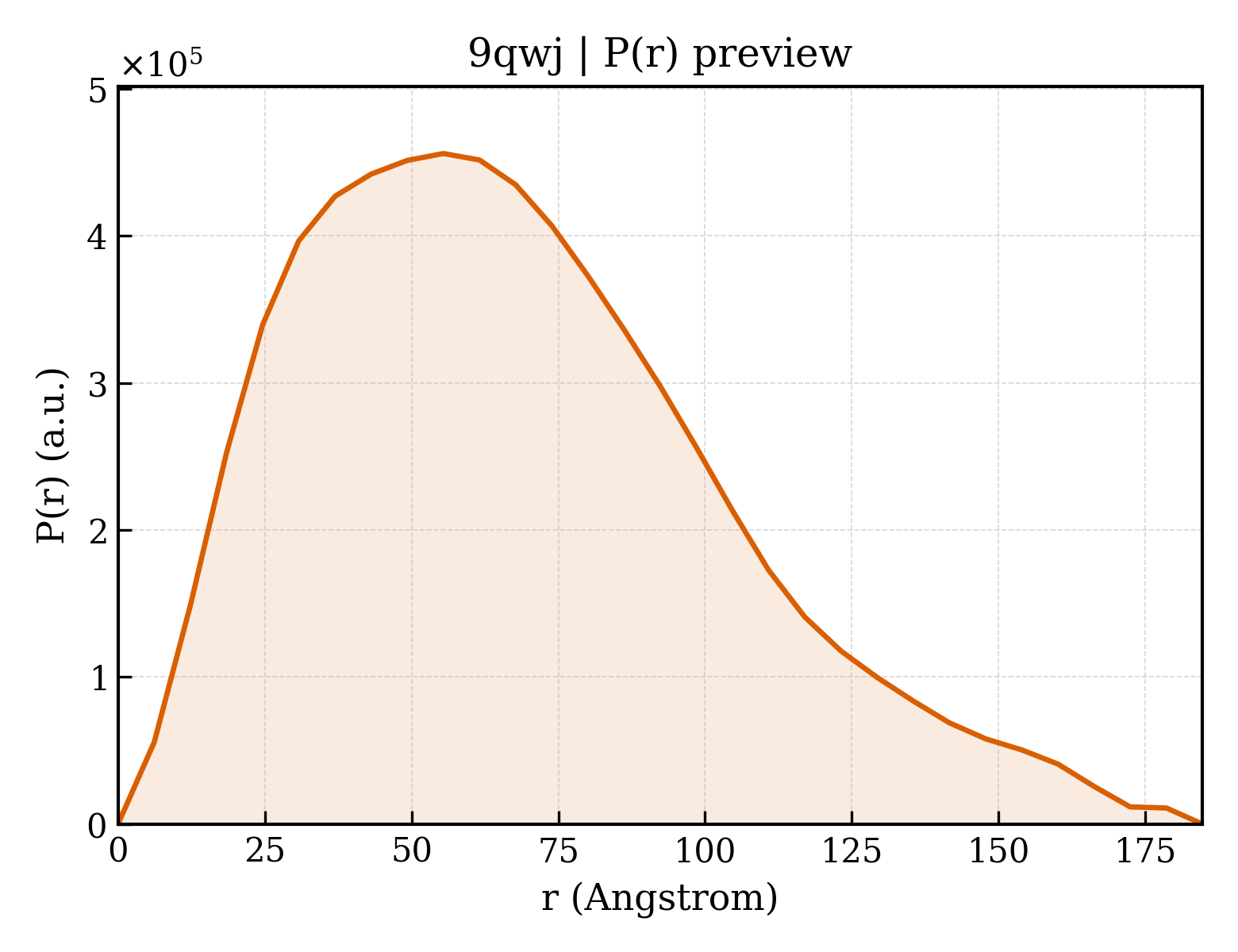

9qwj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.82 Å
Rg (electron density)	38.03 Å
Total Rg	38.23 Å
Atom count	6559
Residues	804
Excluded volume	115690 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9qwj__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`9qwj__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	Beta-2-microglobulin,T-cell surface glycoprotein CD1c
Molecular weight formula_weight	49744.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,N
Atom count atom_count	13571

MYRMQLLSCIALSLALVTNSIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDIGGGGSGGGGSGGGGSEHVSFHVIQIFSFVNQSWARGQGSGWLDELQTHGWDSESGTIIFLHNWSKGNFSNEELSDLELLFRFYLFGLTREIQDHASQDYSKYPFEVQVKAGCELHSGKSPEGFFQVAFNGLDLLSFQNTTWVPSPGCGSLAQSVCHLLNHQYEGVTETVYNLIRSTCPRFLLGLLDAGKMYVHRQVRPEAWLSSRPSLGSGQLLLVCHASGFYPKPVWVTWMRNEQEQLGTKHGDILPNADGTWYLQVILEVASEEPAGLSCRVRHSSLGGQDIILYWGSLSTPPTPSTPPTGLNDIFEAQKIEWHEHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	TCR alpha
Molecular weight formula_weight	21936.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,T

MGNSVTQMEGPVTLSEEAFLTINCTYTATGYPSLFWYVQYPGEGLQLLLKATKADDKGSNKGFEATYRKETTSFHLEKGSVQVSDSAVYFCALSDQYGWGKLQFGAGTQVVVTPDIQNPDPAVYQLRDSKSSDKSVCLFTDFDSQTNVSQSKDSDVYITDKCVLDMRSMDFKSNSAVAWSNKSDFACANAFNNSIIPED

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	TCR beta
Molecular weight formula_weight	28059.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,U

MDTGVSQNPRHKITKRGQNVTFRCDPISEHNRLYWYRQTLGQGPEFLTYFQNEAQLEKSRLLSDRFSAERPKGSFSTLEIQRTEQGDSAMYLCASSPRTGRGAEAFFGQGTRLTVVEDLNKVFPPEVAVFEPSEAEISHTQKATLVCLATGFYPDHVELSWWVNGKEVHSGVCTDPQPLKEQPALNDSRYALSSRLRVSATFWQDPRNHFRCQVQFYGLSENDEWTQDRAKPVTQIVSAEAWGRAD

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 7 Entity 7 non-polymer

Description description	beta-D-mannopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	DODECANE
Molecular weight formula_weight	170.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 10 Entity 10 non-polymer

Description description	DECANE
Molecular weight formula_weight	142.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 11 Entity 11 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	511

▶

Unit-cell length a length_a	85.373 Å
Unit-cell length b length_b	122.068 Å
Unit-cell length c length_c	108.696 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.03 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.040 Å
Low-resolution limit resolution_low	67.030 Å
R factor r_factor	0.2021
R_work r_work	0.2004
R_free r_free	0.2350
