1i1f

Crystal structure of human class i mhc (hla-a2.1) complexed with beta 2-microglobulin and hiv-rt variant peptide i1y

Method: X-RAY DIFFRACTION D_max: 130.9 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1i1f
沉积日期 deposition_date	1999-04-16
结构标题 title	Crystal structure of human class i mhc (hla-a2.1) complexed with beta 2-microglobulin and hiv-rt variant peptide i1y
关键词 keywords	HUMAN CLASS I MHC, HIV, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	40.28 Å
回转半径 Rg (电子) rg_electron	40.17 Å
零角强度 I(0) i0	129897000.00
分子量 molecular_weight	89323.0 kDa
排除体积 excluded_volume	110220 Å³
包络体积 envelope_volume	154080 Å³
水化壳体积 shell_volume	33267 Å³
包络直径 envelope_diameter	132.9 Å
壳层 Rg shell_rg	43.60 Å
包络 Rg envelope_rg	39.03 Å
形状 Rg shape_rg	40.17 Å
总 Rg total_rg	40.36 Å
总原子数 total_atoms	6311
残基数 n_residues	768
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

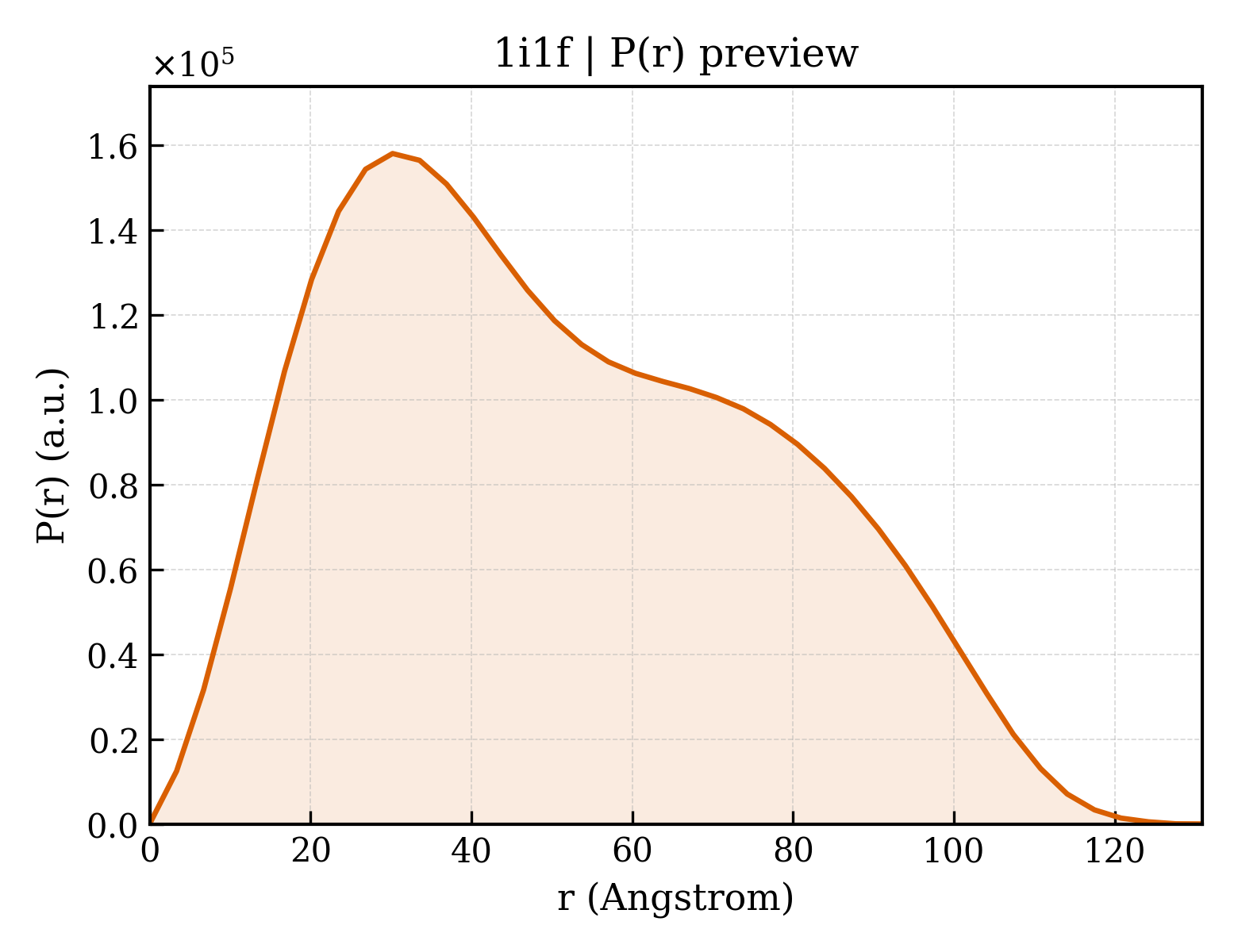

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	130.9 Å
Rg (实空间) rg_real	40.51 Å
Rg 误差 (实空间) rg_real_error	1.24 Å
I(0) (实空间) i0_real	1.2990e+08
I(0) 误差 (实空间) i0_real_error	2.0330e+06
Rg (倒空间) rg_reciprocal	40.28 Å
I(0) (倒空间) i0_reciprocal	129900000.0000
解质量估计 total_estimate	0.6078
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	30.2 Å
偏度 Skewness skewness	0.344
峰度 Kurtosis kurtosis	-0.829
角度范围 angular_range	— – 0.1950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	9445000.0000
实空间数据点数 n_real_points	40
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.783; Stabil: 1.000; Sysdev: 0.107; Positv: 1.000; Valcen: 0.608; Smooth: 0.619

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	PROTEIN (CLASS I HISTOCOMPATIBILITY ANTIGEN, GOGO-A0201 ALPHA CHAIN)
分子量 formula_weight	31854.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D
原子数 atom_count	6311

GSHSMRYFFTSVSRPGRGEPRFIAVGYVDDTQFVRFDSDAASQRMEPRAPWIEQEGPEYWDGETRKVKAHSQTHRVDLGTLRGYYNQSEAGSHTVQRMYGCDVGSDWRFLRGYHQYAYDGKDYIALKEDLRSWTAADMAAQTTKHKWEAAHVAEQLRAYLEGTCVEWLRRYLENGKETLQRTDAPKTHMTHHAVSDHEATLRCWALSFYPAEITLTWQRDGEDQTQDTELVETRPAGDGTFQKWAAVVVPSGQEQRYTCHVQHEGLPKPLTLRWE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	PROTEIN (BETA 2-MICROGLOBULIN)
分子量 formula_weight	11879.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,E

MIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	PROTEIN (HIV-RT VARIANT PEPTIDE I1F (FLKEPVHGV))
分子量 formula_weight	1027.2 kDa
突变 mutation	I1F
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,F

FLKEPVHGV

▼

6. 折叠分类 (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1i1fa1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1i1fa2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.19 — MHC antigen-recognition domain
超家族 Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
家族 Family family	d.19.1.1 — MHC antigen-recognition domain

结构域编号 domain_id	d1i1fb2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1i1fb3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1i1fd1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1i1fd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.19 — MHC antigen-recognition domain
超家族 Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
家族 Family family	d.19.1.1 — MHC antigen-recognition domain

结构域编号 domain_id	d1i1fe2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1i1fe3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

CATH v4.4 (6 domains)

结构域编号 domain_id	1i1fA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

结构域编号 domain_id	1i1fA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1i1fB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1i1fD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

结构域编号 domain_id	1i1fD02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1i1fE00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	49.574 Å
晶胞边长 b length_b	62.970 Å
晶胞边长 c length_c	74.559 Å
晶胞夹角 α angle_alpha	82.09 °
晶胞夹角 β angle_beta	76.47 °
晶胞夹角 γ angle_gamma	77.78 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	15.000 Å
R 因子 r_factor	0.2740
R_work r_work	0.2600
R_free r_free	0.3150

fit	/app/data/saxs_computation/i1/1i1f/1i1f.fit
pddf	/app/data/pr_computation/i1/1i1f/1i1f.pr.out
profile	/app/data/saxs_computation/i1/1i1f/1i1f.dat
