SAXSdb — 7lli

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Major histocompatibility complex class I-related gene protein

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Beta-2-microglobulin × 1 （P61769） T cell receptor gamma variable 8 × 1 （A0A0C4DH27） T cell receptor delta variable 3 × 1 （A0JD37） 1-deoxy-1-({2,6-dioxo-5-[(E)-propylideneamino]-1,2,3,6-tetrahydropyrimidin-4-yl}amino)-D-ribitol × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Beta-2-microglobulin × 1 （P61769） T cell receptor gamma variable 8 × 1 （A0A0C4DH27） T cell receptor delta variable 3 × 1 （A0JD37） 1-deoxy-1-({2,6-dioxo-5-[(E)-propylideneamino]-1,2,3,6-tetrahydropyrimidin-4-yl}amino)-D-ribitol × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HMR1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–271； UniProt 23–292 Author chain C； PDBConstruct 2–271； UniProt 23–292

Beta-2-microglobulin

Homo sapiens

UniProt P61769

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Major histocompatibility complex class I-related gene protein × 1 （Q95460） T cell receptor gamma variable 8 × 1 （A0A0C4DH27） T cell receptor delta variable 3 × 1 （A0JD37） 1-deoxy-1-({2,6-dioxo-5-[(E)-propylideneamino]-1,2,3,6-tetrahydropyrimidin-4-yl}amino)-D-ribitol × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Major histocompatibility complex class I-related gene protein × 1 （Q95460） T cell receptor gamma variable 8 × 1 （A0A0C4DH27） T cell receptor delta variable 3 × 1 （A0JD37） 1-deoxy-1-({2,6-dioxo-5-[(E)-propylideneamino]-1,2,3,6-tetrahydropyrimidin-4-yl}amino)-D-ribitol × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2MG_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–100； UniProt 21–119 Author chain D； PDBConstruct 2–100； UniProt 21–119

T cell receptor gamma variable 8

Homo sapiens

UniProt A0A0C4DH27

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Major histocompatibility complex class I-related gene protein × 1 （Q95460） Beta-2-microglobulin × 1 （P61769） T cell receptor delta variable 3 × 1 （A0JD37） 1-deoxy-1-({2,6-dioxo-5-[(E)-propylideneamino]-1,2,3,6-tetrahydropyrimidin-4-yl}amino)-D-ribitol × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Major histocompatibility complex class I-related gene protein × 1 （Q95460） Beta-2-microglobulin × 1 （P61769） T cell receptor delta variable 3 × 1 （A0JD37） 1-deoxy-1-({2,6-dioxo-5-[(E)-propylideneamino]-1,2,3,6-tetrahydropyrimidin-4-yl}amino)-D-ribitol × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRGV8_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 3–101； UniProt 19–117 Author chain K； PDBConstruct 3–101； UniProt 19–117

T cell receptor delta variable 3

Homo sapiens

UniProt A0JD37

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Major histocompatibility complex class I-related gene protein × 1 （Q95460） Beta-2-microglobulin × 1 （P61769） T cell receptor gamma variable 8 × 1 （A0A0C4DH27） 1-deoxy-1-({2,6-dioxo-5-[(E)-propylideneamino]-1,2,3,6-tetrahydropyrimidin-4-yl}amino)-D-ribitol × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	Major histocompatibility complex class I-related gene protein × 1 （Q95460） Beta-2-microglobulin × 1 （P61769） T cell receptor gamma variable 8 × 1 （A0A0C4DH27） 1-deoxy-1-({2,6-dioxo-5-[(E)-propylideneamino]-1,2,3,6-tetrahydropyrimidin-4-yl}amino)-D-ribitol × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRDV3_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain F； PDBConstruct 2–95； UniProt 19–112 Author chain L； PDBConstruct 2–95； UniProt 19–112

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7lli
Deposition date deposition_date	2021-02-04
Structure title title	Stimulatory immune receptor protein complex
Keywords keywords	Immune receptor complex, metabolite immunity, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7lli__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7lli__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

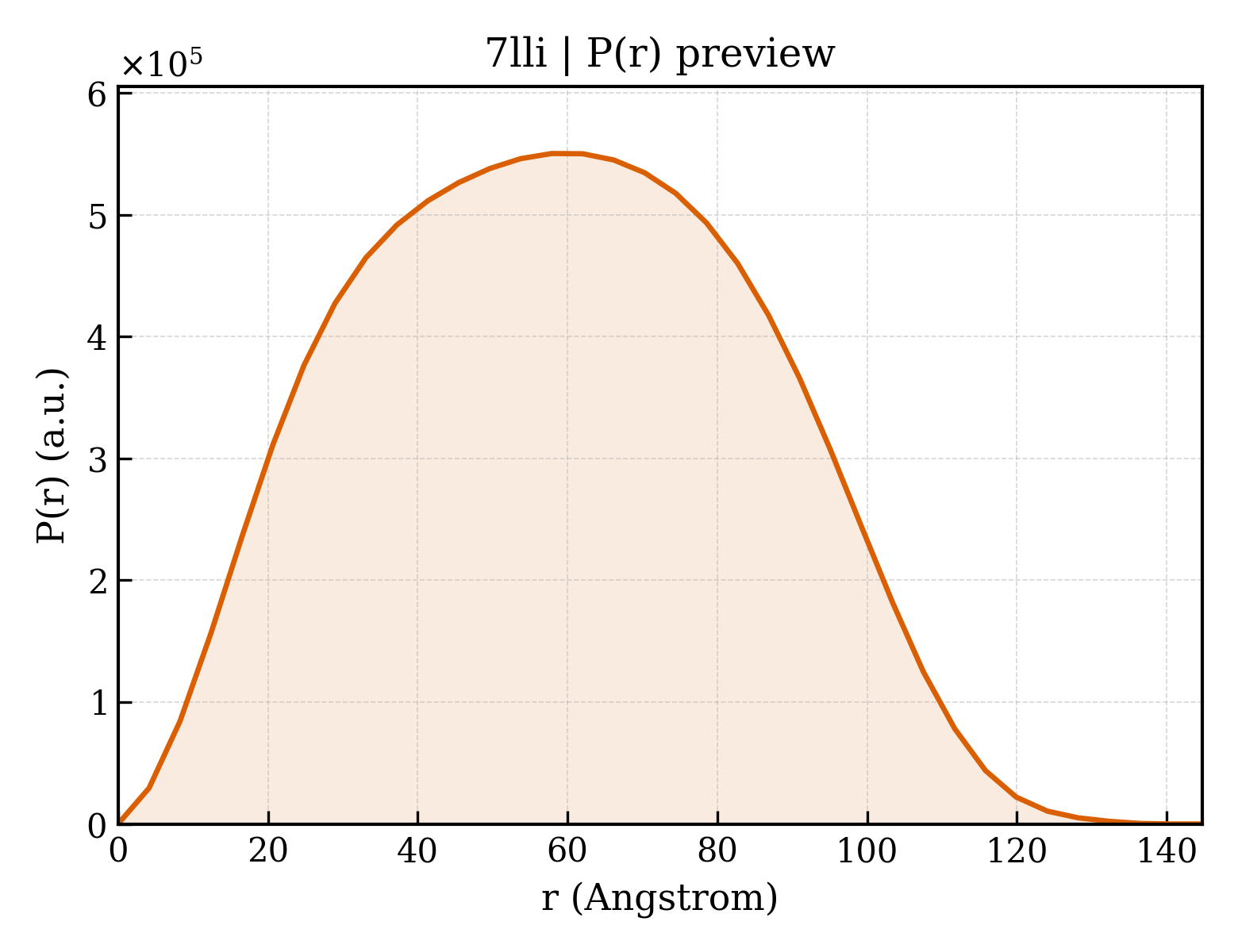

7lli__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.90 Å
Rg (electron density)	36.72 Å
Total Rg	37.05 Å
Atom count	6605
Residues	810
Excluded volume	116300 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7lli__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`7lli__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Major histocompatibility complex class I-related gene protein
Molecular weight formula_weight	31711.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,A
Atom count atom_count	13201

MRTHSLRYFRLGVSDPIHGVPEFISVGYVDSHPITTYDSVTRQKEPRAPWMAENLAPDHWERYTQLLRGWQQMFKVELKRLQRHYNHSGSHTYQRMIGCELLEDGSTTGFLQYAYDGQDFLIFNKDTLSWLAVDNVAHTIKQAWEANQHELLYQKNWLEEECIAWLKRFLEYGKDTLQRTEPPLVRVNRKETFPGVTALFCKAHGFYPPEIYMTWMKNGEEIVQEIDYGDILPSGDGTYQAWASIELDPQSSNLYSCHVEHSGVHMVLQVP

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Beta-2-microglobulin
Molecular weight formula_weight	11879.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,B

MIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	T cell receptor gamma variable 8
Molecular weight formula_weight	27757.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K,E

TGSSNLEGRTKSVTRPTGSSAVITCDLPVENAVYTHWYLHQEGKAPQRLLYYDSYNSRVVLESGISREKYHTYASTGKSLKFILENLIERDSGVYYCATWDYKKLFGSGTTLVVTEDLKNVFPPEVAVFEPSEAEISHTQKATLVCLATGFYPDHVELSWWVNGKEVHSGVCTDPQPLKEQPALNDSRYALSSRLRVSATFWQNPRNHFRCQVQFYGLSENDEWTQDRAKPVTQIVSAEAWGRAD

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	T cell receptor delta variable 3
Molecular weight formula_weight	24109.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,F

SDKVTQSSPDQTVASGSEVVLLCTYDTVYSNPDLFWYRIRPDYSFQFVFYGDNSRSEGADFTQGRFSVKHILTQKAFHLVISPVRTEDSATYYCATRLWLGDPHTDKLIFGKGTRVTVEPNIQNPDPAVYQLRDSKSSDKSVCLFTDFDSQTNVSQSKDSDVYITDKCVLDMRSMDFKSNSAVAWSNKSDFACANAFNNSIIPEDTFFPSPESS

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 non-polymer

Description description	1-deoxy-1-({2,6-dioxo-5-[(E)-propylideneamino]-1,2,3,6-tetrahydropyrimidin-4-yl}amino)-D-ribitol
Molecular weight formula_weight	316.3 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	296.976 Å
Unit-cell length b length_b	296.976 Å
Unit-cell length c length_c	122.635 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	trigonal

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	88.750 Å
R factor r_factor	0.2528
R_work r_work	0.2438
R_free r_free	0.2629
