9upr

Cryo-EM structure of the N-terminal domain of Omicron BA.1 in complex with nanobody N103 and S2L20 Fab

Method: ELECTRON MICROSCOPY D_max: 121.2 Å Quality: GOOD

SAXS Profile

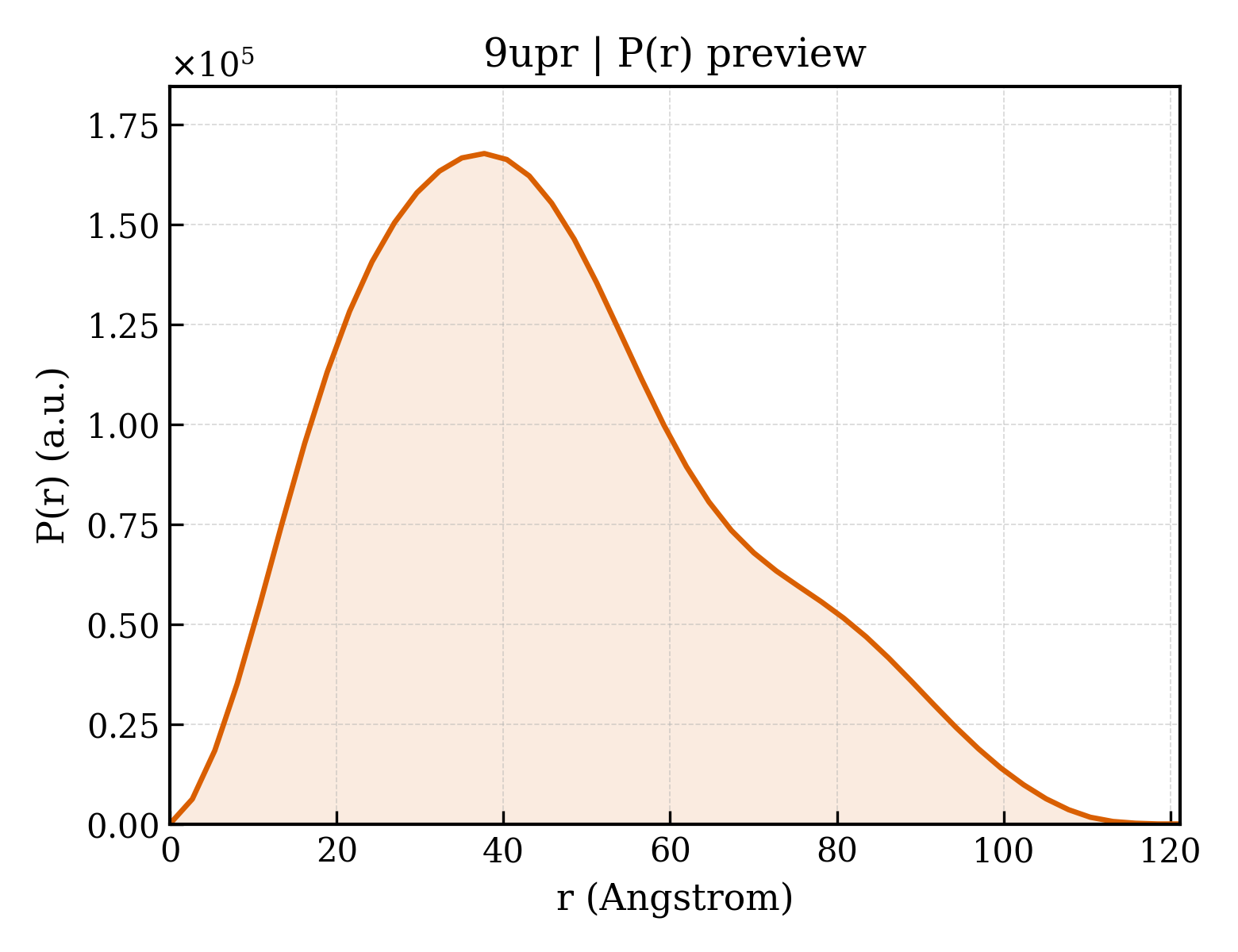

P(r) Distribution

▼

1. Structure Basics

entry_id	9upr
deposition_date	2025-04-28
title	Cryo-EM structure of the N-terminal domain of Omicron BA.1 in complex with nanobody N103 and S2L20 Fab
keywords	complex, VIRAL PROTEIN/IMMUNE SYSTEM, VIRAL PROTEIN-IMMUNE SYSTEM complex, VIRAL PROTEIN; VIRAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.17 Å
rg_electron	35.03 Å
i0	113287000.00
molecular_weight	85218.0 kDa
excluded_volume	106680 Å³
envelope_volume	150130 Å³
shell_volume	38306 Å³
envelope_diameter	120.4 Å
shell_rg	38.76 Å
envelope_rg	35.00 Å
shape_rg	34.98 Å
total_rg	35.50 Å
total_atoms	6014
n_residues	763
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	121.2 Å
rg_real	35.41 Å
rg_real_error	1.25 Å
i0_real	1.1330e+08
i0_real_error	1.7310e+06
rg_reciprocal	35.26 Å
i0_reciprocal	113300000.0000
total_estimate	0.8506
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	37.7 Å
skewness	0.509
kurtosis	-0.331
angular_range	— – 0.2250 Å⁻¹
current_alpha	0.0000
highest_alpha	16680000.0000
n_real_points	46
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.773; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.872; Smooth: 0.862

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	S2L20 light chain
formula_weight	26018.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	6014

METDTLLLWVLLLWVPGSTGDVIWMTQSPSSLSASVGDRVTITCQASQDIRFYLNWYQQKPGKAPKLLISDASNMETGVPSRFSGSGSGTDFTFTISSLQPEDIATYYCQQYDNLPFTFGPGTKVDFKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGECS

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	S2L20 heavy chain
formula_weight	52041.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

METDTLLLWVLLLWVPGSTGDEVQLVESGGGVVQPGGSLRLSCAASGFTFNSYGMHWVRQAPGKGLEWVAFIRYDGGNKYYADSVKGRFTISRDNSKNTLYLQMKSLRAEDTAVYYCANLKDSRYSGSYYDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTHTCPPCPAPELLGGPSVFLFPPKPKDTLMISRTPEVTCVVVDVSHEDPEVKFNWYVDGVEVHNAKTKPREEQYNSTYRVVSVLTVLHQDWLNGKEYKCKVSNKALPAPIEKTISKAKGQPREPQVYTLPPSRDELTKNQVSLTCLVKGFYPSDIAVEWESNGQPENNYKTTPPVLDSDGSFFLYSKLTVDKSRWQQGNVFSCSVMHEALHNHYTQKSLSLSPGK

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 polymer

description	nanobody N103
formula_weight	12959.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

QVQLQESGGGLVQPGGSLRLSCAASVNLFIGATMAWYRQAPGNQRELVATIGAGGTTNYADSVKGRFTASRDDAKKTIYLQMNSLTPEDTAVYYCNYGSMSNPRTSGPNAFWGRGTQVTVSS

Source

organism	Vicugna pacos
ncbi_taxonomy_id	30538
host_organism	Homo sapiens

Entity 4 polymer

description	Spike glycoprotein
formula_weight	34909.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	F

MFVFLVLLPLVSSQCVNLTTRTQLPPAYTNSFTRGVYYPDKVFRSSVLHSTQDLFLPFFSNVTWFHVISGTNGTKRFDNPVLPFNDGVYFASIEKSNIIRGWIFGTTLDSKTQSLLIVNNATNVVIKVCEFQFCNDPFLDHKNNKSWMESEFRVYSSANNCTFEYVSQPFLMDLEGKQGNFKNLREFVFKNIDGYFKIYSKHTPIREPEDLPQGFSALEPLVDLPIGINITRFQTLLALHRSYLTPGDSSSGWTAGAAAYYVGYLQPRTFLLKYNENGTITDAVDCALDPLSETKCTLKSHHHHHH

Source

organism	Severe acute respiratory syndrome coronavirus 2
common_name	2019-nCoV, SARS-CoV-2
ncbi_taxonomy_id	2697049
host_organism	Homo sapiens

Entity 5 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	1

Entity 6 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.770 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.77 Å
resolution_method	—
num_particles	185260
