SAXSdb — 8xyz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Signal peptide, Spike protein S1

Severe acute respiratory syndrome coronavirus 2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Angiotensin-converting enzyme × 1 （A0A3Q7RAT9） ZINC ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_SARS2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 49–267； UniProt 323–541

Angiotensin-converting enzyme

Vulpes vulpes

UniProt A0A3Q7RAT9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Signal peptide, Spike protein S1 × 1 （P0DTC2） ZINC ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A3Q7RAT9_VULVU
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–613； UniProt 1–613

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8xyz
Deposition date deposition_date	2024-01-20
Structure title title	The structure of fox ACE2 and PT RBD complex
Keywords keywords	fox ACE2/PT RBD, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8xyz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8xyz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

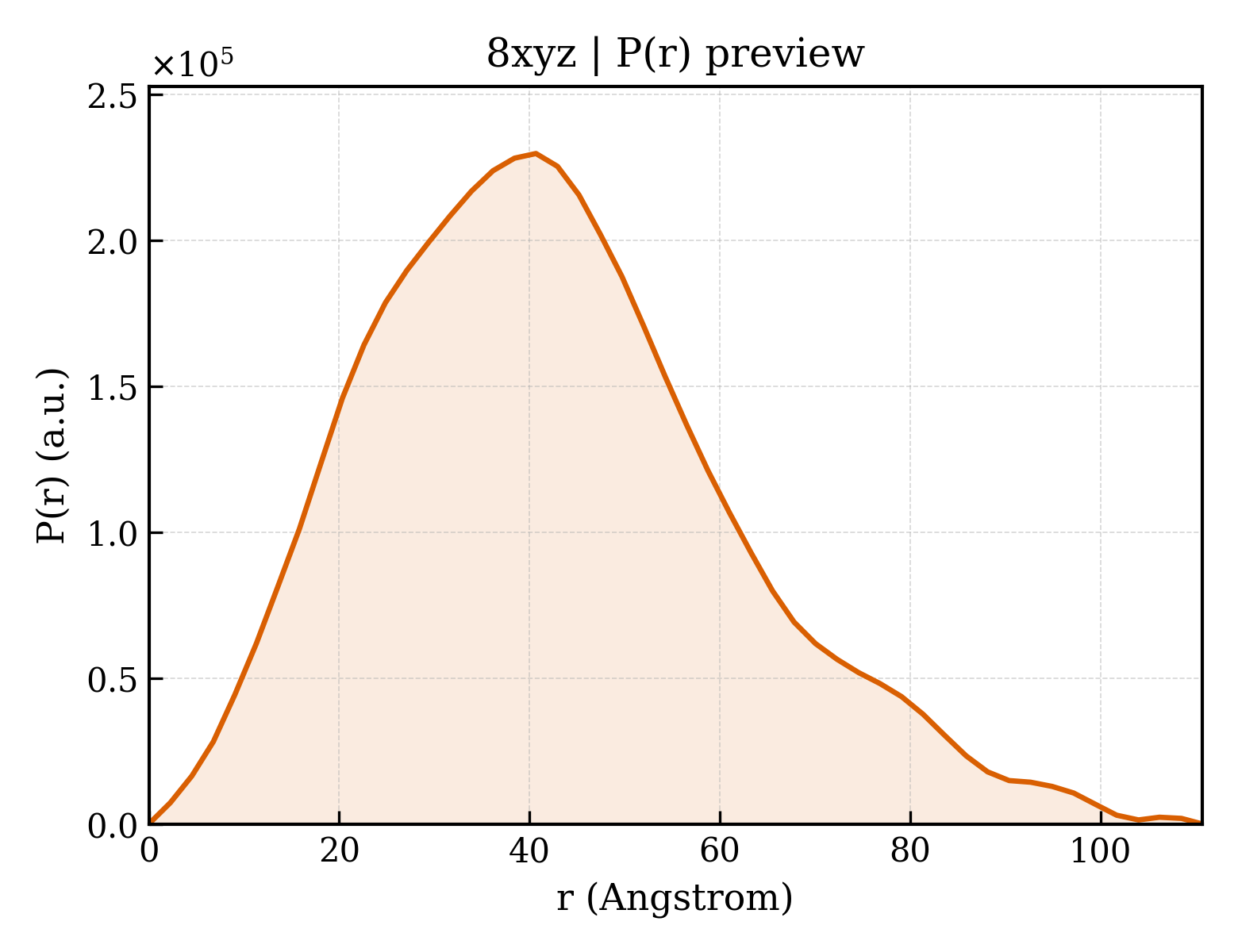

8xyz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.58 Å
Rg (electron density)	32.19 Å
Total Rg	32.77 Å
Atom count	6429
Residues	791
Excluded volume	113730 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8xyz__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Signal peptide, Spike protein S1
Molecular weight formula_weight	30635.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	6429

MSCVLLFPTAPGQRAGYCAVSSFWQRIRHHVCVSCASSSCVITMQSATTESIVRFPNITNLCPFGEVFNATRFASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCVIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFHHHHHH

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Angiotensin-converting enzyme
Molecular weight formula_weight	71030.8 kDa
EC 编号 ec_number	3.4.-.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MSGSSWLLLSLAALTAAQSTEDLVNTFLEKFNYEAEELSYQSSLASWDYNTNISDENVQKMNNAGAKWSAFYEEQSKLAKTYPLEEIQDSTVKRQLRALQHSGSSVLSADKNQRLNTILNSMSTIYSTGKACNPSNPQECLLLEPGLDDIMENSKDYNERLWAWEGWRSEVGKQLRPLYEEYVALKNEMARANNYEDYGDYWRGDYEEEWENGYNYSRNQLIDDVEHTFTQIMPLYQHLHAYVRTKLMDTYPSYISPTGCLPAHLLGDMWGRFWTNLYPLTVPFGQKPNIDVTNAMVNQSWDARKIFKEAEKFFVSVGLPNMTQGFWENSMLTEPSDSRKVVCHPTAWDLGKGDFRIKMCTKVTMDDFLTAHHEMGHIQYDMAYAAQPFLLRNGANEGFHEAVGEIMSLSAATPNHLKNIGLLPPSFFEDSETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKDQWMKTWWEMKRNIVGVVEPVPHDETYCDPASLFHVANDYSFIRYYTRTIYQFQFQEALCQIAKHEGPLHKCDISNSSEAGQKLLEMLKLGKSKPWTYALEIVVGAKNMDVRPLLNYFEPLFTWLKEQNRNSFVGWNTDWSPYA

Source Source

Source organism organism	Vulpes vulpes
Common name common_name	red fox
NCBI taxonomy ID ncbi_taxonomy_id	9627
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.96 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	217439
