8hc8

SARS-CoV-2 Omicron BA.1 spike trimer (6P) in complex with YB13-292 Fab, focused refinement of Fab region

Method: ELECTRON MICROSCOPY D_max: 111.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8hc8
沉积日期 deposition_date	2022-11-01
结构标题 title	SARS-CoV-2 Omicron BA.1 spike trimer (6P) in complex with YB13-292 Fab, focused refinement of Fab region
关键词 keywords	Spike protein, RBD, antibody, Fab, Viral protein, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.16 Å
回转半径 Rg (电子) rg_electron	33.39 Å
零角强度 I(0) i0	75954000.00
分子量 molecular_weight	68577.0 kDa
排除体积 excluded_volume	85487 Å³
包络体积 envelope_volume	118680 Å³
水化壳体积 shell_volume	32213 Å³
包络直径 envelope_diameter	117.8 Å
壳层 Rg shell_rg	36.99 Å
包络 Rg envelope_rg	33.21 Å
形状 Rg shape_rg	33.37 Å
总 Rg total_rg	33.77 Å
总原子数 total_atoms	4832
残基数 n_residues	628
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

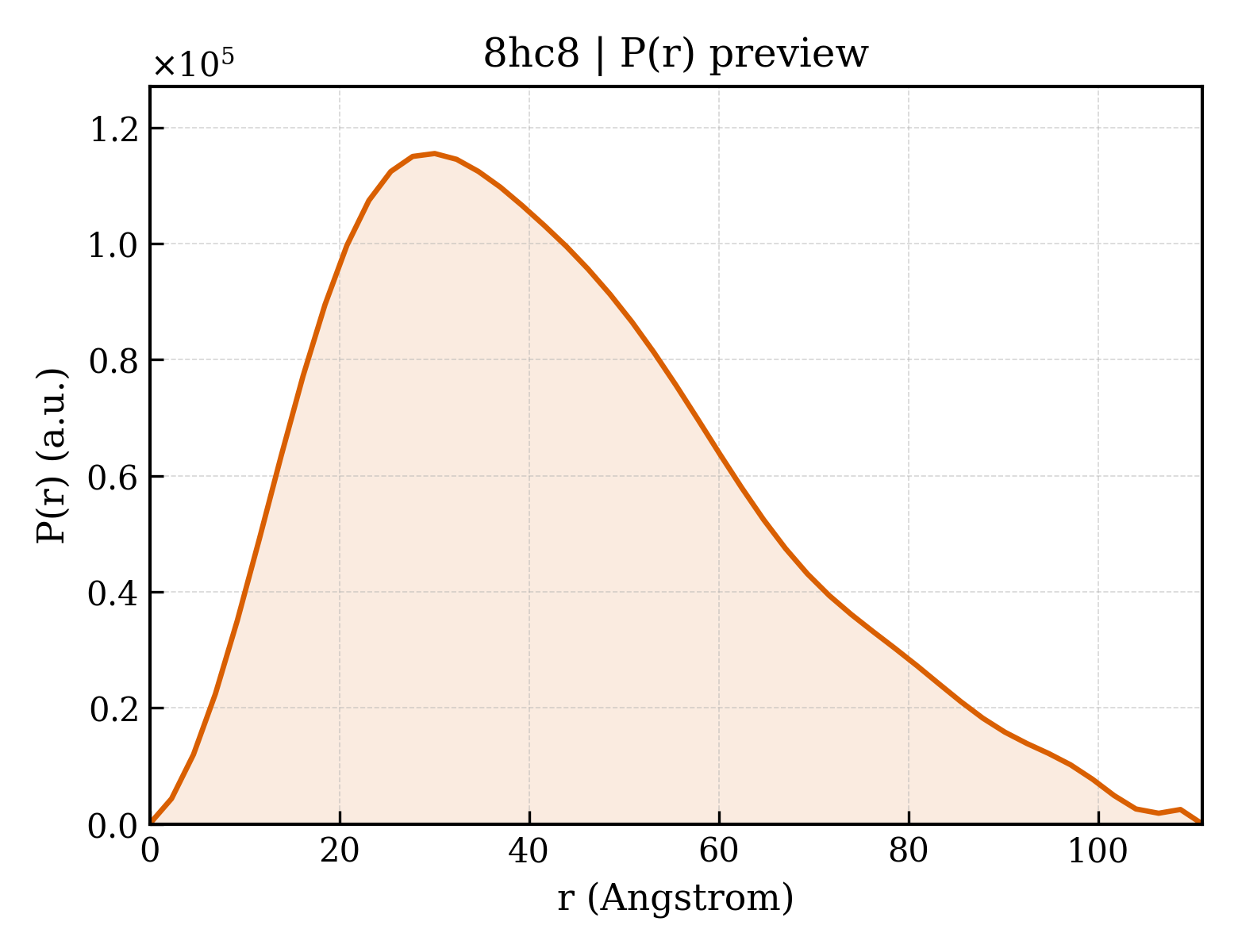

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	111.0 Å
Rg (实空间) rg_real	33.57 Å
Rg 误差 (实空间) rg_real_error	1.08 Å
I(0) (实空间) i0_real	7.5950e+07
I(0) 误差 (实空间) i0_real_error	1.2100e+06
Rg (倒空间) rg_reciprocal	33.40 Å
I(0) (倒空间) i0_reciprocal	75940000.0000
解质量估计 total_estimate	0.8176
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.1 Å
偏度 Skewness skewness	0.565
峰度 Kurtosis kurtosis	-0.235
角度范围 angular_range	— – 0.2400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	21390000.0000
实空间数据点数 n_real_points	49
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.815; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.765; Smooth: 0.417

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Spike protein S1
分子量 formula_weight	21332.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C
原子数 atom_count	4832

ITNLCPFDEVFNATRFASVYAWNRKRISNCVADYSVLYNLAPFFTFKCYGVSPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGNIADYNYKLPDDFTGCVIAWNSNKLDSKVSGNYNYLYRLFRKSNLKPFERDISTEIYQAGNKPCNGVAGFNCYFPLRSYSFRPTYGVGHQPYRVVVLSFEL

来源 Source

来源生物 organism	Severe acute respiratory syndrome coronavirus 2
通用名 common_name	2019-nCoV, SARS-CoV-2
NCBI 分类编号 ncbi_taxonomy_id	2697049
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Heavy chain of YB13-292 Fab
分子量 formula_weight	25283.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

EVQLVESGGGLVKPGGSLRLSCAASGFSFITYNMNWVRQAPGKGLEWVSSISSNILSSTSYIYYADSVKGRFTISRDDAANSLFLQMNSLRVEDTAQYYCARTRSRSVRNCTSATCPVDAFDLWGQGTMVIVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCD

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Light chain of YB13-292 Fab
分子量 formula_weight	23976.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

DIVLTQSPLSLPVTPGEPASISCRSSQSLLRSNGYNYLDWYLQKPGQSPHLLIYLGSNRASGVPDRFSGSGSGTDFTLKISRVEAEDVGVYYCMQALQTPYTFGQGTNLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

结构域编号 domain_id	8hc8H01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8hc8H02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8hc8L01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.95 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	210698

fit	/app/data/saxs_computation/hc/8hc8/8hc8.fit
pddf	/app/data/pr_computation/hc/8hc8/8hc8.pr.out
profile	/app/data/saxs_computation/hc/8hc8/8hc8.dat
