SAXSdb — 8xef

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;Spike protein S2' ;

Severe acute respiratory syndrome coronavirus 2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	GC2050 light chain × 1 GC2050 heavy chain × 1 GC2225 heavy chain × 1 GC2225 light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_SARS2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–195； UniProt 334–528

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8xef
Deposition date deposition_date	2023-12-11
Structure title title	Cocktail GC2050-GC2225
Keywords keywords	SARS-CoV-2 RBD, mAbs, cocktail, GC2050, GC2225, VIRAL PROTEIN, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8xef__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8xef__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

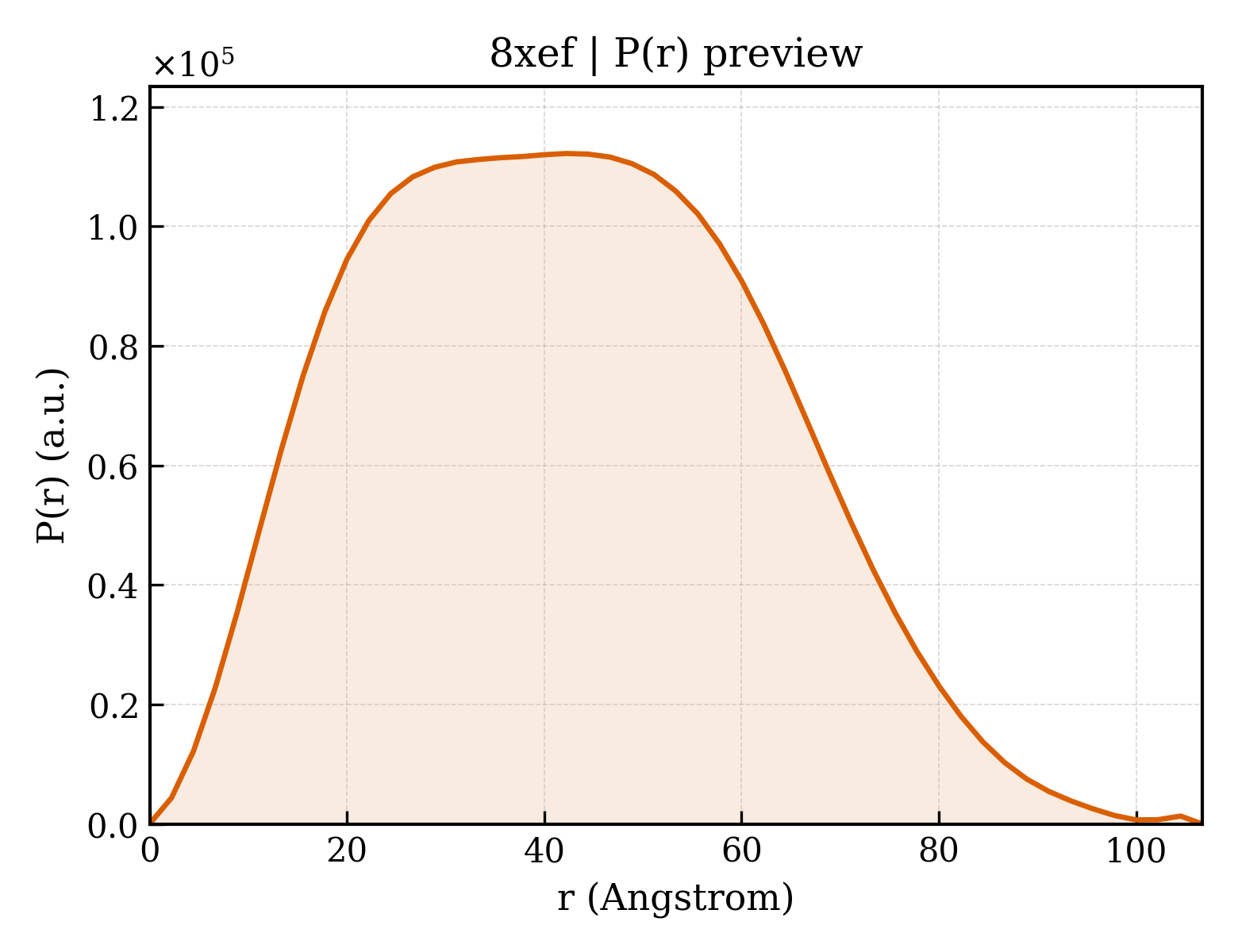

8xef__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.92 Å
Rg (electron density)	32.60 Å
Total Rg	33.35 Å
Atom count	5007
Residues	649
Excluded volume	88392 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8xef__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	;Spike protein S2' ;
Molecular weight formula_weight	21928.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5007

NLCPFHEVFNATTFASVYAWNRKRISNCVADYSVIYNFAPFFAFKCYGVSPTKLNDLCFTNVYADSFVIRGNEVSQIAPGQTGNIADYNYKLPDDFTGCVIAWNSNKLDSKPSGNYNYLYRLFRKSKLKPFERDISTEIYQAGNKPCNGVAGSNCYSPLQSYGFRPTYGVGHQPYRVVVLSFELLHAPATVCGPK

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	GC2050 light chain
Molecular weight formula_weight	13374.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

VQLQESGPGLLKPSQTLSLTCSVSGGSVSSTTYYWSWIRQHPGKGLEWIGYILYNWNSSYNPSLKSRVTISIDTSKNQFSLRLSSVTAADTAVYYCAGFGDYGGNSFWFDPWGQGTLVTVSS

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	GC2050 heavy chain
Molecular weight formula_weight	11172.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

LTQPPSVSVAPGKTARITCGGNNIGSKSVHWYQQKPGQAPALVIYYDSDRPSGIPERFSGSNSGNTATLTISRVEAGDEADYYCQVWDSSSDHPIFGTGTKVTVL

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	GC2225 heavy chain
Molecular weight formula_weight	13043.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

QVQLVQSGAEVKRPGSSVKVSCKASGGPFRKYAISWVRQAPGQGLEWMGSNIPVFEATHYAPKFQGRVTITADDSTSTAYMELSSLRSEDTAVYYCARGETVVATATLDYWGQGTLVTVSS

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	GC2225 light chain
Molecular weight formula_weight	11488.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

DIQMTQSPSSLSASVGDRVTIRCQASQDITNYLNWYQQKPGKAPKLLIFDASNLATGVPSRFSGSGSGTDFTFTISSLQAEDIATYFCQQYDDPLTFGGGTKVEIQ

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.41 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	130533
