SAXSdb — 8yze

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike glycoprotein,Fibritin,Expression Tag

synthetic construct

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	Angiotensin-converting enzyme 2 × 3 （Q9BYF1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_SARS2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 25–1211； UniProt 14–1208 Author chain B； PDBConstruct 25–1211； UniProt 14–1208 Author chain C； PDBConstruct 25–1211； UniProt 14–1208

Spike glycoprotein,Fibritin,Expression Tag

synthetic construct

UniProt P10104

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	Angiotensin-converting enzyme 2 × 3 （Q9BYF1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	WAC_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1214–1237； UniProt 458–481 Author chain B； PDBConstruct 1214–1237； UniProt 458–481 Author chain C； PDBConstruct 1214–1237； UniProt 458–481

Angiotensin-converting enzyme 2

Homo sapiens

UniProt Q9BYF1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	Spike glycoprotein,Fibritin,Expression Tag × 3 （P0DTC2,P10104）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACE2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain G； PDBConstruct 1–732； UniProt 1–732 Author chain H； PDBConstruct 1–732； UniProt 1–732 Author chain I； PDBConstruct 1–732； UniProt 1–732

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8yze
Deposition date deposition_date	2024-04-06
Structure title title	The JN.1 spike protein (S) in complex with ACE2.
Keywords keywords	ACE2, Viral protein; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8yze__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8yze__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

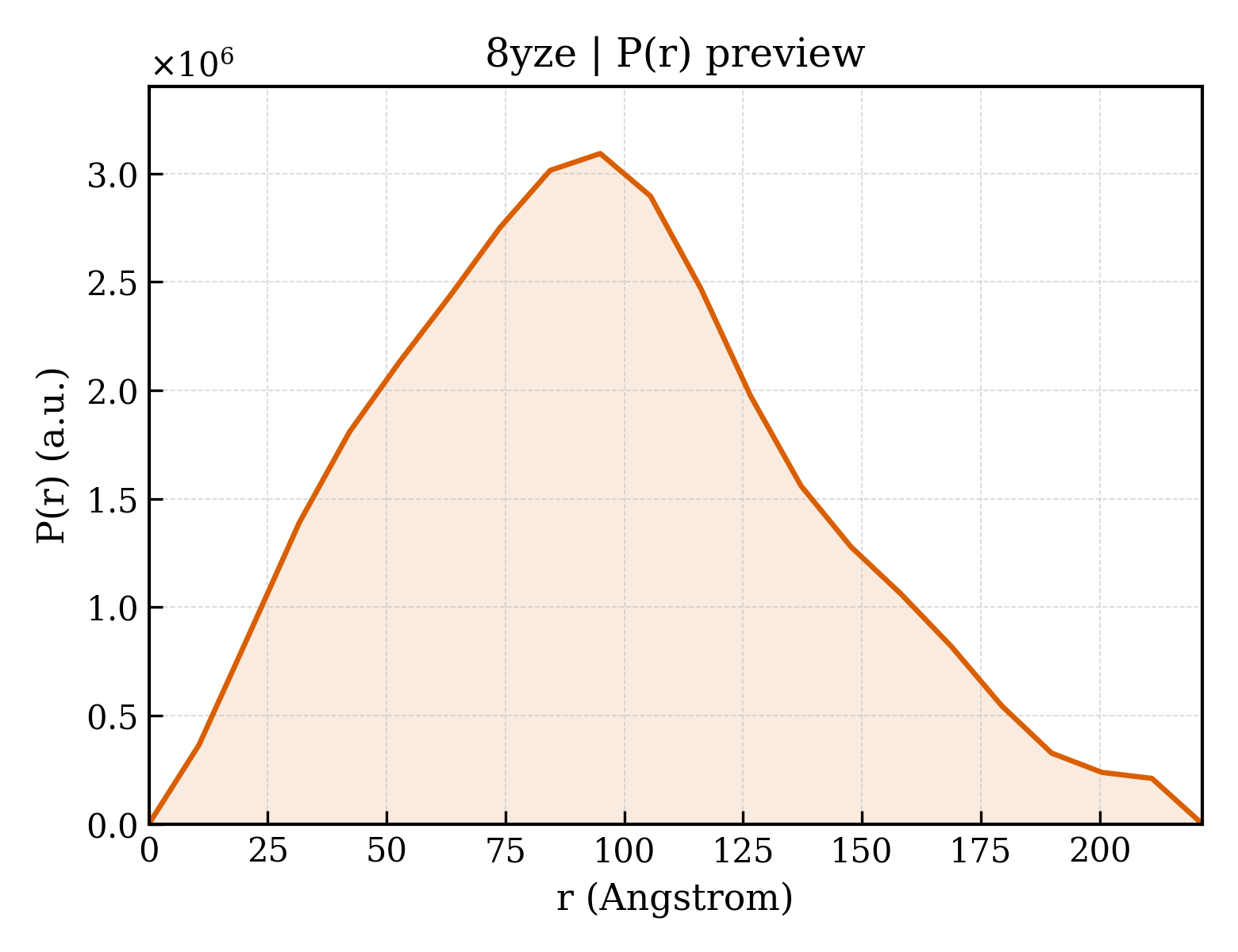

8yze__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	73.85 Å
Rg (electron density)	73.89 Å
Total Rg	73.70 Å
Atom count	38994
Residues	4893
Excluded volume	693400 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8yze__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Spike glycoprotein,Fibritin,Expression Tag
Molecular weight formula_weight	142863.3 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	38994

MPMGSLQPLATLYLLGMLVASVLAQCVNLITTTQSYTNSFTRGVYYPDKVFRSSVLHLTQDLFLPFFSNVTWFHAISGTNGTKRFDNPVLPFNDGVYFASTEKSNIIRGWIFGTTLDSKTQSLLIVNNATNFVIKVCEFQFCNDPFLDVYHKNNKSWMESESGVYSSANNCTFEYVSQPFLMDLEGKQGNFKNLREFVFKNIDGYFKIYSKHTPIIGRDFPQGFSALEPLVDLPIGINITRFQTLLALNRSYLTPGDSSSGWTAGAADYYVGYLQPRTFLLKYNENGTITDAVDCALDPLSETKCTLKSFTVEKGIYQTSNFRVQPTESIVRFPNVTNLCPFHEVFNATRFASVYAWNRTRISNCVADYSVLYNFAPFFAFKCYGVSPTKLNDLCFTNVYADSFVIKGNEVSQIAPGQTGNIADYNYKLPDDFTGCVIAWNSNKLDSKHSGNYDYWYRSFRKSKLKPFERDISTEIYQAGNKPCKGKGPNCYFPLQSYGFRPTYGVGHQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFNFNGLTGTGVLTKSNKKFLPFQQFGRDIVDTTDAVRDPQTLEILDITPCSFGGVSVITPGTNTSNQVAVLYQGVNCTEVSVAIHADQLTPTWRVYSTGSNVFQTRAGCLIGAEYVNNSYECDIPIGAGVCASYQTQTKSRGSASSVASQSIIAYTMSLGAENSVAYSNNSIAIPTNFTISVTTEILPVSMTKTSVDCTMYICGDSTECSNLLLQYGSFCTQLKRALTGIAVEQDKNTQEVFAQVKQIYKTPPIKYFGGFNFSQILPDPSKPSKRSPIEDLLFNKVTLADAGFIKQYGDCLGDIAARDLICAQKFNGLTVLPPLLTDEMIAQYTSALLAGTITSGWTFGAGPALQIPFPMQMAYRFNGIGVTQNVLYENQKLIANQFNSAIGKIQDSLFSTPSALGKLQDVVNHNAQALNTLVKQLSSKFGAISSVLNDILSRLDPPEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRASANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYVPAQEKNFTTAPAICHDGKAHFPREGVFVSNGTHWFVTQRNFYEPQIITTDNTFVSGNCDVVIGIVNNTVYDPLQLELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRLNEVAKNLNESLIDLQELGKYEQGSGYIPEAPRDGQAYVRKDGEWVFLSTFLSGLEVLFQGPGGWSHPQFEKGGGSGGGSGGSAWSHPQFEKGGSHHHHHHHH

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Angiotensin-converting enzyme 2
Molecular weight formula_weight	85831.8 kDa
EC 编号 ec_number	3.4.17.23,3.4.17.-
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I

MSSSSWLLLSLVAVTAAQSTIEEQAKTFLDKFNHEAEDLFYQSSLASWNYNTNITEENVQNMNNAGDKWSAFLKEQSTLAQMYPLQEIQNLTVKLQLQALQQNGSSVLSEDKSKRLNTILNTMSTIYSTGKVCNPDNPQECLLLEPGLNEIMANSLDYNERLWAWESWRSEVGKQLRPLYEEYVVLKNEMARANHYEDYGDYWRGDYEVNGVDGYDYSRGQLIEDVEHTFEEIKPLYEHLHAYVRAKLMNAYPSYISPIGCLPAHLLGDMWGRFWTNLYSLTVPFGQKPNIDVTDAMVDQAWDAQRIFKEAEKFFVSVGLPNMTQGFWENSMLTDPGNVQKAVCHPTAWDLGKGDFRILMCTKVTMDDFLTAHHEMGHIQYDMAYAAQPFLLRNGANEGFHEAVGEIMSLSAATPKHLKSIGLLSPDFQEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKDQWMKKWWEMKREIVGVVEPVPHDETYCDPASLFHVSNDYSFIRYYTRTLYQFQFQEALCQAAKHEGPLHKCDISNSTEAGQKLFNMLRLGKSEPWTLALENVVGAKNMNVRPLLNYFEPLFTWLKDQNKNSFVGWSTDWSPYADQSIKVRISLKSALGDKAYEWNDNEMYLFRSSVAYAMRQYFLKVKNQMILFGEEDVRVANLKPRISFNFFVTAPKNVSDIIPRTEVEKAIRMSRSRINDAFRLNDNSLEFLGIQPTLGSGHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.06 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	58284

The JN.1 spike protein (S) in complex with ACE2.
